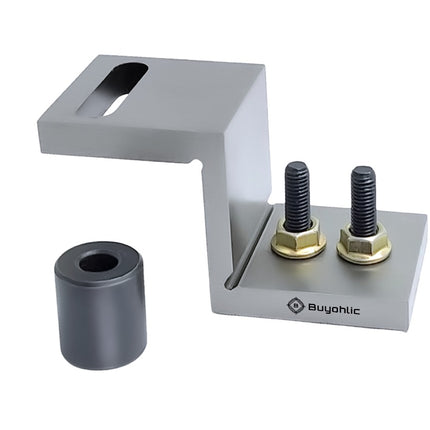

Used For: An angle plate is a work holding device used as a fixture in metalworking. A Z-type Angle plate is used to hold vertical slides square to the table during marking out operations.
-
Versatile Mounting Solution: Specifically designed for mounting vertical slides onto machine tools such as milling machines and lathes, this Z-type angle plate provides a versatile and sturdy platform for various machining operations.
-
Precision Machining: Crafted from high-quality materials with precision machining, ensuring exceptional accuracy and stability during vertical slide mounting, allowing for precise machining of workpieces with minimal deflection.
-
Optimal Design: The Z-type configuration offers optimal stability and rigidity, minimizing vibration and ensuring consistent machining performance, even during heavy-duty operations.
-
Secure Fixation: Features secure mounting holes and clamping surfaces, allowing for easy and secure attachment of the vertical slide to the angle plate, enhancing operator safety and workflow efficiency.
-
Adjustable Angle: Incorporates adjustable angle features, enabling operators to set the desired inclination for the vertical slide, facilitating customized machining setups and accommodating various machining requirements and workpiece geometries.
-
Durable Construction: Built to withstand the rigors of machining environments, the angle plate is constructed from durable materials, ensuring long-term reliability and performance under demanding conditions.
-
Enhanced Stability: Equipped with robust mounting points and reinforced structures, the angle plate provides enhanced stability and support for the vertical slide, minimizing movement and ensuring precise machining results.
-
Efficient Workflow: Designed for quick and easy installation, the angle plate streamlines workflow processes, allowing for swift setup and adjustment of the vertical slide, minimizing downtime and maximizing machining productivity.
-
Wide Range of Applications: Suitable for a variety of machining applications, including milling, drilling, and grinding, across diverse industries such as automotive, aerospace, and tool manufacturing, offering versatility for different machining needs.
-
Compatibility: Compatible with a range of vertical slides and machine tools, ensuring compatibility and ease of integration into existing machining setups, making it an ideal solution for both small-scale workshops and industrial manufacturing facilities.
-
Quality Assurance: Manufactured to stringent quality standards and subjected to thorough inspection processes, the angle plate guarantees superior quality, reliability, and performance, meeting the stringent demands of precision machining applications
