Description

CAD Design
Holder Size of Knurling Tool

Holder Size of Knurling Tool

The holder size of a knurling tool used on lathe machines. The tool features two knurling wheels designed to emboss patterns onto a rotating metal surface. The dimensions are clearly marked: it has a 3/8-inch shank height and width, making it suitable for tool posts that accept this size. The total length of the holder is 2-1/4 inches. A knurled knob on top adjusts pressure for uniform knurling. The compact size makes it ideal for precision work on smaller lathes. The tool is not meant to clamp but to press against the workpiece to create grip-enhancing textures.

Knurl Size Explained-Grip and Pattern

Knurl Size Explained-Grip and Pattern

A knurling tool featuring 1mm pitch medium knurls, ideal for creating balanced grip patterns on cylindrical surfaces. The knurls are made from hardened EN31 grade tool steel, known for high wear resistance and durability. The knurl wheels have dimensions of 3/4" diameter, 3/8" width, and a 1/4" bore, making them compatible with various knurling holders. These medium knurls are perfect for general-purpose applications, offering a good blend of grip and surface finish. The tool is suitable for lathes and ensures consistent, clean pattern embossing on rotating metal parts.

Clamp Capacity

Clamp Capacity

A spring-action clamp type knurling tool made of tool steel, designed for use on lathe machines. The highlighted feature is its clamp capacity of 5–20 mm, meaning it can effectively knurl cylindrical workpieces within that diameter range. The tool uses a spring-loaded mechanism to maintain consistent pressure on the rotating workpiece, ensuring even knurling without slippage. The two hardened knurl wheels emboss a textured pattern onto the metal surface to improve grip and appearance. Its compact size and adjustable design make it ideal for light to medium-duty knurling tasks on small components.

Crafted from high-Quality Tool Steel

Crafted from high-Quality Tool Steel

This knurling tool is manufactured using premium high-quality tool steel, known for its exceptional strength, wear resistance, and durability. The tool steel composition ensures: Superior Hardness – Maintains sharp knurling edges for long-lasting performance. High Wear Resistance – Withstands repeated use without deformation or excessive wear. Excellent Toughness – Resists chipping and breakage, even under high-pressure applications. Corrosion Resistance – Designed to endure harsh working conditions, ensuring longevity.

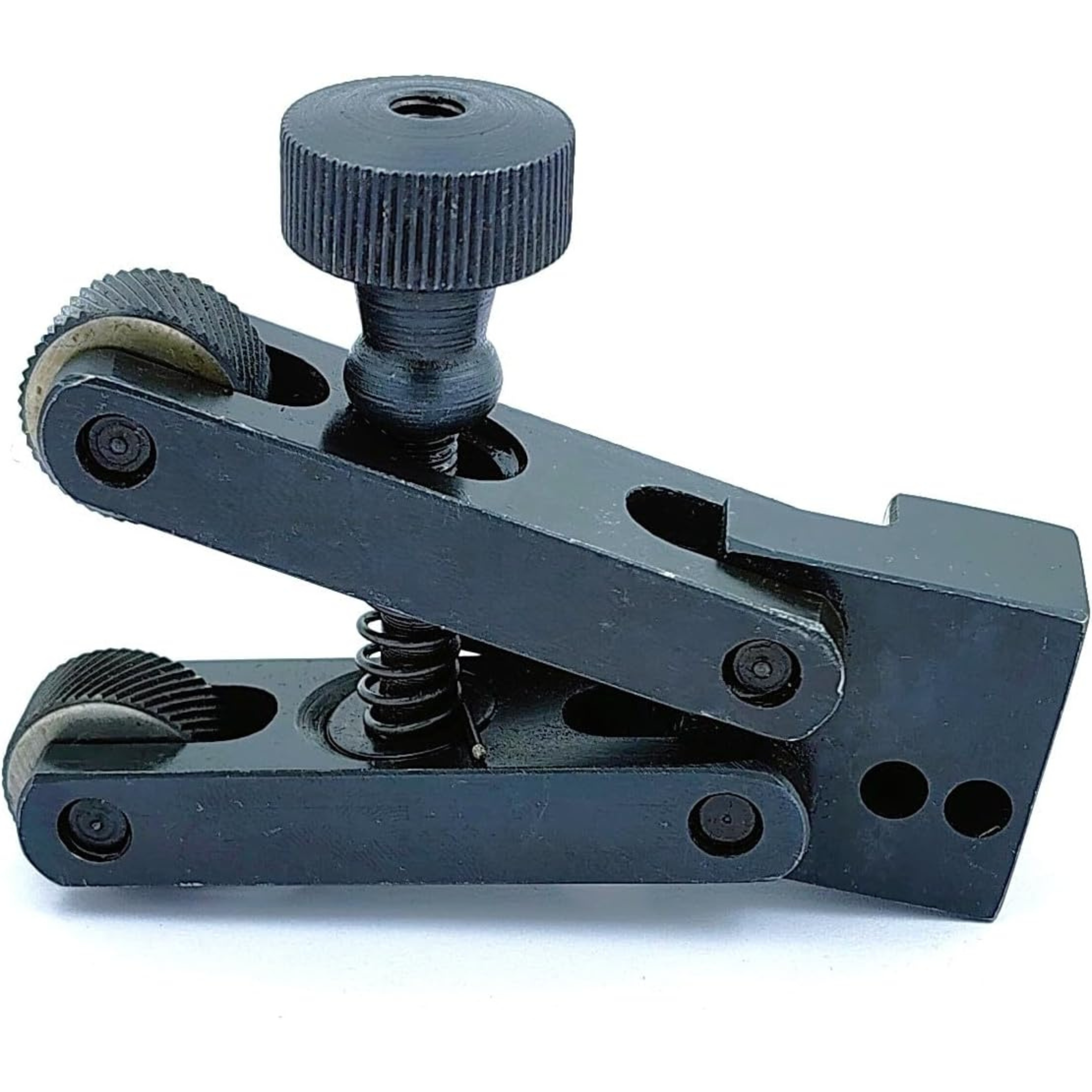

V Clamp Knurling Tool

Compact & Durable Knurling Tool for Precision Lathe Work
This compact knurling tool, made from premium tool steel, features 1mm pitch medium EN31 knurls for balanced grip on cylindrical surfaces. It fits 3/8" shanks, with a 2-1/4" holder length, and supports 5–20 mm workpiece diameters. The spring-action design ensures uniform pressure and clean, slip-free patterns. With superior hardness, wear resistance, and durability, it's ideal for precision knurling on smaller lathes in demanding environments.

  • High-Quality Tool Steel – Built from premium-grade steel for exceptional strength and wear resistance.
  • Precision Knurling – Features 1mm pitch medium EN31 knurls for clean, balanced patterns.
  • Spring-Loaded Action – Ensures uniform pressure and slip-free operation on rotating workpieces.
  • Compact Design – 3/8" shank and 2-1/4" length, ideal for small to mid-size lathes.
  • Versatile Capacity – Clamps and knurls cylindrical parts ranging from 5 to 20 mm in diameter.
Use Of V Clamp Knurling Tool

Use Of V Clamp Knurling Tool

The knurling tool is specifically designed for use with lathe machines to provide a textured finish to cylindrical metal objects. The tool comes with two hardened knurling wheels, fixed in place by a spring-loaded mechanism in a clamp. When the tool is positioned on a rotating metal object, the wheels are pressed firmly against the surface to emboss a particular design or pattern, such as a diamond or straight knurl. Such a design provides a better gripping force and a higher finish value to the metal objects. With the help of the knurled knob on the tool, the operator can control pressure precisely to perform knurling in a desired manner. For both industrial and home setups of a lathe machine, whether in a personal workshop or a professional setting, the knurling tool is capable of handling metal objects with different diameters, typically ranging from 5mm to 20mm in size.

Read more

V-Clamp Type Knurling Tool for 5 to 20 mm Small Capacity Work

    Product form

    $22.50 $19.34

    SKU: 10-KT-501
    Barcode: 8906183730142

    • No customs duty is charged on orders shipped from our USA, UK, and Australia warehouses. For orders shipped from the India warehouse, all applicable charges are already included in the product price.

      🚀LAUNCH OFFER: Get 10% Off with code: PRECISION10

      • Shipped today? Order within: Feb 12, 2026 17:00:00 -0600
      Delivery and Shipping

      What is the dispatch time, after placing an order ?

      We usually ship within 1 -2  working days from the date of order confirmation through a real time tracking AWB of Xpressbees, Delhivery, Ekart, DTDC ,Bluedart, Ecom & Shadowfax. The item will be delivered to you within 7-10 working days. In case of international shipping the item will be delivered in 8-12 working days.

      Is the Inventory readily available ?

      Yes, we only sell products that we have in ready stock for immediate dispatch to our prestigious customers

      What is the condition of the Items being shipped.

      All the items displayed on our website are brand new, unused and are shipped in our original packaging.

      How do I return an Item I purchased from your store ?

      The return process is pretty straight forward. Please refer to the below article to know about our return/ exchange and refund policies

      Can I send an order to another address ?

      Yes, you can send your order to another address other than your registered address. Either place the ship to address right there at the time of placing the order with us or send us an email immediately after placing an order before we dispatch your order.

      Description

      CAD Design
      Holder Size of Knurling Tool

      Holder Size of Knurling Tool

      The holder size of a knurling tool used on lathe machines. The tool features two knurling wheels designed to emboss patterns onto a rotating metal surface. The dimensions are clearly marked: it has a 3/8-inch shank height and width, making it suitable for tool posts that accept this size. The total length of the holder is 2-1/4 inches. A knurled knob on top adjusts pressure for uniform knurling. The compact size makes it ideal for precision work on smaller lathes. The tool is not meant to clamp but to press against the workpiece to create grip-enhancing textures.

      Knurl Size Explained-Grip and Pattern

      Knurl Size Explained-Grip and Pattern

      A knurling tool featuring 1mm pitch medium knurls, ideal for creating balanced grip patterns on cylindrical surfaces. The knurls are made from hardened EN31 grade tool steel, known for high wear resistance and durability. The knurl wheels have dimensions of 3/4" diameter, 3/8" width, and a 1/4" bore, making them compatible with various knurling holders. These medium knurls are perfect for general-purpose applications, offering a good blend of grip and surface finish. The tool is suitable for lathes and ensures consistent, clean pattern embossing on rotating metal parts.

      Clamp Capacity

      Clamp Capacity

      A spring-action clamp type knurling tool made of tool steel, designed for use on lathe machines. The highlighted feature is its clamp capacity of 5–20 mm, meaning it can effectively knurl cylindrical workpieces within that diameter range. The tool uses a spring-loaded mechanism to maintain consistent pressure on the rotating workpiece, ensuring even knurling without slippage. The two hardened knurl wheels emboss a textured pattern onto the metal surface to improve grip and appearance. Its compact size and adjustable design make it ideal for light to medium-duty knurling tasks on small components.

      Crafted from high-Quality Tool Steel

      Crafted from high-Quality Tool Steel

      This knurling tool is manufactured using premium high-quality tool steel, known for its exceptional strength, wear resistance, and durability. The tool steel composition ensures: Superior Hardness – Maintains sharp knurling edges for long-lasting performance. High Wear Resistance – Withstands repeated use without deformation or excessive wear. Excellent Toughness – Resists chipping and breakage, even under high-pressure applications. Corrosion Resistance – Designed to endure harsh working conditions, ensuring longevity.

      V Clamp Knurling Tool

      Compact & Durable Knurling Tool for Precision Lathe Work
      This compact knurling tool, made from premium tool steel, features 1mm pitch medium EN31 knurls for balanced grip on cylindrical surfaces. It fits 3/8" shanks, with a 2-1/4" holder length, and supports 5–20 mm workpiece diameters. The spring-action design ensures uniform pressure and clean, slip-free patterns. With superior hardness, wear resistance, and durability, it's ideal for precision knurling on smaller lathes in demanding environments.

      • High-Quality Tool Steel – Built from premium-grade steel for exceptional strength and wear resistance.
      • Precision Knurling – Features 1mm pitch medium EN31 knurls for clean, balanced patterns.
      • Spring-Loaded Action – Ensures uniform pressure and slip-free operation on rotating workpieces.
      • Compact Design – 3/8" shank and 2-1/4" length, ideal for small to mid-size lathes.
      • Versatile Capacity – Clamps and knurls cylindrical parts ranging from 5 to 20 mm in diameter.
      Use Of V Clamp Knurling Tool

      Use Of V Clamp Knurling Tool

      The knurling tool is specifically designed for use with lathe machines to provide a textured finish to cylindrical metal objects. The tool comes with two hardened knurling wheels, fixed in place by a spring-loaded mechanism in a clamp. When the tool is positioned on a rotating metal object, the wheels are pressed firmly against the surface to emboss a particular design or pattern, such as a diamond or straight knurl. Such a design provides a better gripping force and a higher finish value to the metal objects. With the help of the knurled knob on the tool, the operator can control pressure precisely to perform knurling in a desired manner. For both industrial and home setups of a lathe machine, whether in a personal workshop or a professional setting, the knurling tool is capable of handling metal objects with different diameters, typically ranging from 5mm to 20mm in size.

      Read more
