Description

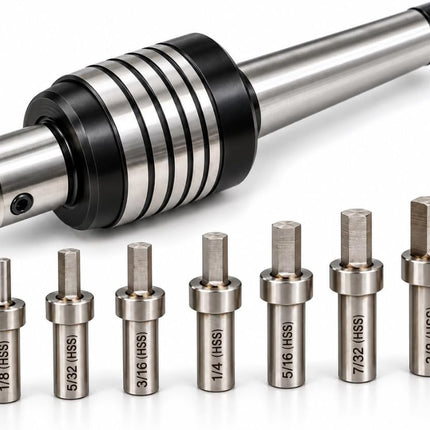

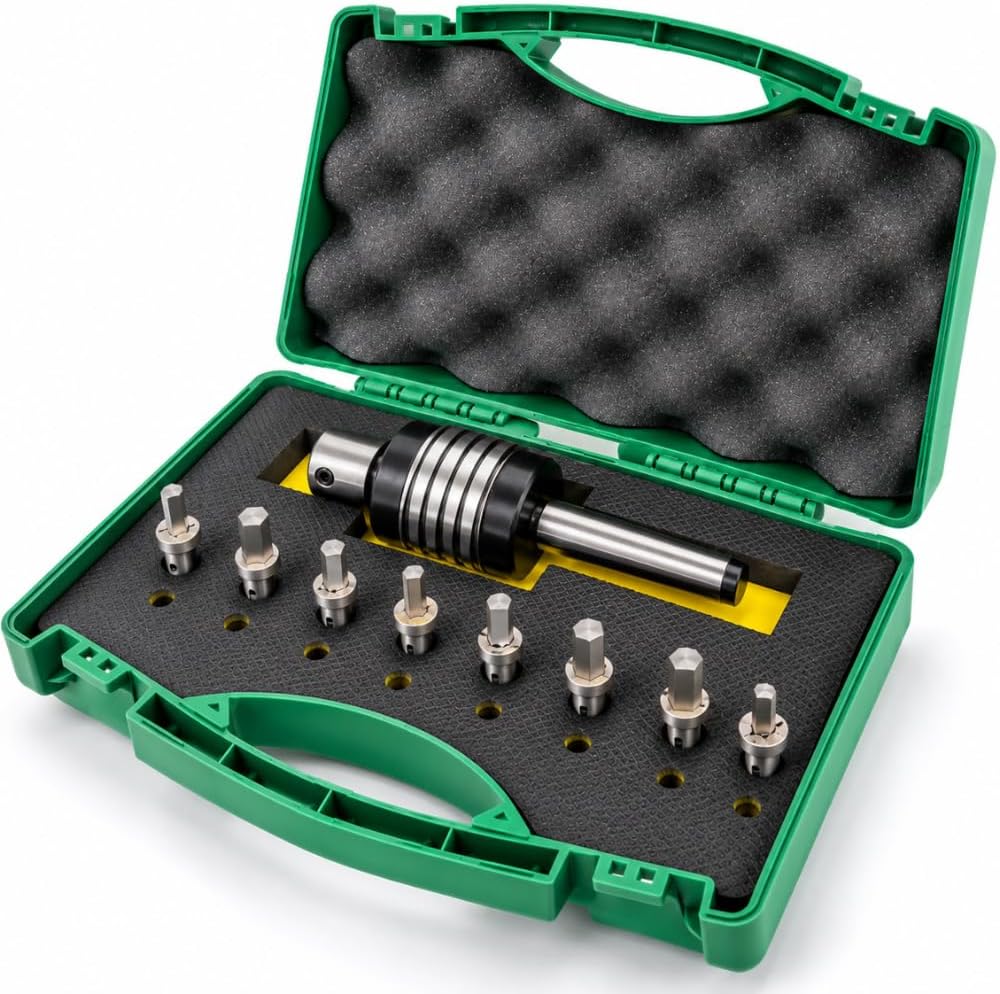

Live Centre with HSS Tool Bit Broach Set

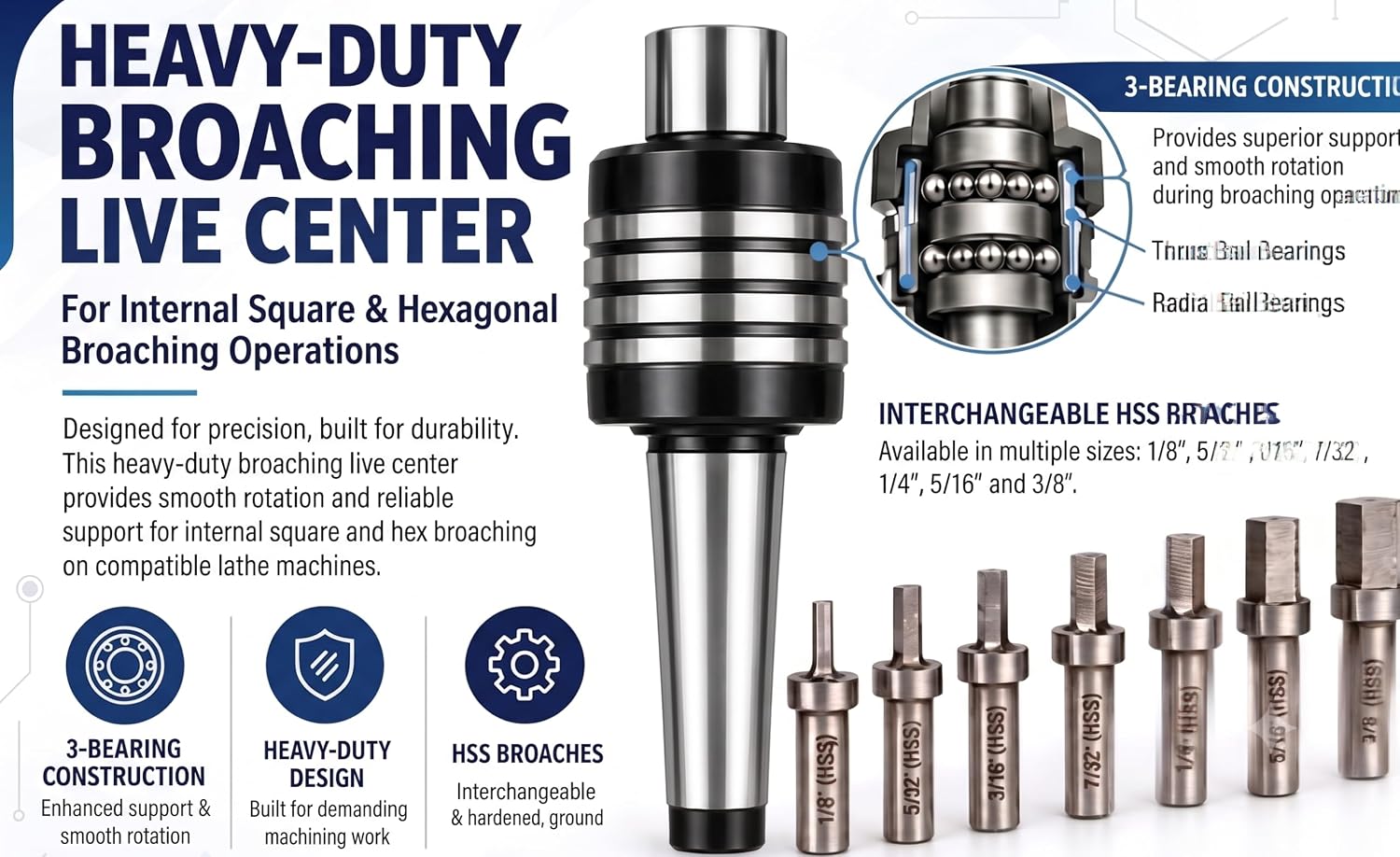

Enhance your precision machining with the Triple Bearing Live Revolving Centre—designed for durability and stability in demanding workshop environments.

Features:

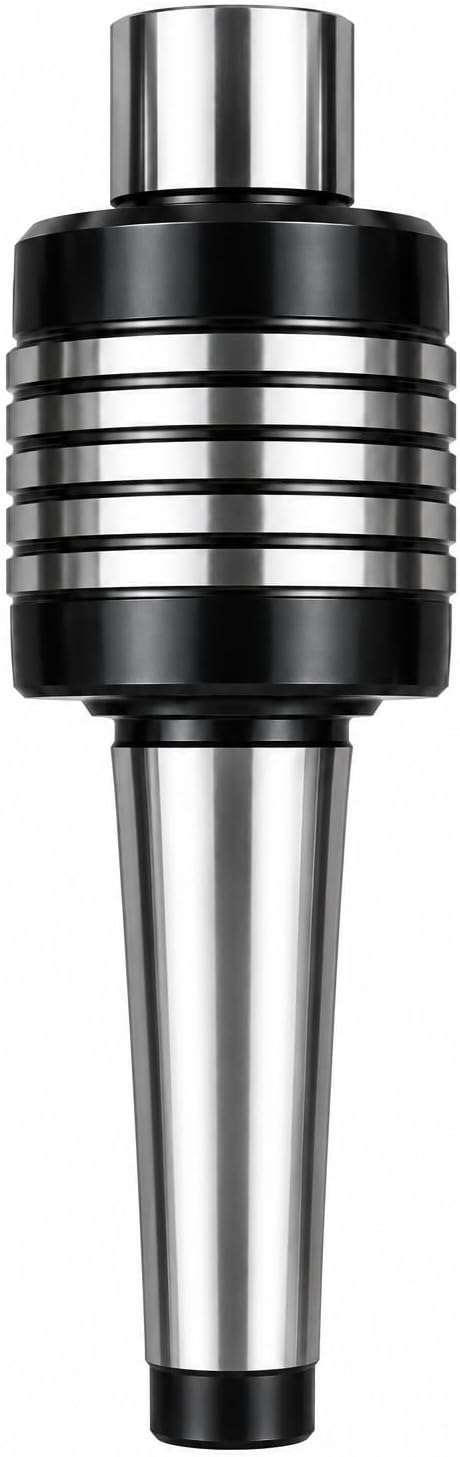

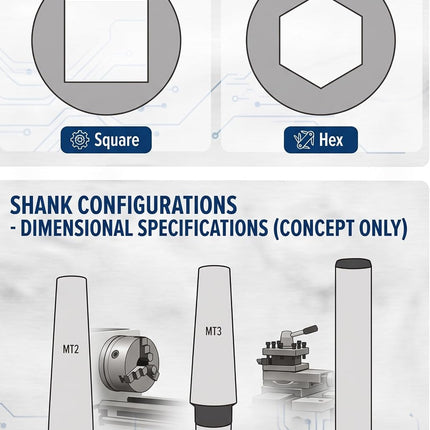

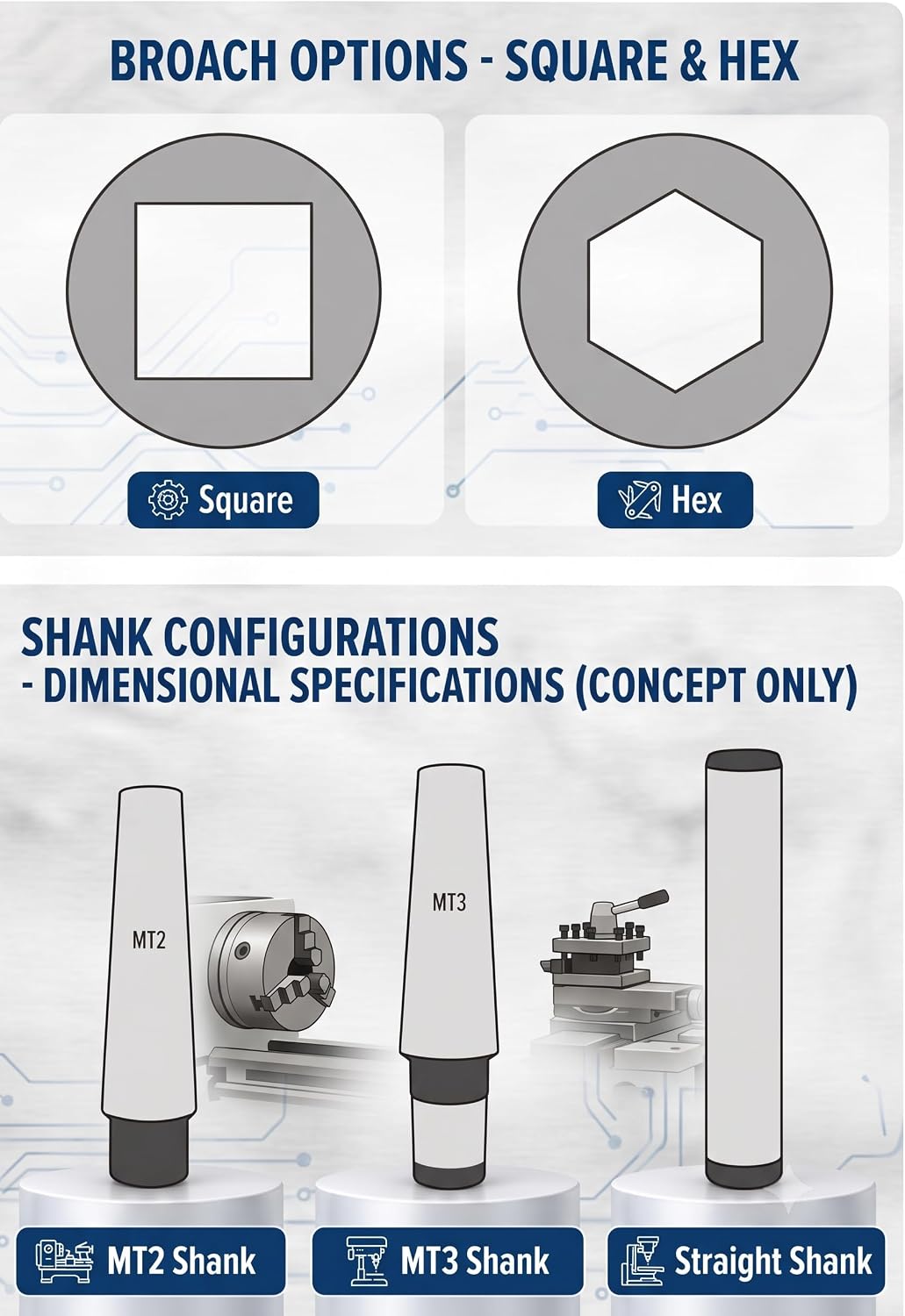

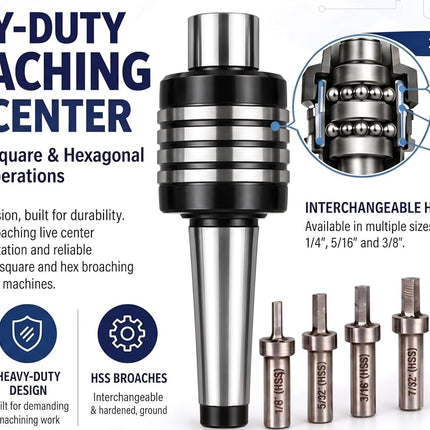

  • Precision Live Centre: Double bearing MT1, 2 & 3 shanks ensure smooth and accurate rotation.
  • High-Quality Broaching Tool: Comes with multiple options of robust HSS square & Hex broaches for efficient internal broaching.

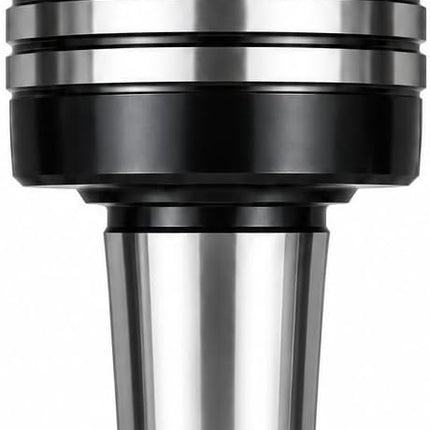

  • Sturdy Design: 50 mm diameter body provides excellent stability during machining.
  • Secure Bit Mounting: HSS tool bit (7.95 mm shank) is firmly held in place with a grub screw for safety and reliability.
  • Extended Reach: 120 mm overall length, including broach bit (but excluding shank that goes inside the lathe's tailstock), suits a variety of applications.

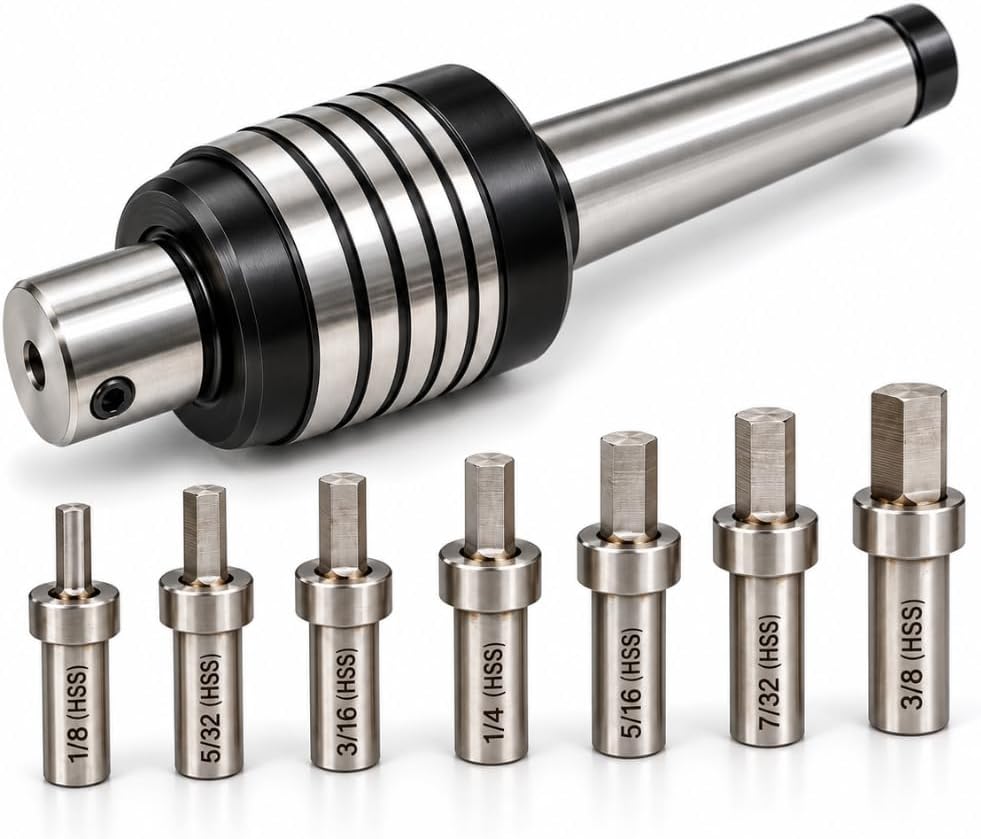

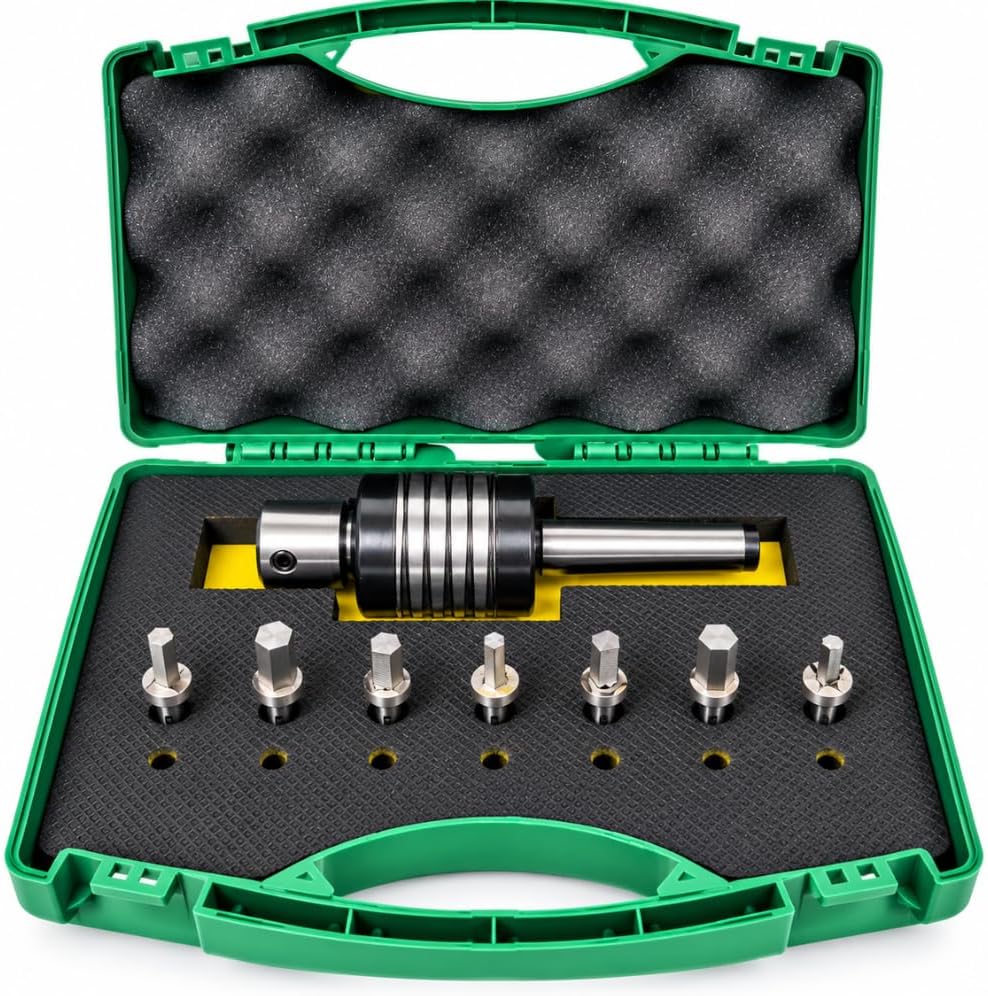

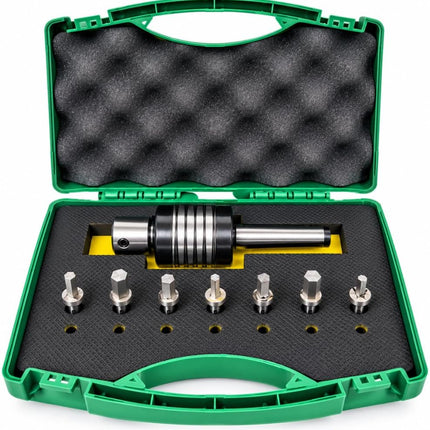

  • Complete Square Broach Set: Includes 7 HSS square broaches — 1/8", 5/32", 3/16", 7/32", 1/4", 5/16", and 3/8".
  • Complete Hex Broach Set: Includes 7 HSS Hex broaches — 1/8", 5/32", 3/16", 7/32", 1/4", 5/16", and 3/8".
  • Workshop-Ready: Ideal for professionals in manufacturing and precision metalworking!

Effective Broaching Instructions (Lathe Setup)

Safety First

  • Always wear eye protection.
  • Ensure the workpiece is securely clamped.
  • Do not exceed recommended speeds.
  • Keepyour hands clear during operation.

Setup Steps

  1. Prepare the Workpiece
    • Drill or bore a pilot hole through the workpiece.
    • The hole should match the minor dimension of the broach (i.e., just smaller than the square size).
    • Ensure the hole is ccentredand free of burrs.
  2. Install the Live Centre Tool
    • Mount the live centre with the broaching tool in your lathe tailstock.
    • Ensure the broaching tool is securely locked in place with the grub screw.
  3. Align the Lathe
    • Line up the live centre and the chuck so they are perfectly concentric.
    • The broach should enter the pilot hole cleanly and without resistance.
  4. Set the Speed
    • Broaching is a low-speed process.
    • Set your lathe to manual feed mode, ideally under 100 RPM if rotation is required (some setups use no rotation at all—just linear feed).
  5. Begin Broaching
    • Advance the tailstock slowly and steadily.
    • Let the broach shave material gradually; do not force it.
    • Use cutting fluid (like light oil or tapping fluid) to improve finish and reduce tool wear.
  6. Withdraw and Clear Chips
    • After each pass, retract the tailstock.
    • Clean chips from the broach flutes using a brush or air (never your fingers!).
    • You may need to make multiple light passes for deeper broaching.
  7. Inspect the Broached Hole
    • Check for smoothness, squareness, and full depth.
    • Use a square broach gauge or test fit the corresponding square shaft.

Pro Tips

  • For deep broaches, use intermediate shims or spacers to support multiple passes.
  • When broaching tough materials like stainless steel, reduce feed pressure and apply generous lubrication.
  • Keep broaches sharp and clean for best results

Read more

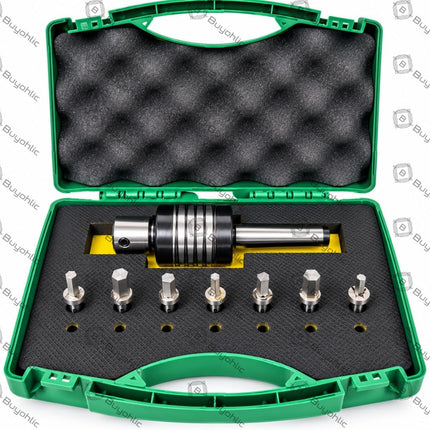

Lathe Live Revolving Tailstock Center with HSS Hardened Broaches Precision Centre

    Product form

    $999.00 $499.00

    SKU: 10-RC-2901
    Barcode: 6150000749714

    • No customs duty is charged on orders shipped from our USA, UK, and Australia warehouses. For orders shipped from the India warehouse, all applicable charges are already included in the product price.

    Not in stock - Pre order
