Description

Description :

Functions For Parting & Grooving Block:

Parting and grooving tool blocks are compatible with NCIH, SLIH, and QE blade holders, primarily used on lathe machines for grooving or parting materials. These blocks provide high precision and stability during machining by securely mounting the blade holders, meeting the requirements for various materials and machining needs.

Usage:

Select the Tool Block: Choose the appropriate center height (6mm, 8mm, 10mm, 12mm, 16mm, 20mm, 25mm, 32mm) based on machining needs.
Install the Blade Holder: Mount the NCIH, SLIH, or QE blade holder onto the tool block securely to ensure no looseness.
Secure the Insert: Install the compatible insert onto the blade holder and fasten it with the clamping mechanism.
Adjust the Center Height: Attach the tool block to the lathe tool post and align the tool’s center height with the workpiece to ensure machining accuracy.
Start Machining: Set the appropriate speed and feed rate based on the machining requirements and perform the grooving or parting operations.

Precautions:

Model Compatibility: Ensure the tool block is compatible with the blade holder model and select the suitable insert type based on the workpiece material.
Secure Installation: Ensure the blade holder and insert are firmly installed to prevent displacement or vibration during machining.
Center Alignment: Adjust the tool’s center height accurately to avoid deviations or workpiece damage during machining.
Cutting Parameters: Choose proper cutting parameters based on material hardness and machining depth to prevent overloading, which could damage the insert or tool block.
Regular Inspection: Check the tool block, blade holder, and insert for wear or damage before use to ensure machining stability and safety.
Safety Measures: Wear protective gear during machining to prevent accidents caused by chips or tools.

Advantage

Efficient and Reliable Service
Wayleading Tools, your one-stop supplier for cutting tools, machinery accessories, measuring tools. As an integrated industrial powerhouse, we take immense pride in our Efficient and Reliable Service, tailored to meet the diverse needs of our esteemed clientele.

Good Quality
At Wayleading Tools, our commitment to Good Quality sets us apart as a formidable force in the industry. As an integrated powerhouse, we offer a diverse range of cutting-edge industrial solutions, providing you with the finest cutting tools, precise measuring instruments, and reliable machine tool accessories.

T-Type Parting / Cut-Off Tool Holder with option of

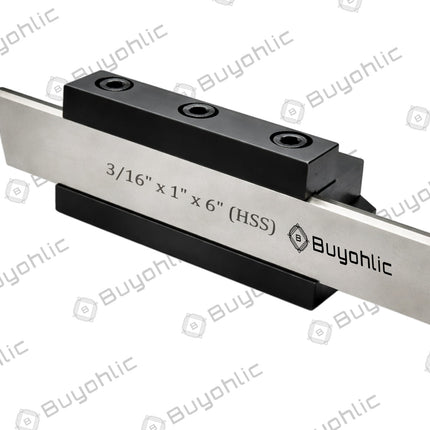

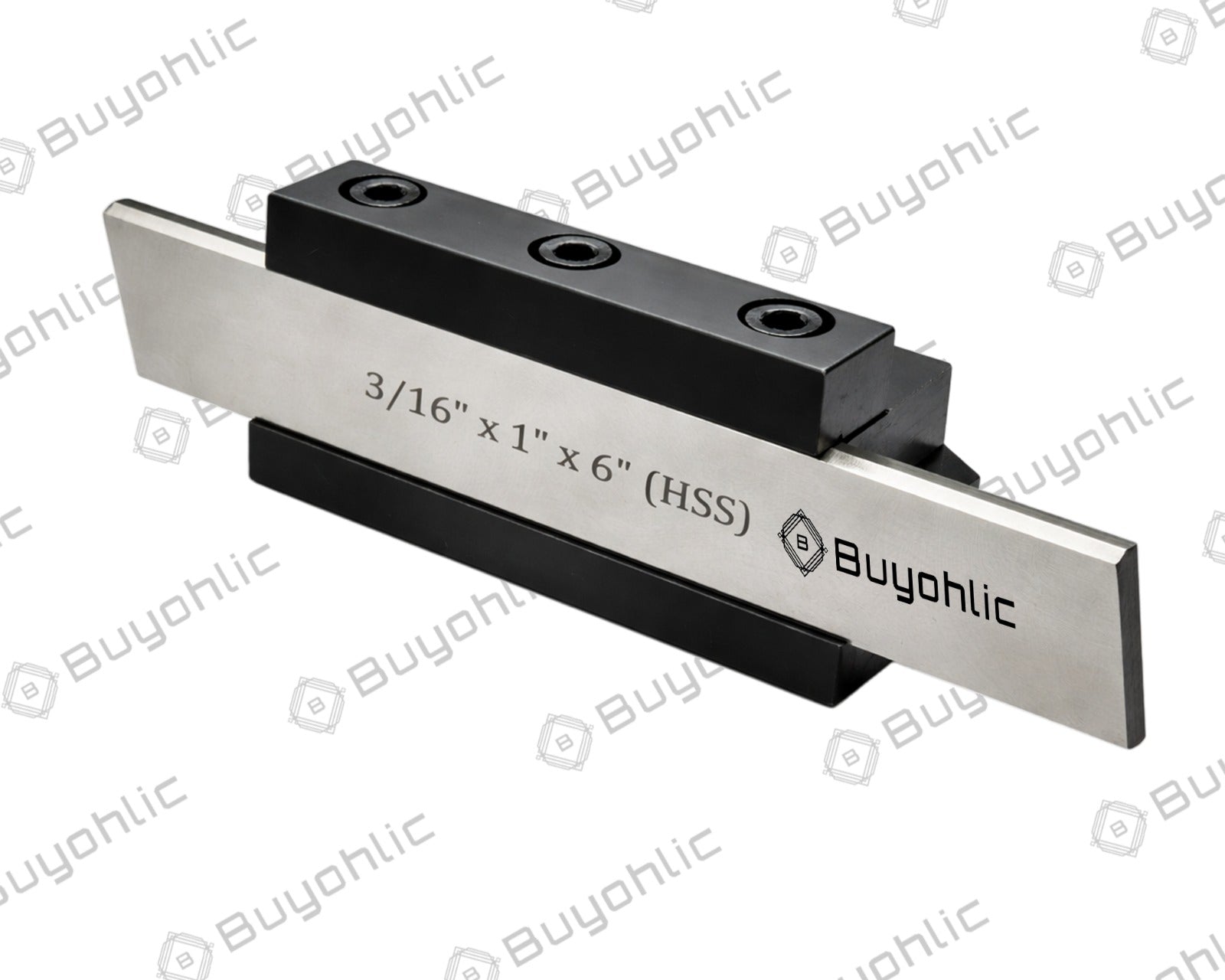

  • HSS Blade – 3/16" x 1" x 6"

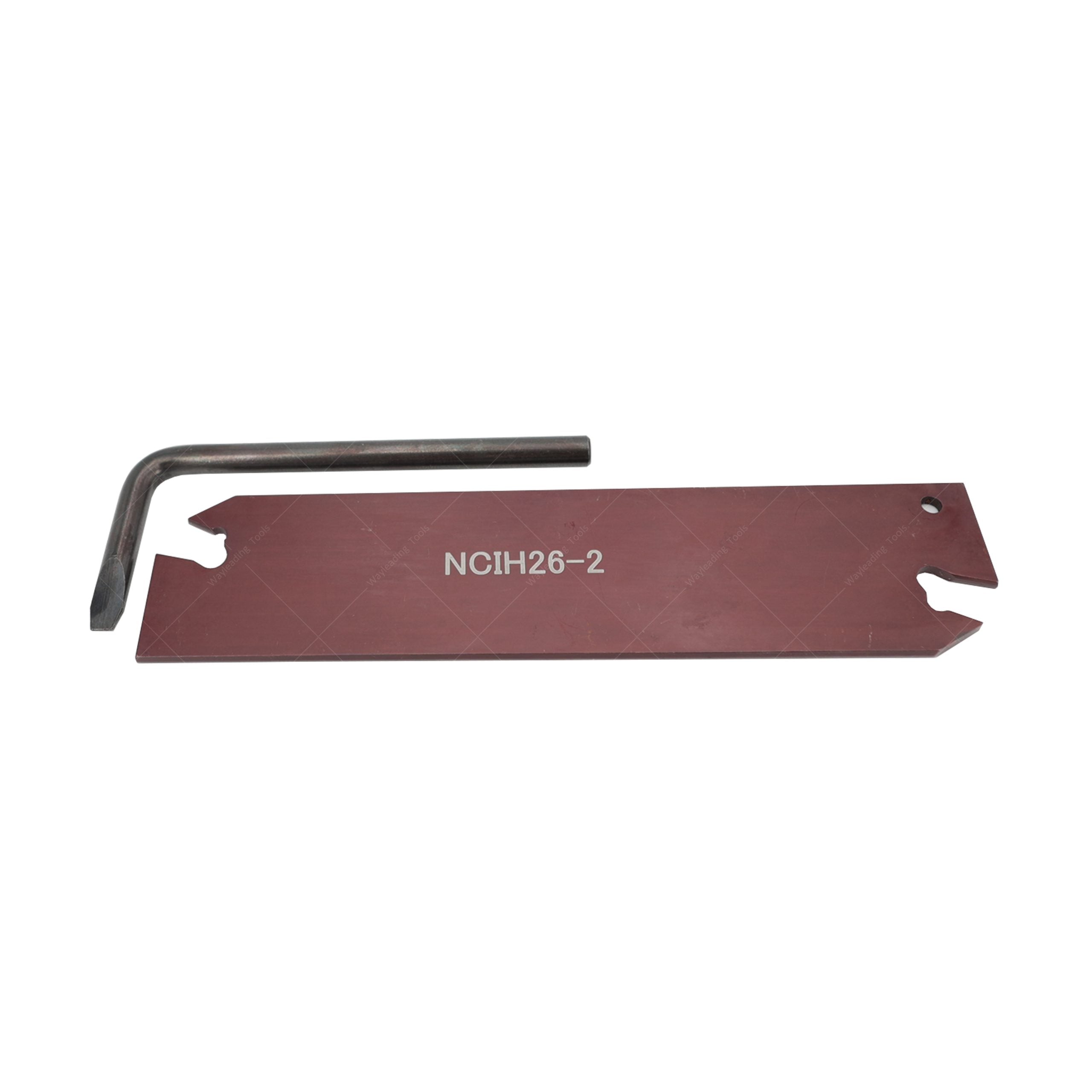

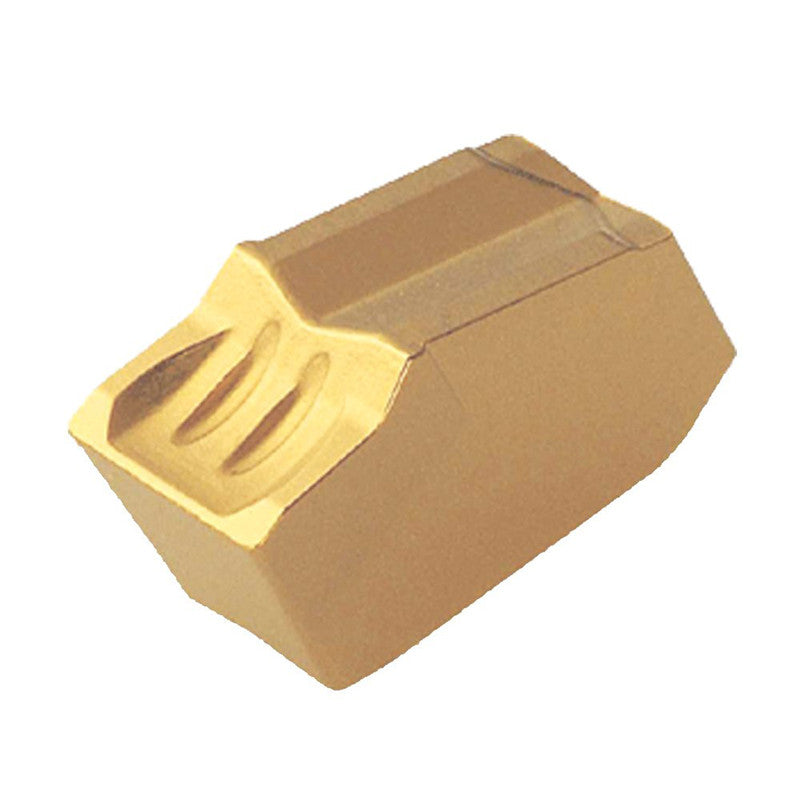

  • NCIH Blade with Inserts

This T-Type Parting and Cut-Off Tool Holder is designed for precision cutting and parting operations on lathe machines. The holder securely clamps a High Speed Steel (HSS) blade, providing excellent rigidity and vibration resistance during machining.

We also offer this in NCIH blade with carbide insert options. Pls check carefully and chose from the drop down accordingly as per your needs.

The heavy-duty tool holder body ensures stable performance while cutting steel, aluminum, brass, and other metals. Its robust clamping system with multiple screws holds the blade firmly in position for accurate and smooth parting operations.

This tool is widely used in machine shops, tool rooms, and industrial workshops for grooving and parting applications.

  • Key Features
  • Heavy-duty T-Type parting tool holder design
  • Made to hold High Speed Steel (HSS) parting blade
  • Strong clamping system with 3 locking screws
  • Provides excellent rigidity and vibration control
  • Hardened & Precisely ground to hold the blade in close tolerances to avoid any vibration during cutting.
  • Suitable for precision parting and grooving operations
  • Ideal for lathe machines and tool room applications

Specifications

Mode h=h1 b L B A Suitable Blade Order No.
SLTBN06-02 6 12 56 25 13 NCIH19 660-9000
SLTBN08-02 8 12 56 25 11 NCIH19 660-9001
SLTBN10-02 10 12 56 25 9 NCIH19 660-9002
SLTBN12-02 12 12 56 25 7 NCIH19 660-9003
SLTBN16-02 16 16 76 30 5 NCIH19 660-9004
SLTBN16-05 16 19 88 38 13 NCIH26 660-9005
SLTBN20-05 20 19 88 38 9 NCIH26 660-9006
SLTBN25-05 25 23 100 42 4 NCIH26 660-9007
SLTBN20-06 20 19 100 38 13 NCIH32 660-9008
SLTBN25-06 25 19 110 38 8 NCIH32 660-9009
SLTBN32-06 32 32 110 46 48 NCIH32 660-9010



Read more

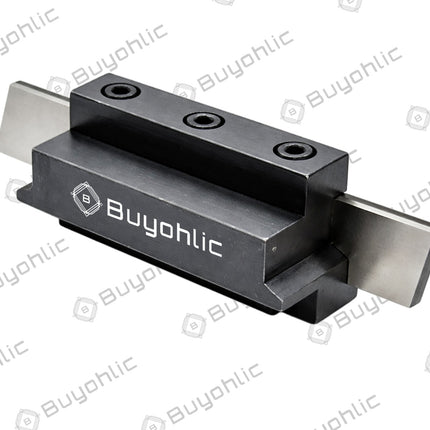

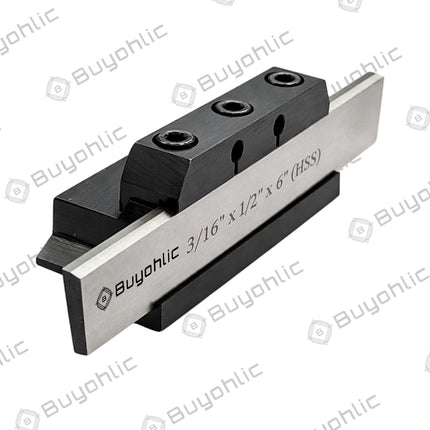

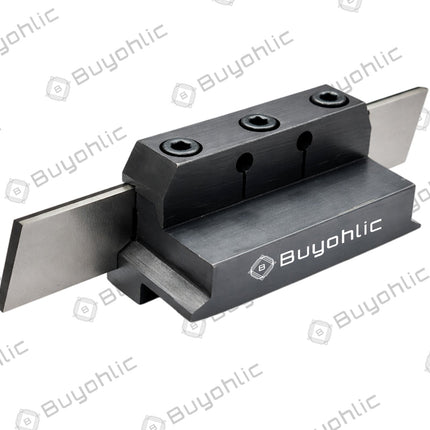

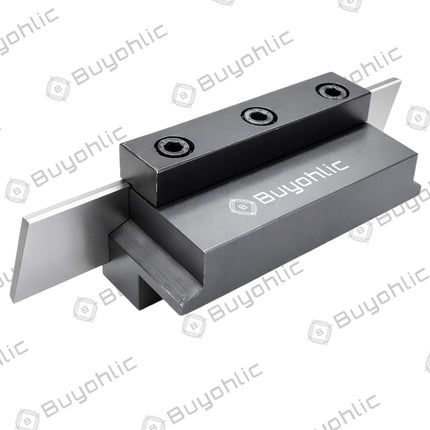

Rigid T-Parting Cut Off Holder & Grooving Tool Block For CNC Lathe Machine

    Product form

    $49.99

    SKU: 10-PH-501
