Description

Use of Product

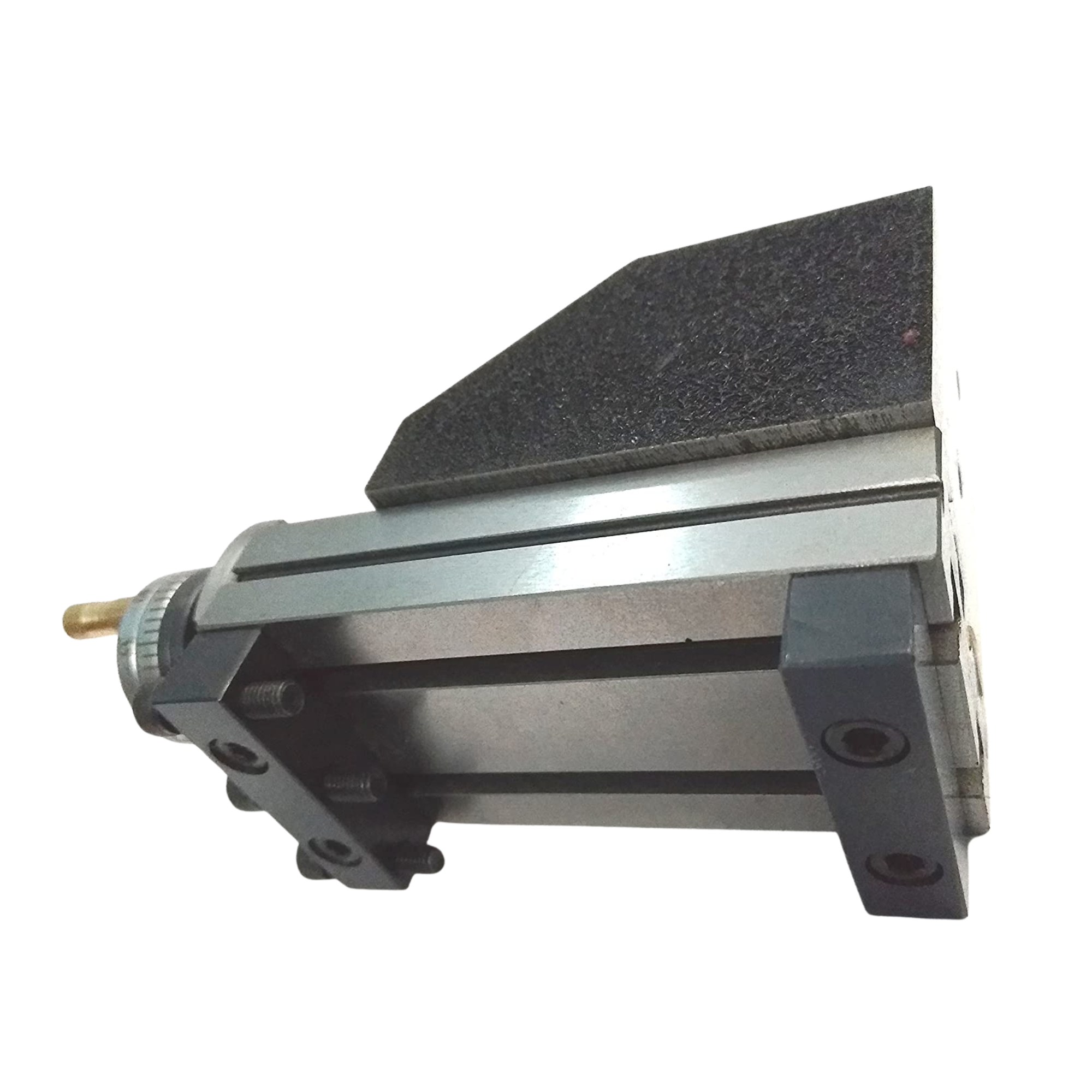

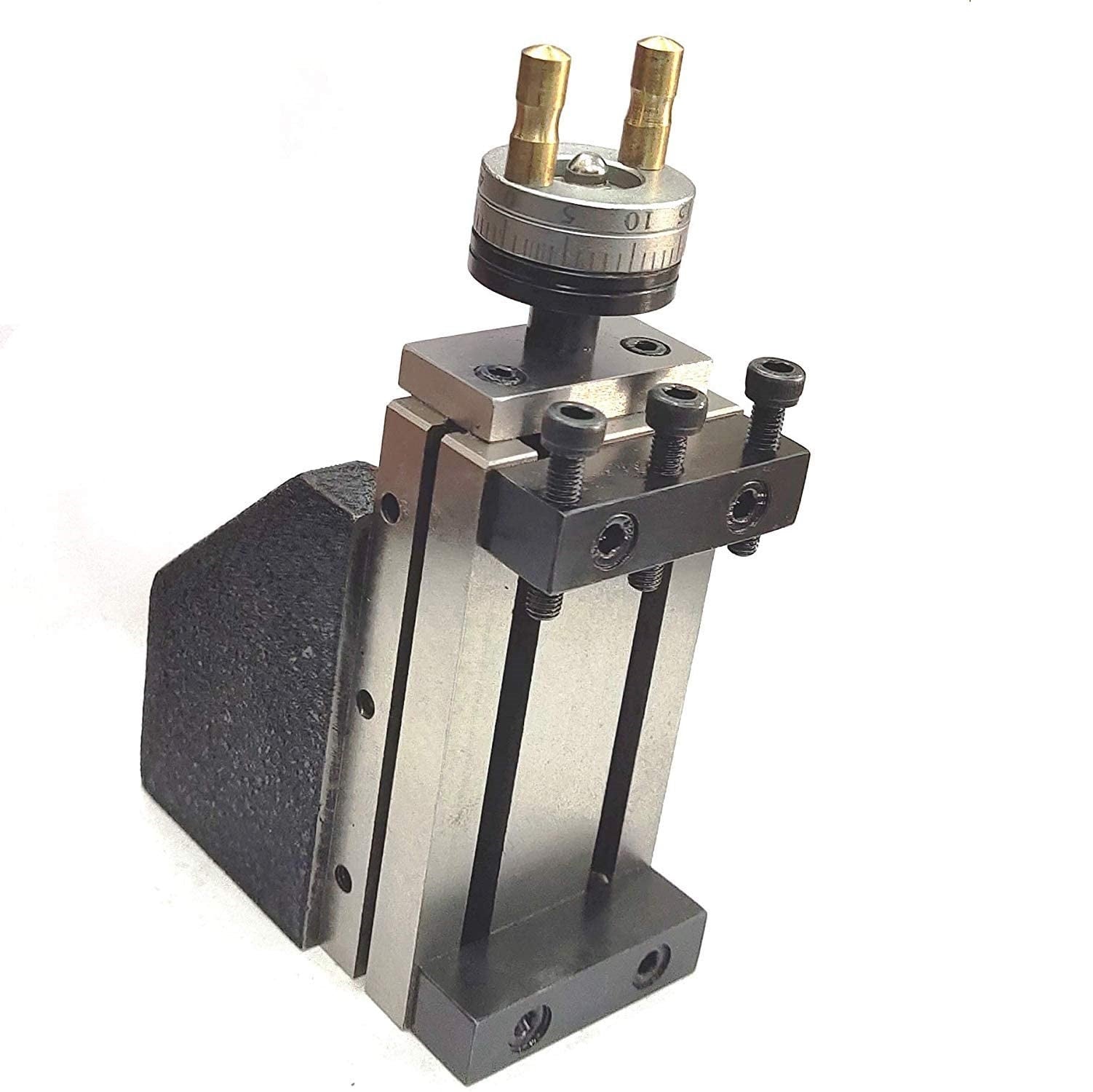

A vertical slide on the cross-slide enables the material to be raised or lowered as necessary. Widening the slot in a piece of material by machining along one edge with an end mill is an example. The same is true when all that is required is an initial height setting for work relative to the mill or cutter. The vertical slide admits of quick adjustment.

A grinding vice, also known as a grinding clamp or grinding tool vice, is a device used to hold workpieces during grinding operations securely. It is specifically designed to grip and stabilize materials being ground on a surface grinder or a bench grinder.

An angle plate is a work-holding device used as a fixture in metalworking. A Z-type Angle plate is used to hold vertical slides square to the table during marking out operations.

Specifications:

  • Vertical Travel: 40 mm – Allows for precise vertical adjustments, enhancing the flexibility of your milling operations.
  • Base Dimensions: 50 x 55 mm – Provides a stable foundation for the vertical slide, ensuring secure attachment and reduced vibration.
  • Sliding Table Dimensions: 90 x 50 mm – Offers ample work surface for small to medium-sized milling tasks.
  • Dial Graduated to: 0-50 – Enables precise incremental adjustments for accurate milling operations.

Features:

  • High-Grade Casting: Constructed from premium-grade casting material, the vertical slide ensures durability and long-lasting performance under rigorous use.
  • Smooth Finish: Engineered with a smooth surface finish, facilitating precise, smooth movement of the sliding table.
  • Compact Design: Ideal for bench lathes with a swing of up to 150 mm, making it a perfect fit for compact workshop setups.
  • Easy Installation: Designed for quick and straightforward installation on compatible lathes, allowing you to start milling operations with minimal setup time.

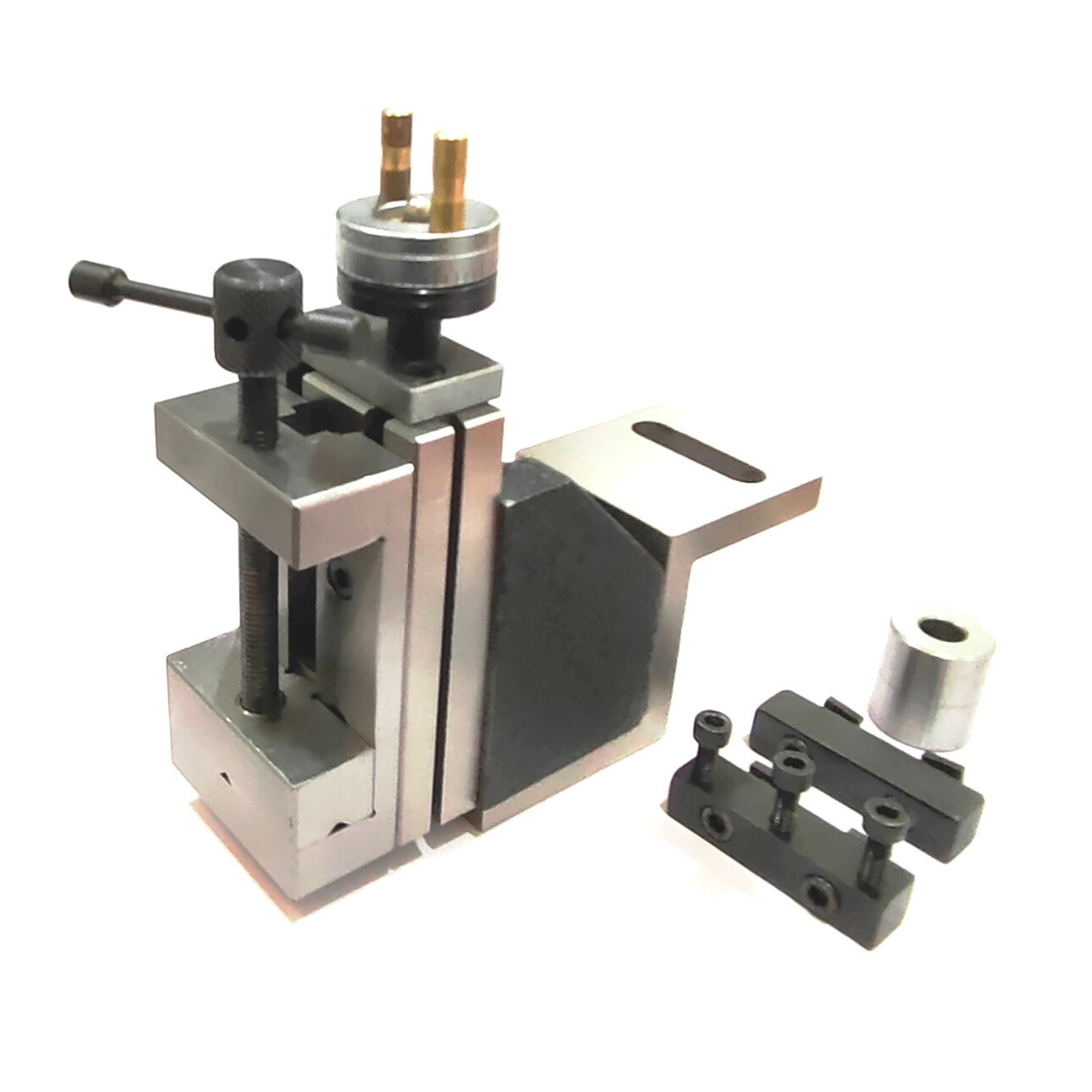

Steel Grinding Vice 2" (50 mm) For Mini Lathe Vertical Milling Slide

  • 50 mm (2" Inches) Jaw Width -Tool Steel -Precise Ground Vice
  • Hole - distance and bored to fit exactly in the Tee slots of the vertical slide shown below for our mini lathe.
  • Horizontal and Vertical Vee in the moving jaws for holding Round jobs in this vice.

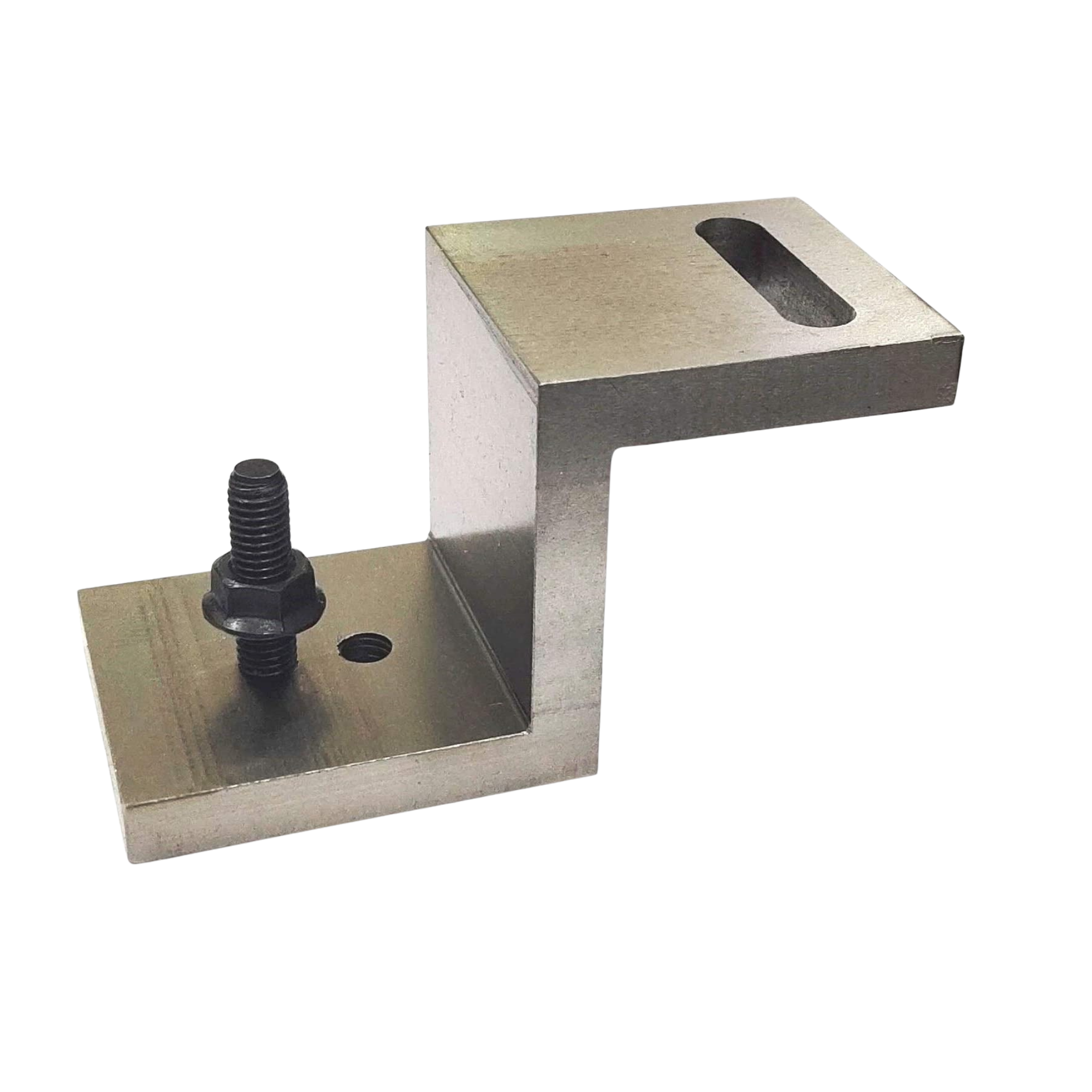

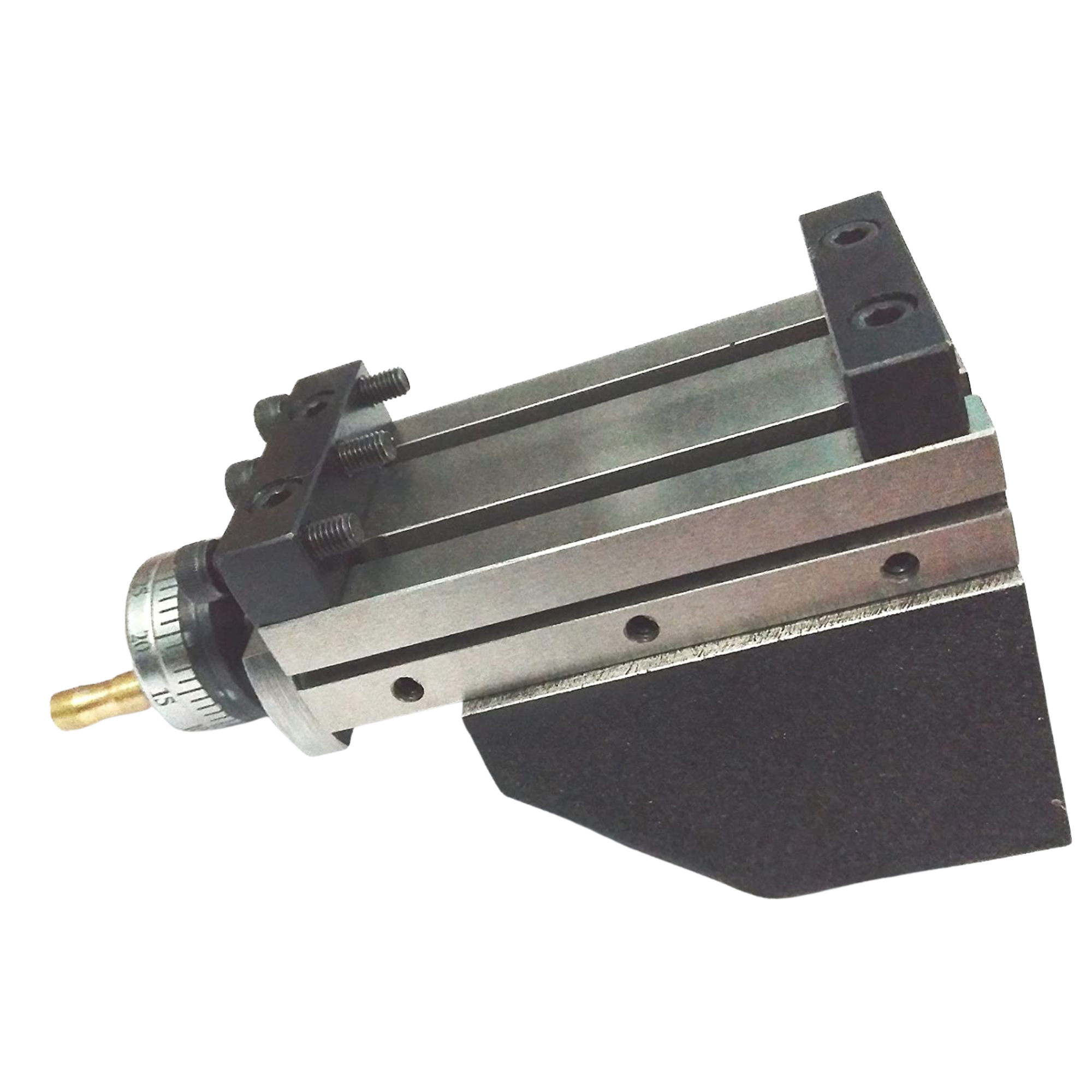

Z Angle Plate

  • Versatile Mounting Solution: Designed for mounting vertical slides on machine tools such as milling machines and lathes, this Z-type angle plate provides a sturdy platform for a wide range of machining operations.

  • Precision Machining: Crafted from high-quality materials with precision machining, ensuring exceptional accuracy and stability during vertical slide mounting, allowing for precise machining of workpieces with minimal deflection.

  • Optimal Design: The Z-type configuration offers optimal stability and rigidity, minimizing vibration and ensuring consistent machining performance, even during heavy-duty operations.

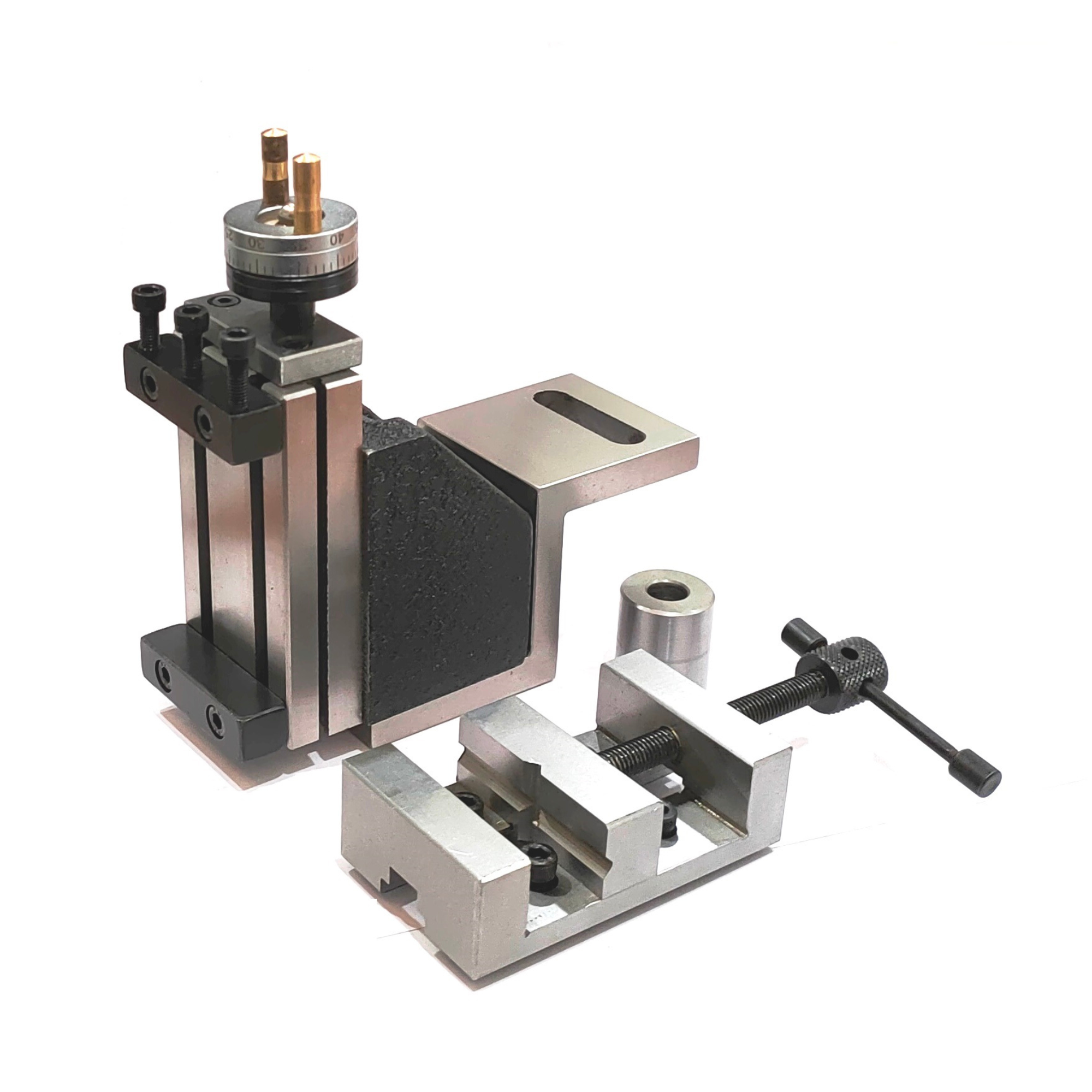

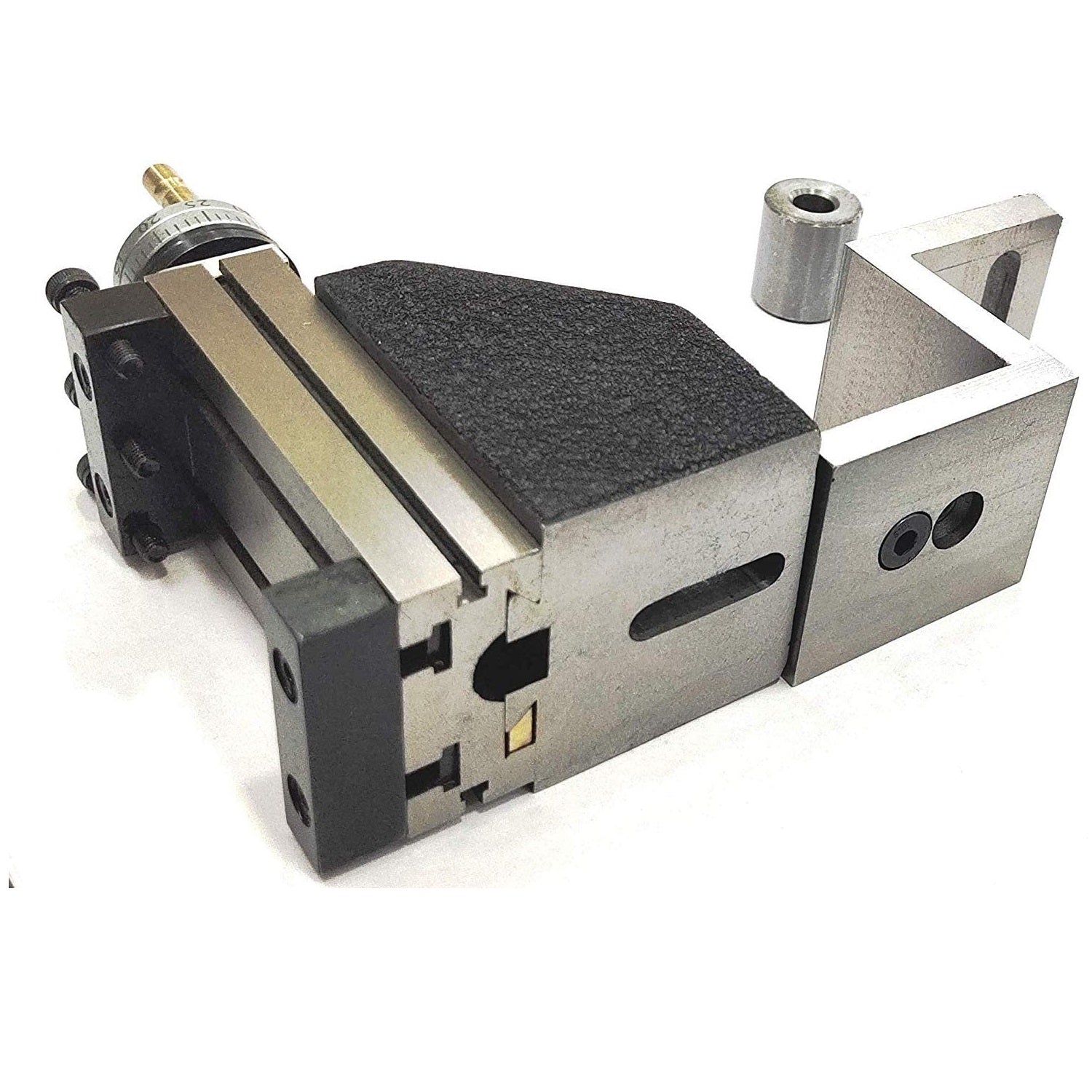

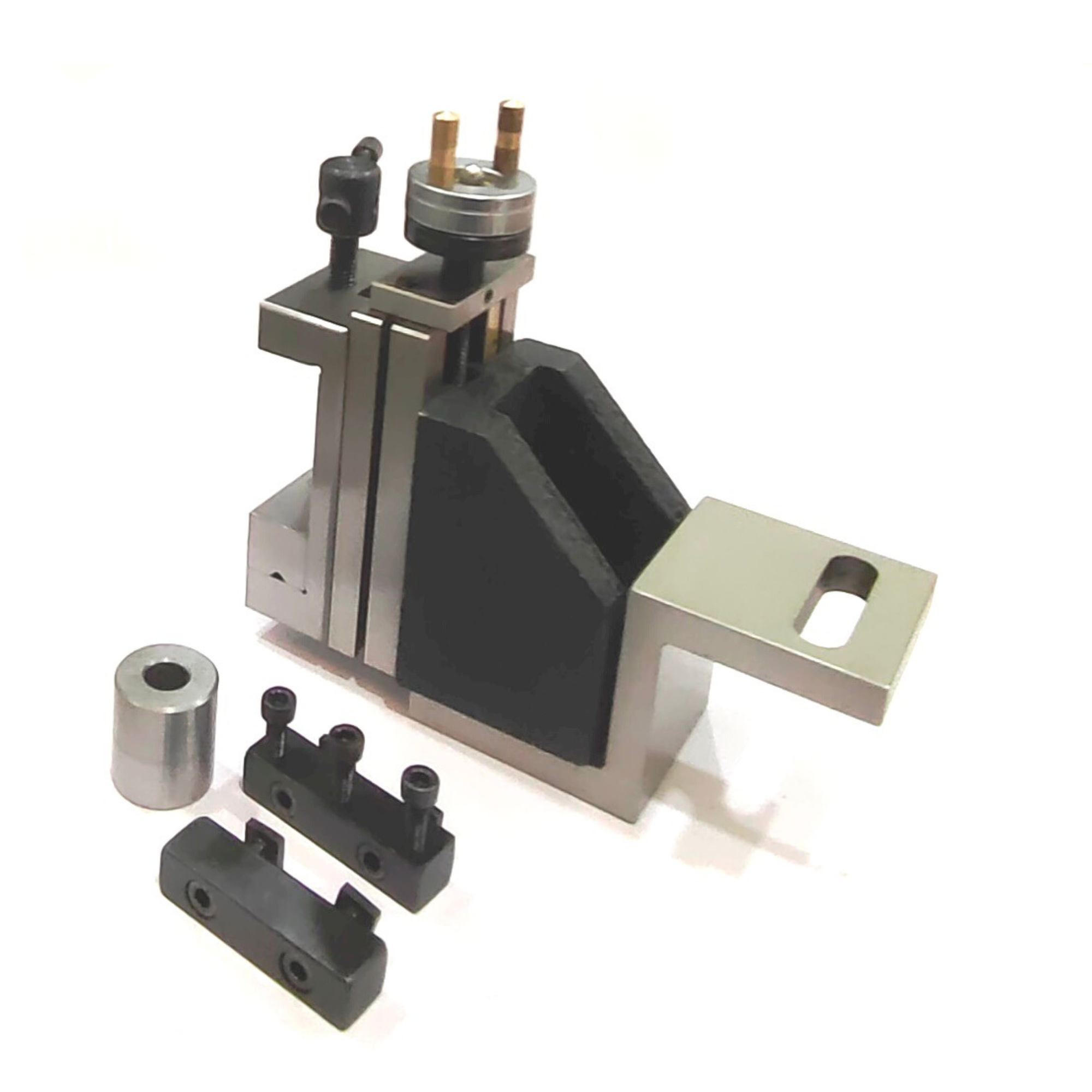

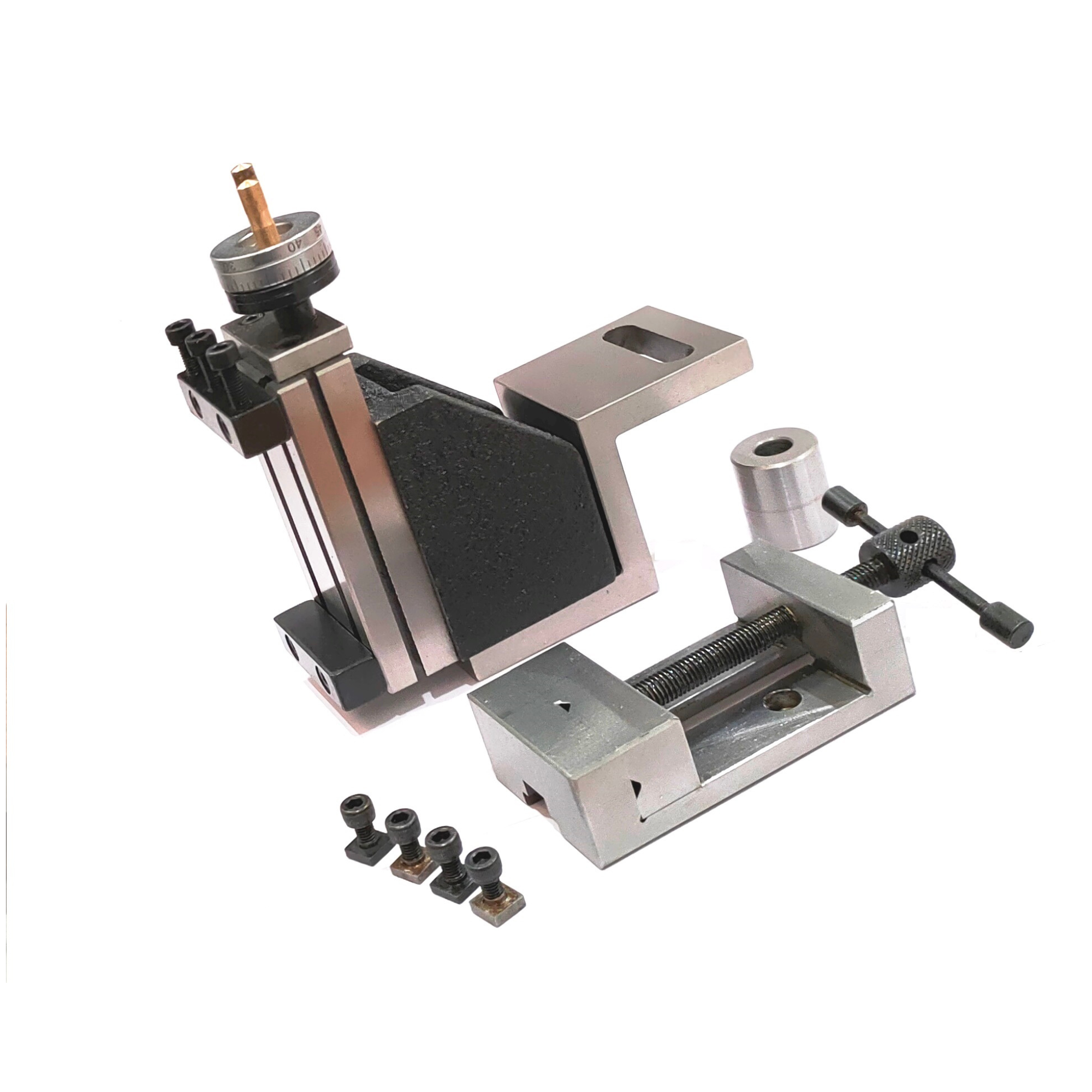

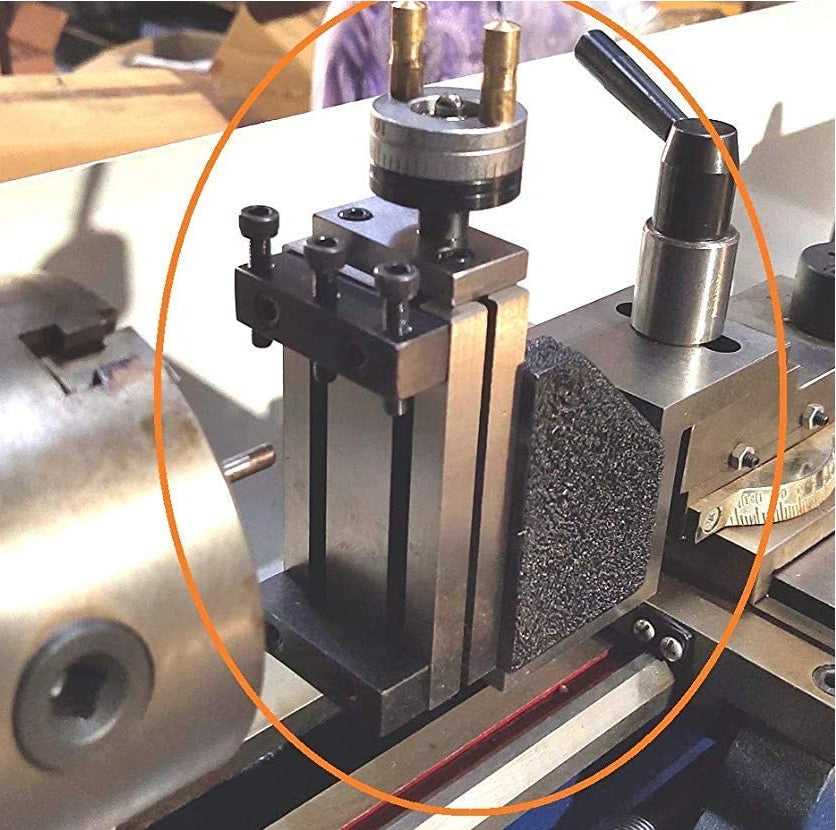

Mini Lathe Milling Attachment Mini Vertical Slide (90 × 50 mm) with Z Angle Plate for Instant Milling on Small Bench Lathes

    Product form

    $99.99


    SKU: 90-VS-202
    Barcode: 8906183735796

    • No customs duty is charged on orders shipped from our USA, UK, and Australia warehouses. For orders shipped from the India warehouse, all applicable charges are already included in the product price.
