Description

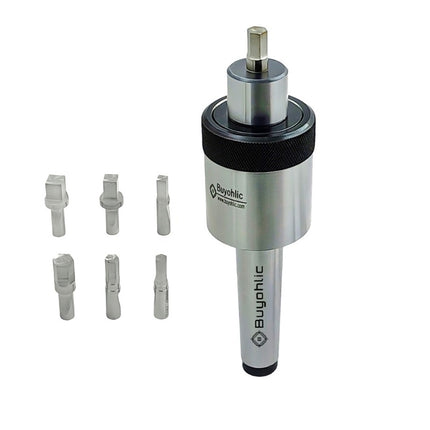

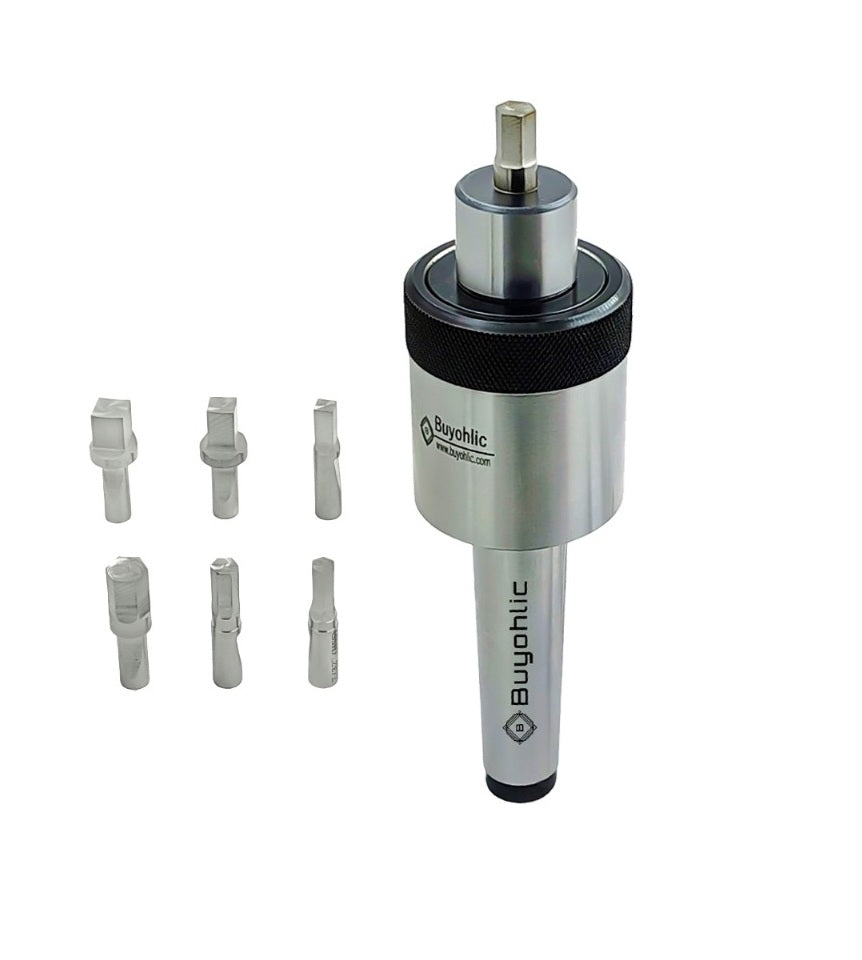

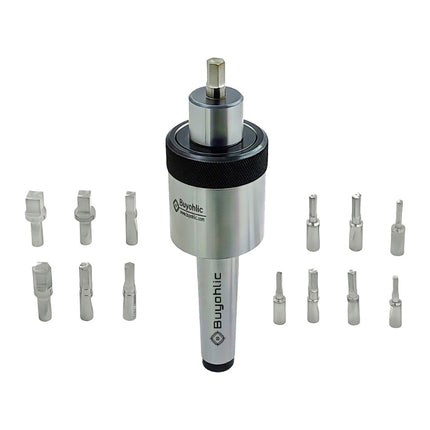

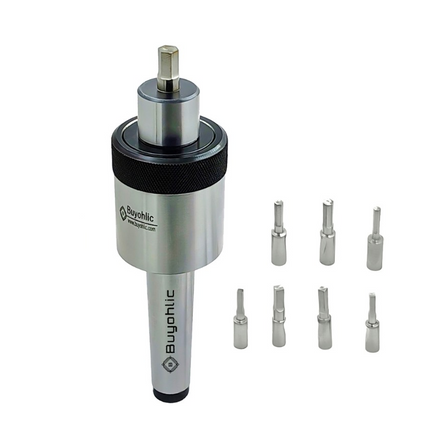

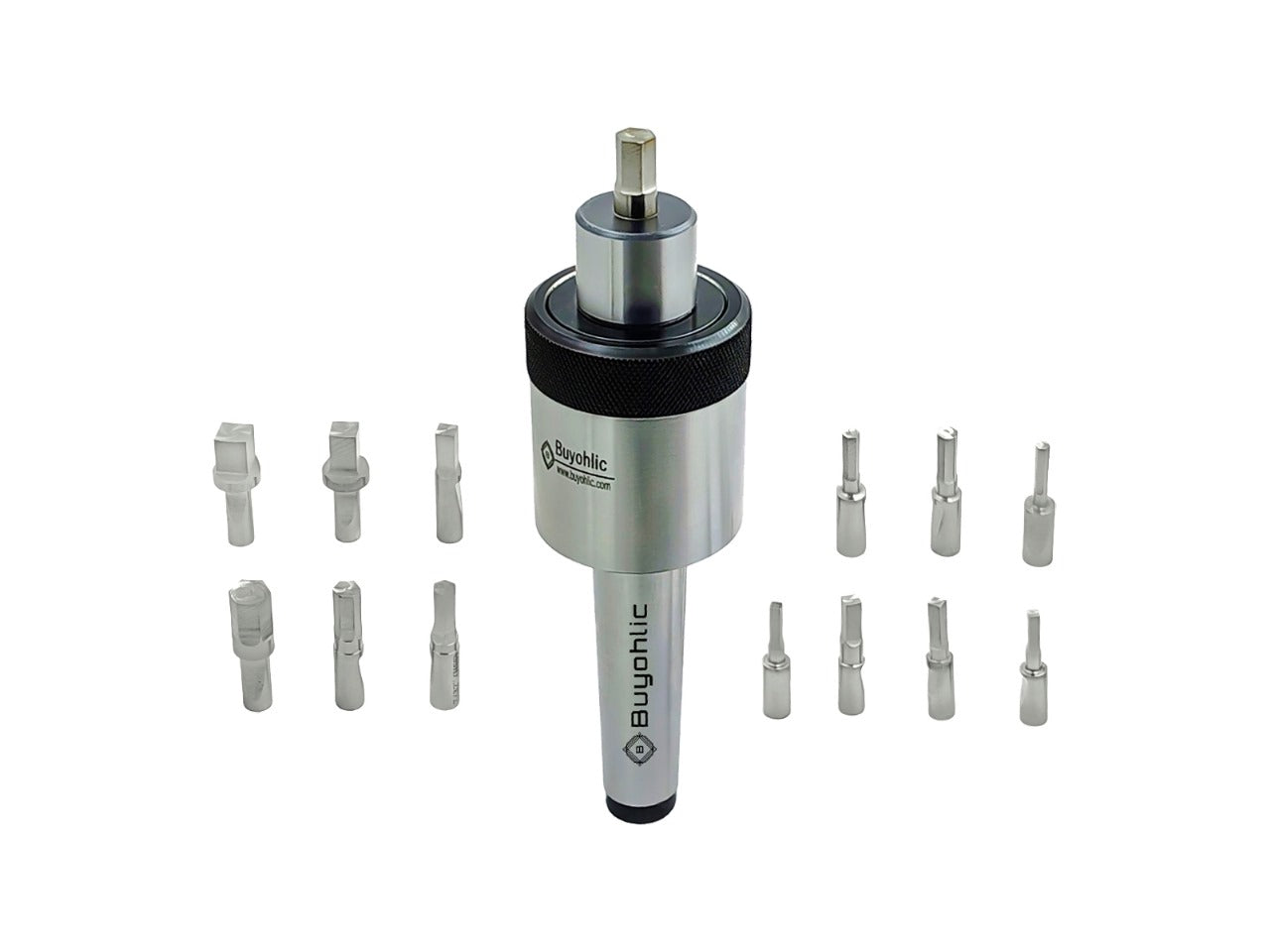

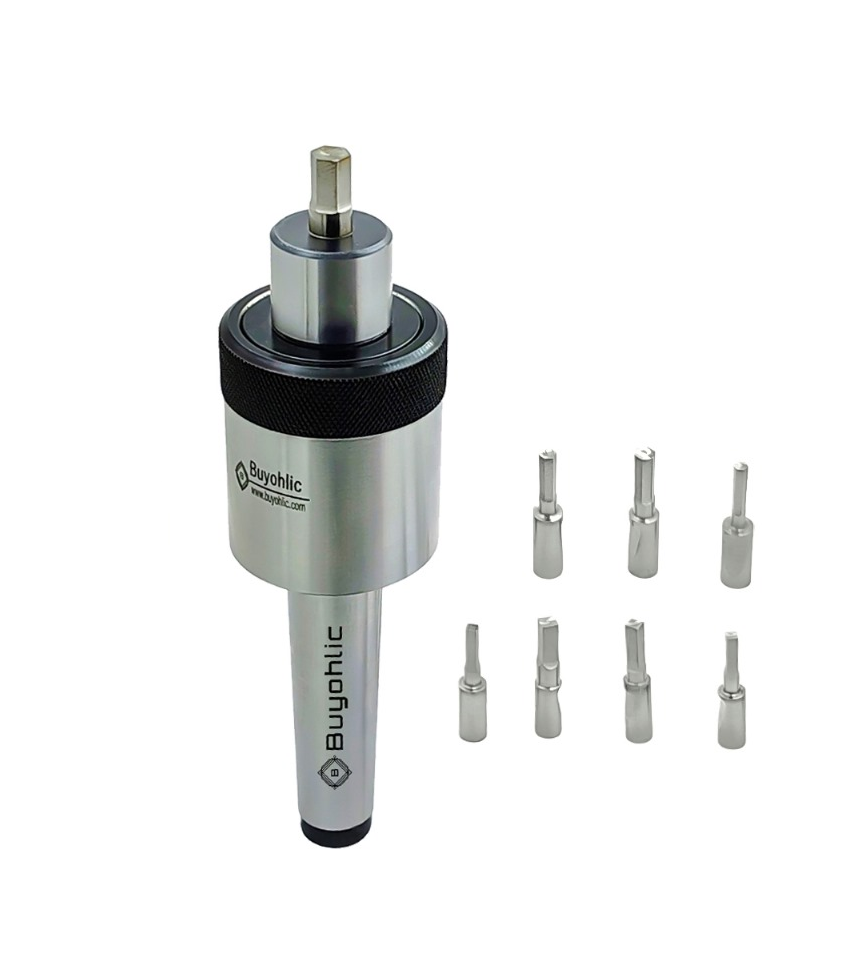

Live Center with HSS Tool Bit Broach Set

Enhance your precision machining with the Triple Bearing Live Revolving Center—designed for durability and stability in demanding workshop environments.

Features:

  • 🔄 Precision Live Center: Double bearing MT1, 2 & 3 shanks ensures smooth and accurate rotation.

  • 🔲 High-Quality Broaching Tool: Comes with multiple options of robust HSS square & Hex broaches for efficient internal broaching.

  • 📏 Sturdy Design: 50 mm diameter body provides excellent stability during machining.

  • 🔩 Secure Bit Mounting: HSS tool bit (7.95 mm shank) is firmly held in place with a grub screw for safety and reliability.

  • 📐 Extended Reach: 120 mm overall length including broach bit (*but excluding shank that goes inside the lathe's tailstock) suits a variety of applications.

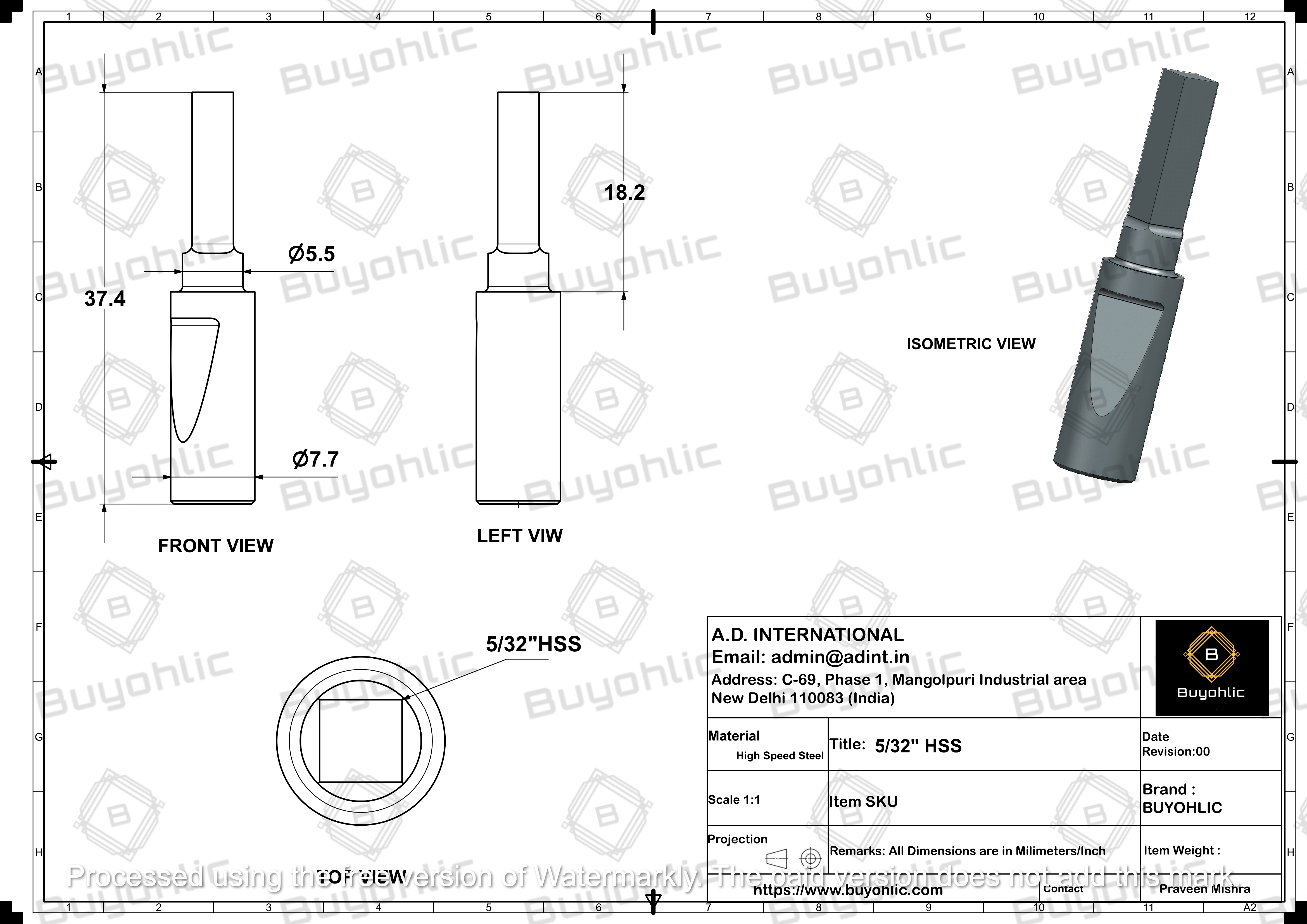

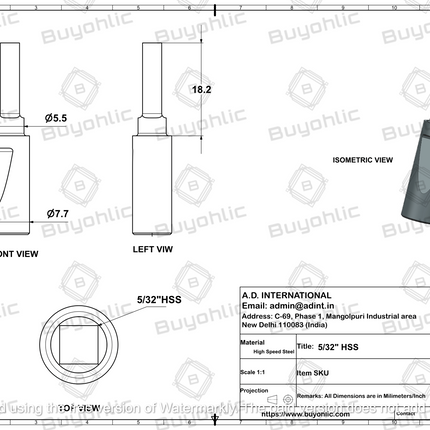

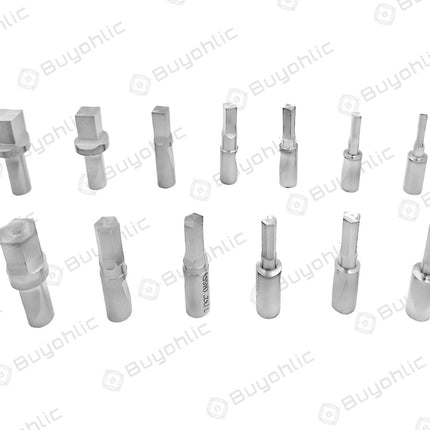

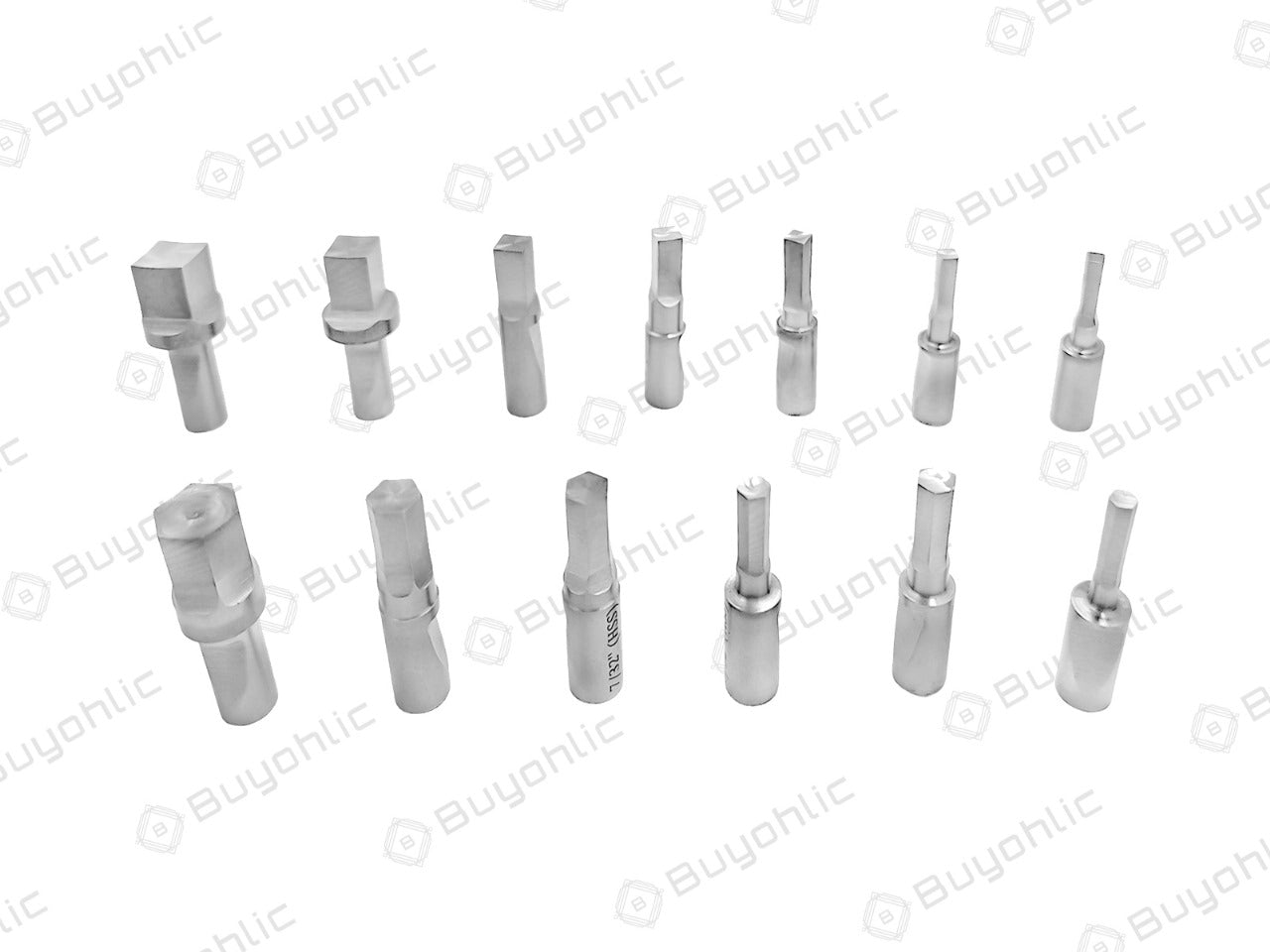

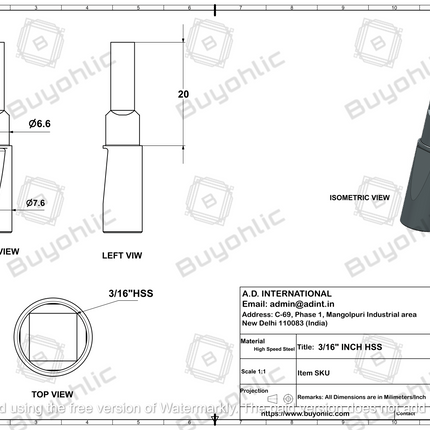

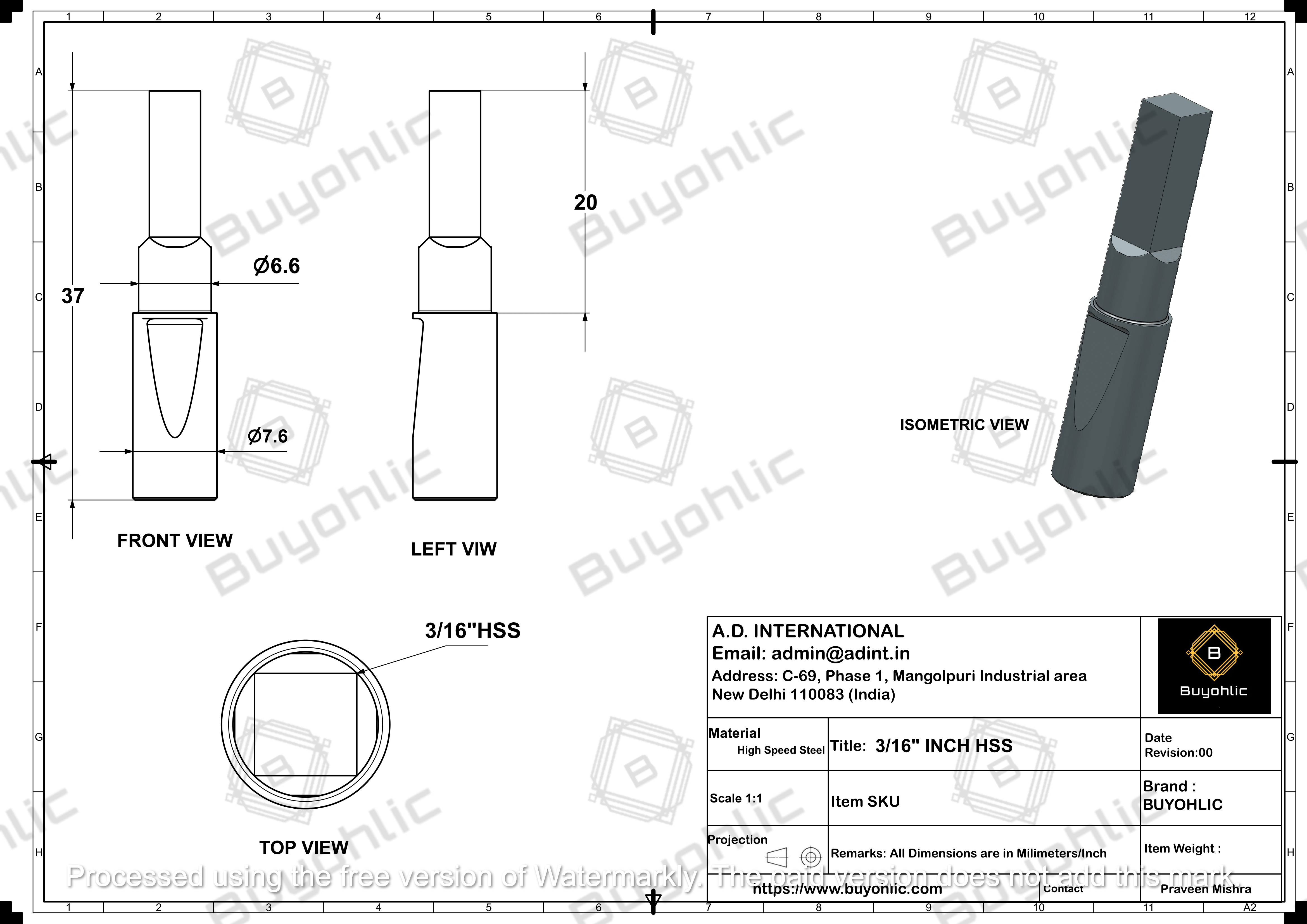

  • 🪒 Complete Square Broach Set: Includes 7 HSS square broaches — 1/8", 5/32", 3/16", 7/32", 1/4", 5/16", and 3/8".

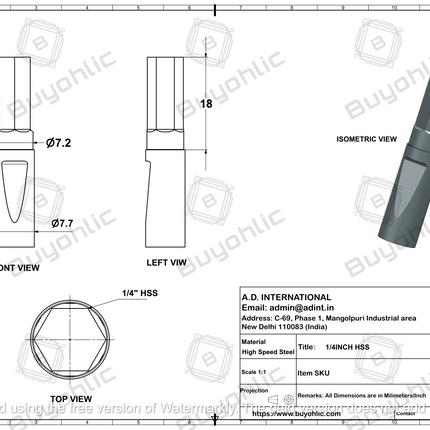

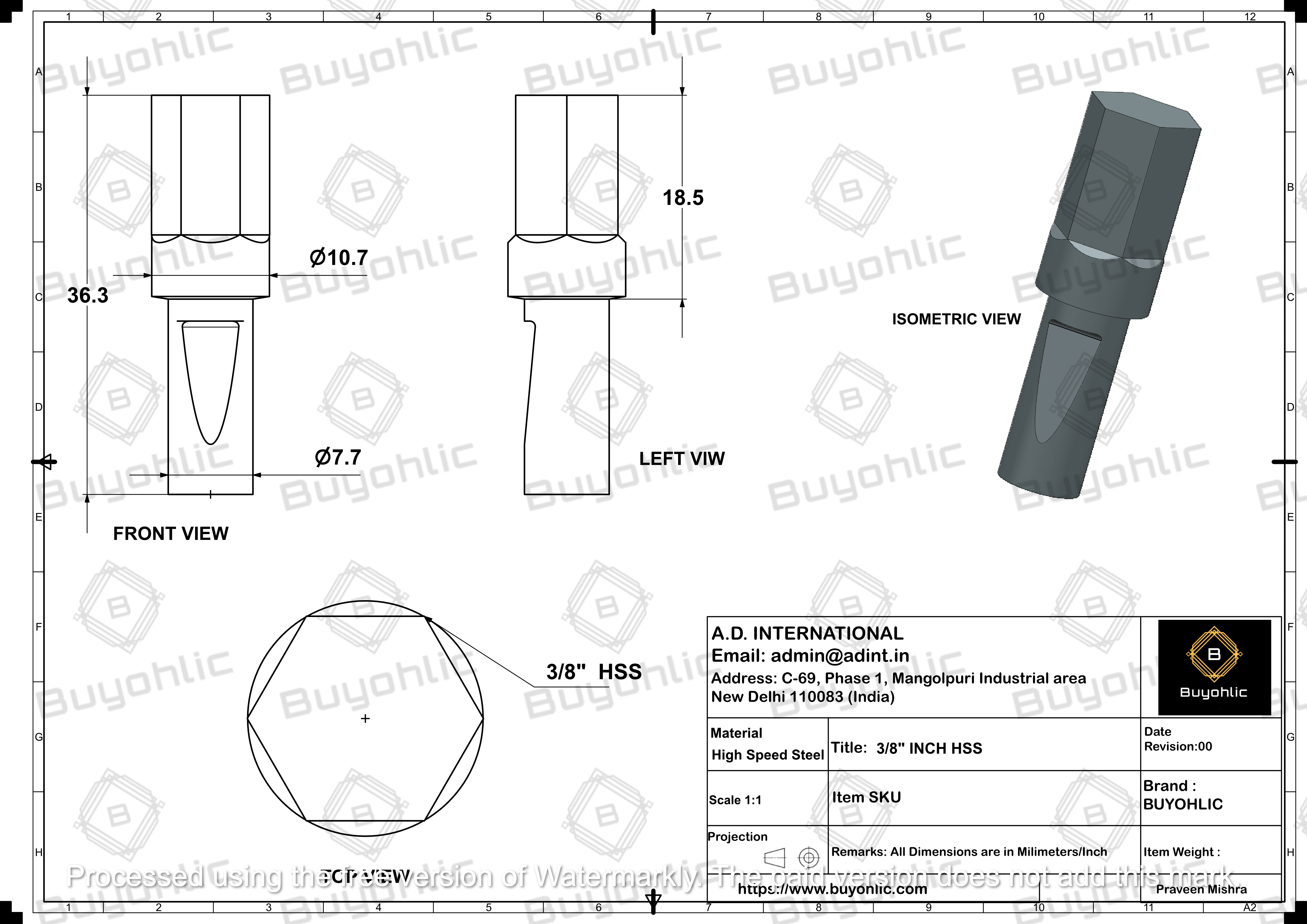

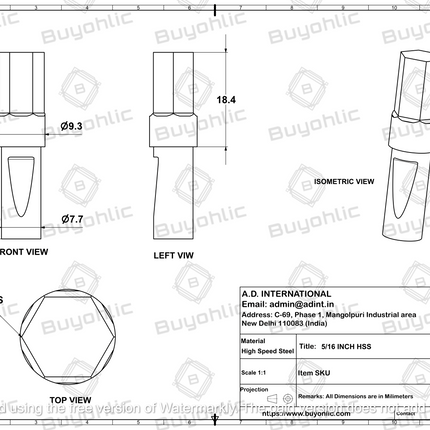

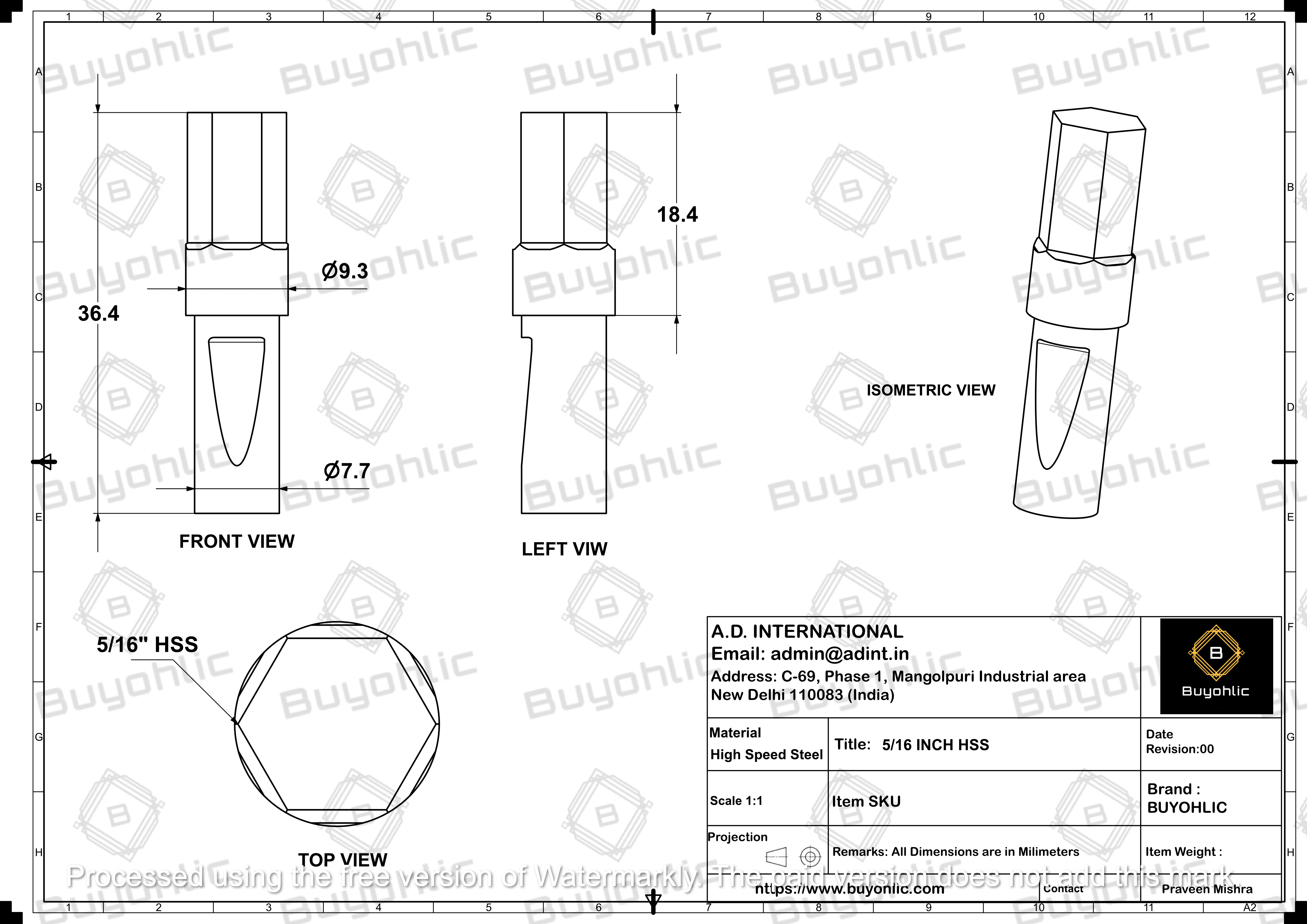

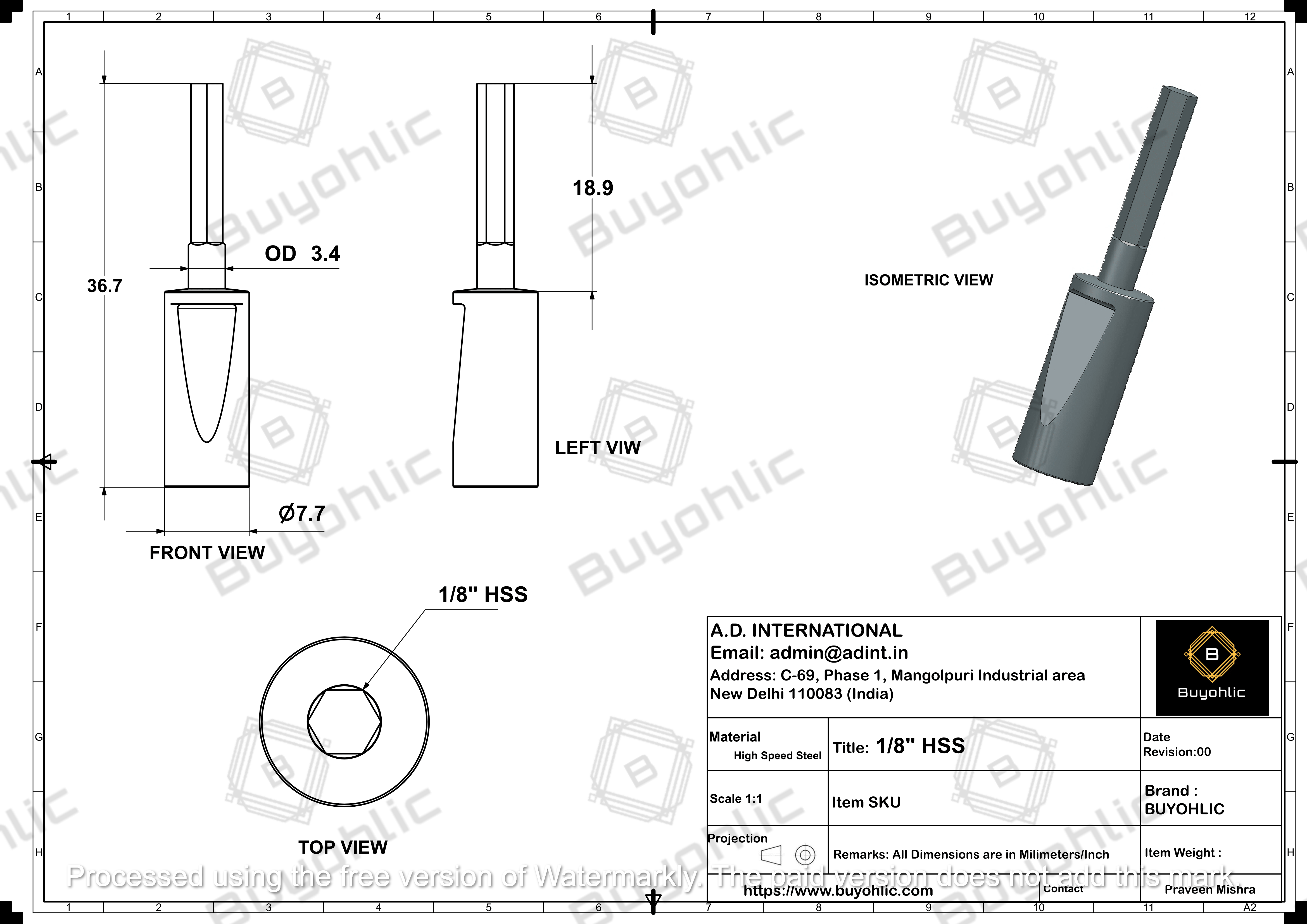

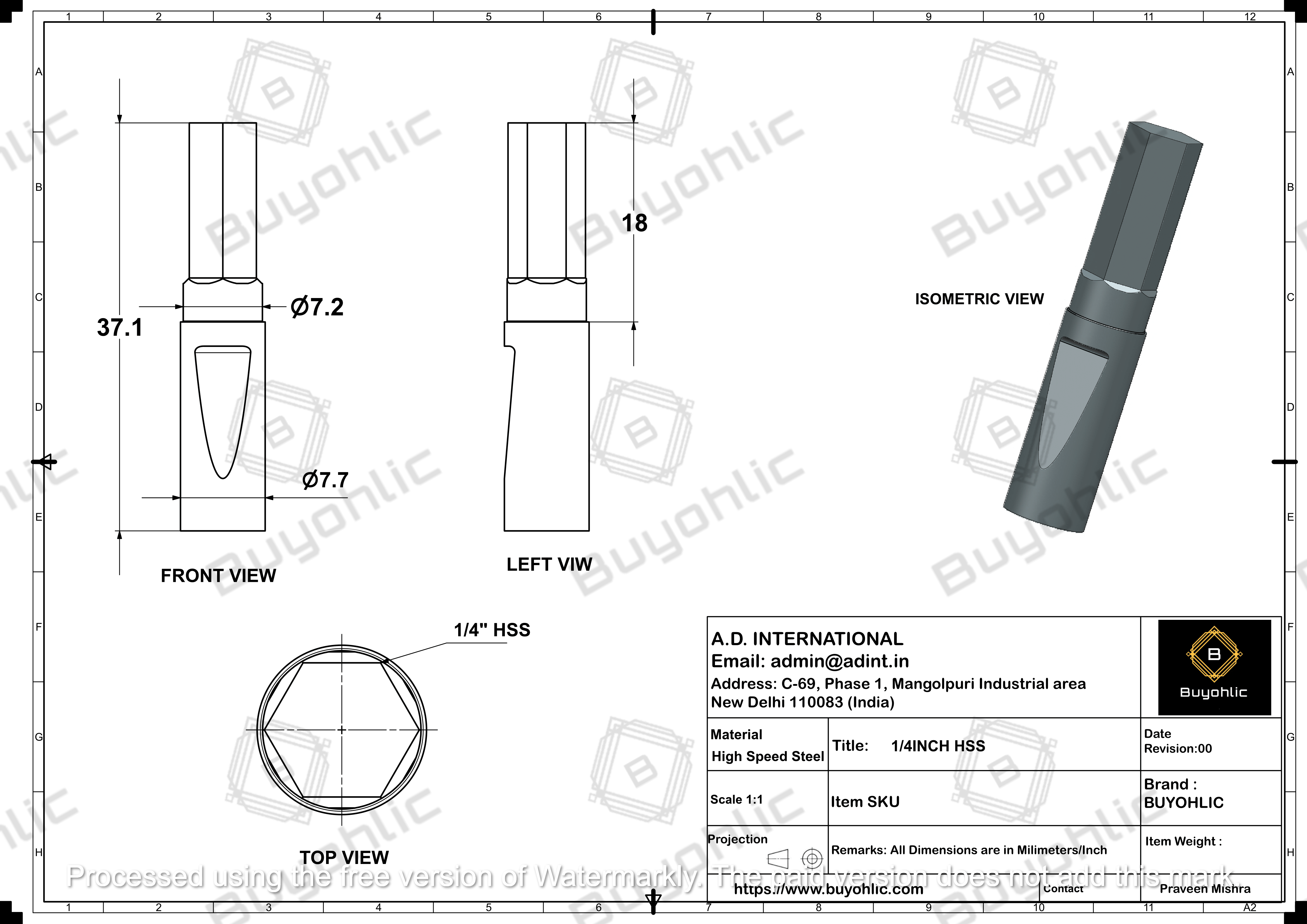

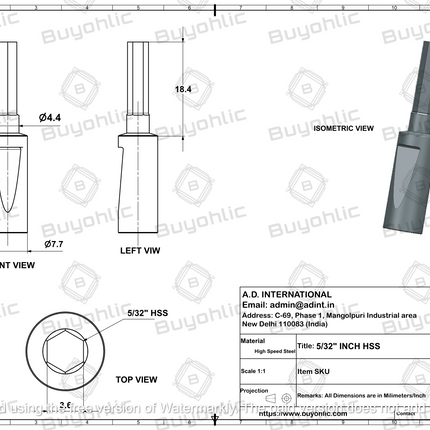

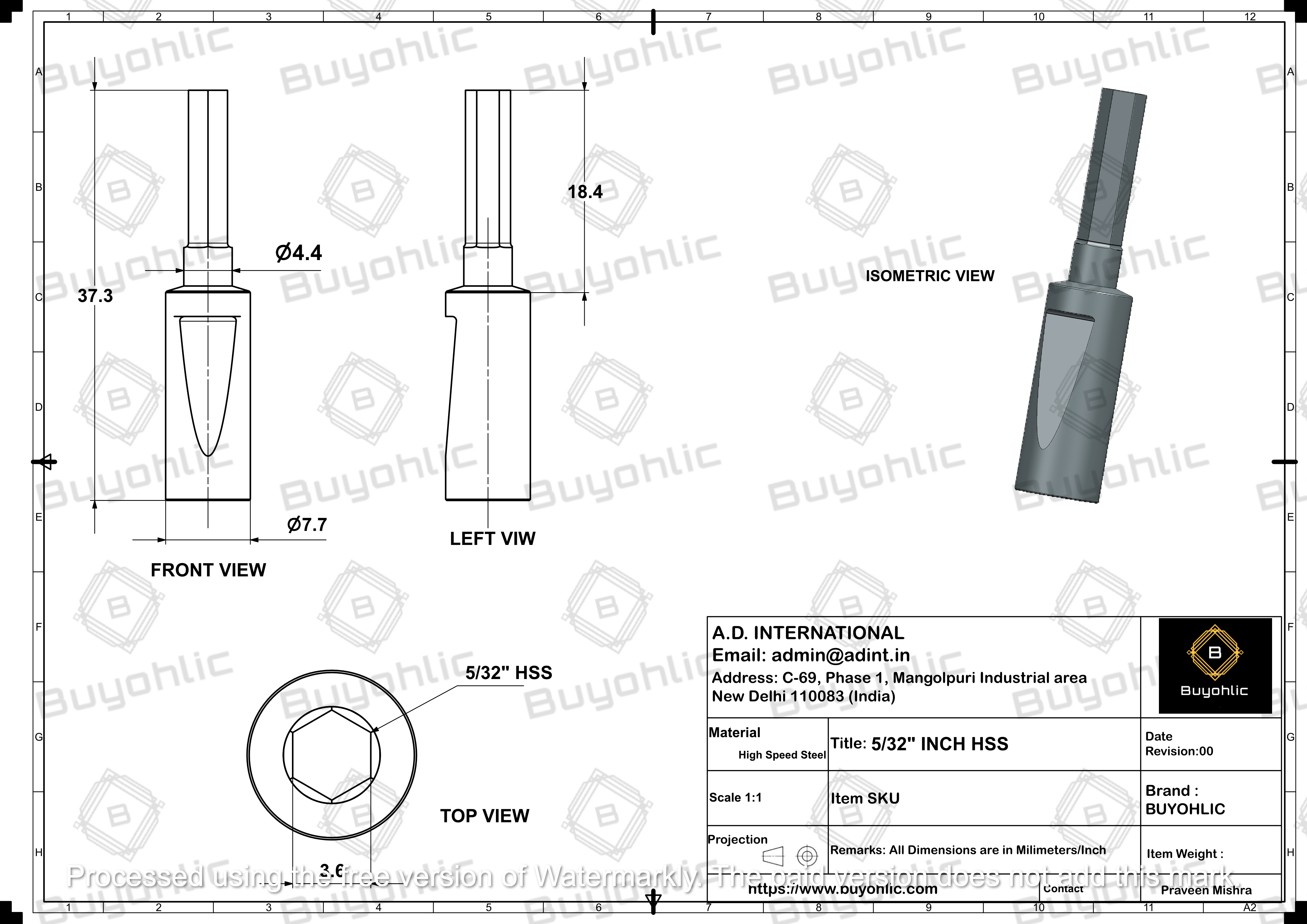

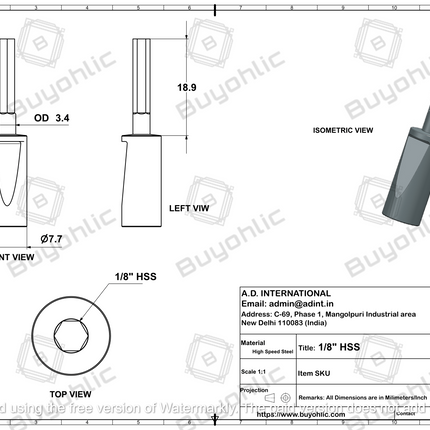

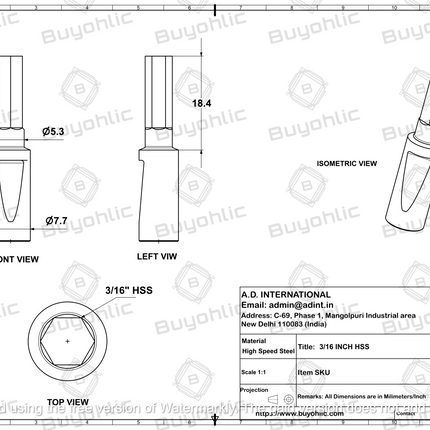

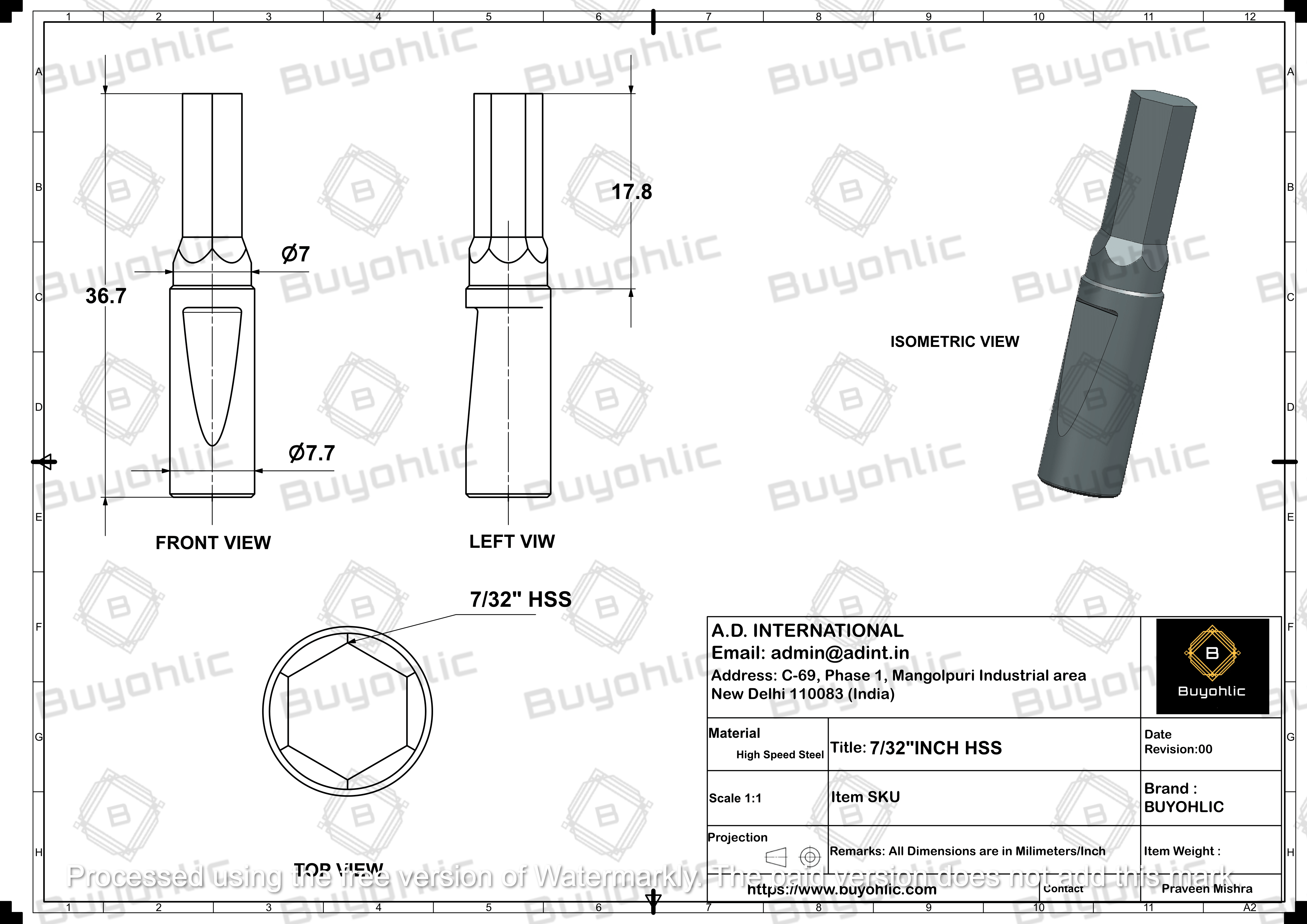

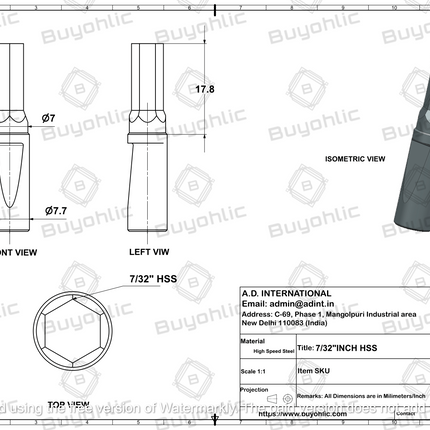

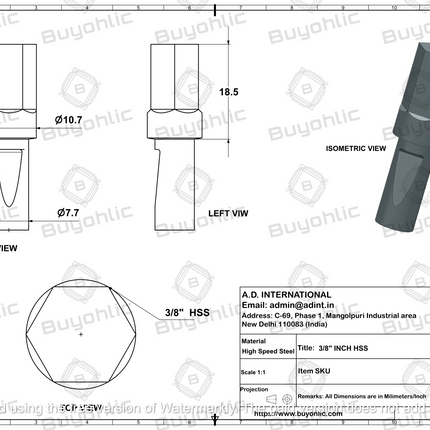

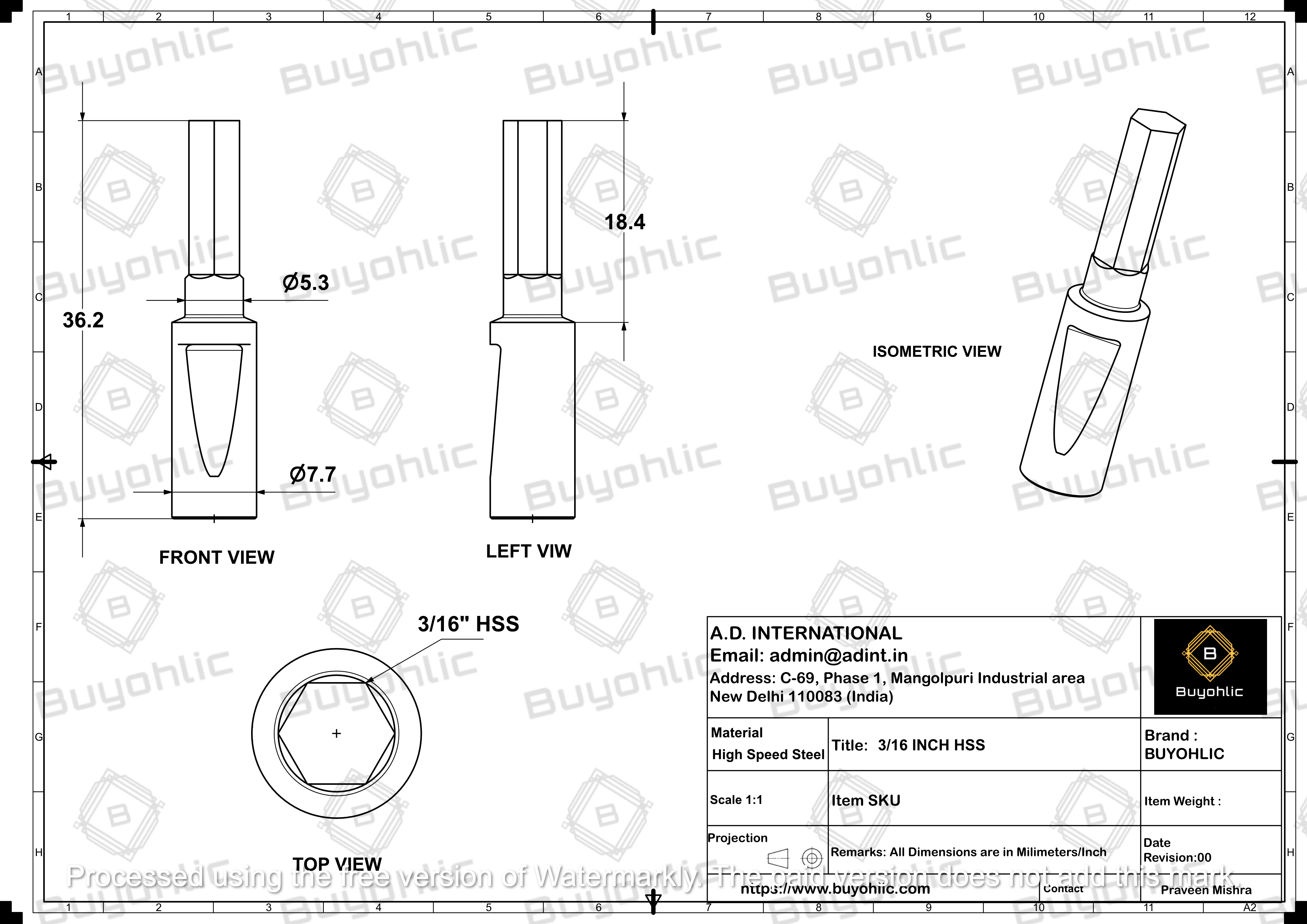

  • 🪒 Complete Hex Broach Set: Includes 7 HSS Hex broaches — 1/8", 5/32", 3/16", 7/32", 1/4", 5/16", and 3/8".

  • 🏭 Workshop-Ready: Ideal for professionals in manufacturing and precision metalworking!

🛠️ Effective Broaching Instructions (Lathe Setup)

⚠️ Safety First

  • Always wear eye protection.

  • Ensure the workpiece is securely clamped.

  • Do not exceed recommended speeds.

  • Keep hands clear during operation.

🔧 Setup Steps

  1. Prepare the Workpiece

    • Drill or bore a pilot hole through the workpiece.

    • The hole should match the minor dimension of the broach (i.e., just smaller than the square size).

    • Ensure the hole is centered and free of burrs.

  2. Install the Live Center Tool

    • Mount the live center with the broaching tool in your lathe tailstock.

    • Ensure the broaching tool is securely locked in place with the grub screw.

  3. Align the Lathe

    • Line up the live center and the chuck so they are perfectly concentric.

    • The broach should enter the pilot hole cleanly and without resistance.

  4. Set the Speed

    • Broaching is a low-speed process.

    • Set your lathe to manual feed mode, ideally under 100 RPM if rotation is required (some setups use no rotation at all—just linear feed).

  5. Begin Broaching

    • Advance the tailstock slowly and steadily.

    • Let the broach shave material gradually; do not force it.

    • Use cutting fluid (like light oil or tapping fluid) to improve finish and reduce tool wear.

  6. Withdraw and Clear Chips

    • After each pass, retract the tailstock.

    • Clean chips from the broach flutes using a brush or air (never your fingers!).

    • You may need to make multiple light passes for deeper broaching.

  7. Inspect the Broached Hole

    • Check for smoothness, squareness, and full depth.

    • Use a square broach gauge or test fit the corresponding square shaft.

💡 Pro Tips

  • For deep broaches, use intermediate shims or spacers to support multiple passes.

  • If broaching tough materials like stainless steel, reduce feed pressure and apply generous lubrication.

  • Keep broaches sharp and clean for best results

Read more
