Description

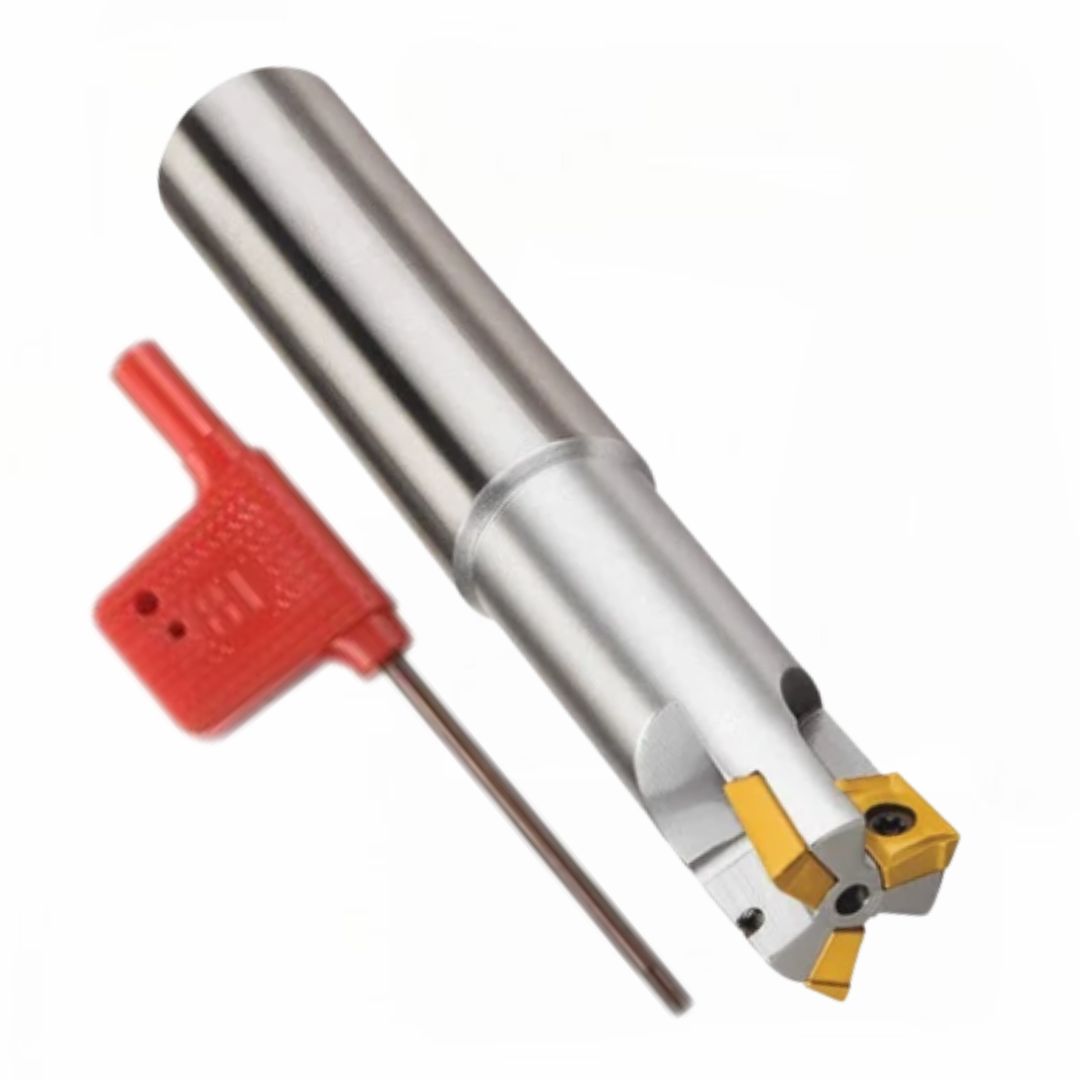

This is a precision-engineered Shoulder and Face Milling Cutter used in both CNC and Manual Milling Machines. Compatible with ISO APMT1604 carbide inserts, it ensures cost-effective and efficient machining compared to traditional HSS tools. The cutter body is hardened to 45–50 HRC, offering excellent wear resistance and long tool life.
Each variation clearly defines:

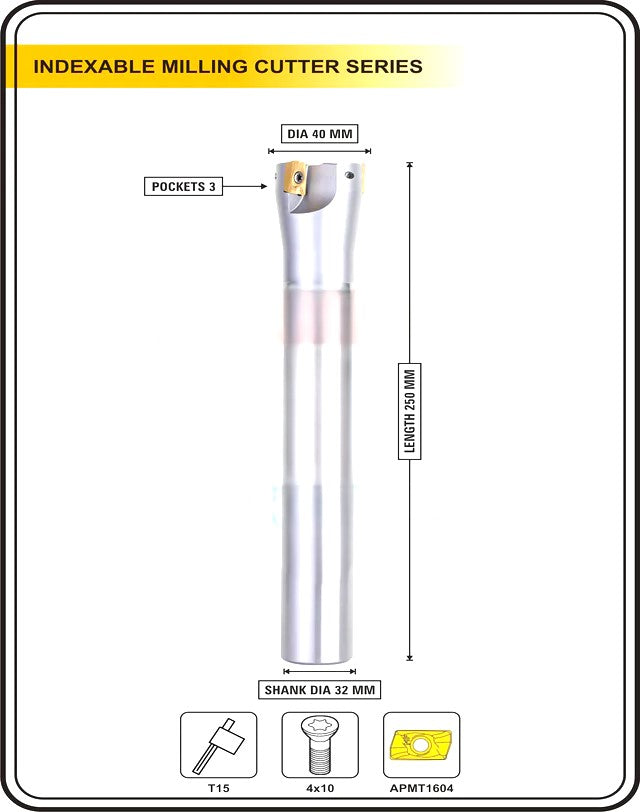

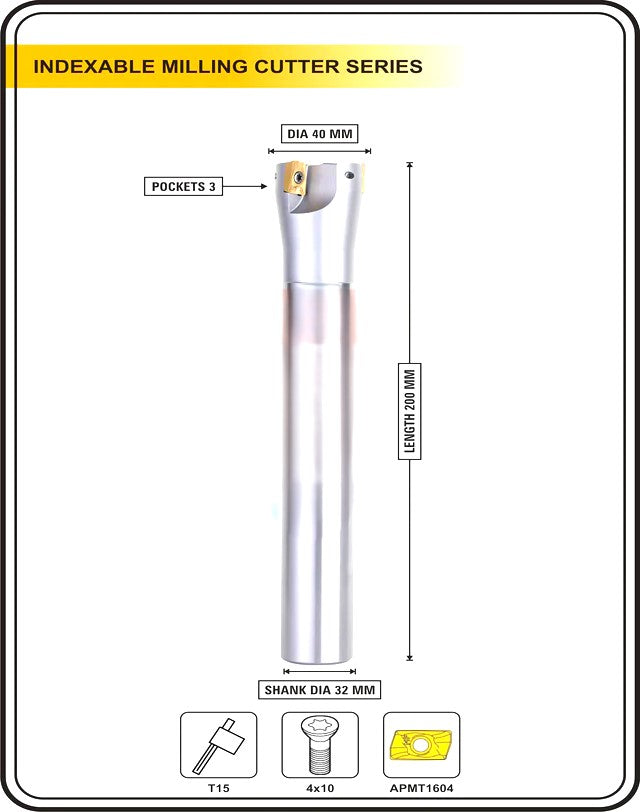

🔹 Dia (Diameter) – e.g., 40 mm etc.
🔹 Len (Overall Length) – e.g., 150 mm/200 mm/250 mm/300 mm/350 mm/400 mm etc.
🔹 Shank – e.g., 32 mm etc. Weldon-type Shank
The insert pockets are tightly machined to eliminate any gap between the insert and seat, ensuring smooth cutting. Run-out tolerance is maintained through center-to-center grinding. The tool also includes center holes on both ends for precise setup.
Variants marked with:

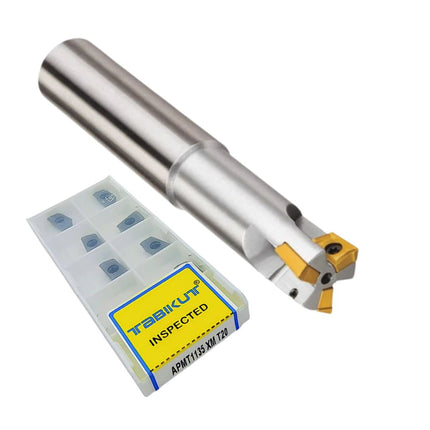

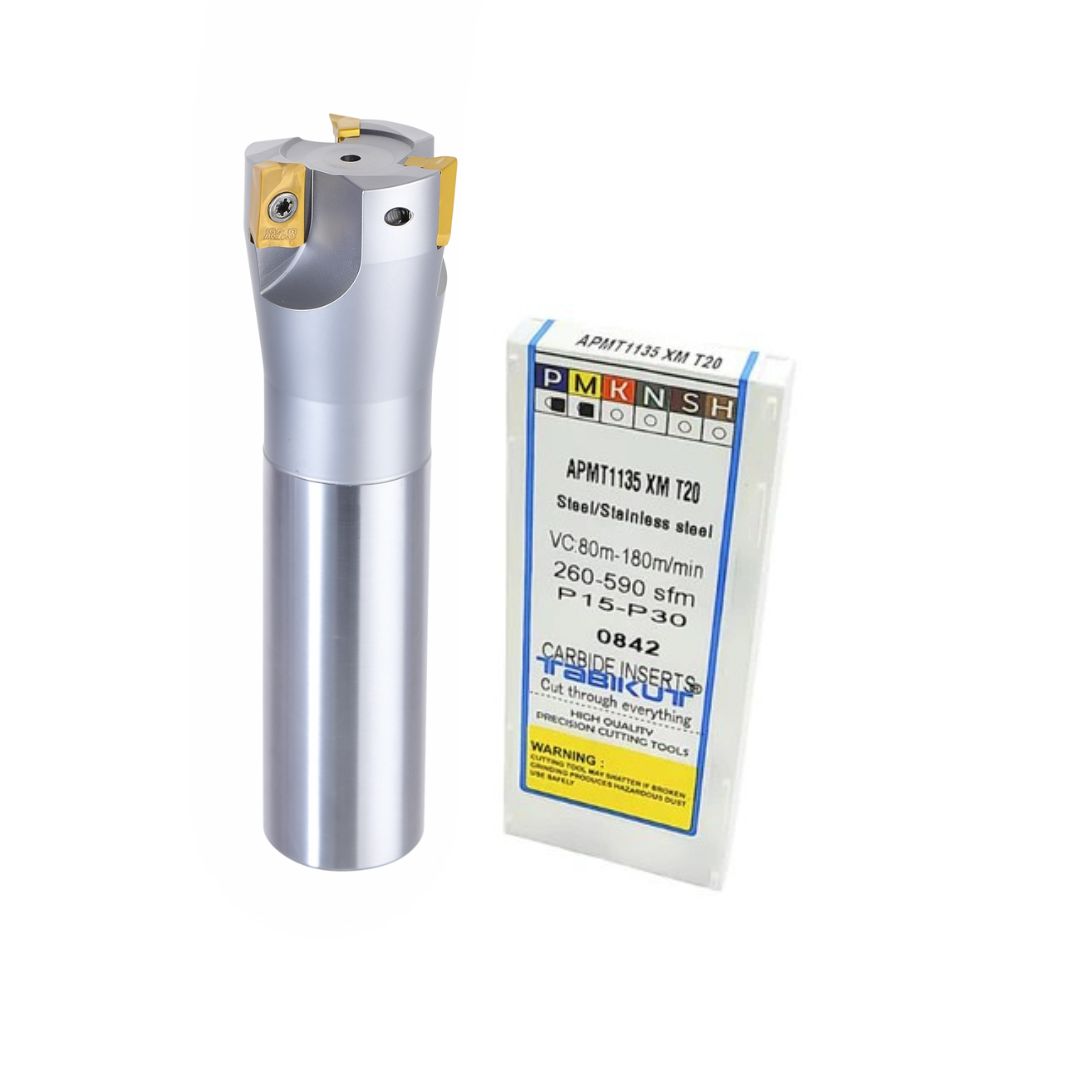

🎁 Includes 10 Free APMT1604 Carbide Inserts with every unit.
This milling cutter is a durable and reliable solution for a wide range of machining applications.
