Description

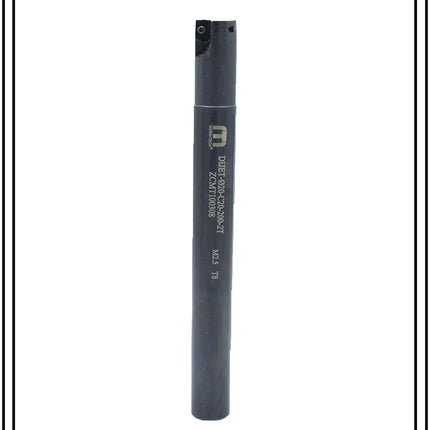

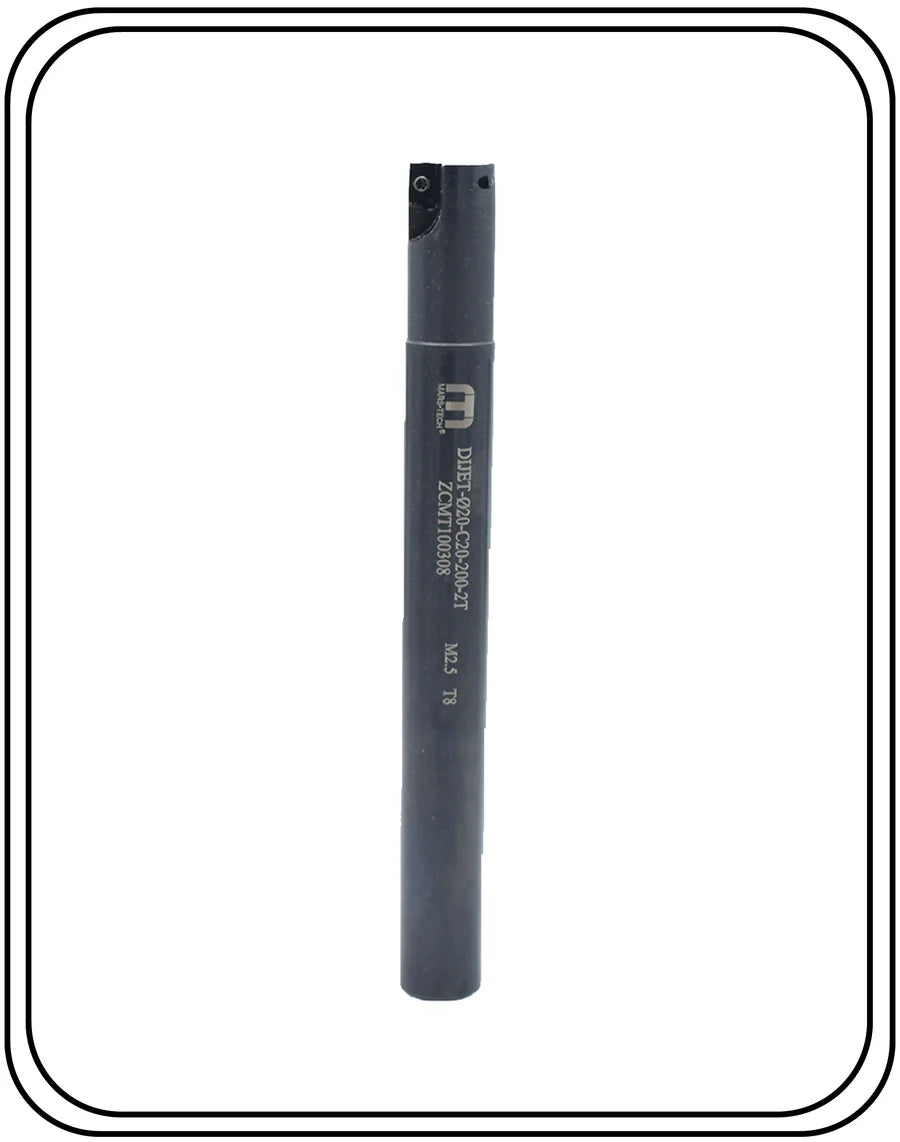

This is a precision-engineered Shoulder and Face Milling Cutter used in both CNC and Manual Milling Machines. Compatible with ISO ZCMT1003 carbide inserts, it ensures cost-effective and efficient machining compared to traditional HSS tools. The cutter body is hardened to 45–50 HRC, offering excellent wear resistance and long tool life.

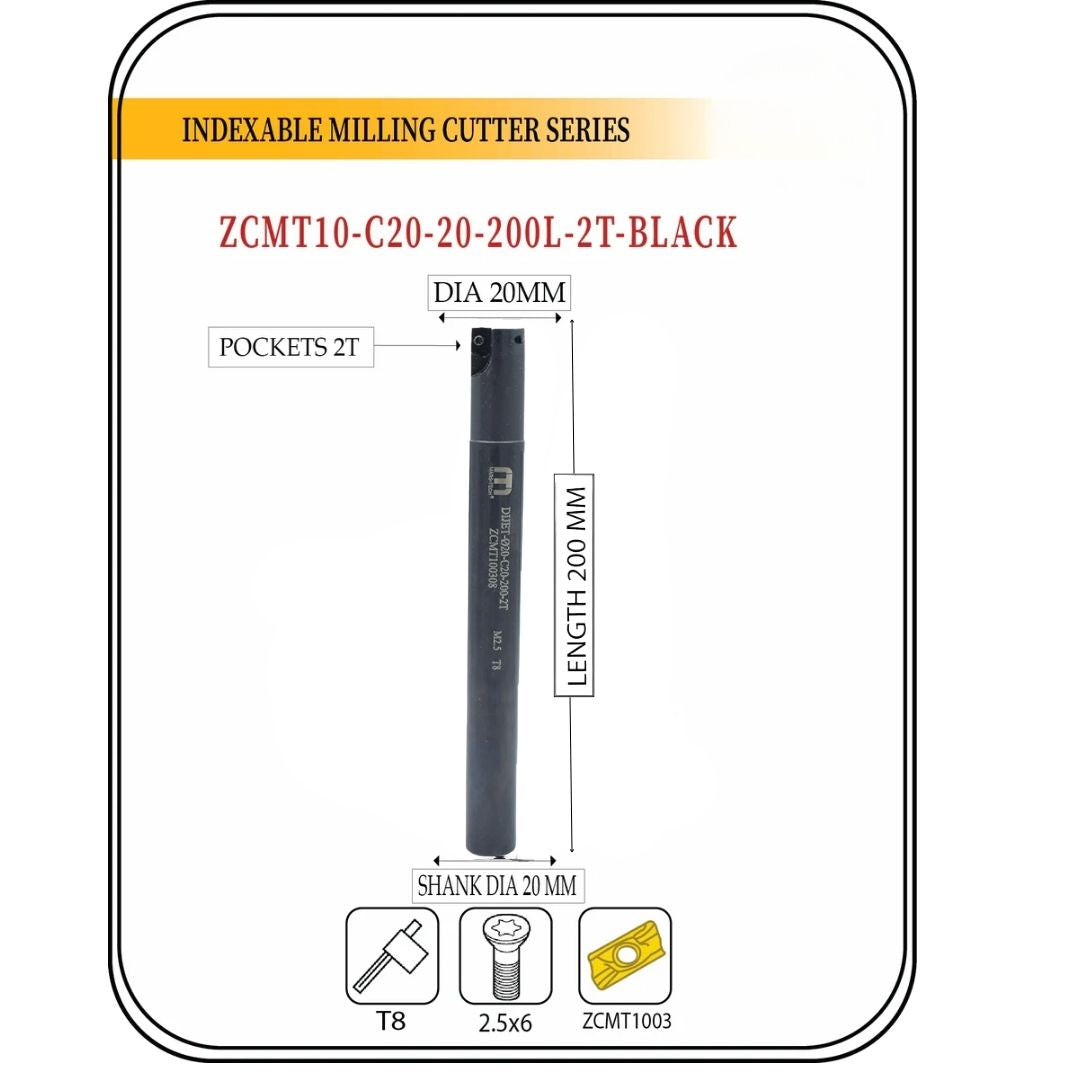

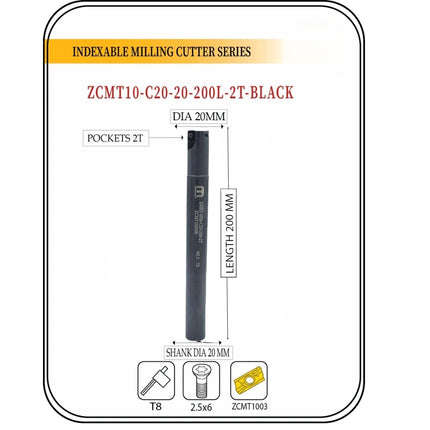

Each variation clearly defines:
🔹 Dia (Diameter) – e.g.,20 mm
🔹 Len (Overall Length) – e.g., 200 mm
🔹 Shank – e.g., 20 mm Weldon-type Shank
The insert pockets are tightly machined to eliminate any gap between the insert and seat, ensuring smooth cutting. Run-out tolerance is maintained through center-to-center grinding. The tool also includes center holes on both ends for precise setup.
Variants marked with:
-
SDL indicate Shank, Dia 20 mm, Length 200 mm
-
2T denote 2 Pocket (2 Teeth) tools for higher productivity (vs. standard 3-pocket tools)
🎁 Includes 10 Free ZCMT1003 Carbide Inserts with every unit.
This milling cutter is a durable and reliable solution for a wide range of machining applications.
