Description
This is a precision-engineered Shoulder and Face Milling Cutter used in both CNC and Manual Milling Machines. Compatible with ISO APMT1135 carbide inserts, it ensures cost-effective and efficient machining compared to traditional HSS tools. The cutter body is hardened to 45–50 HRC, offering excellent wear resistance and long tool life.
Each variation clearly defines:

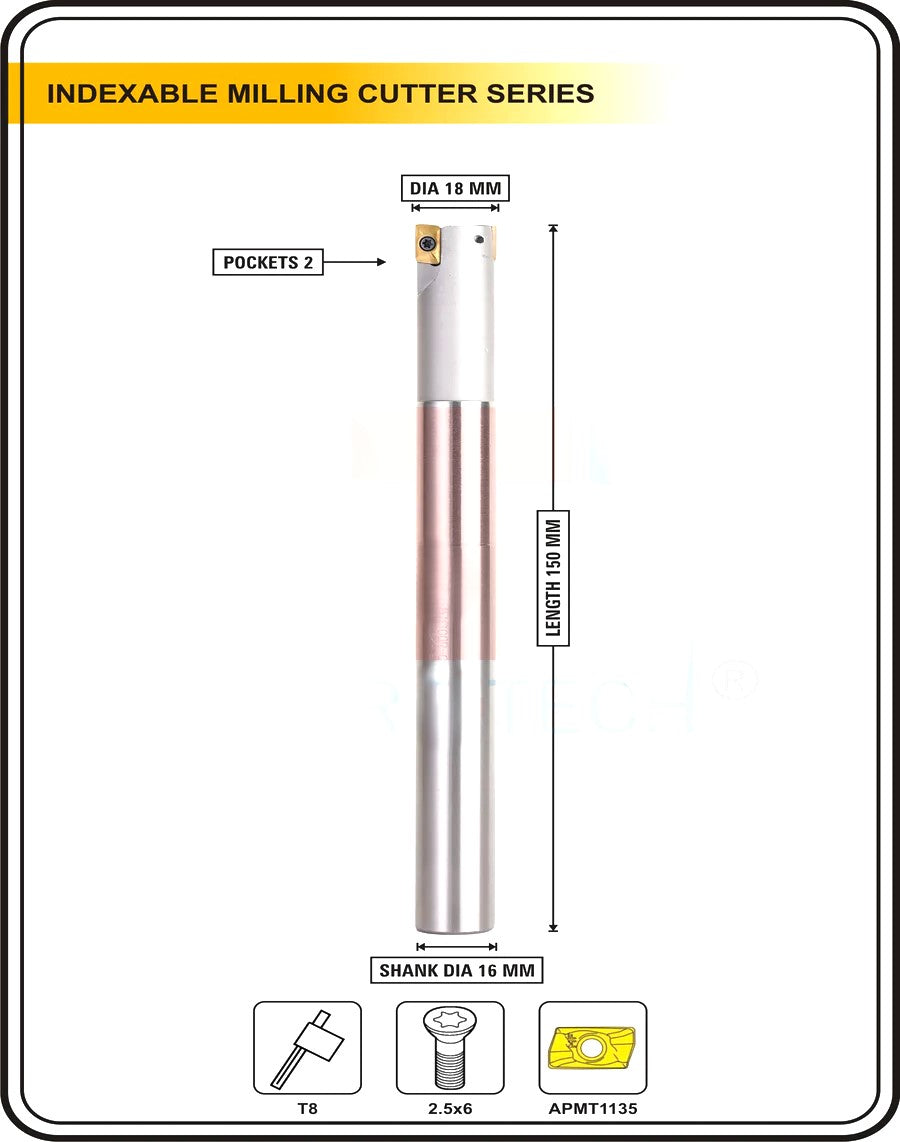

🔹 Dia (Diameter) – e.g., 18 mm
🔹 Len (Overall Length) – e.g., 150 mm / 200 mm etc.
🔹 Shank – e.g., 16 mm Weldon-type Shank
The insert pockets are tightly machined to eliminate any gap between the insert and seat, ensuring smooth cutting. Run-out tolerance is maintained through center-to-center grinding. The tool also includes center holes on both ends for precise setup.
Variants marked with:
-

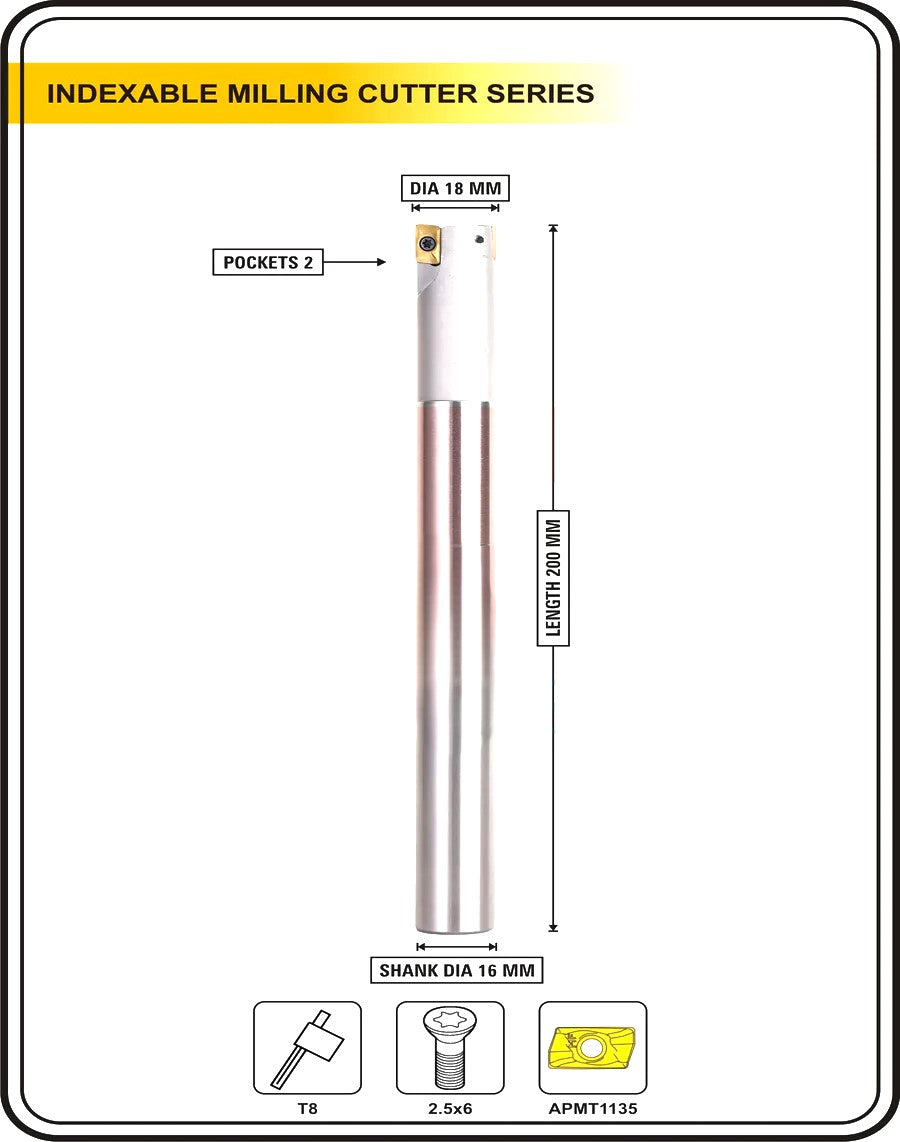

SDL indicate Shank, Dia 18 mm, Length 200 mm
-
3T denote 3 Pocket (3 Teeth) tools for higher productivity (vs. standard 2-pocket tools)
🎁 Includes 10 Free APMT1135 Carbide Inserts with every unit.
This milling cutter is a durable and reliable solution for a wide range of machining applications.
