Description

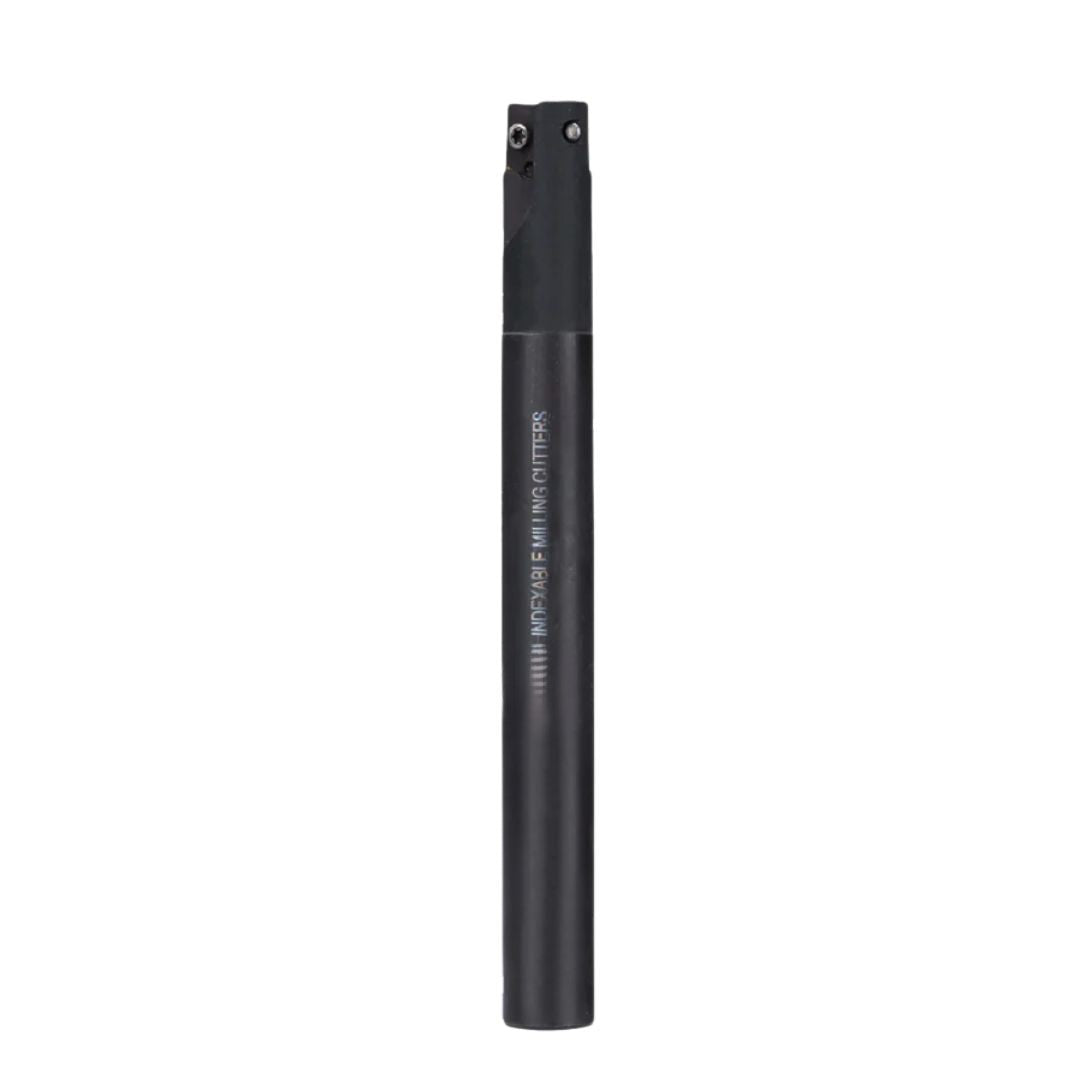

This is a precision-engineered Shoulder and Face Milling Cutter used in both CNC and Manual Milling Machines. Compatible with ISO APMT1135 carbide inserts, it ensures cost-effective and efficient machining compared to traditional HSS tools. The cutter body is hardened to 45–50 HRC, offering excellent wear resistance and long tool life.

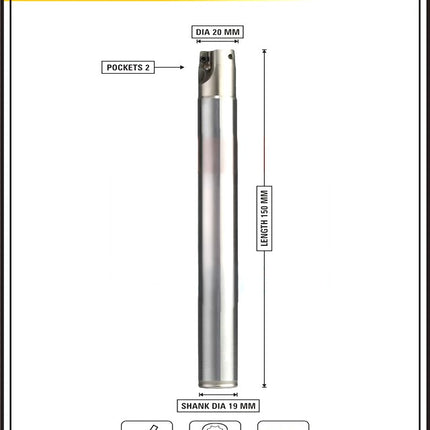

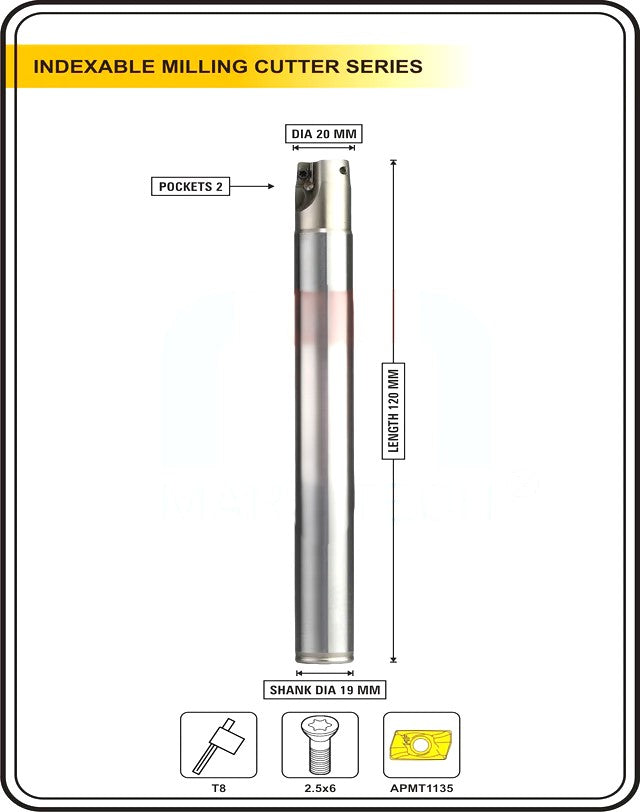

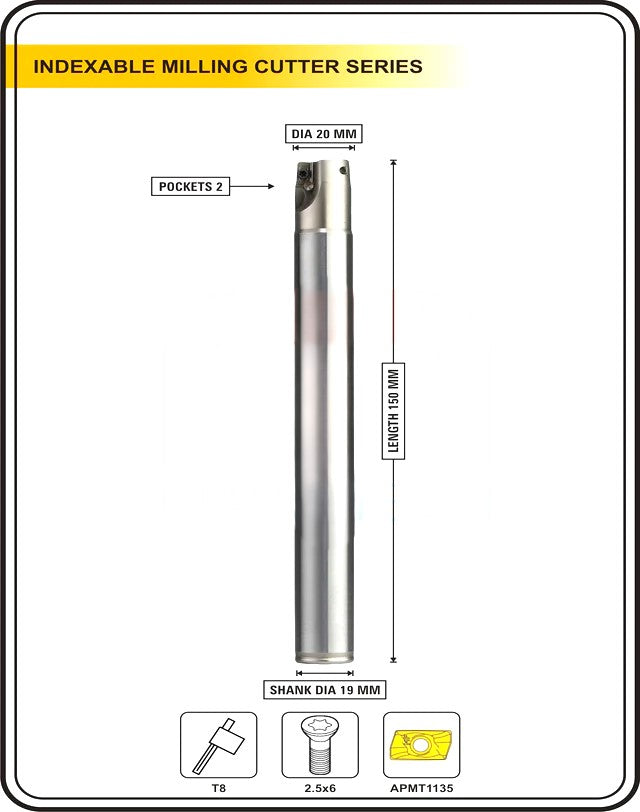

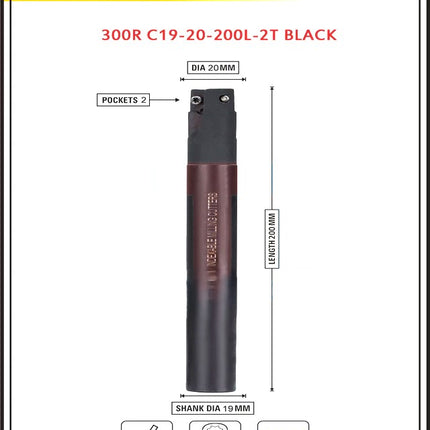

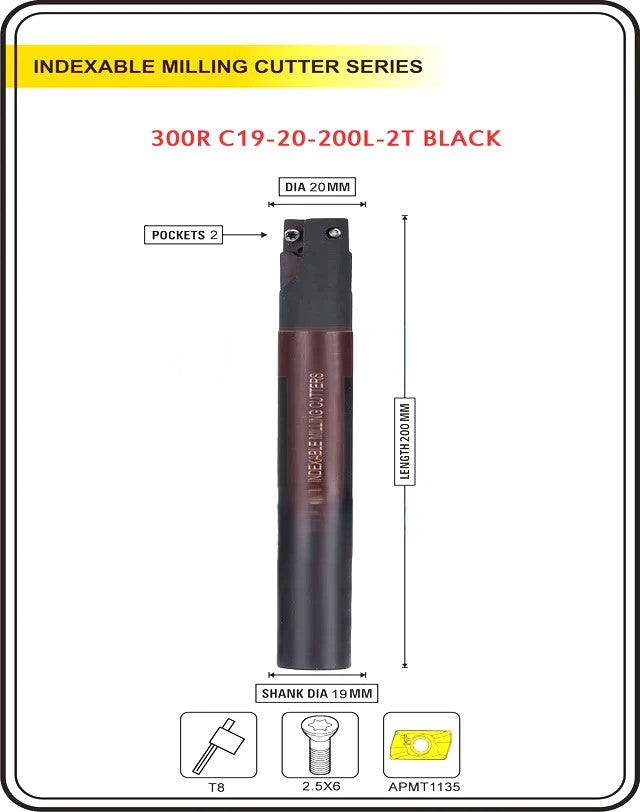

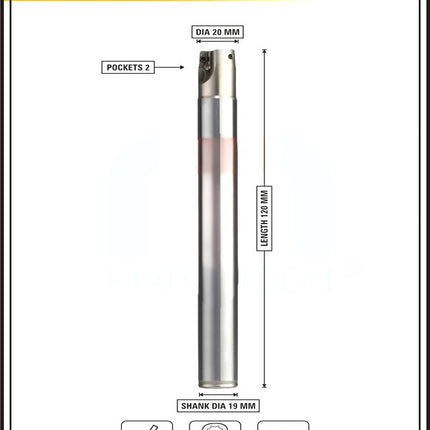

Each variation clearly defines:
🔹 Dia (Diameter) – e.g., 19 mm/ 20 mm
🔹 Len (Overall Length) – e.g., 120 mm/150 mm / 200 mm / 250 mm / 300 mm etc.
🔹 Shank – e.g., 19 mm/ 20 mm Weldon-type Shank
The insert pockets are tightly machined to eliminate any gap between the insert and seat, ensuring smooth cutting. Run-out tolerance is maintained through center-to-center grinding. The tool also includes center holes on both ends for precise setup.
Variants marked with:
-
SDL indicate Shank, Dia 19 mm/20 mm, Length 120 mm/ 150 mm/ 200 mm/250 mm/ 300 mm etc.
-
2T denote 2 Pocket (2 Teeth) tools for higher productivity (vs. standard 3-pocket tools)
🎁 Includes 10 Free APMT1135 Carbide Inserts with every unit.
This milling cutter is a durable and reliable solution for a wide range of machining applications.
