Description

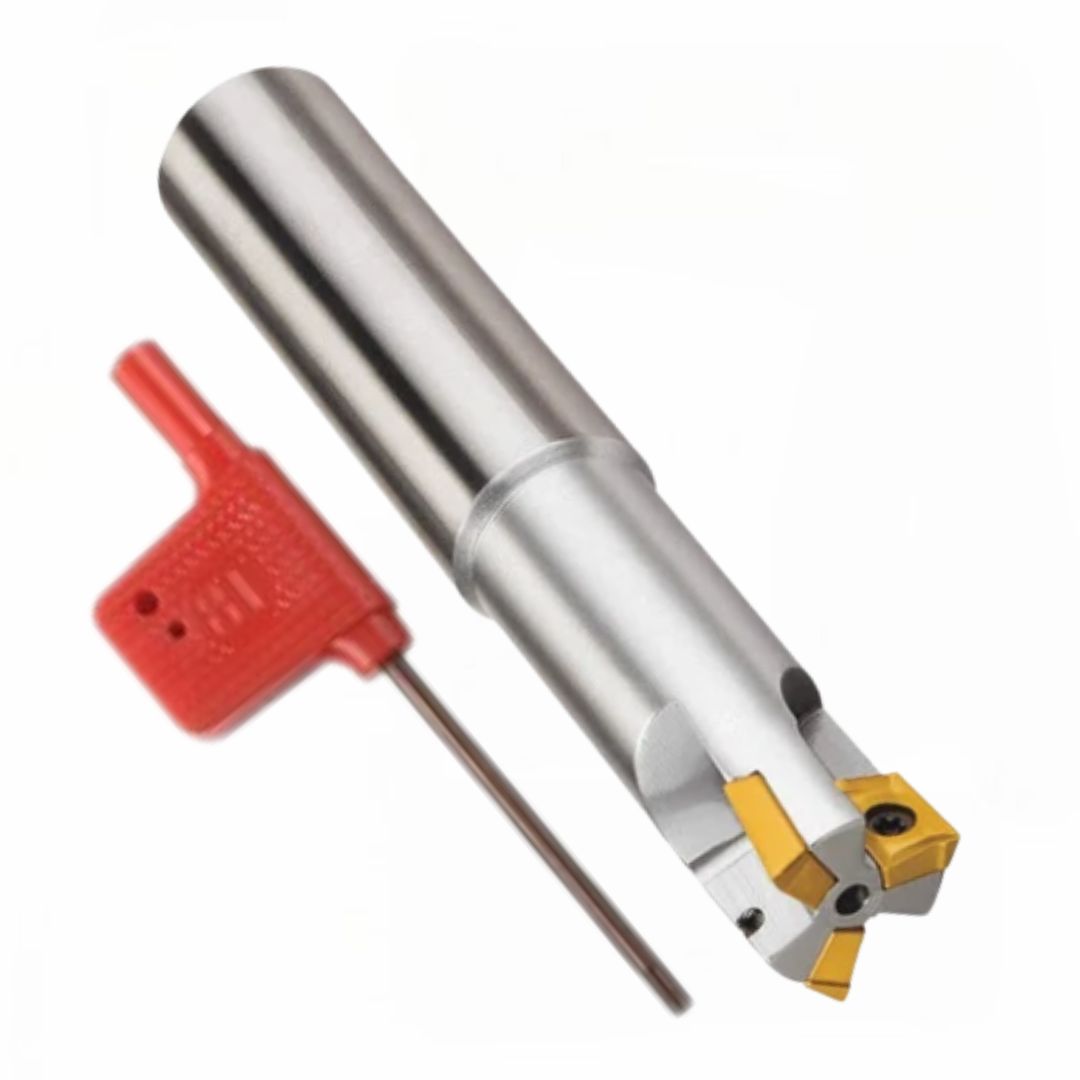

This is a precision-engineered Shoulder and Face Milling Cutter used in both CNC and Manual Milling Machines. Compatible with ISO JDMT0702 carbide inserts, it ensures cost-effective and efficient machining compared to traditional HSS tools. The cutter body is hardened to 45–50 HRC, offering excellent wear resistance and long tool life.

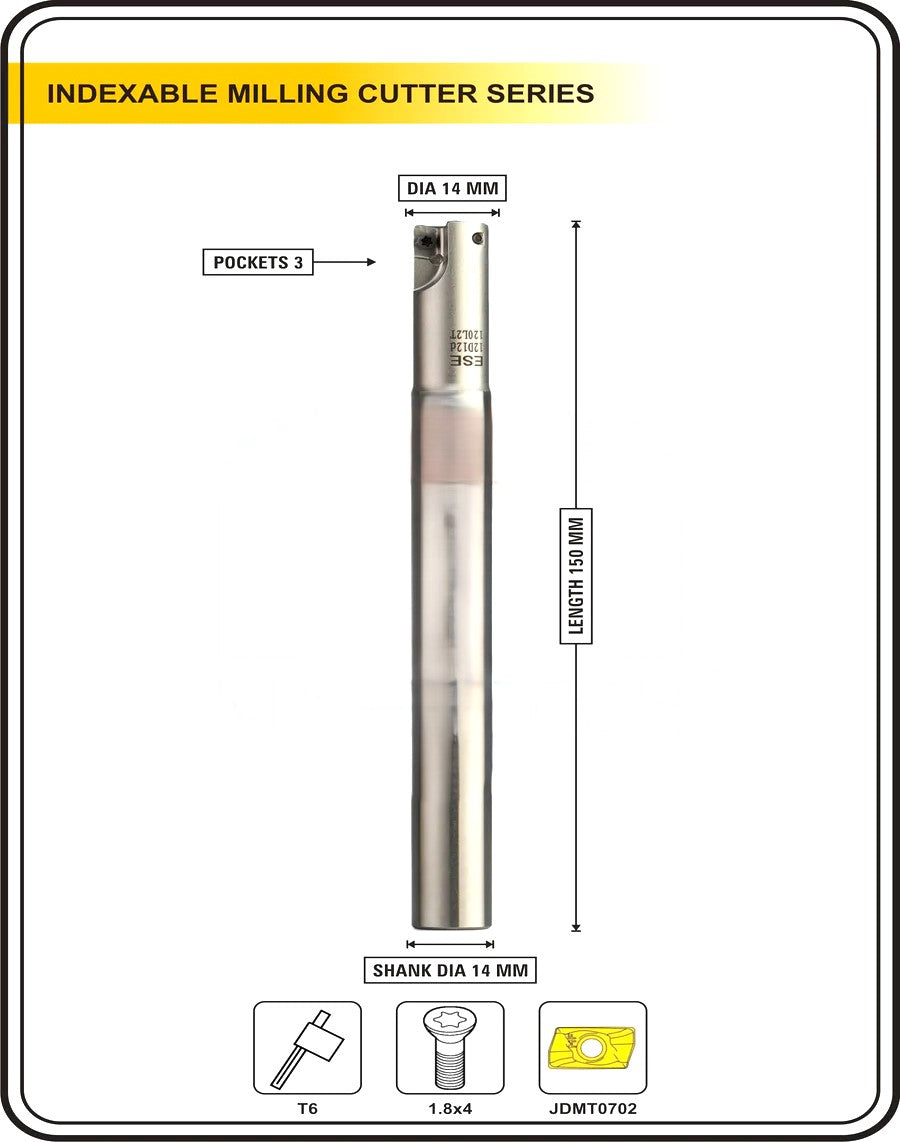

Each variation clearly defines:
🔹 Dia (Diameter) – e.g., 14 mm
🔹 Len (Overall Length) – e.g., 150 mm
🔹 Shank – e.g.,14 mm Weldon-type Shank
The insert pockets are tightly machined to eliminate any gap between the insert and seat, ensuring smooth cutting. Run-out tolerance is maintained through center-to-center grinding. The tool also includes center holes on both ends for precise setup.
Variants marked with:
-
SDL indicate Shank, Dia 14 mm, Length 150 mm
-
3T denote 3 Pocket (3 Teeth) tools for higher productivity
🎁 Includes 10 Free JDMT0702 Carbide Inserts with every unit.
This milling cutter is a durable and reliable solution for a wide range of machining applications.
