Horizontal Vertical 4" Inch II 100 mm Rotary Milling Tables

Description

4" HV Milling Rotary Table available in Regular and Tilting Table

Regular Table Tilting Table

Complete Accessories for 4" Tilting Rotary Table — Only Here!

We offer everything you need for your 4-inch tilting rotary table — including the world's first-ever available dividing plate exclusively with us!

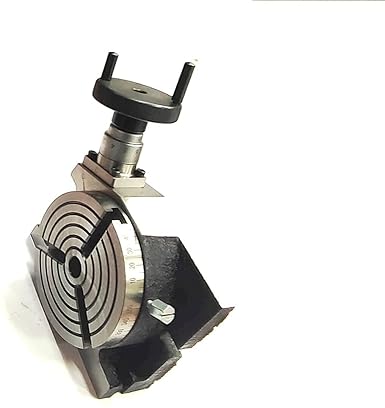

Vertical & Horizontal Design

Vertical & Horizontal Design

Our rotary table is both vertical and horizontal with two functions. When the vertical position of the table is used together with the tail part, it is also possible to complete circle cutting, indexing drilling, milling and more complicated work.

Chamfered Sides

Chamfered Sides

Our 4-inch rotary table features a chamfered design, ensuring smooth edges for safer handling and easy alignment. The chamfered edges also enhance the aesthetic appeal while reducing the risk of edge damage during use.

Wrinkle or Stoving Paint

Wrinkle or Stoving Paint

The rotary table is equipped with an oil nipple for easy lubrication, ensuring smooth and long-lasting rotation. It also features a locking screw to securely hold the table in position during machining for precise results.

Oil Nipple & Locking Screw

Oil Nipple & Locking Screw

All working surfaces of the rotary table are precision ground to ensure high accuracy and smooth operation. This enhances alignment, reduces runout, and delivers consistent performance in precision machining tasks.

Cup Grinded

Cup Grinded

The rotary table comes with a cap ground finish, providing a smooth, flat surface that enhances accuracy during setup. This precision finish ensures better contact with fixtures and improved machining consistency.

Gun Metal Gear

The rotary table features a gunmetal gear, known for its excellent wear resistance and smooth operation. This ensures reliable performance, reduced friction, and a longer lifespan, even under continuous use.

Gun Metal Gear

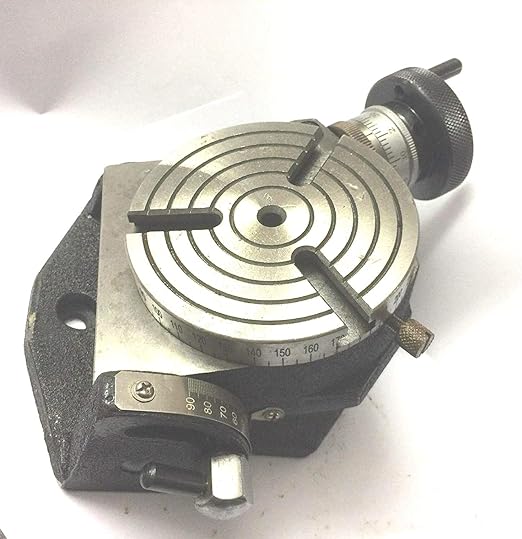

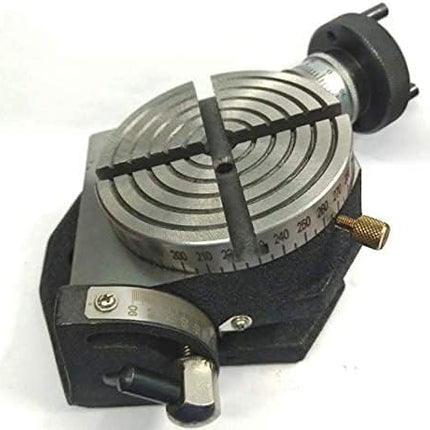

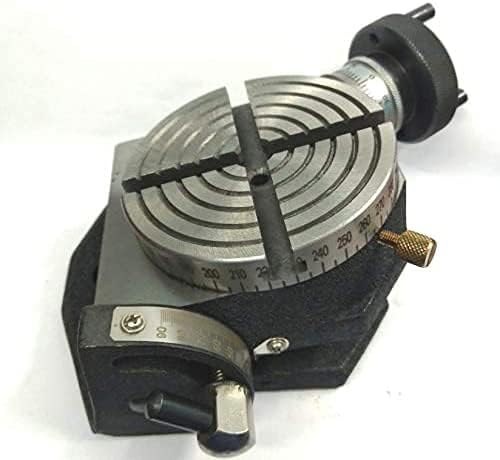

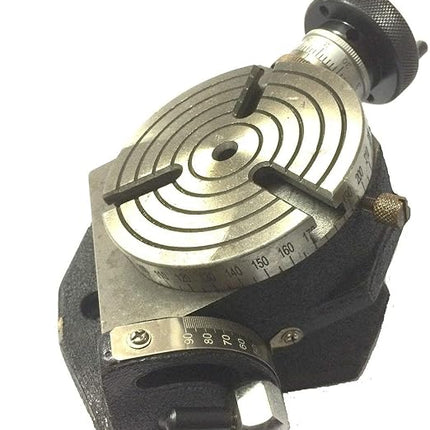

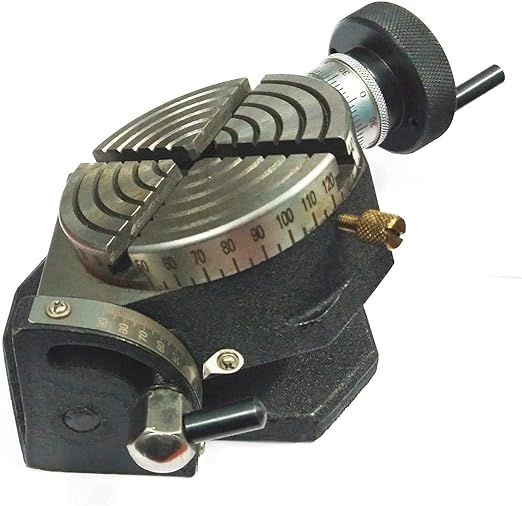

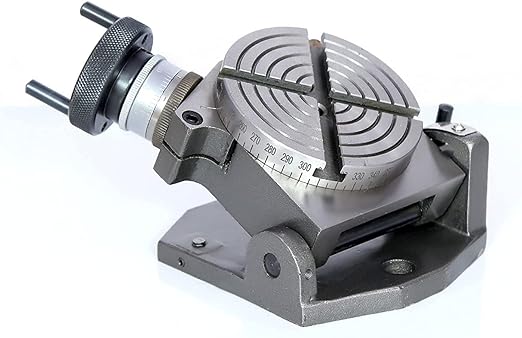

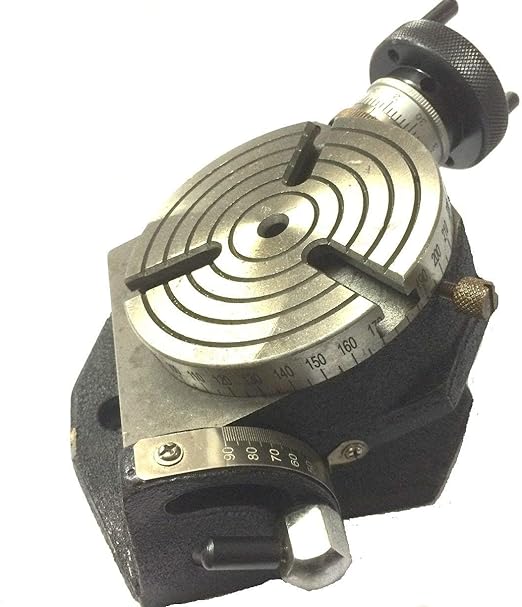

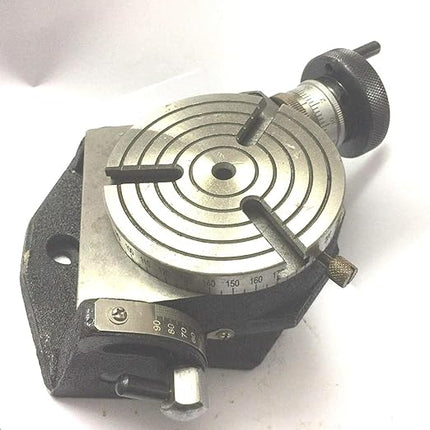

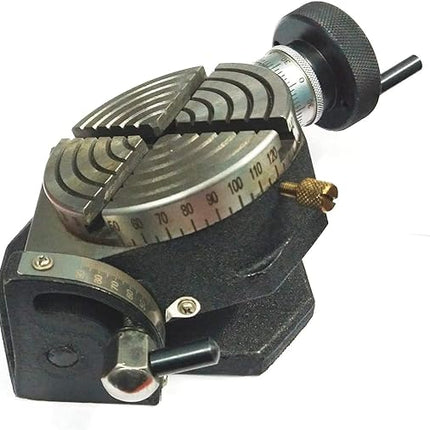

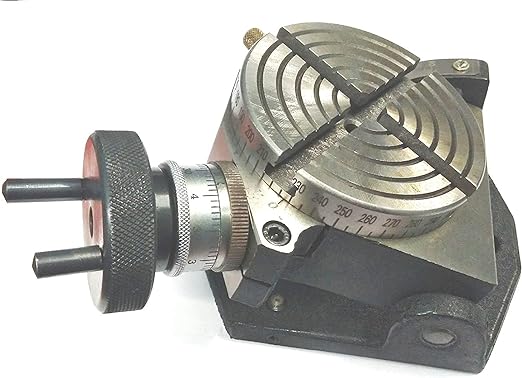

Tilting Rotary Table

4" Vertical & Horizontal Tilting Rotary Table

The vertical & horizontal rotary table is one of the main accessories of milling machine. As a precision work positioning device, it is widely used for indexing drilling, milling, circumferential cutting, boring and so on. Our amazing rotary table is made from casting with high quality. They are are very popular on the market for their superior performance, excellent design and reasonable cost.

  • Remarkable Quality
  • Excellent Precision
  • Multiple Application
  • Vertical & Horizontal Design

Specifications

  • Table Diameter: 4"
  • Table is graduated 360 Degrees.
  • Worm Gear Ratio -1:36
  • Center Height in horizontal position when lay flat : 2-3/4" (70 mm approx)
  • Center Height in vertical position: 3" Inch approx (77 mm)
  • Base Dimensions : 142 x 128 mm
  • 2 Opposite counter drills of 9.5 mm diameter are located at a PCD of 102 mm approx for mounting.

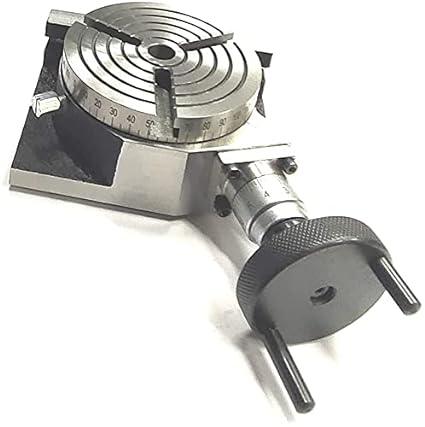

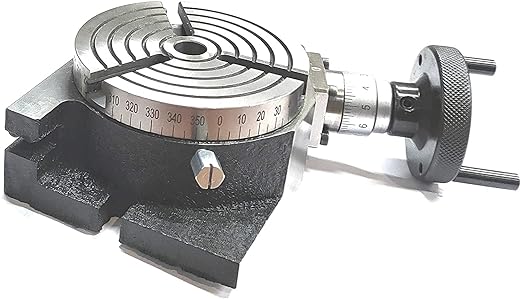

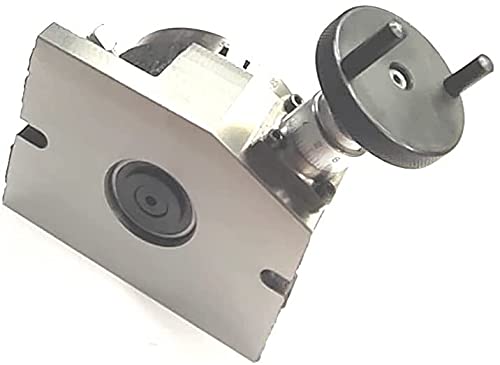

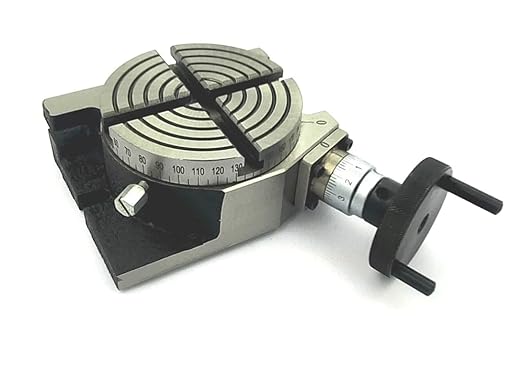

Regular Rotary Table

4" Vertical & Horizontal Regular Rotary Table

The vertical & horizontal rotary table is one of the main accessories of milling machine. As a precision work positioning device, it is widely used for indexing drilling, milling, circumferential cutting, boring and so on. Our amazing rotary table is made from casting with high quality. They are are very popular on the market for their superior performance, excellent design and reasonable cost.

  • Remarkable Quality
  • Excellent Precision
  • Multiple Application
  • Vertical & Horizontal Design

Specifications

  • Table Diameter: 4"
  • Table is graduated 360 Degrees.
  • Worm Gear Ratio -1:36
  • Height when laid horizontally 2-5/16" Inches ( 58 mm )
  • Center Height in vertical position: 2-1/8" (53.5 mm approx)
  • Base Dimensions : 135 mm x 105 mm with 2 x U slots (9.5 mm)
Product form

4" HV Milling Rotary Table available in Regular and Tilting Table Complete Accessories for 4" Tilting Rotary Table — Only... Read more

SKU: 20-RT-301

$55.95 $50.40

      Description

      4" HV Milling Rotary Table available in Regular and Tilting Table

      Regular Table Tilting Table

      Complete Accessories for 4" Tilting Rotary Table — Only Here!

      We offer everything you need for your 4-inch tilting rotary table — including the world's first-ever available dividing plate exclusively with us!

      Vertical & Horizontal Design

      Vertical & Horizontal Design

      Our rotary table is both vertical and horizontal with two functions. When the vertical position of the table is used together with the tail part, it is also possible to complete circle cutting, indexing drilling, milling and more complicated work.

      Chamfered Sides

      Chamfered Sides

      Our 4-inch rotary table features a chamfered design, ensuring smooth edges for safer handling and easy alignment. The chamfered edges also enhance the aesthetic appeal while reducing the risk of edge damage during use.

      Wrinkle or Stoving Paint

      Wrinkle or Stoving Paint

      The rotary table is equipped with an oil nipple for easy lubrication, ensuring smooth and long-lasting rotation. It also features a locking screw to securely hold the table in position during machining for precise results.

      Oil Nipple & Locking Screw

      Oil Nipple & Locking Screw

      All working surfaces of the rotary table are precision ground to ensure high accuracy and smooth operation. This enhances alignment, reduces runout, and delivers consistent performance in precision machining tasks.

      Cup Grinded

      Cup Grinded

      The rotary table comes with a cap ground finish, providing a smooth, flat surface that enhances accuracy during setup. This precision finish ensures better contact with fixtures and improved machining consistency.

      Gun Metal Gear

      The rotary table features a gunmetal gear, known for its excellent wear resistance and smooth operation. This ensures reliable performance, reduced friction, and a longer lifespan, even under continuous use.

      Gun Metal Gear
      Tilting Rotary Table

      4" Vertical & Horizontal Tilting Rotary Table

      The vertical & horizontal rotary table is one of the main accessories of milling machine. As a precision work positioning device, it is widely used for indexing drilling, milling, circumferential cutting, boring and so on. Our amazing rotary table is made from casting with high quality. They are are very popular on the market for their superior performance, excellent design and reasonable cost.

      • Remarkable Quality
      • Excellent Precision
      • Multiple Application
      • Vertical & Horizontal Design

      Specifications

      • Table Diameter: 4"
      • Table is graduated 360 Degrees.
      • Worm Gear Ratio -1:36
      • Center Height in horizontal position when lay flat : 2-3/4" (70 mm approx)
      • Center Height in vertical position: 3" Inch approx (77 mm)
      • Base Dimensions : 142 x 128 mm
      • 2 Opposite counter drills of 9.5 mm diameter are located at a PCD of 102 mm approx for mounting.
      Regular Rotary Table

      4" Vertical & Horizontal Regular Rotary Table

      The vertical & horizontal rotary table is one of the main accessories of milling machine. As a precision work positioning device, it is widely used for indexing drilling, milling, circumferential cutting, boring and so on. Our amazing rotary table is made from casting with high quality. They are are very popular on the market for their superior performance, excellent design and reasonable cost.

      • Remarkable Quality
      • Excellent Precision
      • Multiple Application
      • Vertical & Horizontal Design

      Specifications

      • Table Diameter: 4"
      • Table is graduated 360 Degrees.
      • Worm Gear Ratio -1:36
      • Height when laid horizontally 2-5/16" Inches ( 58 mm )
      • Center Height in vertical position: 2-1/8" (53.5 mm approx)
      • Base Dimensions : 135 mm x 105 mm with 2 x U slots (9.5 mm)
