Bullet Points / Key Product Features
1. LARGE 9-INCH CUTTING DIAMETER
Designed for large-area facing operations on milling machines, this 9-inch fly cutter covers a wide surface area in each pass, making it suitable for squaring, leveling and producing consistent flat surfaces on workpieces.

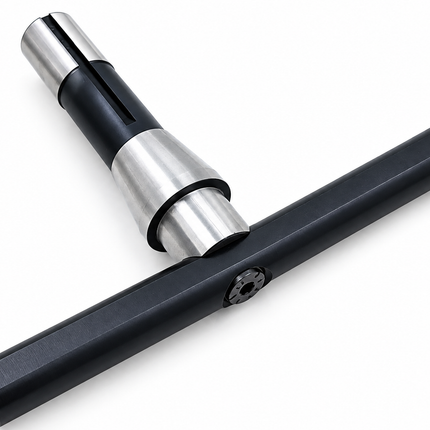

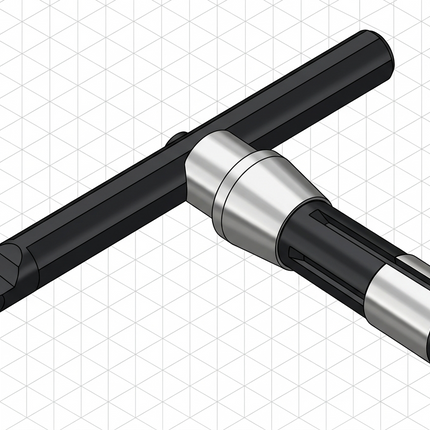

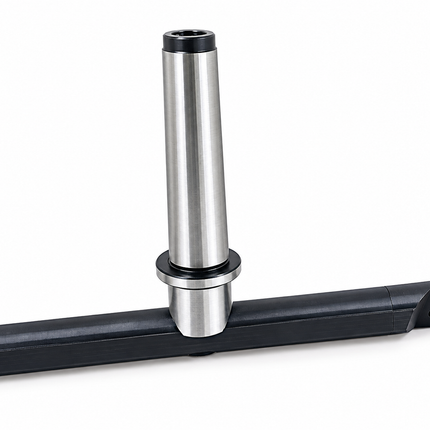

2. RIGID & BALANCED DESIGN
Engineered with a rigid, balanced construction to provide stable cutting performance during large-diameter facing operations. The design helps maintain controlled tool movement while machining broad workpiece surfaces.

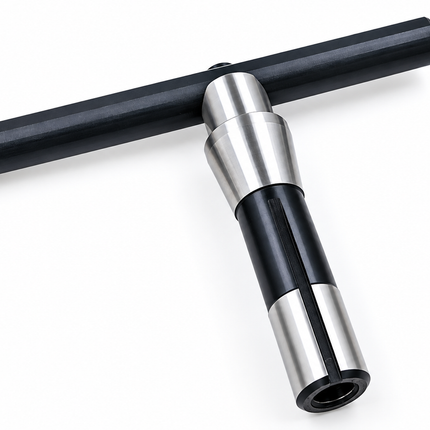

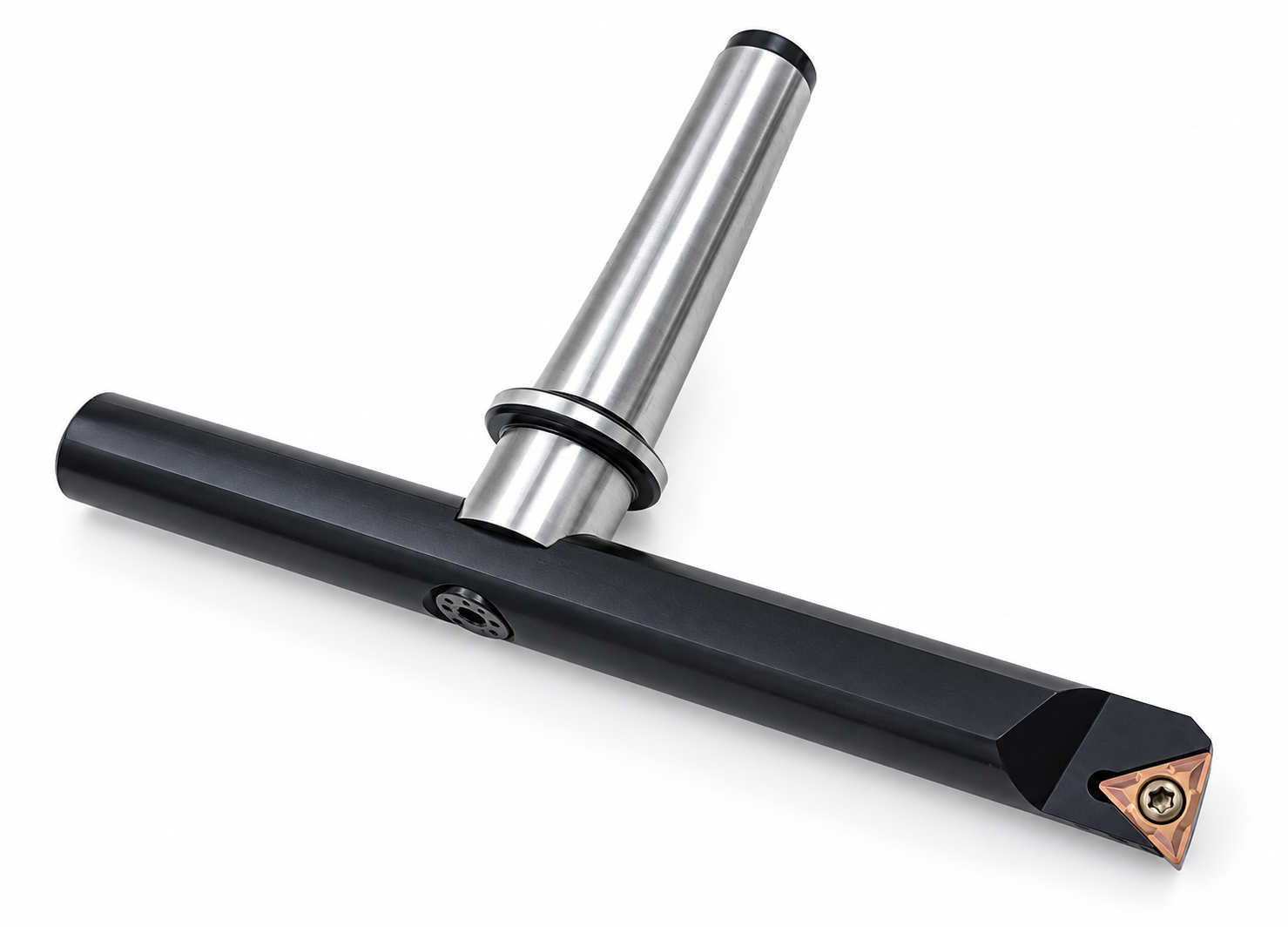

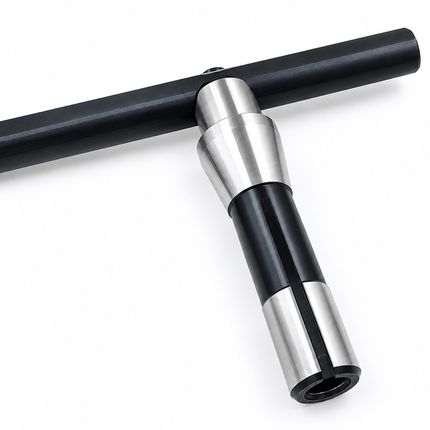

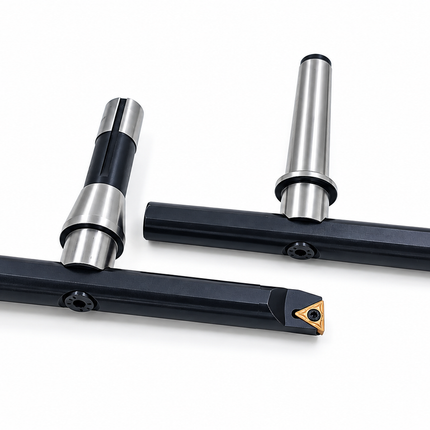

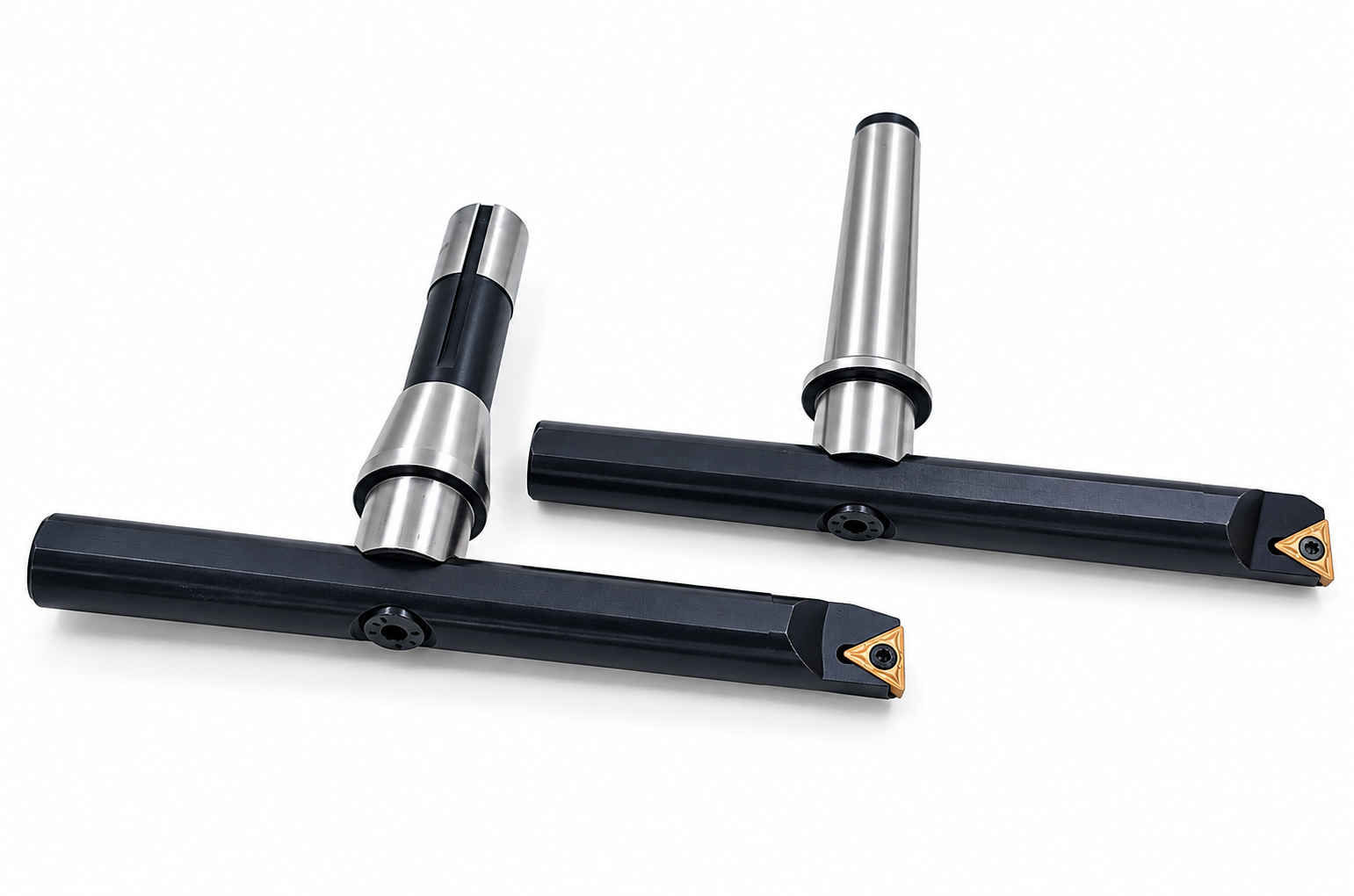

3. MT3 & R8 SHANK OPTIONS
Available with MT3 shank with M12 × 1.75 mm drawbar or R8 shank with 7/16"-UNF drawbar, allowing the cutter to be matched to compatible milling machine spindles.
4. REPLACEABLE TCMT1604 INSERT
Uses a TCMT1604 carbide insert that can be replaced when worn, allowing continued use of the cutter without replacing the complete tool. One insert is included with the cutter.
5. COMPLETE CUTTING HARDWARE
Includes the TCMT1604 insert, Torx insert screw and star key required for securing the cutting insert. Shanks are hardened and ground for a precision-machined interface.
Detailed Product Description
Buyohlic 9-Inch Fly Cutter – Single Insert Milling Cutter
The Buyohlic 9-Inch Fly Cutter is designed for large-area facing and surface machining on milling machines. Its large cutting diameter allows the cutter to cover a broad section of the workpiece during each revolution, making it suitable for flattening, leveling and finishing large surfaces.
The cutter features a rigid and balanced single-insert design intended to provide stable cutting action during large-diameter facing operations. The single-insert configuration also makes insert replacement straightforward and economical compared with replacing an entire cutting tool.
This fly cutter uses a TCMT1604 replaceable carbide insert. One insert is supplied with the cutter along with the required Torx screw and star key for installation. Once the insert reaches the end of its usable cutting life, it can be replaced while the main cutter body remains in service.
The tool is available in two common milling-machine shank configurations:
-

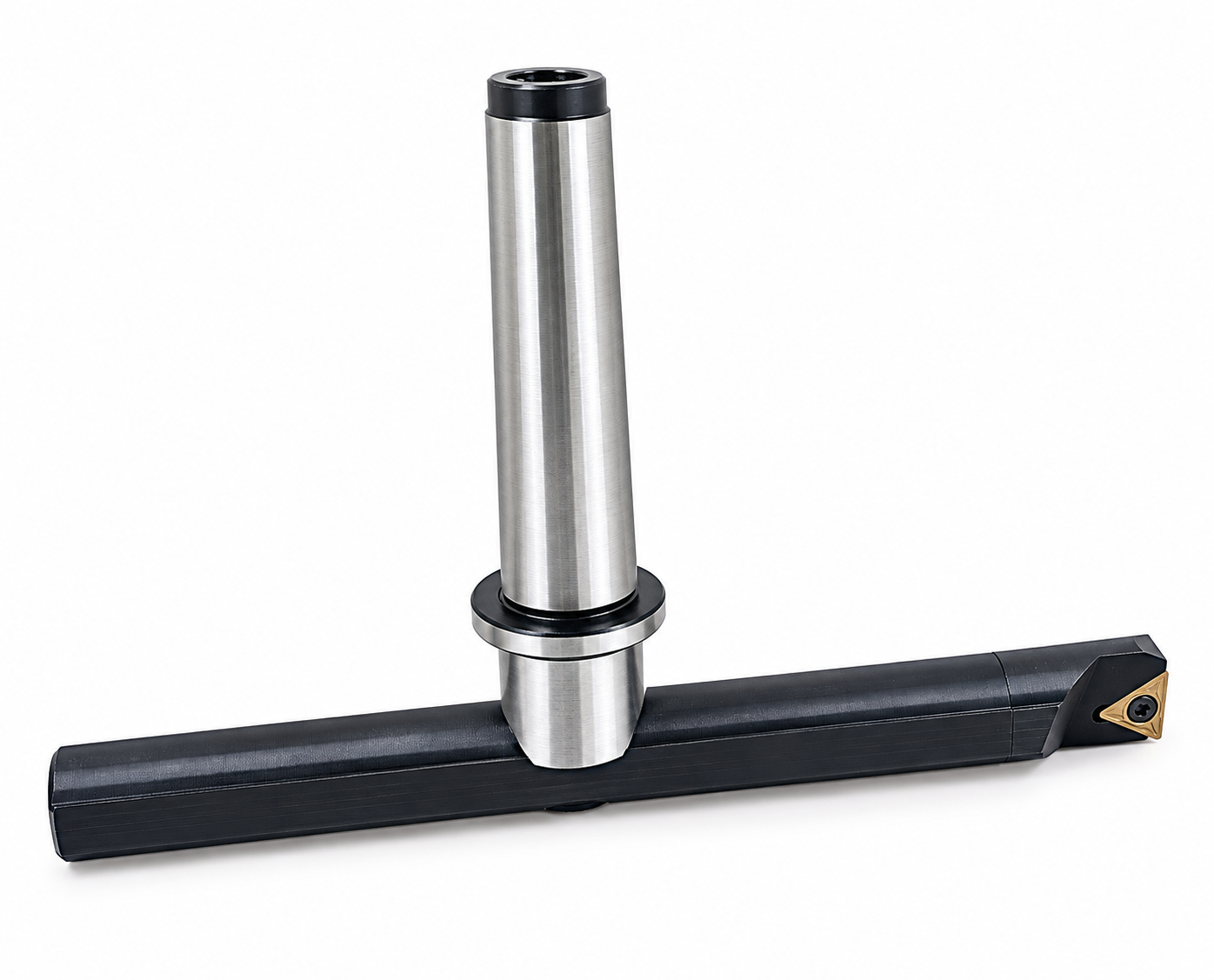

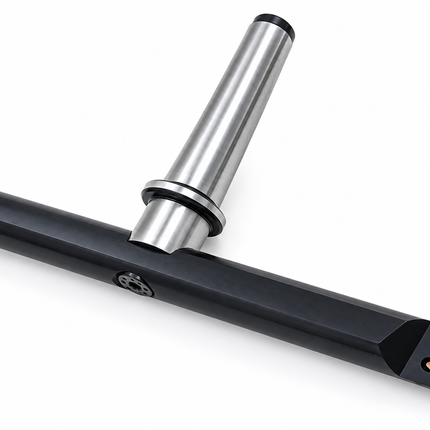

MT3 Shank – M12 × 1.75 mm drawbar
-

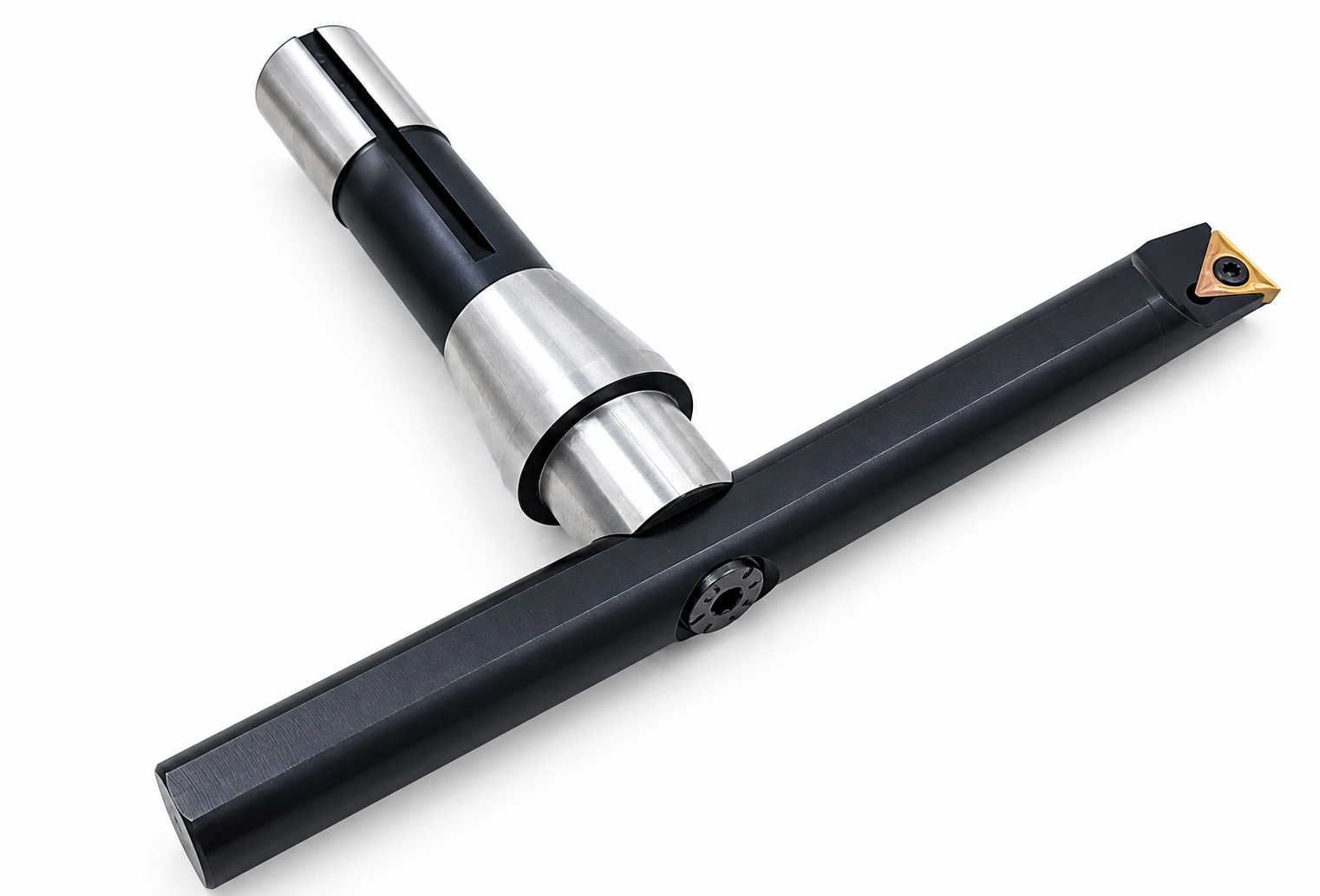

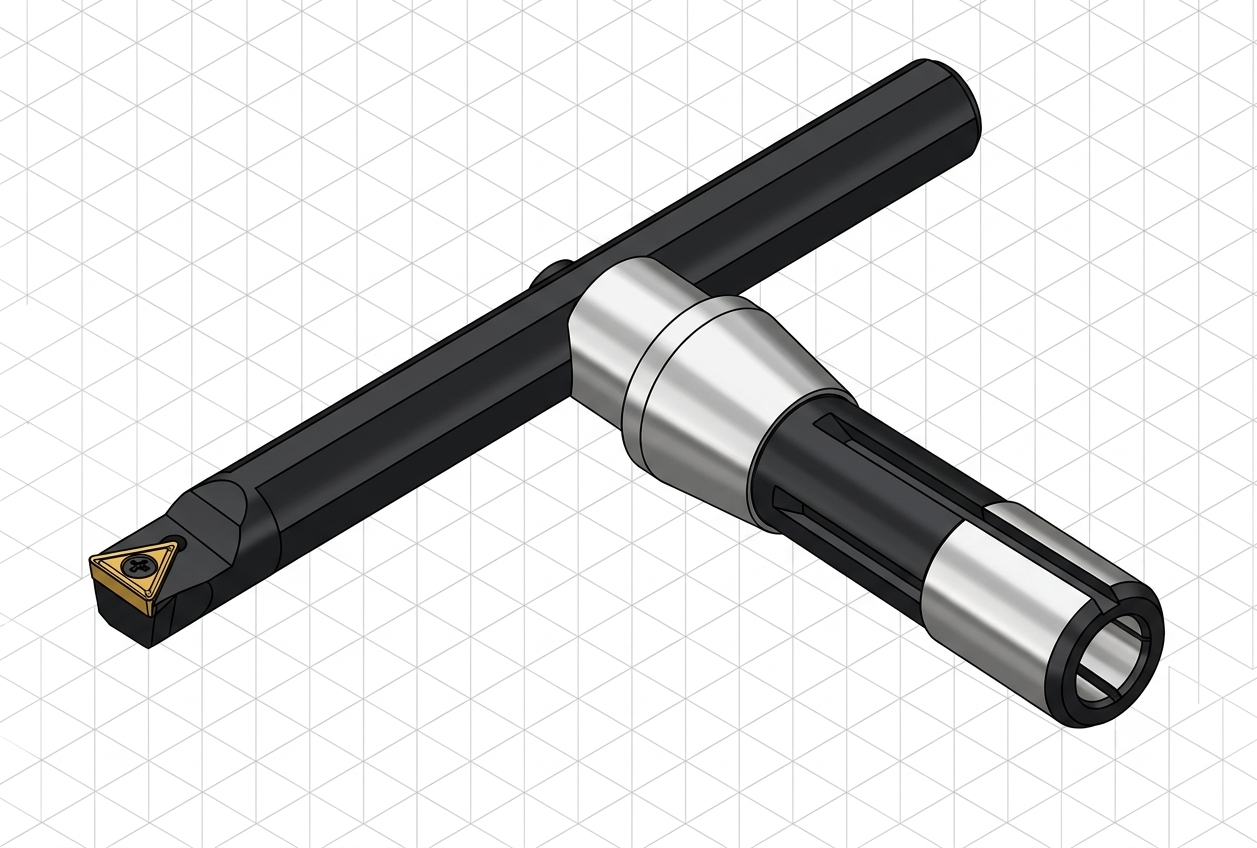

R8 Shank – 7/16"-UNF drawbar
The shanks are hardened and ground to provide a precision-machined mounting surface for compatible milling machine spindles.
The 9-inch diameter makes this cutter particularly useful when a large surface needs to be machined efficiently with a single cutting tool. It can be used for general machining, fabrication, maintenance and workshop applications where broad, flat surfaces need to be faced on a milling machine.
Typical Use Cases
1. Large Surface Facing
Ideal for removing material from broad, relatively flat workpiece surfaces and bringing them to a more uniform plane.
2. Squaring Workpieces
Can be used to face the top surface of a workpiece before subsequent milling, drilling or machining operations.
3. Leveling & Flattening
Useful for leveling cast, fabricated or machined surfaces where a broad cutting path is advantageous.
4. Machine-Shop Work
Suitable for general-purpose machining operations in machine shops, fabrication workshops, maintenance departments and engineering workshops.
5. Large Workpieces
The 9-inch cutting diameter is particularly useful where the operator needs to cover a comparatively large surface with each cutting pass.
6. Milling Machine Surface Preparation
Can be used as an initial or intermediate facing operation before more precise machining, finishing or dimensional operations.
Suggested "What's Included"
Package Includes:
- 1 × Buyohlic 9-Inch Fly Cutter
- 1 × TCMT1604 Carbide Insert
- 1 × Torx Insert Screw
- 1 × Star Key
Shank Options: MT3 or R8
MT3 Drawbar: M12 × 1.75 mm
R8 Drawbar: 7/16"-UNF
Cutting Diameter: 9 Inch
Insert Type: TCMT1604
Insert Configuration: Single Insert
Shank: Hardened & Ground
Insert: Replaceable
