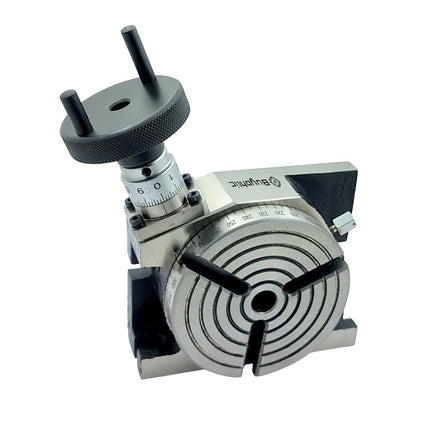

Small HV 3" Inch II 80 mm Rotary Milling Table

Description

3" HV Milling Rotary Table available in Regular and Tilting Table

Regular Table Tilting Table

All essential accessories are available for the 3-inch rotary table, including a tailstock, clamp kit, vice, and dividing plate. Our 3-inch dividing plate is an exclusive product, uniquely available only from us worldwide.

Vertical & Horizontal Design

Vertical & Horizontal Design

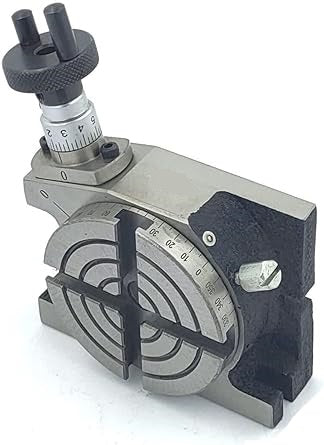

Our rotary table is both vertical and horizontal with two functions. When the vertical position of the table is used together with the tail part, it is also possible to complete circle cutting, indexing drilling, milling and more complicated work.

Low Profile

Low Profile

A 3-inch rotary table being low profile means it fits easily in small spaces and compact machines. It allows better Z-axis clearance and is perfect for precise work on limited workspaces.

Chamfered Sides

Chamfered Sides

Our 3-inch rotary table features a chamfered design, ensuring smooth edges for safer handling and easy alignment. The chamfered edges also enhance the aesthetic appeal while reducing the risk of edge damage during use.

Wrinkle or Stoving Paint

Wrinkle or Stoving Paint

Our 3-inch rotary table is finished with durable wrinkle/ Stoving paint, providing a rugged texture that resists chipping and peeling. This ensures long-lasting protection and a professional look, even with regular use

Oil Nipple & Locking Screw

Oil Nipple & Locking Screw

The rotary table is equipped with an oil nipple for easy lubrication, ensuring smooth and long-lasting rotation. It also features a locking screw to securely hold the table in position during machining for precise results.

Precision Ground

Precision Ground

All working surfaces of the rotary table are precision ground to ensure high accuracy and smooth operation. This enhances alignment, reduces runout, and delivers consistent performance in precision machining tasks.

Cap Grinded

Cap Grinded

The rotary table comes with a cap ground finish, providing a smooth, flat surface that enhances accuracy during setup. This precision finish ensures better contact with fixtures and improved machining consistency.

Gun Metal Gear

The rotary table features a gunmetal gear, known for its excellent wear resistance and smooth operation. This ensures reliable performance, reduced friction, and a longer lifespan, even under continuous use.

Gun Metal Gear
Product

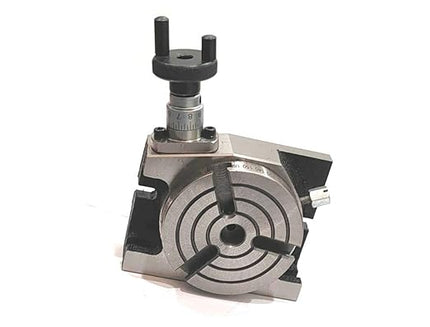

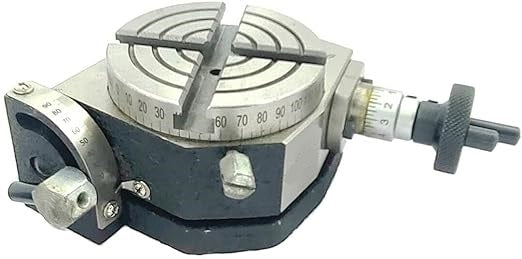

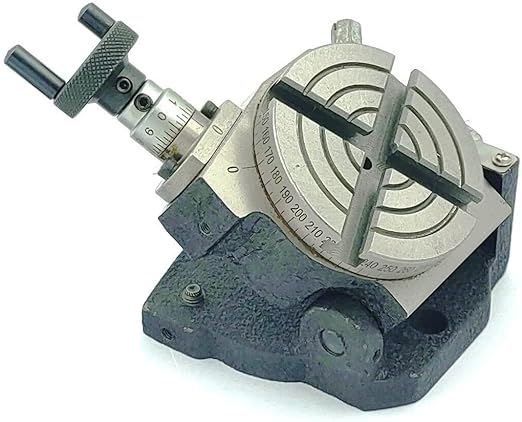

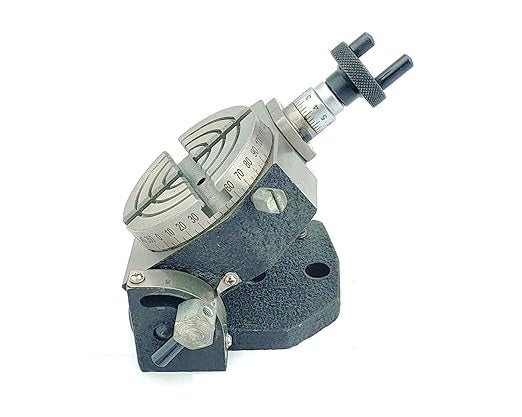

3" Vertical & Horizontal Tilting Rotary Table

The vertical & horizontal rotary table is one of the main accessories of milling machine. As a precision work positioning device, it is widely used for indexing drilling, milling, circumferential cutting, boring and so on. Our amazing rotary table is made from casting with high quality. They are are very popular on the market for their superior performance, excellent design and reasonable cost.

  • Remarkable Quality
  • Excellent Precision
  • Multiple Application
  • Vertical & Horizontal Design

Specifications

  • Table Diameter: 3"
  • Worm- Gear Ratio - 36:1
  • Total Height when laid flat is 2-7/16" ( 62 mm )
  • Center Height in vertical position: 2-17/32" (61.5 mm approx)
  • Can be clamped vertically and horizontally both ways.
  • Base Dimensions : 100 x 105 mm with 2 x Drills (8 mm diameter) at a PCD of 82 mm approx.
  • Weight of the Rotary Table : 2.700 Kgs.
Product

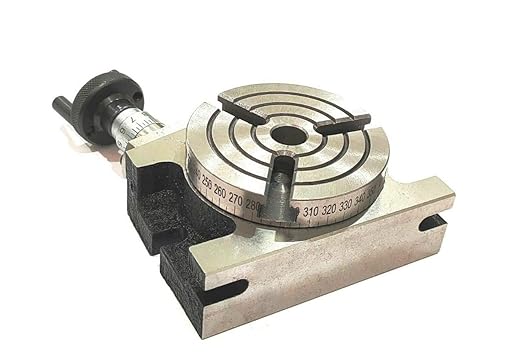

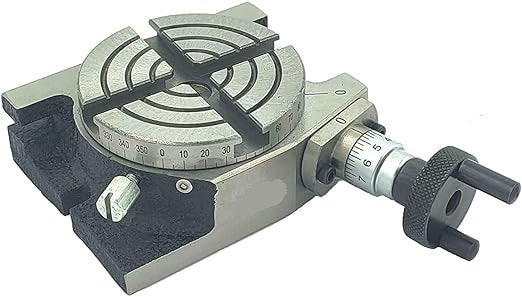

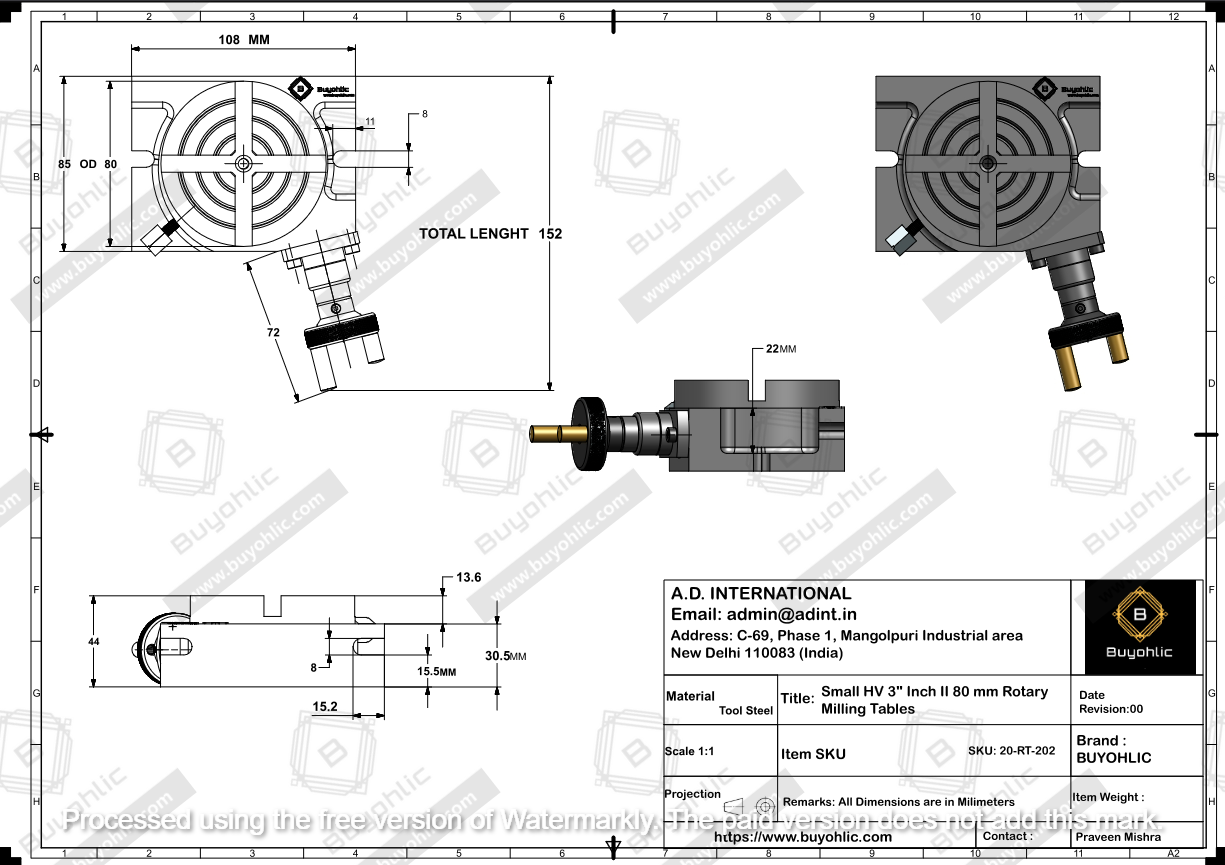

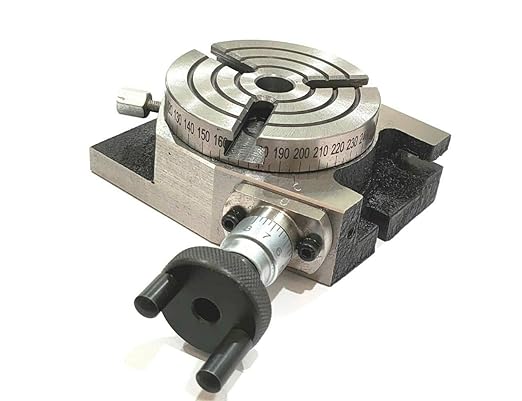

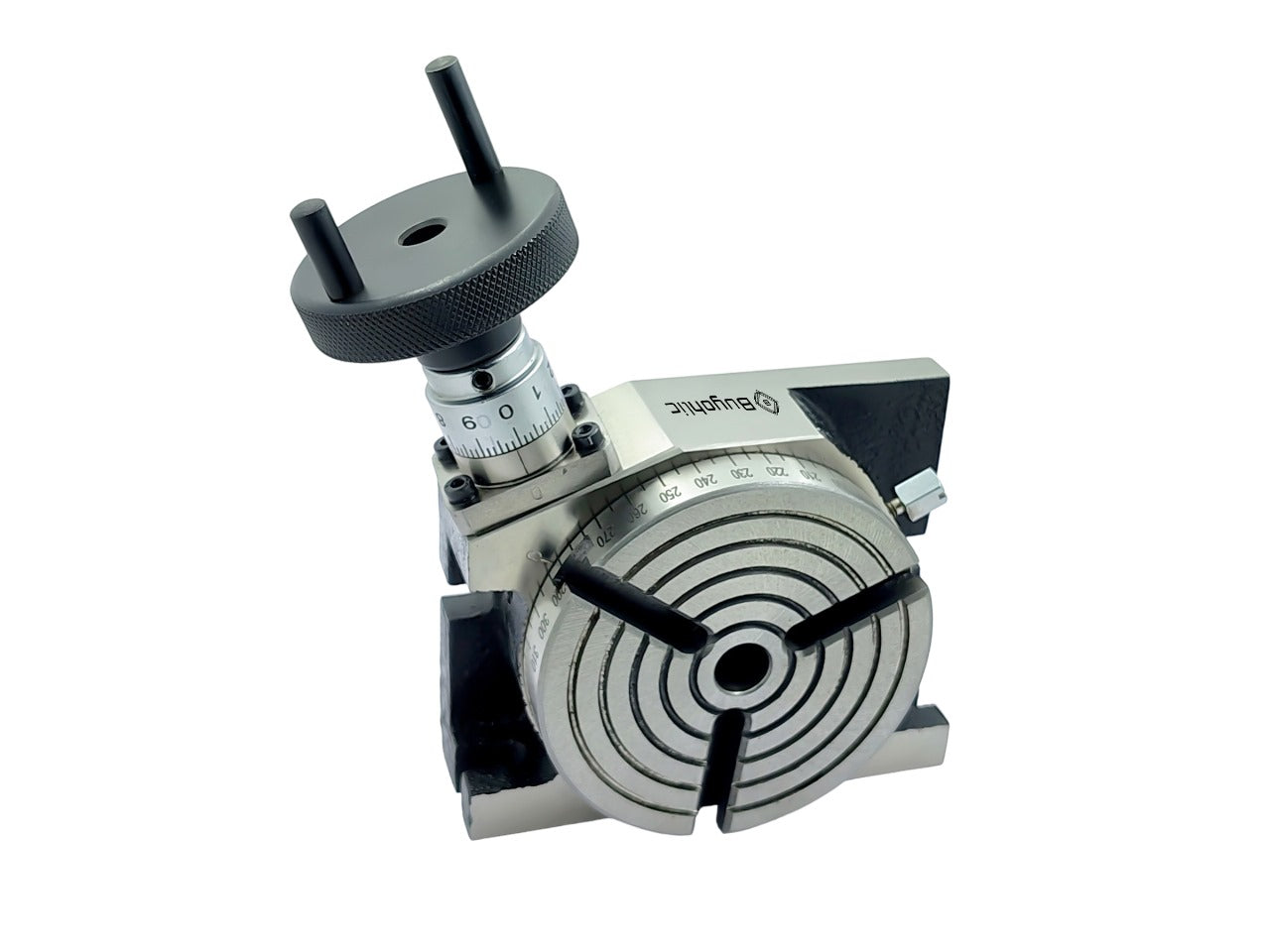

3" Vertical & Horizontal Regular Rotary Table

The vertical & horizontal rotary table is one of the main accessories of milling machine. As a precision work positioning device, it is widely used for indexing drilling, milling, circumferential cutting, boring and so on. Our amazing rotary table is made from casting with high quality. They are are very popular on the market for their superior performance, excellent design and reasonable cost.

  • Remarkable Quality
  • Excellent Precision
  • Multiple Application
  • Vertical & Horizontal Design

Specifications

  • Table Diameter: 3"
  • Vertical Height: 1-5/8 inches
  • Horizontal Height: 44 mm
  • Gear Ratio - 36:1

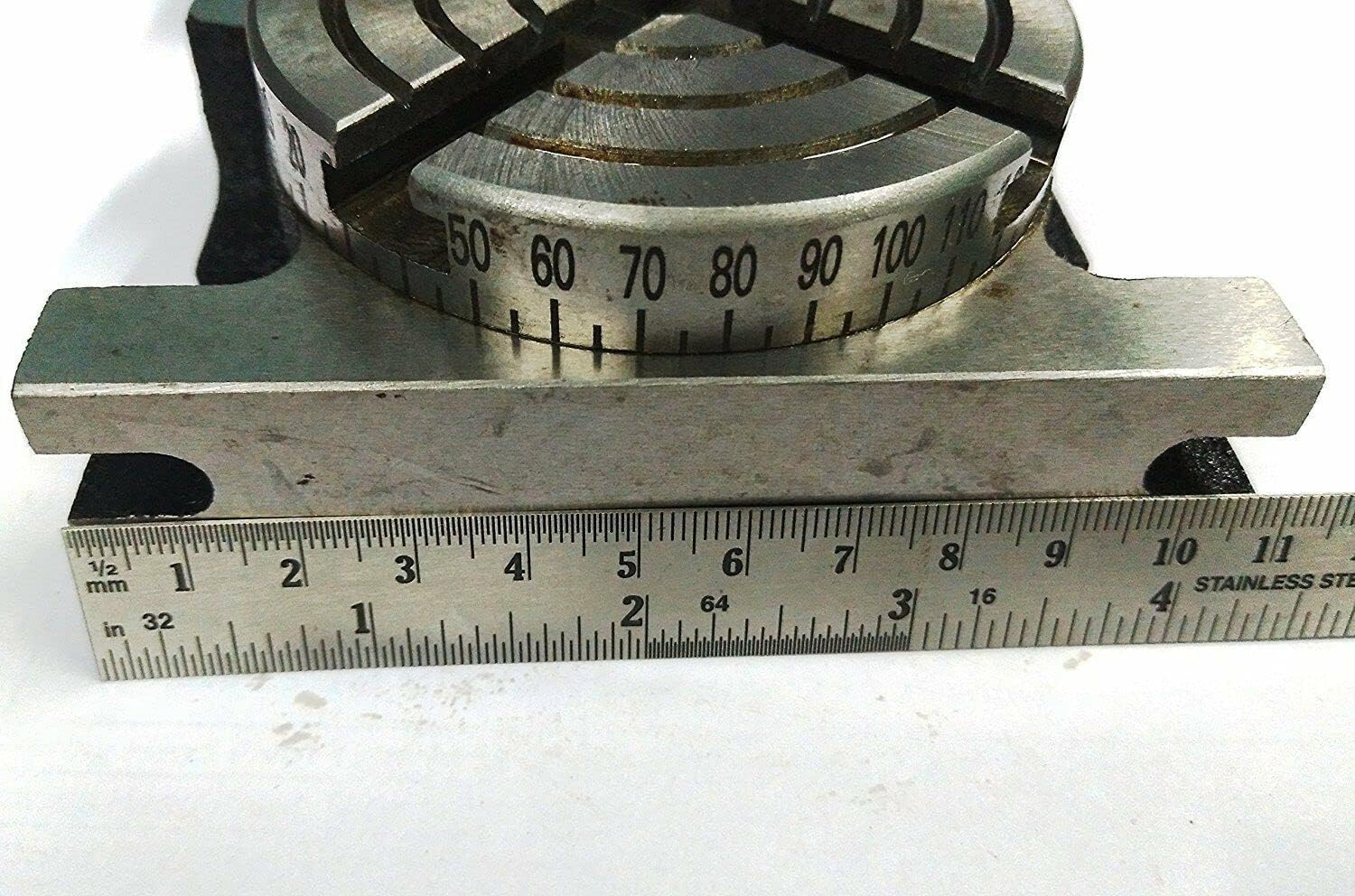

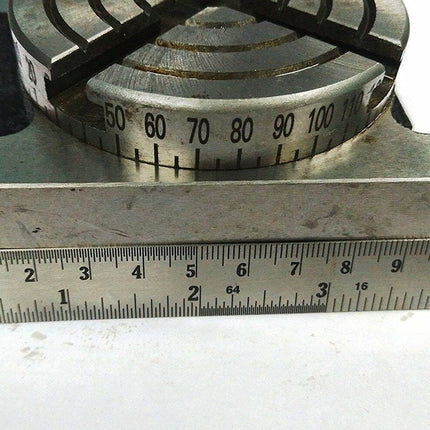

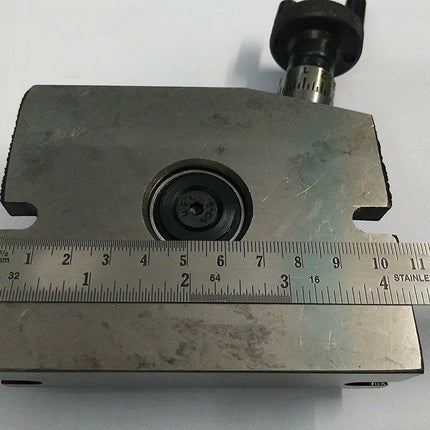

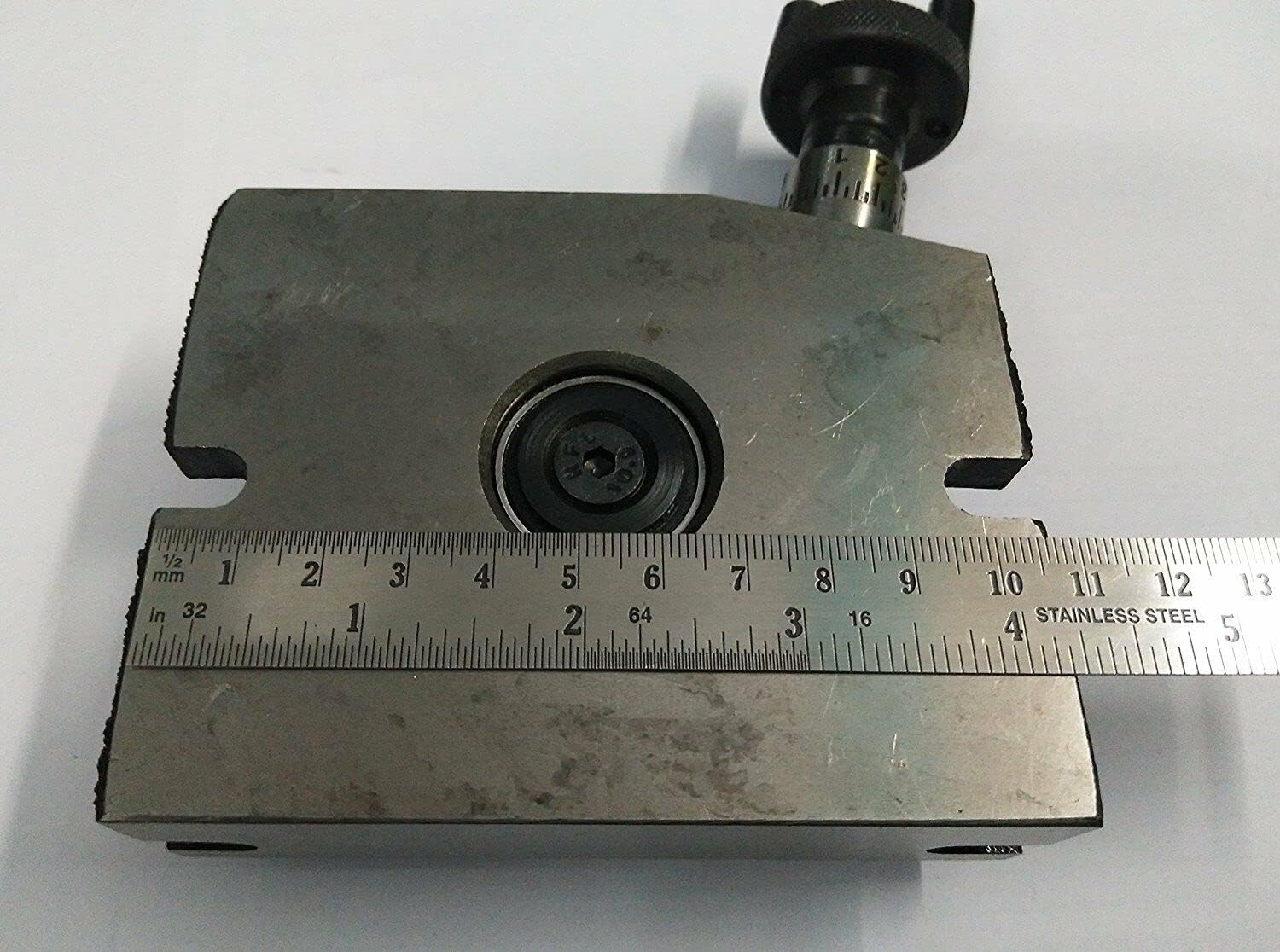

  • Base Dimensions: 4. 1/8" x 3. 1/4" 4 T-Slots: 5/16"
Product form

3" HV Milling Rotary Table available in Regular and Tilting Table All essential accessories are available for the 3-inch rotary... Read more

SKU: 20-RT-202
Barcode: 8906183732207

$45.90 $41.30

      Description

      3" HV Milling Rotary Table available in Regular and Tilting Table

      Regular Table Tilting Table

      All essential accessories are available for the 3-inch rotary table, including a tailstock, clamp kit, vice, and dividing plate. Our 3-inch dividing plate is an exclusive product, uniquely available only from us worldwide.

      Vertical & Horizontal Design

      Vertical & Horizontal Design

      Our rotary table is both vertical and horizontal with two functions. When the vertical position of the table is used together with the tail part, it is also possible to complete circle cutting, indexing drilling, milling and more complicated work.

      Low Profile

      Low Profile

      A 3-inch rotary table being low profile means it fits easily in small spaces and compact machines. It allows better Z-axis clearance and is perfect for precise work on limited workspaces.

      Chamfered Sides

      Chamfered Sides

      Our 3-inch rotary table features a chamfered design, ensuring smooth edges for safer handling and easy alignment. The chamfered edges also enhance the aesthetic appeal while reducing the risk of edge damage during use.

      Wrinkle or Stoving Paint

      Wrinkle or Stoving Paint

      Our 3-inch rotary table is finished with durable wrinkle/ Stoving paint, providing a rugged texture that resists chipping and peeling. This ensures long-lasting protection and a professional look, even with regular use

      Oil Nipple & Locking Screw

      Oil Nipple & Locking Screw

      The rotary table is equipped with an oil nipple for easy lubrication, ensuring smooth and long-lasting rotation. It also features a locking screw to securely hold the table in position during machining for precise results.

      Precision Ground

      Precision Ground

      All working surfaces of the rotary table are precision ground to ensure high accuracy and smooth operation. This enhances alignment, reduces runout, and delivers consistent performance in precision machining tasks.

      Cap Grinded

      Cap Grinded

      The rotary table comes with a cap ground finish, providing a smooth, flat surface that enhances accuracy during setup. This precision finish ensures better contact with fixtures and improved machining consistency.

      Gun Metal Gear

      The rotary table features a gunmetal gear, known for its excellent wear resistance and smooth operation. This ensures reliable performance, reduced friction, and a longer lifespan, even under continuous use.

      Gun Metal Gear
      Product

      3" Vertical & Horizontal Tilting Rotary Table

      The vertical & horizontal rotary table is one of the main accessories of milling machine. As a precision work positioning device, it is widely used for indexing drilling, milling, circumferential cutting, boring and so on. Our amazing rotary table is made from casting with high quality. They are are very popular on the market for their superior performance, excellent design and reasonable cost.

      • Remarkable Quality
      • Excellent Precision
      • Multiple Application
      • Vertical & Horizontal Design

      Specifications

      • Table Diameter: 3"
      • Worm- Gear Ratio - 36:1
      • Total Height when laid flat is 2-7/16" ( 62 mm )
      • Center Height in vertical position: 2-17/32" (61.5 mm approx)
      • Can be clamped vertically and horizontally both ways.
      • Base Dimensions : 100 x 105 mm with 2 x Drills (8 mm diameter) at a PCD of 82 mm approx.
      • Weight of the Rotary Table : 2.700 Kgs.
      Product

      3" Vertical & Horizontal Regular Rotary Table

      The vertical & horizontal rotary table is one of the main accessories of milling machine. As a precision work positioning device, it is widely used for indexing drilling, milling, circumferential cutting, boring and so on. Our amazing rotary table is made from casting with high quality. They are are very popular on the market for their superior performance, excellent design and reasonable cost.

      • Remarkable Quality
      • Excellent Precision
      • Multiple Application
      • Vertical & Horizontal Design

      Specifications

      • Table Diameter: 3"
      • Vertical Height: 1-5/8 inches
      • Horizontal Height: 44 mm
      • Gear Ratio - 36:1
      • Base Dimensions: 4. 1/8" x 3. 1/4" 4 T-Slots: 5/16"
