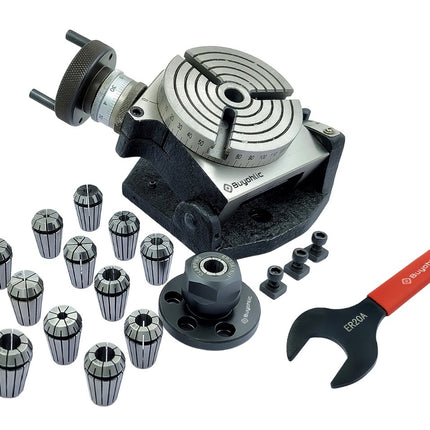

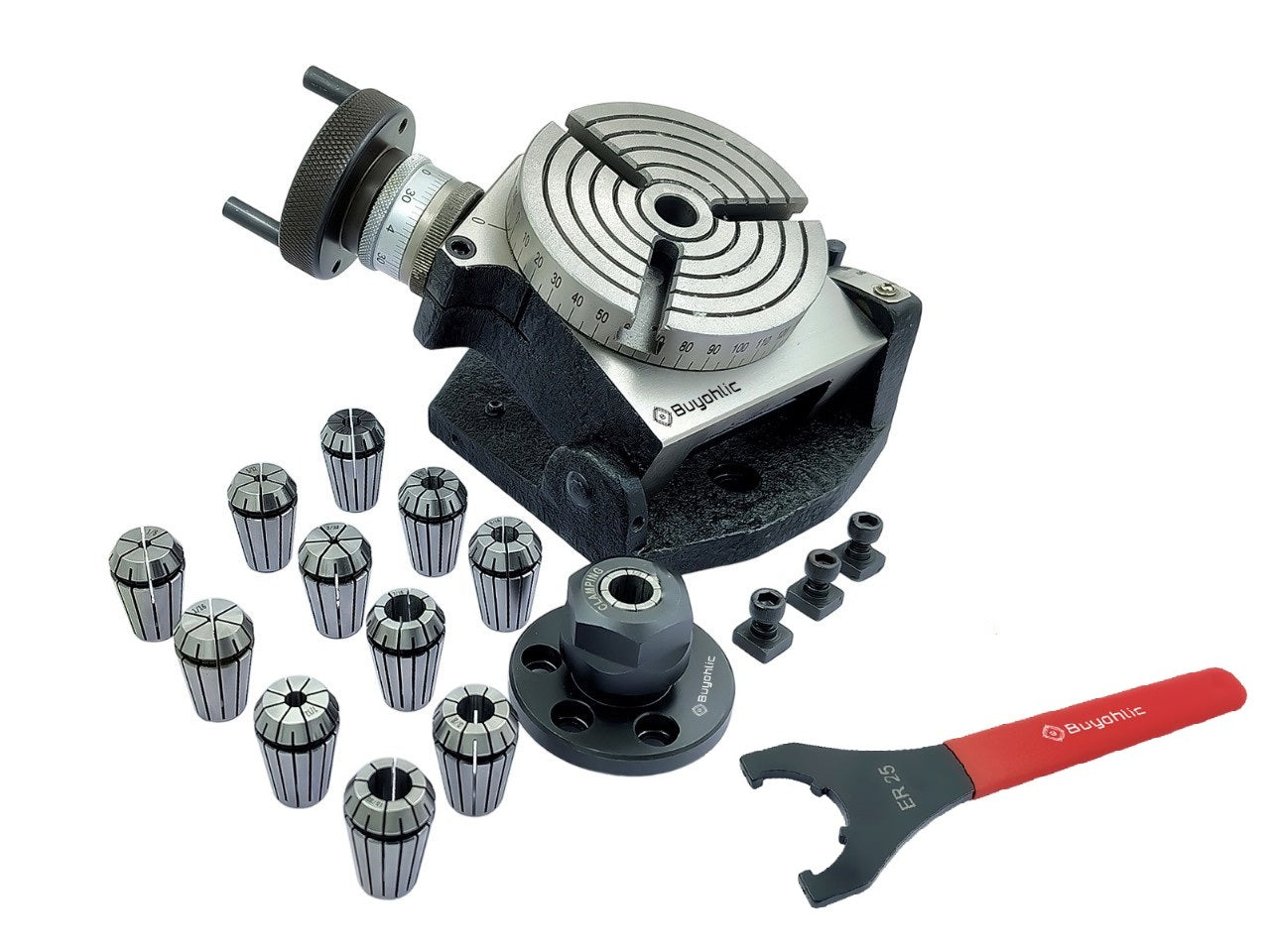

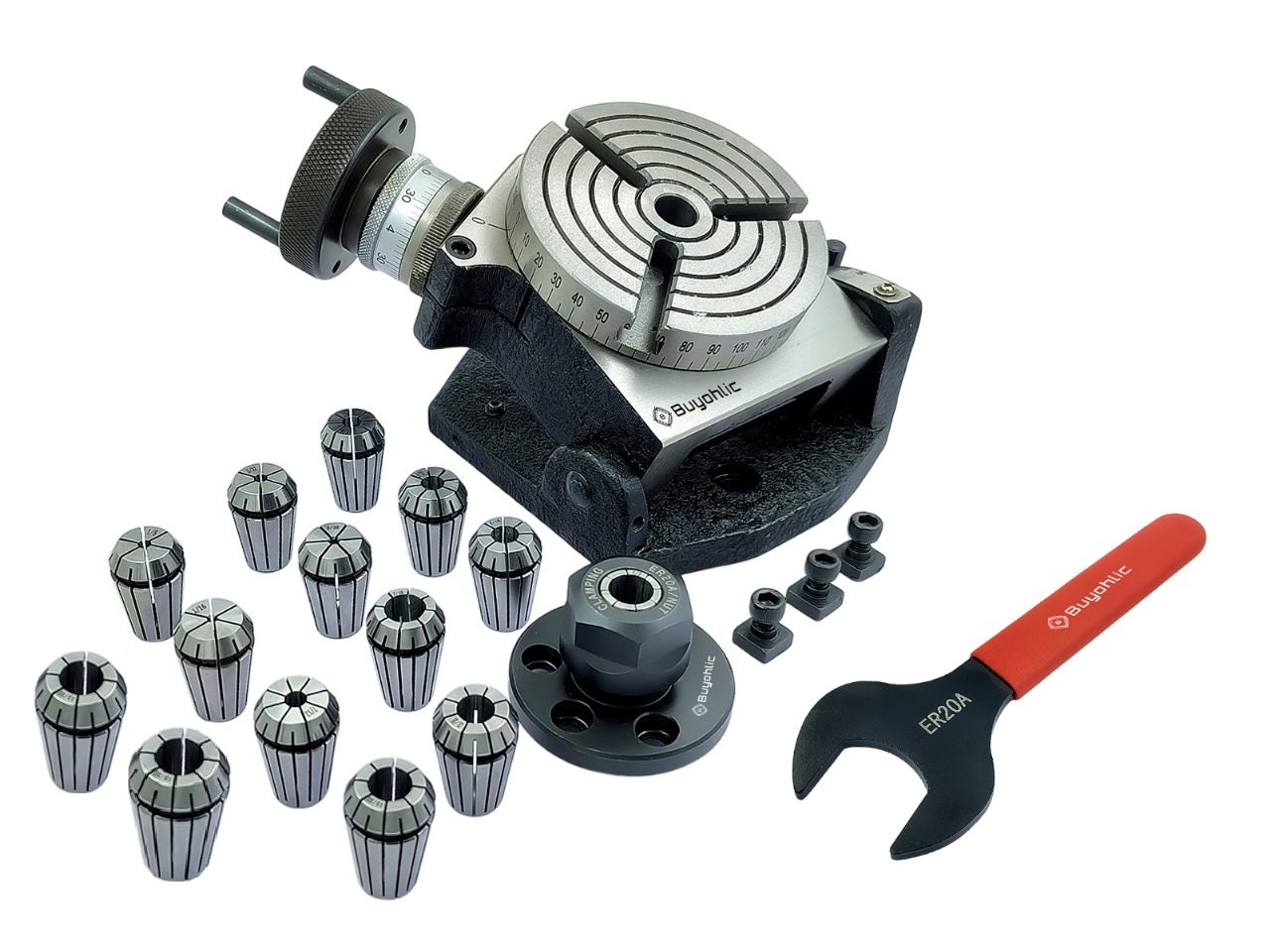

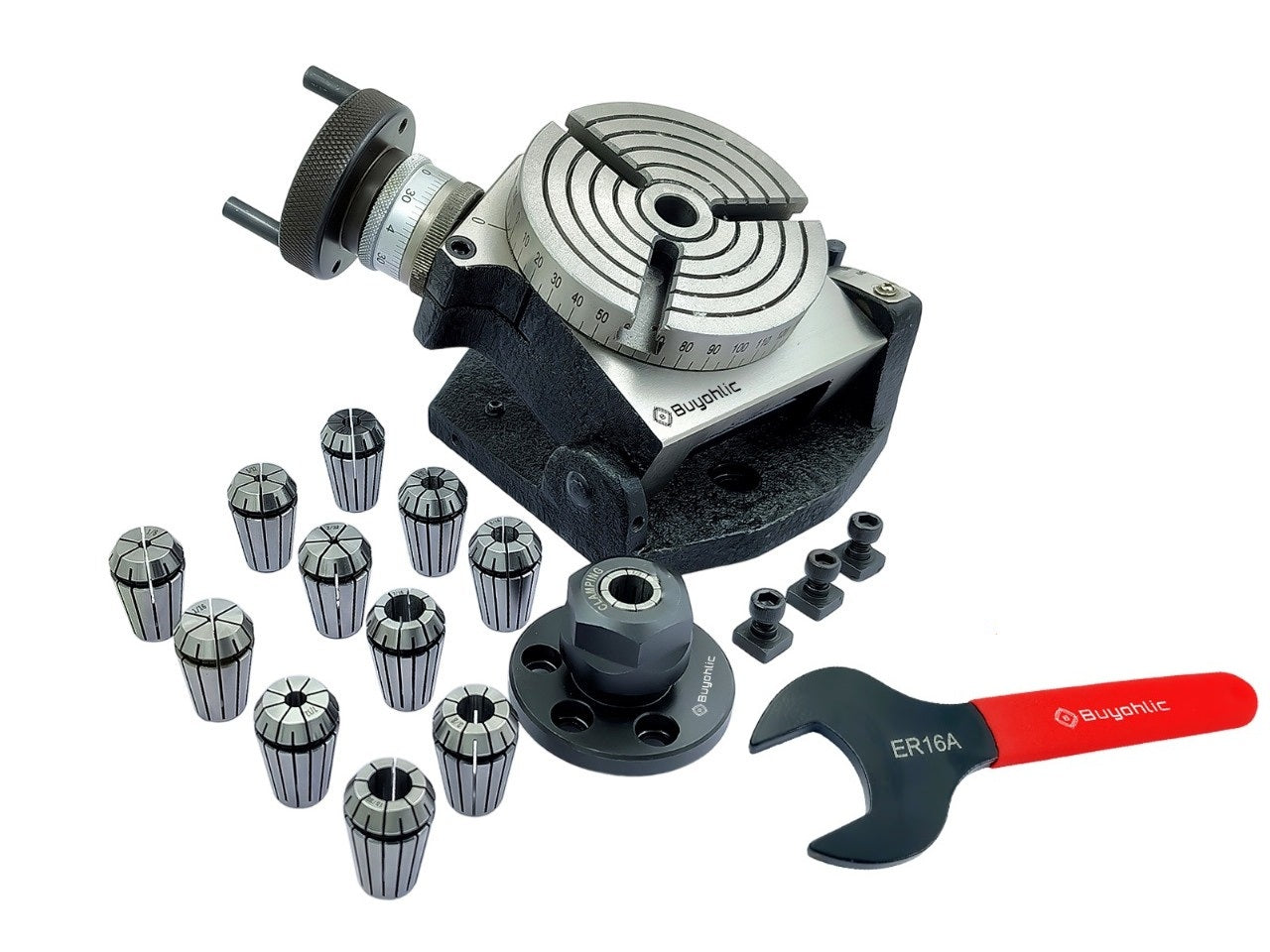

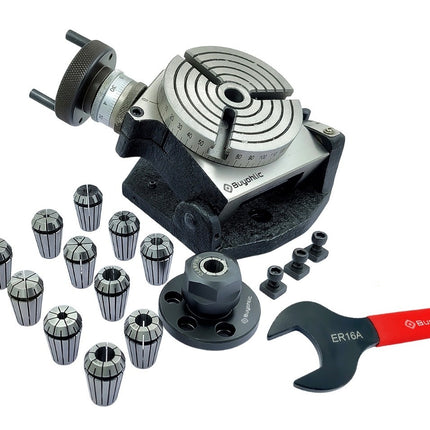

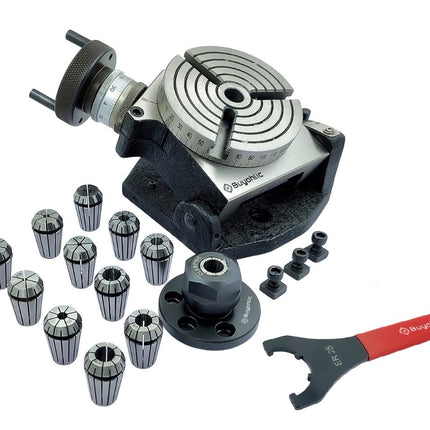

4" (100mm) Tilting 3-Slot Rotary Table with ER Adaptor, T-Nuts & Spanner
Product Overview:
The 4" (100mm) Tilting 3-Slot Rotary Table is designed for precision milling, drilling, and indexing applications. With a tilting mechanism that adjusts from 0° to 90°, this rotary table enables angular machining for complex projects.
This model features an ER Adaptor, allowing compatibility with various collet sizes. Additionally, the package includes T-Nuts for secure mounting and a spanner for easy adjustments. Available with ER16, ER20, or ER25 collet sets, this rotary table provides enhanced flexibility for machinists and professionals.
Key Features:
✅ Tilting 4" (100mm) Rotary Table – Perfect for precision milling and indexing.
✅ 3-Slot Design – Offers secure clamping and stable workpiece holding.
✅ Tilting Range: 0° to 90° – Enables accurate angular positioning.
✅ ER Adaptor Included – Compatible with ER16, ER20, and ER25 collet sets.
✅ Includes T-Nuts – Ensures strong and stable mounting.
✅ Premium-Quality Construction – Made from high-grade hardened steel for durability.
✅ Spanner Included – Allows for easy collet changes and adjustments.
Collet Set Options & Sizes:
This rotary table supports three ER collet sets, offering a wide range of clamping sizes:
🔹 ER16 – 12-Piece Collet Set (Range: 1/32" – 3/8")
- 1/32", 1/16", 3/32", 1/8", 5/32", 3/16", 7/32", 1/4", 9/32", 5/16", 11/32", 3/8"
🔹 ER20 – 14-Piece Collet Set (Range: 1/16" – 1/2")
- 1/16", 3/32", 1/8", 5/32", 3/16", 7/32", 1/4", 9/32", 5/16", 11/32", 3/8", 13/32", 7/16", 1/2"
🔹 ER25 – 12-Piece Collet Set (Range: 1/8" – 5/8")
- 1/8", 3/16", 7/32", 1/4", 5/16", 3/8", 13/32", 7/16", 1/2", 17/32", 9/16", 5/8"
Applications:
✔️ Precision Milling & Indexing
✔️ Drilling, Slotting & Engraving
✔️ Angular & Repetitive Workpiece Machining
✔️ Industrial & Hobbyist Use
Why Choose This Tilting Rotary Table?
🔹 Adjustable Tilting Mechanism – Enables complex machining angles.
🔹 ER Adaptor for Secure Tool Clamping – Versatile collet compatibility.
🔹 Durable & Precision-Engineered – Ensures long-lasting, reliable performance.
📦 What’s Included?
- 1x 4" (100mm) Tilting 3-Slot Rotary Table
- 1x ER Adaptor
- 1x Spanner
- 1x Set of T-Nuts
- 1x Collet Set (Choose from ER16, ER20, or ER25)
