Description

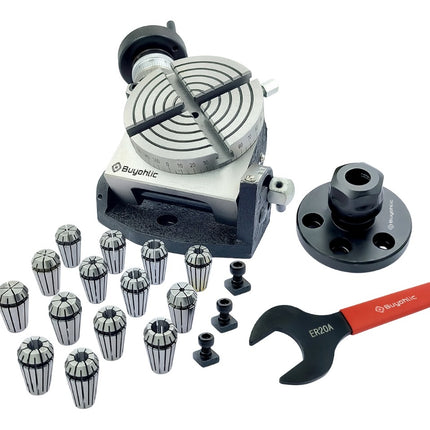

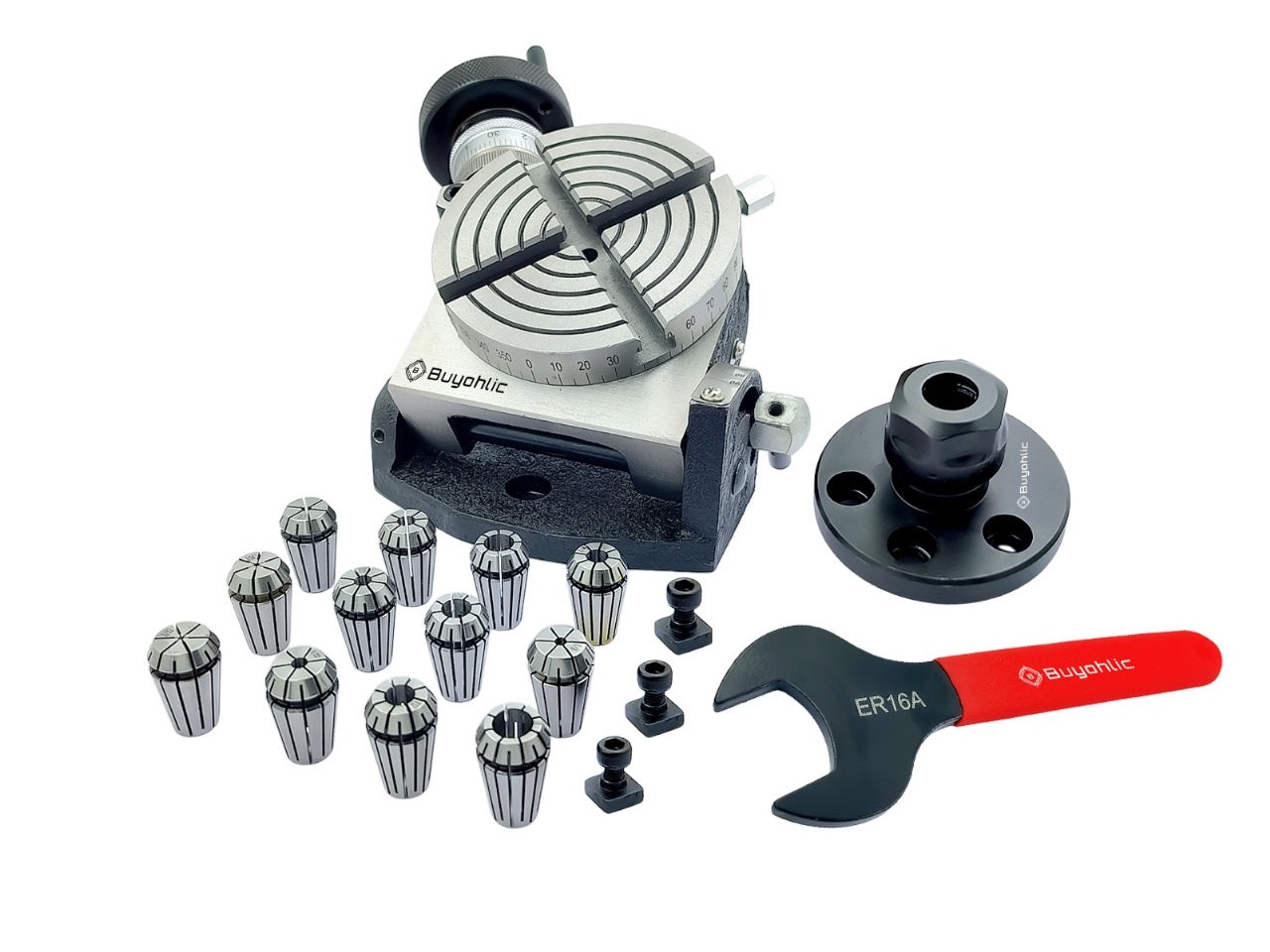

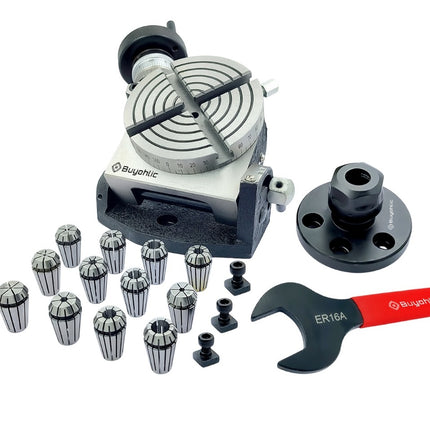

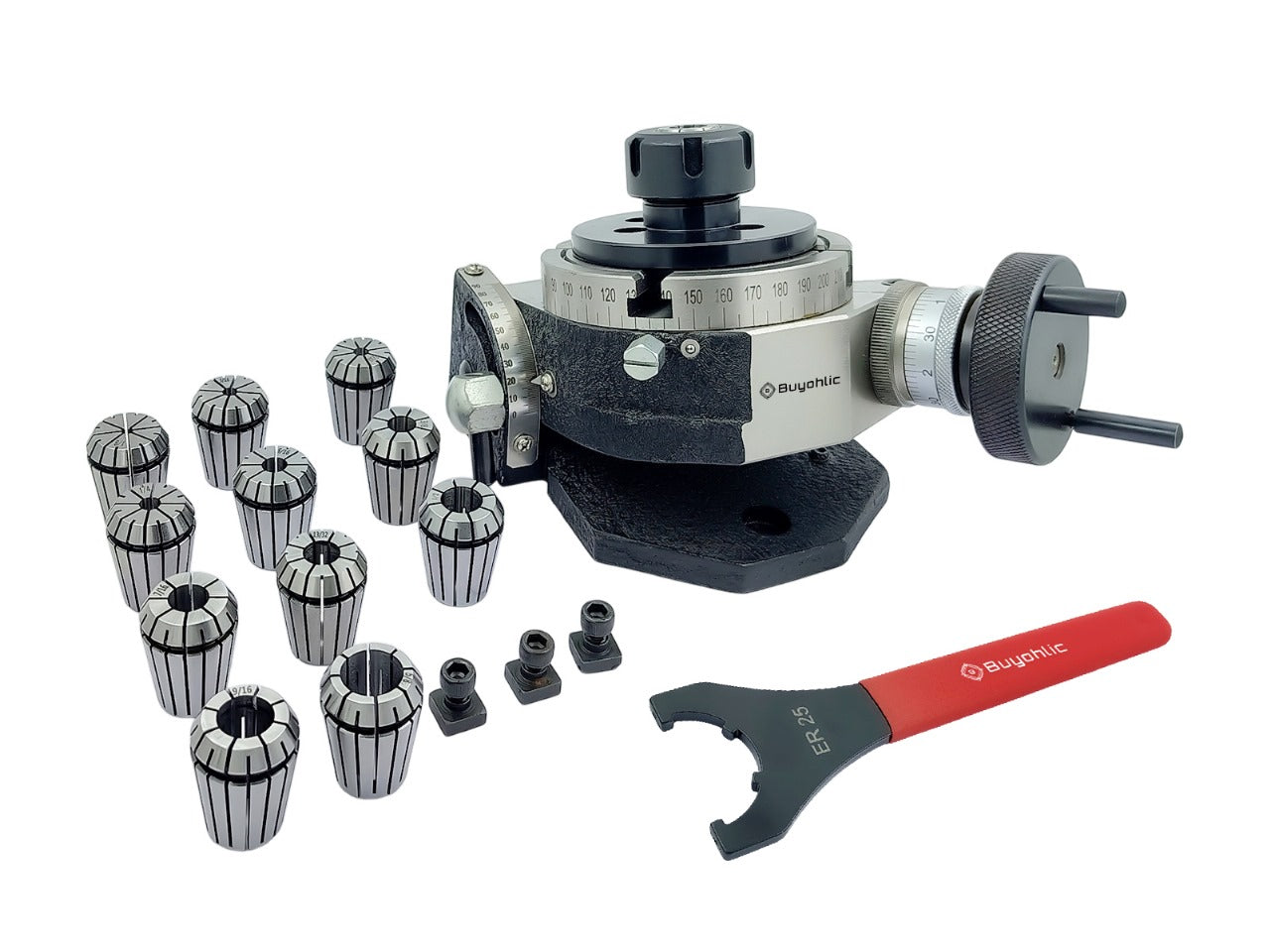

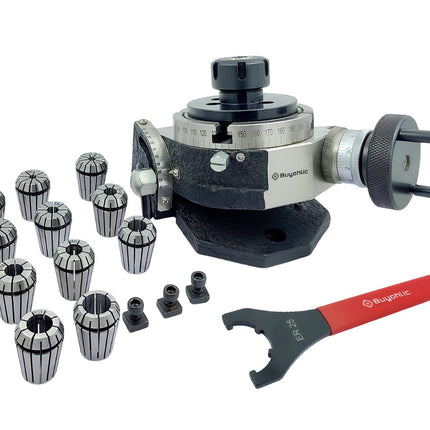

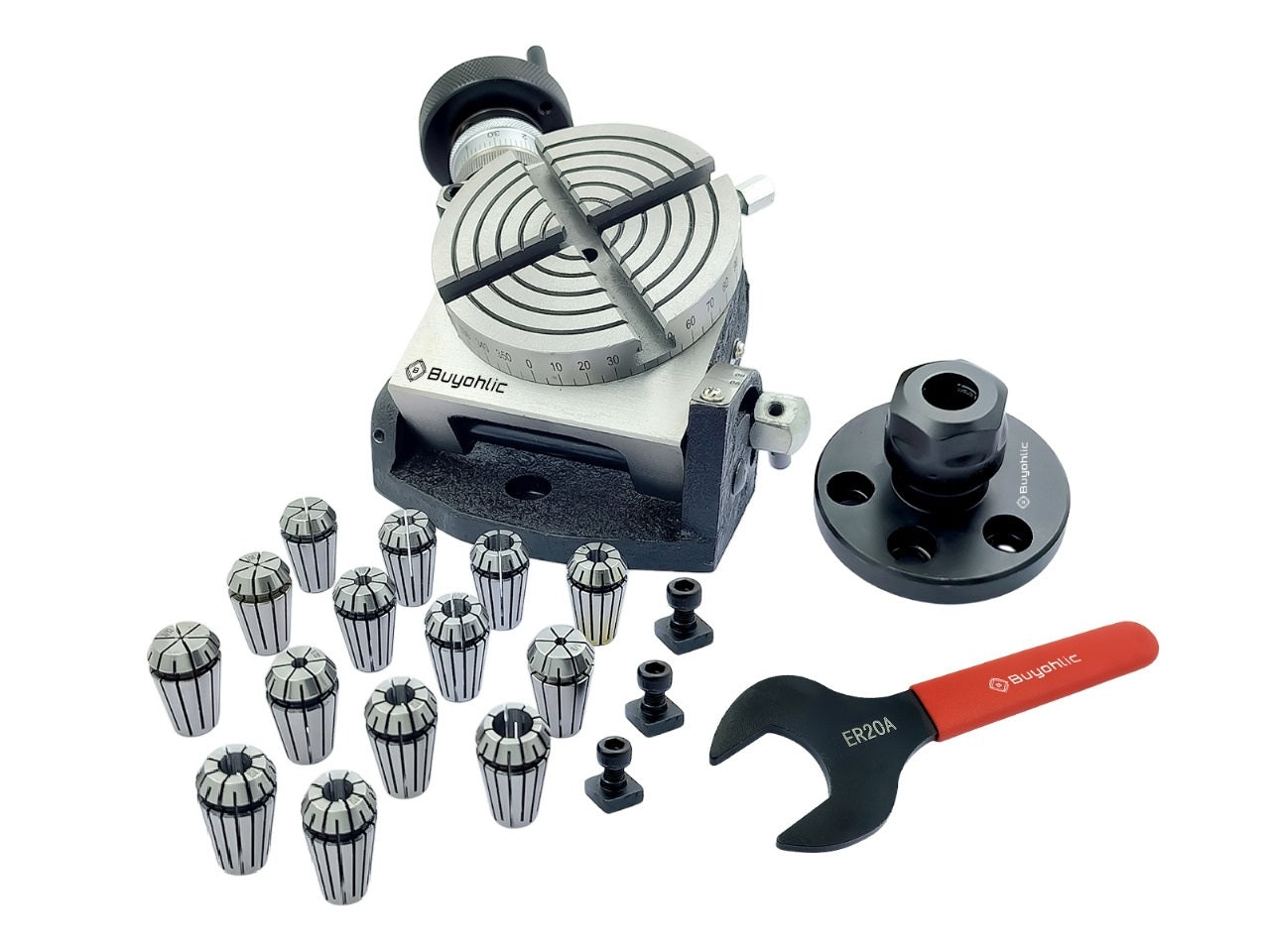

4" (100mm) Tilting 4-Slot Rotary Table with ER Adaptor, T-Nuts & Spanner
Product Overview:
Enhance your machining precision with this 4" (100mm) Tilting 4-Slot Rotary Table, designed for milling, drilling, and indexing applications. This rotary table features a tilting mechanism, allowing angular adjustments for increased versatility in machining operations.
Equipped with an ER Adaptor, this rotary table ensures secure tool clamping. The package also includes T-Nuts for stable mounting and a spanner for easy adjustments. Available with ER16, ER20, or ER25 collet sets, this tool provides flexibility for various machining needs.
Key Features:
✅ Tilting 4" (100mm) Rotary Table – Allows angular positioning for versatile machining.
✅ 4-Slot Mounting Design – Provides stable and secure workpiece holding.
✅ Tilting Range: 0° to 90° – Enables precise angular operations.
✅ ER Adaptor Compatibility – Supports ER16, ER20, and ER25 collet sets.
✅ Includes T-Nuts – Ensures firm mounting on milling machines.
✅ High-Quality Construction – Made from premium-grade hardened steel for durability.
✅ Spanner Included – Allows easy collet changes and adjustments.
Collet Set Options & Sizes:
Choose from three different ER collet sets for flexible tool clamping:
🔹 ER16 – 12-Piece Collet Set (Range: 1/32" – 3/8")
- 1/32", 1/16", 3/32", 1/8", 5/32", 3/16", 7/32", 1/4", 9/32", 5/16", 11/32", 3/8"
🔹 ER20 – 14-Piece Collet Set (Range: 1/16" – 1/2")
- 1/16", 3/32", 1/8", 5/32", 3/16", 7/32", 1/4", 9/32", 5/16", 11/32", 3/8", 13/32", 7/16", 1/2"
🔹 ER25 – 12-Piece Collet Set (Range: 1/8" – 5/8")
- 1/8", 3/16", 7/32", 1/4", 5/16", 3/8", 13/32", 7/16", 1/2", 17/32", 9/16", 5/8"
Applications:
✔️ Precision Milling & Indexing
✔️ Drilling, Slotting & Engraving
✔️ Angular & Repetitive Workpiece Machining
✔️ Industrial & Hobbyist Use
Why Choose This Tilting Rotary Table?
🔹 Tilting Functionality – Adjust angles for complex machining.
🔹 Compatible with Multiple ER Collets – Provides versatile tool-holding options.
🔹 Durable and Precision-Engineered – Ensures long-lasting performance.
📦 What’s Included?
- 1x 4" (100mm) Tilting 4-Slot Rotary Table
- 1x ER Adaptor
- 1x Spanner
- 1x Set of T-Nuts
- 1x Collet Set (Choose from ER16, ER20, or ER25)
