An involute gear cutter is a precision milling cutter shaped to cut the specific curved tooth profile used in involute gears, the most common gear tooth geometry in mechanical engineering, due to its smooth, consistent power transmission characteristics. Buyohlic supplies involute gear cutter sets for machinists, model engineers, and toolmakers across the USA who need to cut accurate, functional gears on a manual milling machine, typically in combination with a dividing head or rotary table.
What Makes Involute Gear Cutting Precise
The involute curve is a specific mathematical profile that, when used for gear teeth, allows two meshing gears to maintain a constant velocity ratio throughout engagement, minimizing wear, vibration, and noise compared to less precisely shaped teeth. An involute gear cutter is machined to reproduce this exact curve for a given module or diametral pitch and tooth count range.

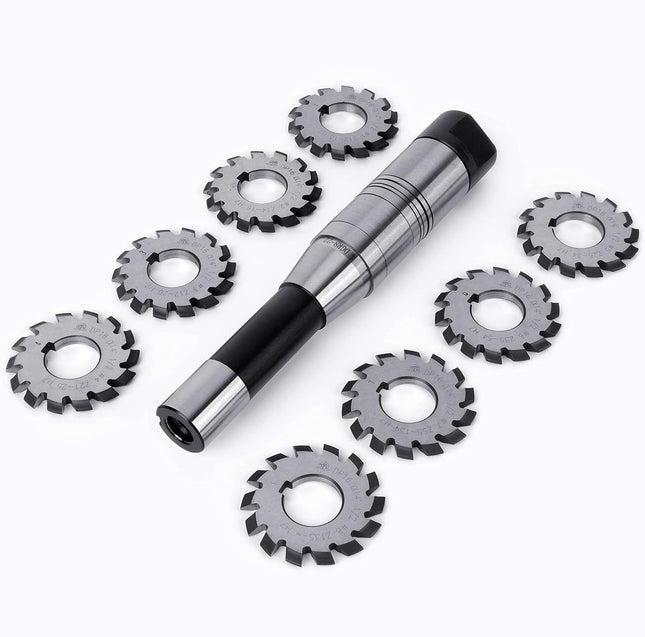

Because the involute curve's shape changes slightly depending on the number of teeth being cut, gear cutters are typically sold in numbered sets, each cutter in the set covering a specific range of tooth counts within a given module or diametral pitch, rather than a single universal cutter handling every gear.
Common Applications
- Cutting replacement or custom gears for machinery repair
- Model engineering projects requiring functional-scale gears
- Prototyping gear designs before committing to production tooling
- Clockmaking and small mechanical assembly gear work
- Educational and hobbyist machining projects involving gear theory
Choosing the Right Gear Cutter Set
First, confirm whether your project calls for module (metric) or diametral pitch (imperial) gear sizing, since these are two different standards and not directly interchangeable without conversion. From there, select the cutter number within the set that matches your target tooth count, since using a cutter designed for a different tooth count range will produce an incorrect, poorly meshing tooth profile even if the module or pitch is correct. Gear cutting also requires a dividing head or rotary table with a compatible dividing plate to accurately index between teeth as they are cut.
For USA-based machinists working primarily with imperial equipment, diametral pitch cutter sets are generally the more practical starting point, while those working with metric machinery or European-designed mechanisms will more often need module-based sets.
