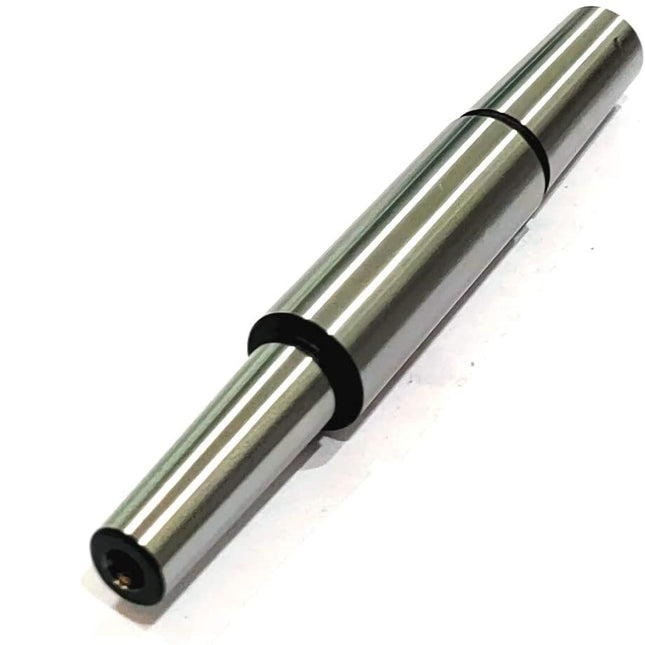

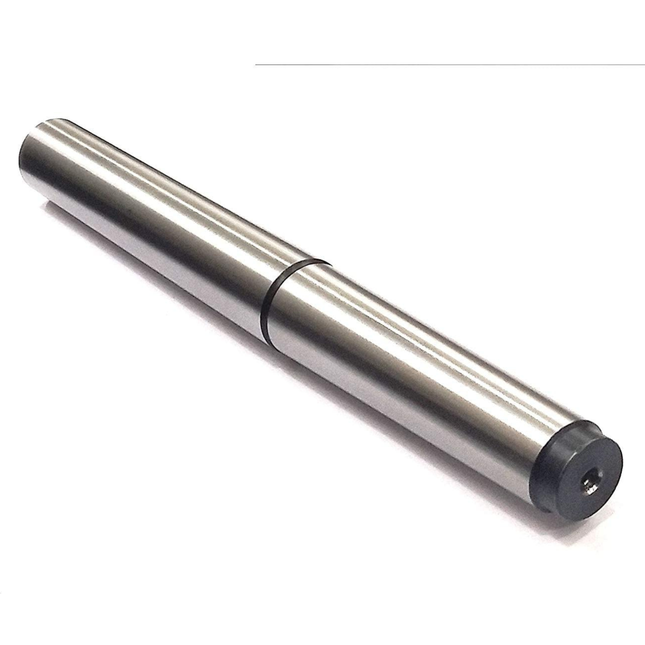

An alignment test bar is a precision-ground cylindrical bar used to check and verify the accuracy of a machine spindle, confirming that it runs true, parallel, and free of excessive runout before precision work begins. Buyohlic supplies alignment test bars for machinists and shop technicians across the USA who need to verify spindle alignment on lathes, mills, and other rotating machine tools, both for new machine setup and ongoing maintenance checks.
Why Spindle Alignment Verification Matters
Every precision machining operation depends on the spindle running true. A spindle with excessive runout, taper, or misalignment will transfer that error directly into every part machined on it, regardless of how skilled the operator is or how good the cutting tools are. An alignment test bar, mounted in the spindle and checked with a dial indicator, reveals exactly how much deviation exists and where it is occurring along the bar's length.
This check is especially important after a machine has been moved, serviced, or has seen heavy use over time, since bearing wear, thermal changes, and mechanical shifts can all introduce alignment drift that would otherwise go unnoticed until parts start coming out of tolerance.
Common Applications
- Verifying spindle runout on lathes and milling machines
- Checking parallelism between a spindle axis and the machine table or ways
- New machine installation and setup verification
- Periodic maintenance checks on machines in regular production use
- Diagnosing the source of accuracy problems on an underperforming machine
How to Use an Alignment Test Bar
Mount the test bar securely in the spindle, taper, or chuck being checked, then use a dial indicator mounted on a stable reference, such as the machine table or a magnetic base, to measure deviation at multiple points along the bar's length as the spindle is rotated or the indicator is traversed. Consistent, low readings across the full length indicate good alignment, while increasing deviation toward one end typically points to a taper or angular misalignment issue rather than simple radial runout.
Care and Storage
Because an alignment test bar is only as accurate as its own surface condition, protect it from nicks, rust, and handling damage between uses. Store it in a dedicated case or wrapped in a protective sleeve rather than loose in a drawer with other tools, and periodically verify the bar itself against a known reference standard if it sees heavy or rough use over time.
