Introducing our premium Lathe Turning Tool Holder with High-Speed Steel Tool Bits, designed to elevate your machining capabilities to new heights. Crafted with precision and durability in mind, this tool holder is engineered to deliver exceptional performance in a variety of turning applications.
Key Features:
High-Speed Steel Tool Bits: Our tool holder comes equipped with high-speed steel (HSS) tool bits, renowned for their superior hardness, heat resistance, and wear resistance. These tool bits ensure long-lasting performance and precise cutting results, even under demanding conditions.
Versatile Tool Holder: Whether you're facing, turning, grooving, or threading, this versatile tool holder is up to the task. Its adaptable design makes it suitable for a wide range of lathe operations, catering to the needs of hobbyists, craftsmen, and professionals alike.
Sturdy Construction: Constructed from high-quality materials, including robust steel for the holder body, our lathe turning tool holder is built to withstand the rigors of daily use in industrial settings. Its sturdy construction provides stability and reliability, ensuring consistent performance over time.
Optimized Design: The tool holder features an ergonomic design that promotes ease of use and precision control during machining operations. With its secure grip and balanced weight distribution, you can achieve smooth and accurate cuts with confidence.
Easy Installation: Designed for hassle-free installation, our tool holder can be quickly mounted onto your lathe's tool post, allowing you to get to work efficiently without delay. Whether you're a seasoned machinist or a beginner, you'll appreciate the simplicity and convenience of our tool holder setup.
Enhance your machining capabilities with our Lathe Turning Tool Holder with High-Speed Steel Tool Bits. Order now and experience the difference in performance and quality for yourself!(Internal ref.BA)
Live Center with HSS Tool Bit Broach Set
Enhance your precision machining with the Triple Bearing Live Revolving Center—designed for durability and stability in demanding workshop environments.
Features:
🔄 Precision Live Center: Double bearing MT1, 2 & 3 shanks ensures smooth and accurate rotation.
🔲 High-Quality Broaching Tool: Comes with multiple options of robust HSS square & Hex broaches for efficient internal broaching.
📏 Sturdy Design: 50 mm diameter body provides excellent stability during machining.
🔩 Secure Bit Mounting: HSS tool bit (7.95 mm shank) is firmly held in place with a grub screw for safety and reliability.
📐 Extended Reach: 120 mm overall length including broach bit (*but excluding shank that goes inside the lathe's tailstock) suits a variety of applications.
🪒 Complete Square Broach Set: Includes 7 HSS square broaches — 1/8", 5/32", 3/16", 7/32", 1/4", 5/16", and 3/8".
🪒 Complete Hex Broach Set: Includes 7 HSS Hex broaches — 1/8", 5/32", 3/16", 7/32", 1/4", 5/16", and 3/8".
🏭 Workshop-Ready: Ideal for professionals in manufacturing and precision metalworking!
🛠️ Effective Broaching Instructions (Lathe Setup)
⚠️ Safety First
Always wear eye protection.
Ensure the workpiece is securely clamped.
Do not exceed recommended speeds.
Keep hands clear during operation.
🔧 Setup Steps
Prepare the Workpiece
Drill or bore a pilot hole through the workpiece.
The hole should match the minor dimension of the broach (i.e., just smaller than the square size).
Ensure the hole is centered and free of burrs.
Install the Live Center Tool
Mount the live center with the broaching tool in your lathe tailstock.
Ensure the broaching tool is securely locked in place with the grub screw.
Align the Lathe
Line up the live center and the chuck so they are perfectly concentric.
The broach should enter the pilot hole cleanly and without resistance.
Set the Speed
Broaching is a low-speed process.
Set your lathe to manual feed mode, ideally under 100 RPM if rotation is required (some setups use no rotation at all—just linear feed).
Begin Broaching
Advance the tailstock slowly and steadily.
Let the broach shave material gradually; do not force it.
Use cutting fluid (like light oil or tapping fluid) to improve finish and reduce tool wear.
Withdraw and Clear Chips
After each pass, retract the tailstock.
Clean chips from the broach flutes using a brush or air (never your fingers!).
You may need to make multiple light passes for deeper broaching.
Inspect the Broached Hole
Check for smoothness, squareness, and full depth.
Use a square broach gauge or test fit the corresponding square shaft.
💡 Pro Tips
For deep broaches, use intermediate shims or spacers to support multiple passes.
If broaching tough materials like stainless steel, reduce feed pressure and apply generous lubrication.
Keep broaches sharp and clean for best results
A lathe chuck back plate with a 100 mm diameter and threaded design is used to connect a lathe chuck to the spindle of a lathe. It provides a secure mounting point for the chuck, allowing it to hold and rotate workpieces during machining operations such as turning, facing, or drilling.
Upgrade your lathe with this high-quality Lathe Chuck Back Plate, perfect for enhancing your workholding capabilities. Available in both Myford and Boxford thread options, this back plate is designed to provide precision and stability for your machining projects.
Key Features:
Diameter: 100 mm
Thread Compatibility: Available in Myford and Boxford thread options
Material: Durable, high-grade steel for long-lasting performance
Precision Machining: Ensures a secure and accurate fit to your lathe chuck
Versatile Use: Ideal for various workholding applications in metalworking and woodworking
Product Benefits:
Enhanced Stability: Provides a secure base for your chuck, reducing vibrations and improving machining accuracy
Easy Installation: Simple to mount onto your lathe, allowing for quick setup and changeover
Versatile Compatibility: Suitable for a wide range of lathes with Myford and Boxford threads
Durable Construction: Made from high-quality materials to withstand the demands of regular use in workshop environments
Specifications:
Plate Diameter: 100 mm
Thread Types: Myford (1-1/8" x 12 TPI) and Boxford (1-1/2"x 8 TPI)
Material: High-grade steel
Applications:
Suitable for metalworking, woodworking, and other machining tasks requiring precise workholding
Ideal for professional workshops, hobbyists, and DIY enthusiasts
Why Choose Our Lathe Chuck Back Plate?
Invest in a reliable and high-performance workholding solution for your lathe. Whether you are performing precision machining or general turning operations, our Lathe Chuck Back Plate ensures optimal performance and durability. Choose the thread type that matches your lathe and experience improved stability and accuracy in your projects.
Premium Size: Small Body 23 mm Diameter Triple Bearing Live Revolving Center. Short MT0 Shank, OAL 65 mm. Tool Steel Housing and hardened point. Run out within 0.001" Suited for small woodworking lathes
Precision Machining: Engineered with precision machining, this center provides accurate rotation and alignment, essential for intricate turning and shaping tasks.
Material- Tool Steel and hardened point.
Compatible with lathes having MT0.
Versatile Compatibility: Compatible with a wide range of mini lathes, this revolving center easily integrates into your existing setup, offering versatility for various projects.
Ideal for small to medium-sized lathes, Pultrashank live centers are suitable for precision tasks in both woodworking and metalworking, ensuring accurate and efficient machining.
Easy Installation: Simple to install and remove, this revolving center streamlines setup and ensures hassle-free operation, saving you time and effort.
Tailstock Die Holder:- A die holder is used to hold and turn threading dies to cut external threads on rods or pipes. It provides grip and control for precise hand-threading in metalworking or repair tasks.
✅ Versatile Threading Tool – Compatible with Metric Dies in sizes 16mm, 20mm, 25mm, 30mm, and 38mm.
🔩 Secure Chuck Fit – Features a drill chuck connection with M12 x 1.75 thread for stable and reliable performance.
🛠️ Precision Threading – Ideal for cutting accurate external threads on rods, bolts, and pipes.
💪 Heavy-Duty Build – Made for durability and long-term use in workshops or field repairs.
🔧 Easy to Use – Simple setup for both professionals and DIY users; ensures consistent threading results.
A Ball Turning Attachment is a specialized lathe accessory used to produce perfectly spherical shapes, radii, or convex profiles on workpieces. It allows for precise machining of balls, knobs, or ornamental details in materials like metal or wood. Typically mounted on the lathe cross slide, this attachment features an adjustable swivel base and a cutting tool holder, enabling smooth, consistent circular motion around the desired axis. It's an essential tool for precision engineering and decorative machining tasks.
Mini lathe Ball Turning
World's First Direct-Fit Ball Turning Attachment: Designed for 7 x 14 / 7 x 16 mini lathes, offering unmatched convenience and performance.
Dual TCMT110204 Inserts: Equipped with 2 indexable carbide inserts, each featuring 3 cutting edges for efficient and precise ball turning.

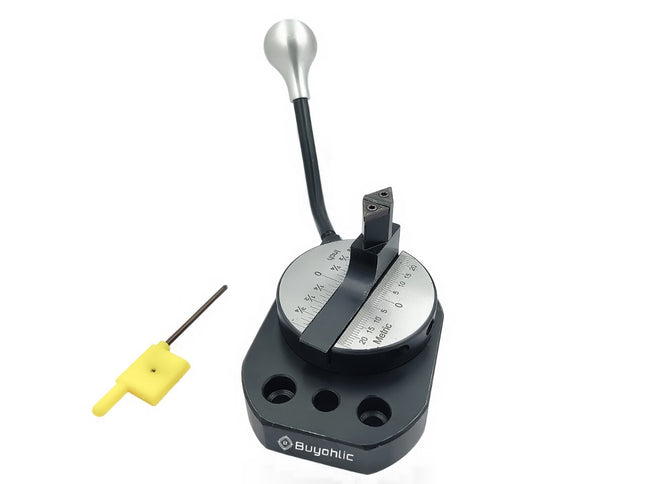

Oval Base-Double Bit-Mini Lathe 7 x 14 Ball Turning Attachment
A ball turning attachment is a specialized tool used in lathe machines to create spherical shapes or ball-like surfaces on workpieces. This attachment allows for precision in machining curves, making it ideal for applications that require rounded features.
Remarkable Quality
Excellent Precision
Multiple Application
Suitable for 7 x 14/ 7 x 16 Mini Lathe Machine
World's First Direct-Fit Mini Lathe's Ball Turning Attachment
Easy Installation
Dual TCMT110204 Inserts
Adjustable Head for Versatility
Smooth & Precise Rotation
About The Brand
Buyohlic is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, Buyohlic is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, Buyohlic's products are sold in more than 200 countries.
About The Brand
Buyohlic is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, Buyohlic is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, Buyohlic's products are sold in more than 200 countries.
Mount Type: Jacobs Taper #2 (JT2) – provides a secure friction-fit connection between the chuck and arbor/spindle.
Capacity Range: 1-13mm
Material: hardened steel for durability and wear resistance.
Type: keyless
Usage: Ideal for use in drill presses, milling machines, lathes, or other stationary equipment.
Applications: Metalworking Woodworking Precision drilling Industrial and manufacturing tasks
Versatile Tool Holder: A.D. International's Universal Tool Holder is designed to securely hold a variety of tool bits, allowing for efficient and precise work.
Durable Epoxy Black Finish: Provides a rust-free life and protects the tool holder from corrosion, ensuring longevity and reliability.
Versatile Tool Bit Placement: The universal tool holder design allows the tool bit to be held in three different directions, offering flexibility for various turning tasks on a lathe machine.
High-Quality Construction: Made from high-grade tool steel, fully hardened and ground for superior strength and precision in every cut.
Supplied with HSS M2 Tool Bit: Includes a 5/16" square x 2" long HSS M2 tool bit for optimal performance and durability.
Perfect Fit for Modern Lathes: Designed with ideal specifications for use with modern lathes, making it an excellent choice for hobbyists and professionals alike.
Precise Measurements: Head Size: 25 x 25 mm, Shank Size: 15 mm (Height) x 10 mm (Width), Shank Length: 85 mm (Overall Length: 110 mm), with center height of 15 mm when the tool bit is mounted.
All-in-One Multifunction Drill Tool
(Drilling, External Turning, Facing, and Internal Boring Operations)Insert Type: QCMT080204 – Special Fit
Overview:
The All-in-One Multifunction Drill is a highly versatile machining tool designed to consolidate multiple operations—drilling, external turning, internal boring, and facing—into a single setup. This multi-functional capability increases productivity, reduces cycle time, and enhances precision by minimizing tool changes and re-indexing.
Key Features:
Multi-Functional Capability:
Drilling: Delivers efficient penetration with excellent chip evacuation.
External Turning: Supports precision turning operations on outer diameters.
Facing: Allows smooth surface finishing of workpiece faces.
Internal Boring: Capable of enlarging and finishing pre-existing holes with high accuracy.
Special Insert Compatibility – QCMT080204:
Engineered to work exclusively with QCMT080204 inserts.
Ensures optimal cutting geometry and chip control specific to this tool’s configuration.
Through Coolant Design:
The tool body incorporates internal coolant channels.
Ensures direct coolant delivery to the cutting zone for improved tool life and thermal management.
Aids in chip evacuation, especially during deep-hole drilling or boring.
High Rigidity & Accuracy:
Manufactured from premium tool steel for excellent rigidity.
Designed to reduce vibrations and deflection during high-speed machining.
Time & Cost Efficiency:
Combines multiple operations into one tool—reducing tool inventory and machining setup times.
Especially suitable for CNC turning centers and multitasking machines.
Technical Specifications:
Parameter
Details
Insert Type
QCMT080204 TK4515
Operations Supported
Drilling, Turning, Facing, Boring
Coolant Supply
Internal Through Coolant
Tool Material
High-strength alloy steel
Shank Type
Cylindrical or customized based on holder system
Applicable Machines
CNC lathes, turn-mill centers, multitasking machines
Ideal For
Batch production, complex parts, and setups requiring high flexibility
Advantages:
Reduces tool change and indexing time
Improves machining accuracy by limiting repositioning
Saves on tooling costs and machine downtime
Simplifies toolpath programming for multi-operation cycles
Use of product- A ball turning tool is used in machining to create round or spherical shapes on metal or other materials. It's commonly used for making parts like ball bearings, spherical valves, or curved ends of rods with precise dimensions and smooth surfaces.
Product Name: Lathe's Ball Turning Attachment with Size Scale
Insert Options: Available in Single Insert for Convex Shape & Double Insert for Convex & Concave Shapes
Insert Details :
TNMG160404 PCD Non Ferrous,
VC 100 m- 200 m/ Min
Ap-0.05 - 5.0
Fn 0.02-0.3
Adjustable Head:
Head can be adjusted to accommodate different ball sizes, providing flexibility for various projects.
Maximum Concave Ball Diameter:
Maximum possible concave ball diameter is 42 mm
Potential for larger diameters depending on the user's skills and expertise.
Key Features:
Size Scale:
Integrated size scale for precise adjustments and accurate ball turning.
Versatile Bit Options:
Choice between single bit and double bit attachments, catering to different user preferences and project requirements.
Adjustability:
Head adjusts easily to produce different ball sizes, enhancing the tool's versatility.
Construction:
Made from high-quality materials ensuring durability and longevity.
Precision-engineered to withstand the demands of ball turning operations.
Applications:
Ideal for turning concave and convex balls on a lathe.
Suitable for both hobbyists and professional machinists.
Usability:
User-friendly design with straightforward setup and operation.
Smooth and easy adjustments for precise control during ball turning.
Performance:
Capable of producing accurate and consistent ball shapes.
Enhanced flexibility allows for the creation of balls larger than the specified maximum diameter, based on user expertise.
Dimensions:
Compact Design:
Optimized to fit a wide range of lathes, making efficient use of space and ensuring ease of handling.
Additional Features:
Integrated Size Scale:
Provides clear and accurate measurements for precise ball turning.
Robust Construction:
Ensures stability and reliability during use.
Skill Enhancement:
Offers potential for larger diameter balls with increased user skill and experience.
Ease of Use:
Simple to set up and adjust, making it accessible for users of all skill levels.
Designed to provide smooth operation and precise control, enhancing the overall turning experience.
This Lathe's Ball Turning Attachment with Size Scale is an essential accessory for any lathe, providing the capability to turn precise and consistent balls with ease and accuracy.
