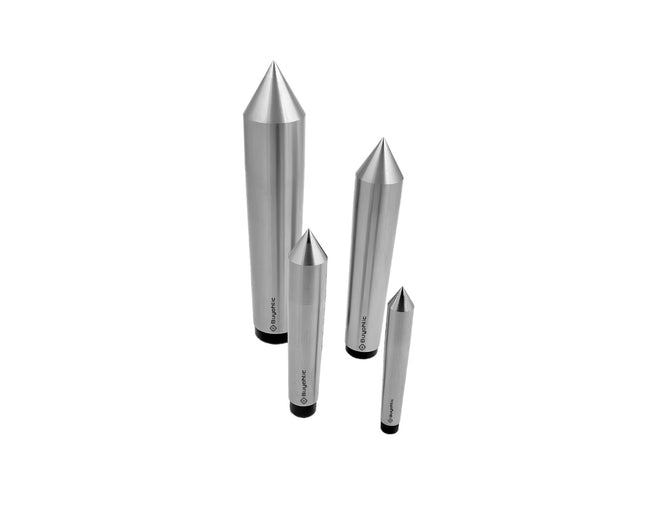

A dead center lathe tool is used to support and align workpieces in a lathe by providing a fixed point in the tailstock, ensuring the workpiece is stable and accurately aligned with the spindle axis. This support is crucial for maintaining rotational symmetry, reducing deflection and vibration, and achieving precise machining with a high-quality surface finish. By minimizing movement and ensuring proper alignment, the dead center plays a key role in producing concentric and uniformly cut parts.
Precision Machining: Elevate your lathe operations with our high-quality lathe dead centers, available in MT1, MT2, MT3, and MT4 shanks to suit your specific needs.
Versatile Shank Options: Choose from a range of shank sizes, including MT1, MT2, MT3, and MT4, ensuring compatibility with a variety of lathe setups.
Robust Construction: Crafted from durable materials, our lathe dead centers are built to withstand the rigors of machining, ensuring long-lasting performance and reliability.
Optimal Support: Designed to provide optimal support and alignment for your workpiece, our dead centers help minimize vibration and improve machining accuracy.
Smooth Rotation: Experience smooth and consistent rotation with our precision-engineered lathe dead centers, facilitating precise turning and machining operations.
Easy Installation: Featuring a hassle-free installation process, our lathe dead centers can be quickly and securely mounted on your lathe, allowing you to get to work with minimal setup time.
Wide Application: Whether you're working on woodworking projects, metalworking tasks, or other machining applications, our lathe dead centers offer versatility and performance across a range of materials and projects.
Upgrade your lathe setup with our precision lathe dead centers, available in MT1, MT2, MT3, and MT4 shanks, and experience enhanced machining accuracy and efficiency.
{Internal Reference; HM}

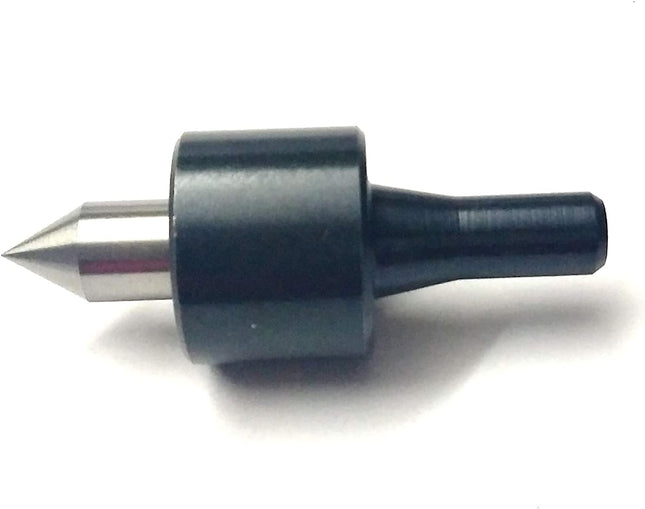

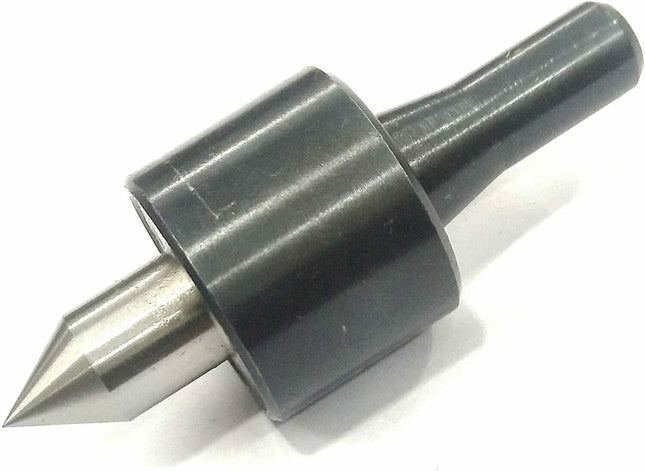

Premium Size: Small Body 23 mm Diameter Triple Bearing Live Revolving Center. Short MT0 Shank, OAL 65 mm. Tool Steel Housing and hardened point. Run out within 0.001" Suited for small woodworking lathes
Precision Machining: Engineered with precision machining, this center provides accurate rotation and alignment, essential for intricate turning and shaping tasks.
Material- Tool Steel and hardened point.
Compatible with lathes having MT0.
Versatile Compatibility: Compatible with a wide range of mini lathes, this revolving center easily integrates into your existing setup, offering versatility for various projects.
Ideal for small to medium-sized lathes, Pultrashank live centers are suitable for precision tasks in both woodworking and metalworking, ensuring accurate and efficient machining.
Easy Installation: Simple to install and remove, this revolving center streamlines setup and ensures hassle-free operation, saving you time and effort.

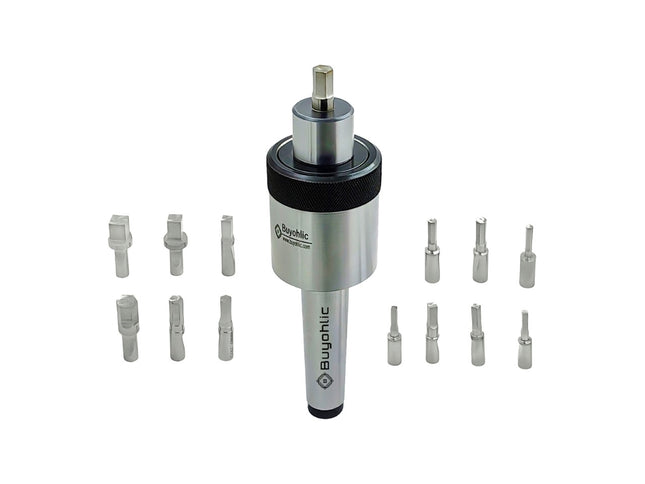

Live Center with HSS Tool Bit Broach Set
Enhance your precision machining with the Triple Bearing Live Revolving Center—designed for durability and stability in demanding workshop environments.
Features:
🔄 Precision Live Center: Double bearing MT1, 2 & 3 shanks ensures smooth and accurate rotation.
🔲 High-Quality Broaching Tool: Comes with multiple options of robust HSS square & Hex broaches for efficient internal broaching.
📏 Sturdy Design: 50 mm diameter body provides excellent stability during machining.
🔩 Secure Bit Mounting: HSS tool bit (7.95 mm shank) is firmly held in place with a grub screw for safety and reliability.
📐 Extended Reach: 120 mm overall length including broach bit (*but excluding shank that goes inside the lathe's tailstock) suits a variety of applications.
🪒 Complete Square Broach Set: Includes 7 HSS square broaches — 1/8", 5/32", 3/16", 7/32", 1/4", 5/16", and 3/8".
🪒 Complete Hex Broach Set: Includes 7 HSS Hex broaches — 1/8", 5/32", 3/16", 7/32", 1/4", 5/16", and 3/8".
🏭 Workshop-Ready: Ideal for professionals in manufacturing and precision metalworking!
🛠️ Effective Broaching Instructions (Lathe Setup)
⚠️ Safety First
Always wear eye protection.
Ensure the workpiece is securely clamped.
Do not exceed recommended speeds.
Keep hands clear during operation.
🔧 Setup Steps
Prepare the Workpiece
Drill or bore a pilot hole through the workpiece.
The hole should match the minor dimension of the broach (i.e., just smaller than the square size).
Ensure the hole is centered and free of burrs.
Install the Live Center Tool
Mount the live center with the broaching tool in your lathe tailstock.
Ensure the broaching tool is securely locked in place with the grub screw.
Align the Lathe
Line up the live center and the chuck so they are perfectly concentric.
The broach should enter the pilot hole cleanly and without resistance.
Set the Speed
Broaching is a low-speed process.
Set your lathe to manual feed mode, ideally under 100 RPM if rotation is required (some setups use no rotation at all—just linear feed).
Begin Broaching
Advance the tailstock slowly and steadily.
Let the broach shave material gradually; do not force it.
Use cutting fluid (like light oil or tapping fluid) to improve finish and reduce tool wear.
Withdraw and Clear Chips
After each pass, retract the tailstock.
Clean chips from the broach flutes using a brush or air (never your fingers!).
You may need to make multiple light passes for deeper broaching.
Inspect the Broached Hole
Check for smoothness, squareness, and full depth.
Use a square broach gauge or test fit the corresponding square shaft.
💡 Pro Tips
For deep broaches, use intermediate shims or spacers to support multiple passes.
If broaching tough materials like stainless steel, reduce feed pressure and apply generous lubrication.
Keep broaches sharp and clean for best results
a chuck and revolving center are used to secure and stabilize a workpiece from both ends during rotation, ensuring accurate alignment and reducing runout for precise machining operations.
ML7 Super 7 Lathe Revolving Live Center with Chuck of Diameter 50 mm, 65 mm and 70 mm - Tailstock MT2 Shank and MT3 Shank in M12 x 1 & M14 x 1 Thread, High Precision
Key Features & Description:
Precision Crafted for ML7 Super 7 Lathe: Designed specifically for ML7 Super 7 lathes, this high-precision revolving live center boasts a runout within 0.01 mm, ensuring top-notch accuracy for your lathe applications.
Shank with Thread: The revolving live center is equipped with an MT2 shank and M14 x 1 thread, compatible with the tailstock of your lathe for secure, seamless attachment.
Includes Self-Centering Chuck: Comes with a self-centering chuck, which ensures precise alignment of your workpieces. The chuck body is made of durable cast iron, while the jaws are crafted from hard tool steel for extended wear resistance.
Hardened Threaded Portion: The threaded portion of the revolving center is hardened to 40-42 HRC, delivering long-lasting durability and resistance to wear, even under heavy use.
EN8D Tool Steel Body: The body of the revolving live center is manufactured from EN8D grade tool steel, offering high strength and impact resistance essential for demanding machining tasks.
Optimized Bearing Design: Equipped with 2 ball bearings and 1 taper bearing, this live center is built to handle radial thrust effectively, ensuring smooth and reliable performance.
Applications:Ideal for hobbyists, professionals, and machinists looking for high accuracy and stability in turning applications. This revolving live center is a perfect addition to any ML7 Super 7 lathe setup, providing outstanding reliability for intricate and precision-driven tasks.
Package Includes: 1 x ML7 Super 7 Lathe Revolving Live Center with Self-Centering Chuck
A drive center is used to keep something steady and aligned while you work on it. For example, in car repairs, it helps hold parts in place. In machining or lathes, it keeps the piece you're working on centered and steady.
Upgrade your wood turning setup with this versatile 4-piece drive center set, designed specifically for lathes equipped with a 2MT Morse Taper headstock and tailstock. This comprehensive set includes:
5/8" Diameter Headstock Spur Center: Ideal for narrow spindles, this center ensures precise grip and stability for detailed turning projects.
1" Diameter Headstock Spur Center: Perfect for standard spindles, providing robust support and alignment for a variety of wood turning tasks.
Live Ball Bearing Tailstock Center: Features a cup and point design for smooth operation and minimal friction, enhancing the overall accuracy of your turns.
Pointed Tailstock Center: Ensures reliable alignment and stability for a wide range of turning projects.
Each component is crafted for durability and precision, making this set an essential addition to any woodturner’s toolkit.

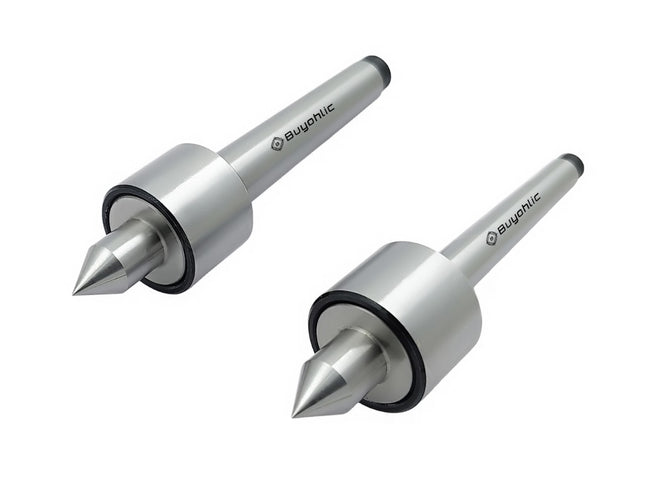

A revolving center (or live center) is used in machining to support and rotate a workpiece on a lathe or similar machine. It helps to keep the workpiece stable, centered, and aligned during cutting or shaping operations, ensuring accurate and smooth machining.
Product Overview:
Type: Bull Nose Pipe Live Revolving Center
Designed for: Precision rotation of large-diameter pipes and hollow workpieces
Material: Tool steel grade EN31
Heat Treatment: Achieves a hardness of up to 60+/- 2 HRC
Concentricity: Maintains precise concentricity with a runout of less than 5 microns
Shank Options: Available with MT2, MT3, and MT4 shanks
Application: Ideal for industrial and workshop environments requiring reliable and effective machining tools
Features:
High-Quality Construction:
Manufactured from tool steel grade EN31, known for its strength and durability.
Heat-treated to achieve a hardness of up to 60+/- 2 HRC, ensuring long-lasting performance and resistance to wear.
Precision and Accuracy:
Maintains precise concentricity with a runout of less than 5 microns, ensuring high machining accuracy.
Specifically designed for the precision rotation of large-diameter pipes and hollow workpieces.
Compatibility and Integration:
Available with MT2, MT3, and MT4 shank options, ensuring compatibility with standard lathe setups.
Facilitates easy integration into existing workshop equipment for efficient machining operations.
Robust Engineering:
Engineered to meet rigorous performance standards, combining robust construction and advanced engineering.
Ideal for industrial and workshop environments, providing reliable and effective machining tools.
Versatile Usage:
Suitable for a wide range of lathe operations involving large-diameter pipes and hollow materials.
Ensures reliable performance in demanding machining tasks, enhancing workshop productivity.
Use of product- A revolving center (or live center) is used in machining to support and rotate a workpiece on a lathe or similar machine. It helps to keep the workpiece stable, centered, and aligned during cutting or shaping operations, ensuring accurate and smooth machining.
Type: Double Bearing Lathe Pipe Cum Revolving Center
Runout: Under 5 microns
Bearings:
1 Ball Bearing
1 Taper Bearing
Body Diameter: 50 mm
Bearing Body Case Length: 58 mm
Overall Length (OAL): 200 mm
Shank: MT3 and MT2
Body Material: Alloy steel grade EN8D
Quill/Point Center Material: EN31 steel
Nose Design: Allows use as both a revolving/live center and a pipe center
Pipe Capacity for Turning: 12 to 28 mm
Features:
Precision and High Quality:
Designed with double bearings for enhanced precision and durability.
Maintains a runout of under 5 microns, ensuring high accuracy during operation.
Material and Construction:
The body is constructed from alloy steel grade EN8D, known for its strength and toughness.
The quill/point center is made from EN31 steel, providing high wear resistance and durability.
Versatile Usage:
Unique nose design allows the tool to be used as both a revolving/live center and a pipe center.
Suitable for turning pipes with a diameter range of 12 to 28 mm.
Bearing Quality:
Equipped with Z type (covered) bearings.
These bearings are designed to lock and seal grease inside, even when it melts at high temperatures during operation, ensuring consistent performance and longevity.

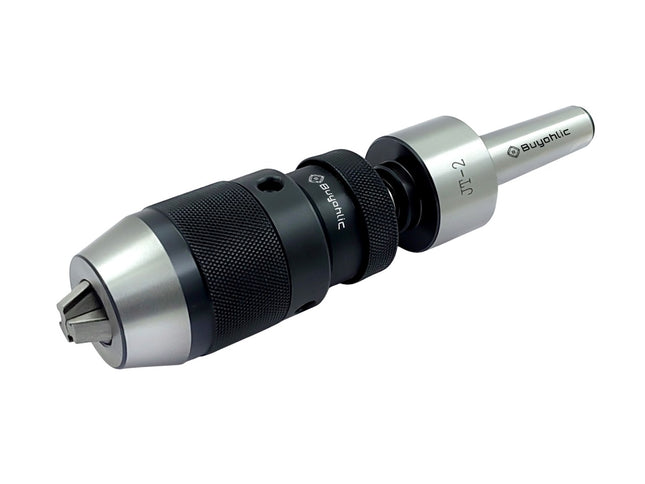

A revolving center (or live center) is used in machining to support and rotate a workpiece on a lathe or similar machine. It helps to keep the workpiece stable, centered, and aligned during cutting or shaping operations, ensuring accurate and smooth machining.
Features:
Mounting Type: JT2 Taper Mounting
Tailstock Taper: 2MT (Morse Taper)
Bearing Case Length: 24 mm, tailored to accommodate Myford lathe specifications
Construction: High-quality materials for durability and precision
Compact Design: Small body for better clearance and ease of use in tight spaces
Benefits:
Precision Alignment: The JT2 taper mounting provides a secure and accurate fit, ensuring precise alignment of the workpiece during turning operations.
Myford Compatibility: Specifically designed to meet the specifications of Myford lathes, making it an ideal choice for users of these machines.
Durable Bearings: Equipped with high-quality bearings that ensure smooth rotation and longevity, reducing maintenance needs.
Compact and Efficient: The small body design allows for better access and maneuverability, particularly in confined working areas.
Applications:
Suitable for use in metalworking and machining operations where precision and reliability are crucial.
Ideal for turning applications on Myford lathes, ensuring compatibility and optimal performance.
Perfect for hobbyists and professional machinists requiring a compact and precise live centre for their turning projects.
Use of product-A multipoint revolving center, commonly known as a live center, serves as a vital component in machine tool applications, particularly within lathe operations. Mounted in the tailstock, it supports workpieces at the non-driven end, reducing deflection and vibration during machining, thereby enhancing surface finish and dimensional accuracy. By evenly distributing load and minimizing friction, it facilitates smooth rotation of the workpiece, crucial for turning, facing, drilling, and other lathe operations. Its interchangeable tips accommodate various workpiece shapes and sizes, ensuring proper centering and support, thus improving machining efficiency and accuracy. Overall, the multipoint revolving center plays a pivotal role in enhancing the quality and productivity of machining processes.
Multi-Point Design: Experience superior stability and support with our multipoint revolving center. Equipped with multiple precision-ground points, it ensures even distribution of force and minimizes deflection, resulting in smoother cuts and finer finishes on your workpieces.
Versatile Functionality: From light-duty turning to heavy-duty machining, our revolving center adapts to a wide range of applications with ease. Whether you're working with wood, metal, or composite materials, enjoy the versatility and flexibility offered by our multipoint design.
Precision Machining: Achieve unparalleled accuracy and consistency in your lathe operations. Each component of our revolving center is precision-machined to tight tolerances, ensuring reliable performance and exceptional results with every use.
Durable Construction: Built to withstand the rigors of continuous use, our revolving center is constructed from high-quality tool steel for maximum durability and longevity. The rugged housing and hardened steel points deliver unmatched strength and resilience, making it ideal for demanding machining tasks. This set is supplied in a plastic suitcase as advertised, and comes with 7 different tips- 5 x live centers, 1 x female center, 1 x pipe center tip with an ejecting key
Easy Installation: Designed for hassle-free setup and operation, our revolving center features a user-friendly design that allows for quick and easy installation on your lathe. Simply secure it in place and enjoy seamless integration into your existing workflow.
Smooth Revolving Action: Experience smooth and precise rotation with our revolving center, thanks to its high-quality bearings and efficient design. Whether you're turning cylindrical, conical, or irregular-shaped workpieces, enjoy consistent performance and effortless operation.
Enhanced Productivity: Boost your productivity and efficiency with the reliability and precision of our multipoint revolving center. Spend less time on setup and adjustments, and more time on actual machining, allowing you to complete projects faster and with greater accuracy.
{Internal Reference: HM}
Use of product- A Revolving center provides support for the workpiece during rotation on the lathe spindle. In a mini lathe, which is smaller and often used for hobbyist or small-scale machining projects, the revolving center helps maintain precision and stability while machining cylindrical or tapered workpieces. It reduces friction and ensures concentricity between the workpiece and the lathe spindle, enabling accurate and efficient turning operations.
Specifications:
Body Diameter: 23 mm
Overall Length: 97 mm
Morse Taper: MT1
Premium Construction: Constructed from high-grade tool steel, this revolving center ensures longevity and reliability, even under heavy usage.
Precision Machining: Engineered with precision machining, this center provides accurate rotation and alignment, essential for intricate turning and shaping tasks.
Smooth Operation: Equipped with precision double bearings, this revolving center offers smooth and consistent rotation, reducing friction and wear for optimal performance.
Versatile Compatibility: Compatible with a wide range of mini lathes, this revolving center easily integrates into your existing setup, offering versatility for various projects.
Enhanced Support: Designed with a pointed tip, this center provides enhanced support to your workpieces, minimizing vibration and deflection for superior results.
Easy Installation: Simple to install and remove, this revolving center streamlines setup and ensures hassle-free operation, saving you time and effort.
Multi-material Capabilities: Whether you're working with wood, metal, or other materials, this revolving center delivers consistent performance across a variety of applications.
Compact Size: Its compact size makes it ideal for use with mini lathes, providing efficient turning capabilities without taking up excessive space in your workshop.
Professional Results: By ensuring precise alignment and rotation, this revolving center helps you achieve professional-quality results, elevating the quality of your craftsmanship.
A Revolving center provides support for the workpiece during rotation on the lathe spindle. In a mini lathe, which is smaller and often used for hobbyist or small-scale machining projects, the revolving center helps maintain precision and stability while machining cylindrical or tapered workpieces. It reduces friction and ensures concentricity between the workpiece and the lathe spindle, enabling accurate and efficient turning operations.
Premium Construction: Constructed from high-grade tool steel, this revolving center ensures longevity and reliability, even under heavy usage. Diameter 23 mm. OAL Mt0:- 65 mm, OAL MT1:- 67.5 mm
Precision Machining: Engineered with precision machining, this center provides accurate rotation and alignment, essential for intricate turning and shaping tasks.
Smooth Operation: Equipped with precision double bearings, this revolving center offers smooth and consistent rotation, reducing friction and wear for optimal performance.
Versatile Compatibility: Compatible with a wide range of mini lathes, this revolving center easily integrates into your existing setup, offering versatility for various projects.
Enhanced Support: Designed with a pointed tip, this center provides enhanced support to your workpieces, minimizing vibration and deflection for superior results.
Easy Installation: Simple to install and remove, this revolving center streamlines setup and ensures hassle-free operation, saving you time and effort.
Multi-material Capabilities: Whether you're working with wood, metal, or other materials, this revolving center delivers consistent performance across a variety of applications.
Compact Size: Its compact size makes it ideal for use with mini lathes, providing efficient turning capabilities without taking up excessive space in your workshop.
Professional Results: By ensuring precise alignment and rotation, this revolving center helps you achieve professional-quality results, elevating the quality of your craftsmanship.
Tools Specification ;-
MT0 Shank
Small Body 23 mm Diameter Triple Bearing Live Revolving Center.
short MT0 Shank, OAL 65 mm.
Tool Steel Housing and hardened point. Run out within 0.001" Suited for small woodworking lathes
MT1 Shank
Small Body 23 mm Diameter Triple Bearing Live Revolving Center
MT1 Shank, OAL 67.50 mm
Tool Steel Housing and hardened point. Run out within 0.001"
Overall, the mini lathe revolving center combines precision engineering with robust construction to provide reliable support and enhanced machining capabilities for mini lathe users. Whether for intricate woodturning projects or precision metalworking tasks, this accessory is a valuable addition to any mini lathe setup.
{Internal Reference: HM}
Tool Specification: Body diameter is 44 mm. Bearing body length 50 mm. Overall Length is 145 mm. Shank is hardened and precisely ground.
Used For: A revolving center tailstock, also known as a live center, is a crucial component in a lathe that supports and rotates the workpiece. It consists of a bearing-mounted center with a point that rotates with the workpiece, reducing friction and heat during turning operations. The revolving center tailstock is typically used for cylindrical workpieces and is driven by the rotation of the lathe spindle. This setup allows for smoother and more precise turning of the workpiece, especially when working with materials that require high precision and smooth finishes.
High-Precision Machining: Engineered for precision machining applications, this ER collet revolving center ensures superior accuracy and repeatability, delivering high-quality machined components with tight tolerances.
ER Collet System: Utilizes the popular ER collet system, providing a versatile and secure gripping mechanism for workpieces of various diameters, offering flexibility and efficiency in machining setups.
Wide Range of Collet Sizes: Compatible with a wide range of ER collet sizes, allowing for the accommodation of different workpiece diameters, ensuring versatility and adaptability to diverse machining requirements.
Quick Tool Changes: Facilitates quick and tool changes, thanks to the ER collet system's fast clamping and releasing mechanism, reducing downtime and improving productivity in machining operations.
Robust Construction: Constructed from high-quality materials, including hardened steel and precision bearings, ensuring durability and long-lasting performance even under demanding machining conditions.
Enhanced Stability: Features a robust bearing system and rigid construction to minimize vibration and deflection, providing stable support for workpieces during machining, resulting in improved surface finishes and dimensional accuracy.
Adjustable Design: Offers adjustable components such as interchangeable collets and tailstocks, allowing for customization to accommodate various workpiece geometries and machining requirements, enhancing versatility and workflow efficiency.
Efficient Lubrication System: Incorporates an efficient lubrication system to ensure smooth rotation and reduce friction, extending the lifespan of critical components and minimizing maintenance requirements, thereby maximizing uptime and productivity.
Easy Installation and Setup: Designed for easy installation and setup, with user-friendly adjustment mechanisms and clear instructions, enabling operators to integrate the revolving center into machining setups quickly and efficiently, minimizing downtime and improving workflow efficiency.
Wide Range of Applications: Suitable for a variety of machining applications, including turning, milling, drilling, and grinding, across diverse industries such as automotive, aerospace, and medical device manufacturing, making it a versatile tool for modern machining operations.
Comprehensive Support: Backed by comprehensive customer support and after-sales service, including technical assistance, maintenance, and spare parts availability, ensuring peace of mind and maximum uptime for machining operations.
Quality Assurance: Manufactured to stringent quality standards and subjected to rigorous testing procedures to ensure superior quality, reliability, and performance, meeting the exacting demands of precision machining environment
{Internal Reference: HM}
