Description

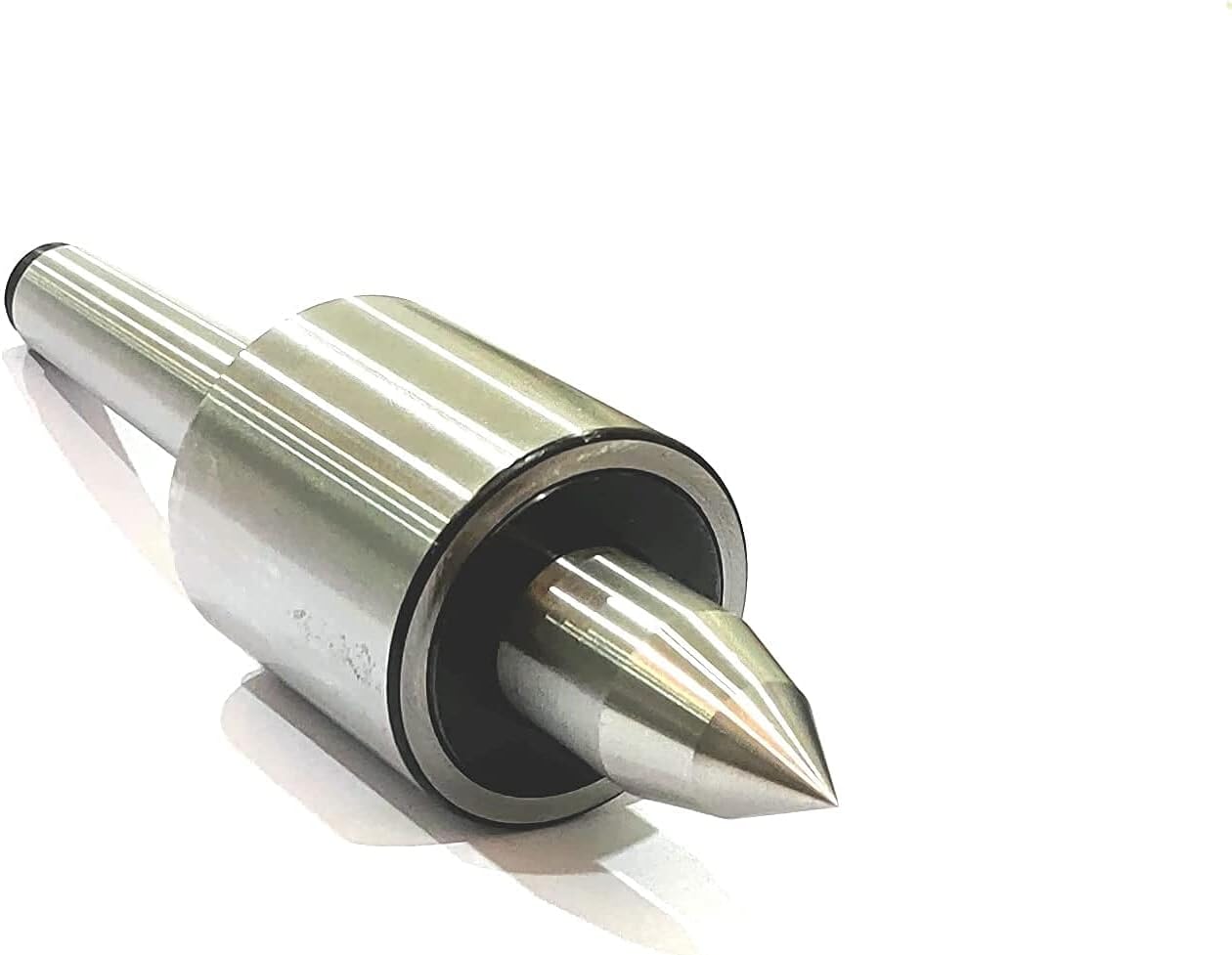

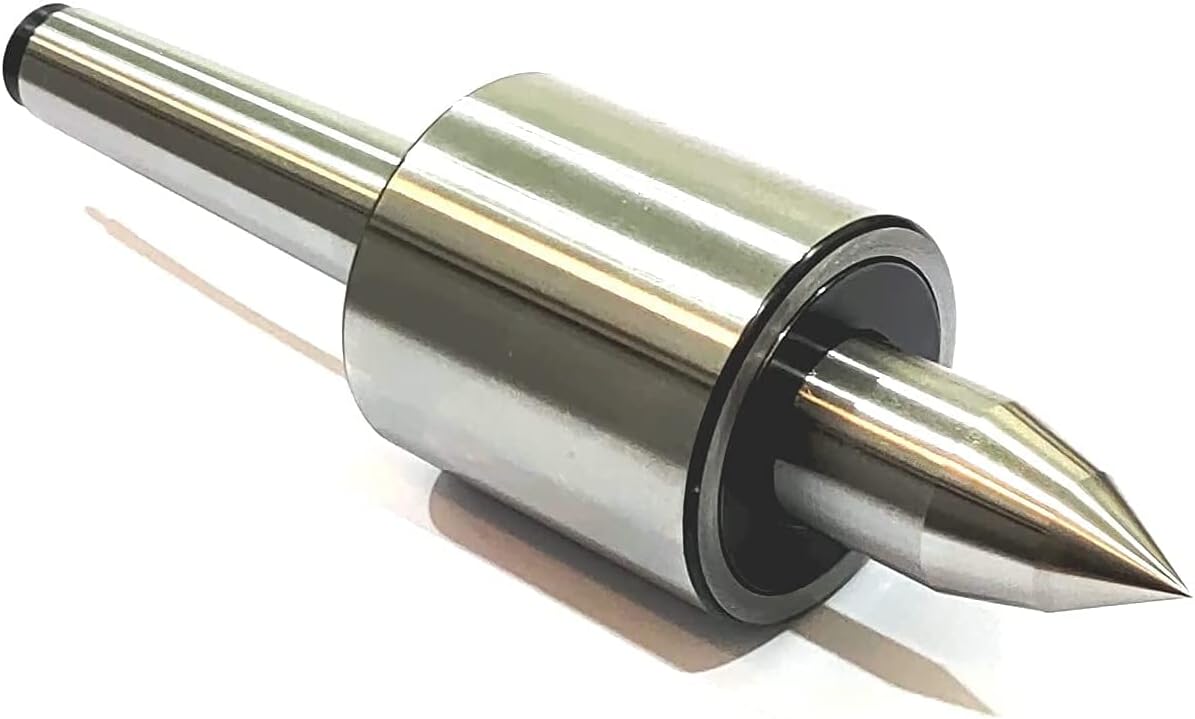

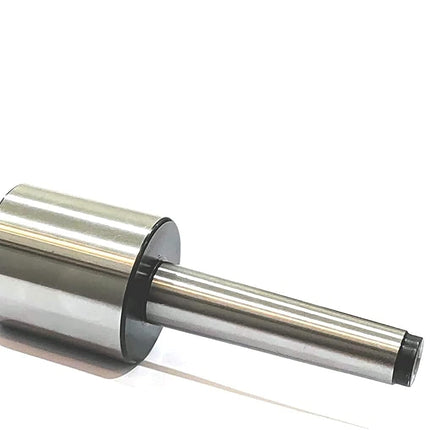

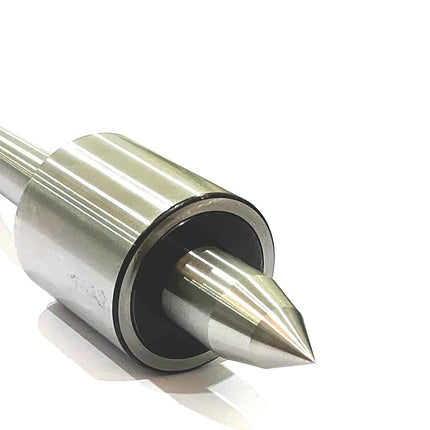

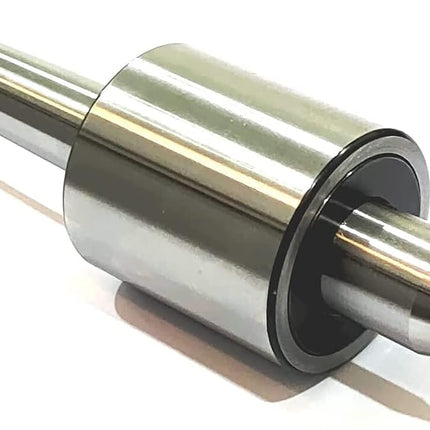

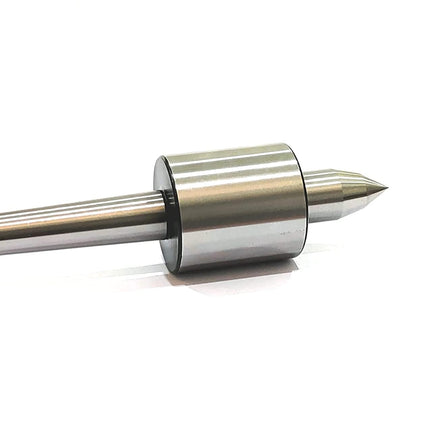

Use of product- A revolving center (or live center) is used in machining to support and rotate a workpiece on a lathe or similar machine. It helps to keep the workpiece stable, centered, and aligned during cutting or shaping operations, ensuring accurate and smooth machining.
-
Type: Double Bearing Lathe Pipe Cum Revolving Center
-
Runout: Under 5 microns
-
Bearings:
- 1 Ball Bearing
- 1 Taper Bearing
-
Body Diameter: 50 mm
-
Bearing Body Case Length: 58 mm
-
Overall Length (OAL): 200 mm
-
Shank: MT3 and MT2
-
Body Material: Alloy steel grade EN8D
-
Quill/Point Center Material: EN31 steel
-
Nose Design: Allows use as both a revolving/live center and a pipe center
-
Pipe Capacity for Turning: 12 to 28 mm
Features:
-
Precision and High Quality:
- Designed with double bearings for enhanced precision and durability.
- Maintains a runout of under 5 microns, ensuring high accuracy during operation.
-
Material and Construction:
- The body is constructed from alloy steel grade EN8D, known for its strength and toughness.
- The quill/point center is made from EN31 steel, providing high wear resistance and durability.
-
Versatile Usage:
- Unique nose design allows the tool to be used as both a revolving/live center and a pipe center.
- Suitable for turning pipes with a diameter range of 12 to 28 mm.
-
Bearing Quality:
- Equipped with Z type (covered) bearings.
- These bearings are designed to lock and seal grease inside, even when it melts at high temperatures during operation, ensuring consistent performance and longevity.
