Description

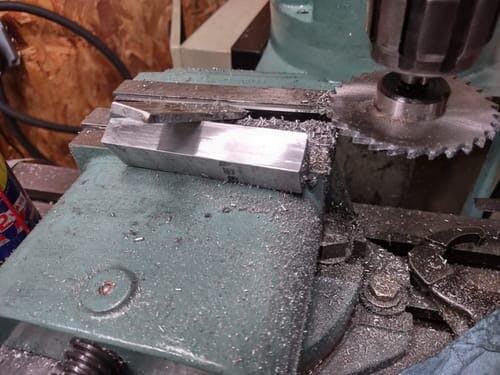

A slitting saw arbor is a tool used to hold and secure a slitting saw in place during machining operations. It consists of a shaft or spindle onto which the slitting saw is mounted, along with mechanisms for clamping and tightening the saw securely. The arbor is inserted into the spindle of a milling machine, lathe, or other machining equipment, allowing the slitting saw to rotate and perform cutting operations.

1. Purpose: A slitting saw arbor is an essential tool used in machining operations for precision cutting tasks, particularly in metalworking. It serves as a holder for slitting saw blades, enabling accurate and controlled cutting of materials such as metal, plastic, or wood.

2. Construction: The slitting saw arbor typically consists of several key components:

  • Arbor Body: The main body of the arbor, usually made of high-quality steel or other durable materials, providing stability and support for the entire assembly.

  • Arbor Shank: One end of the arbor features a shank that fits into the chuck of a milling machine or similar equipment. The shank may have various configurations to ensure compatibility with different machines.

  • Arbor Flange: Located at the opposite end of the shank, the arbor flange is designed to securely hold the slitting saw blade in place during operation. It often includes bolt holes or slots for attaching the saw blade using mounting screws.

  • Mounting Hardware: Typically includes screws or bolts used to fasten the slitting saw blade onto the arbor flange. These fasteners ensure that the blade remains securely attached during cutting operations, minimizing vibrations and enhancing precision.

3. Features and Variations: Slitting saw arbors come in various sizes and configurations to accommodate different types of slitting saw blades and machining requirements. Key features and variations may include:

  • Arbor Diameter: Available in different diameters to match the size specifications of the slitting saw blades being used. Common sizes range from small arbors for delicate cuts to larger arbors for heavy-duty applications.

  • Arbor Length: The length of the arbor shank can vary to suit the depth of cut required for specific machining tasks. Longer arbors provide greater reach, allowing for deeper cuts, while shorter arbors are suitable for shallower cuts or confined workspaces.

  • Arbor Type: Arbors may be categorized based on their design and application, such as straight shank arbors, R8 arbors, or Morse taper arbors. Each type is compatible with specific milling machines or tooling systems, offering versatility in machine compatibility.

  • Material Compatibility: Slitting saw arbors are designed to withstand the rigors of machining operations, making them compatible with a wide range of materials, including ferrous and non-ferrous metals, plastics, and wood.

  • Slitting Saw Blade:-  Slitting saw arbor Holders can readily accept Saw Blades of Hole Diameter 1/2", 5/8", 3/4", 7/8", & 1". Supplied with HSS (M2 Grade) Circular Saw Blade (Size 63 mm Diameter x 1 mm Thickness x 16 mm Bore)

{Internal Reference: HM}

Read more

Slitting Saw Holder Arbor With Circular Saw Blade

    Product form

    $27.99 $22.50

    SKU: 20-SH-201
    Barcode: 8906183731460
