Description

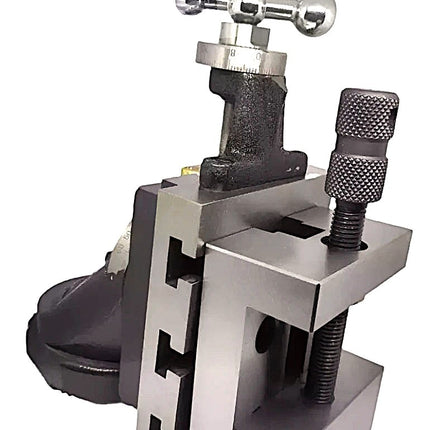

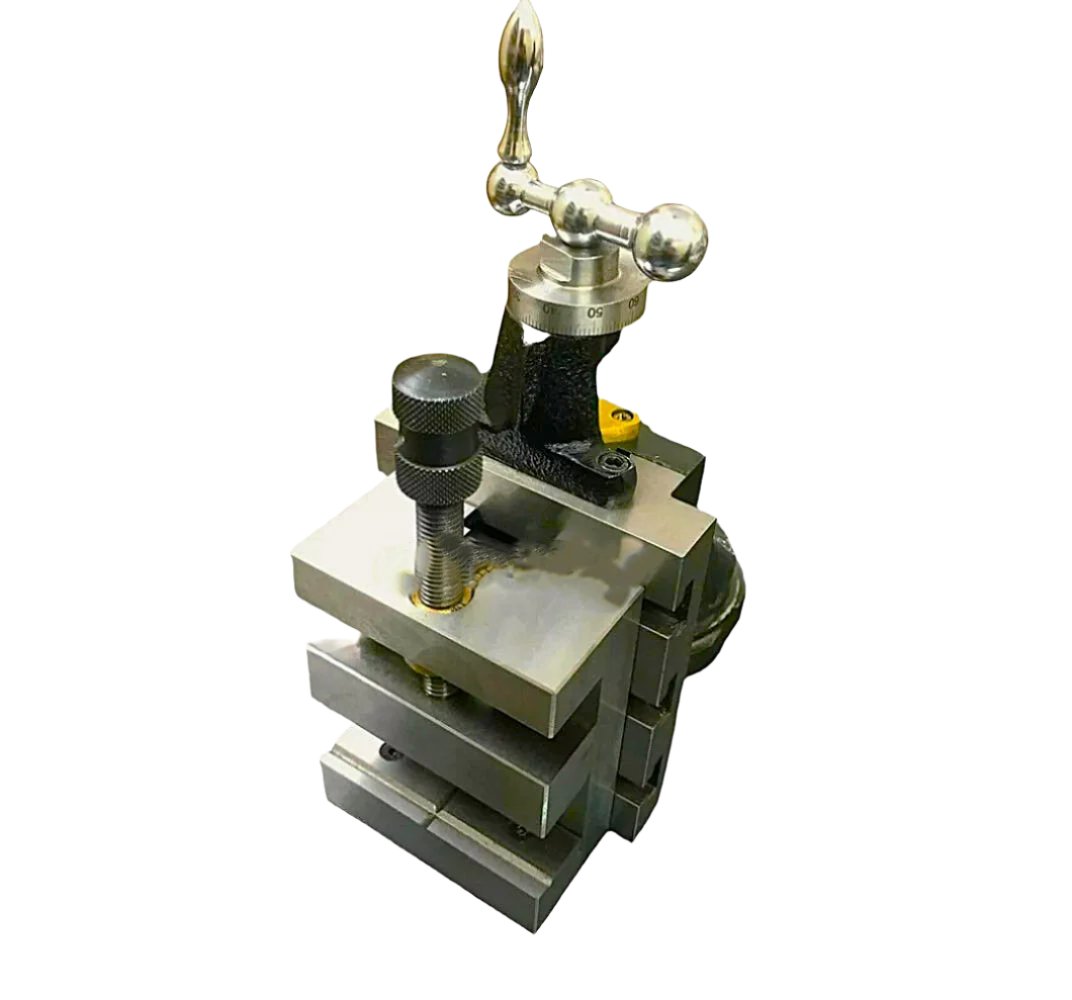

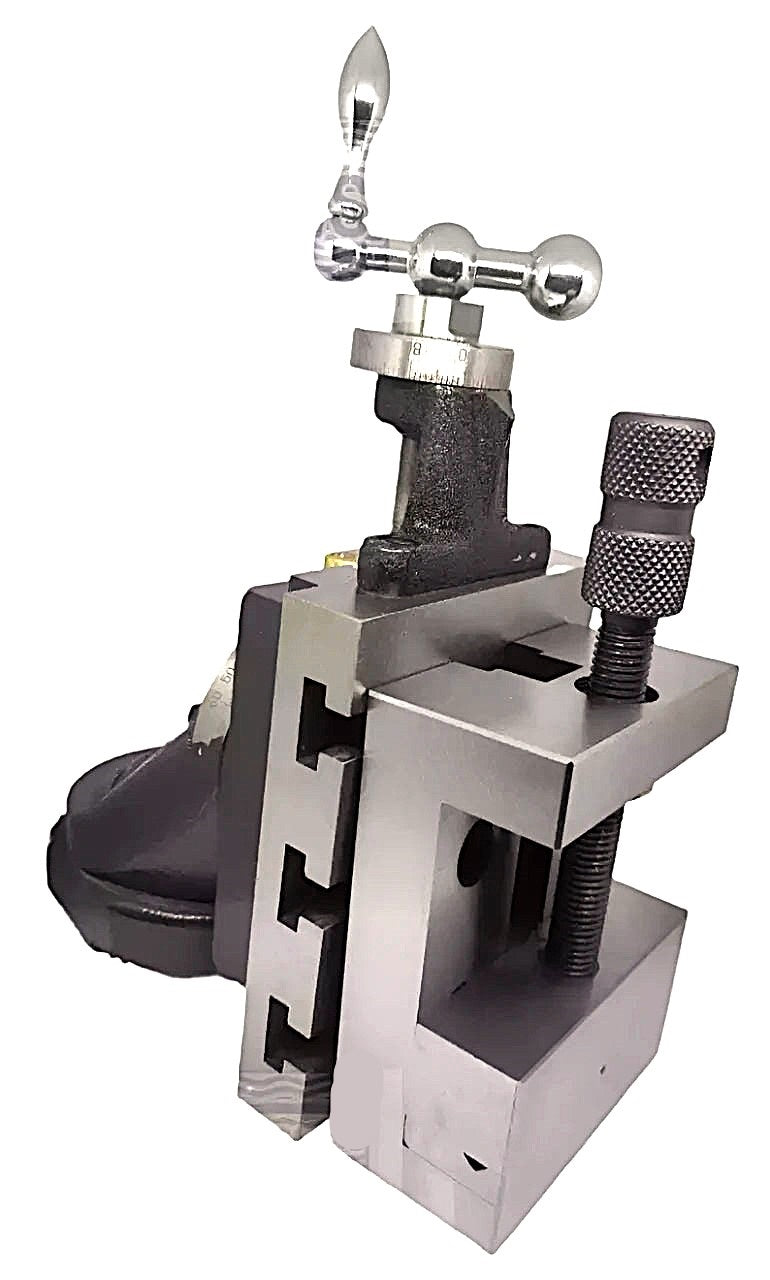

A combination of a vertical slide and a grinding vice is typically used in machining and grinding applications to enhance precision and flexibility. Together, they enable complex machining operations, such as precise grinding of specific features on a workpiece, by allowing for both vertical and horizontal positioning and movement.

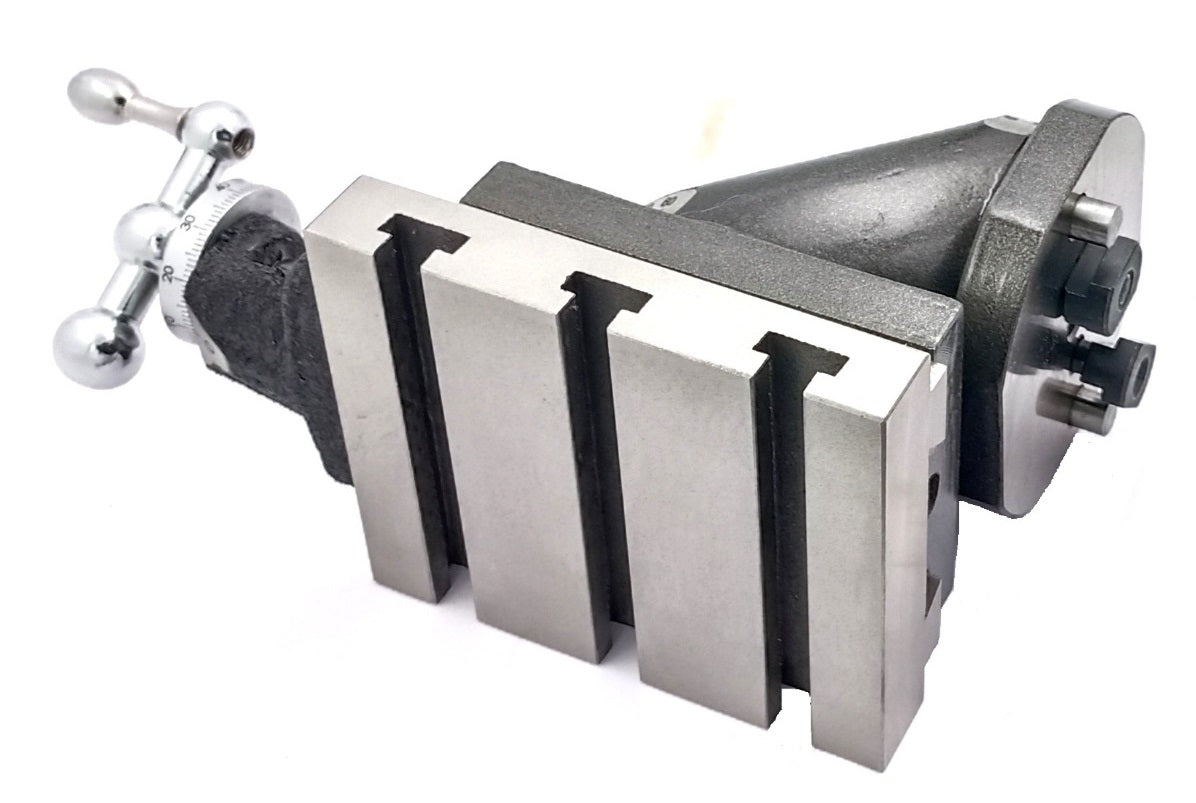

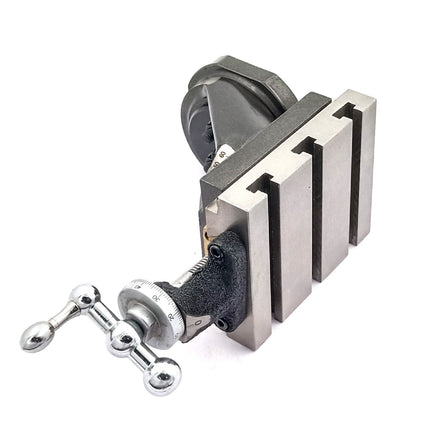

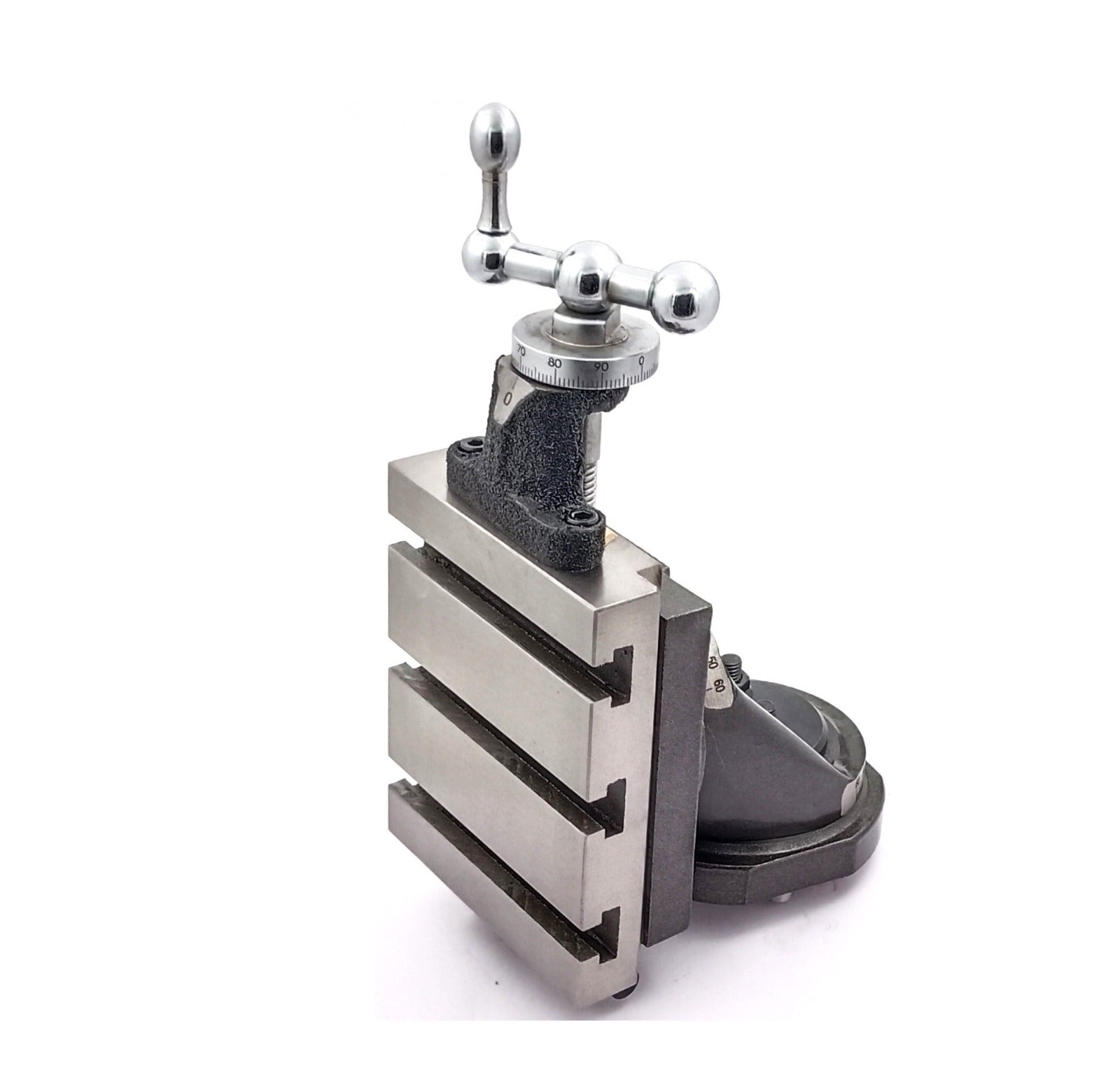

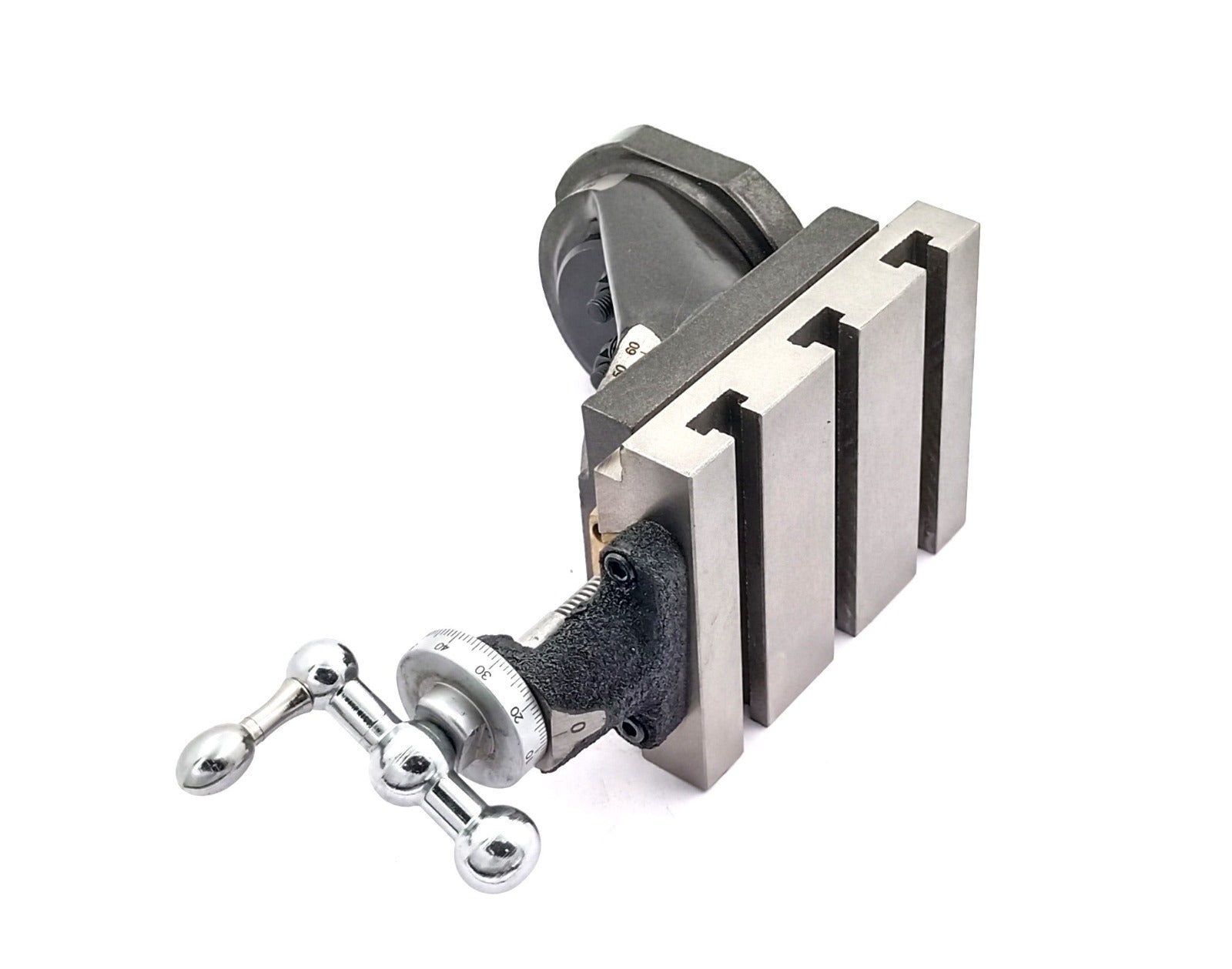

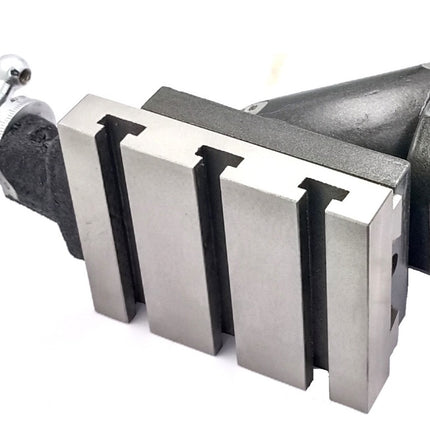

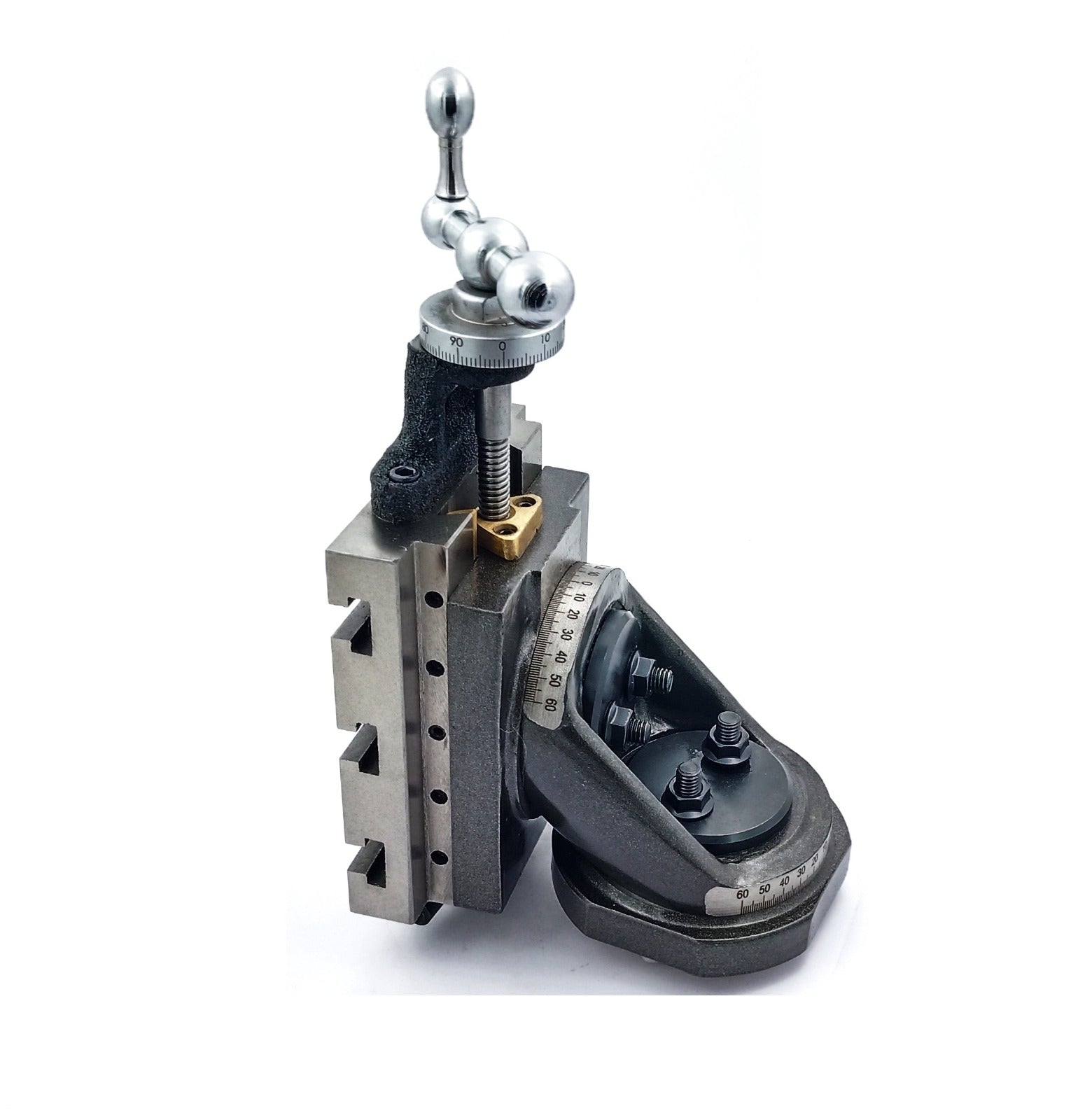

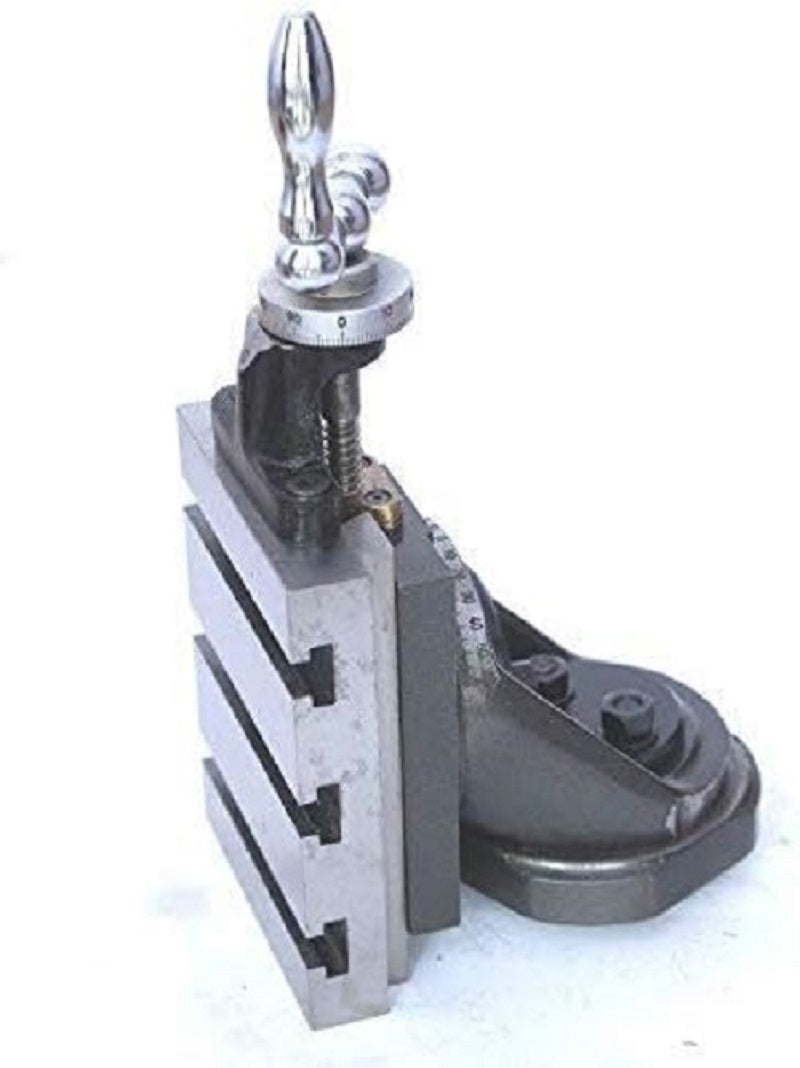

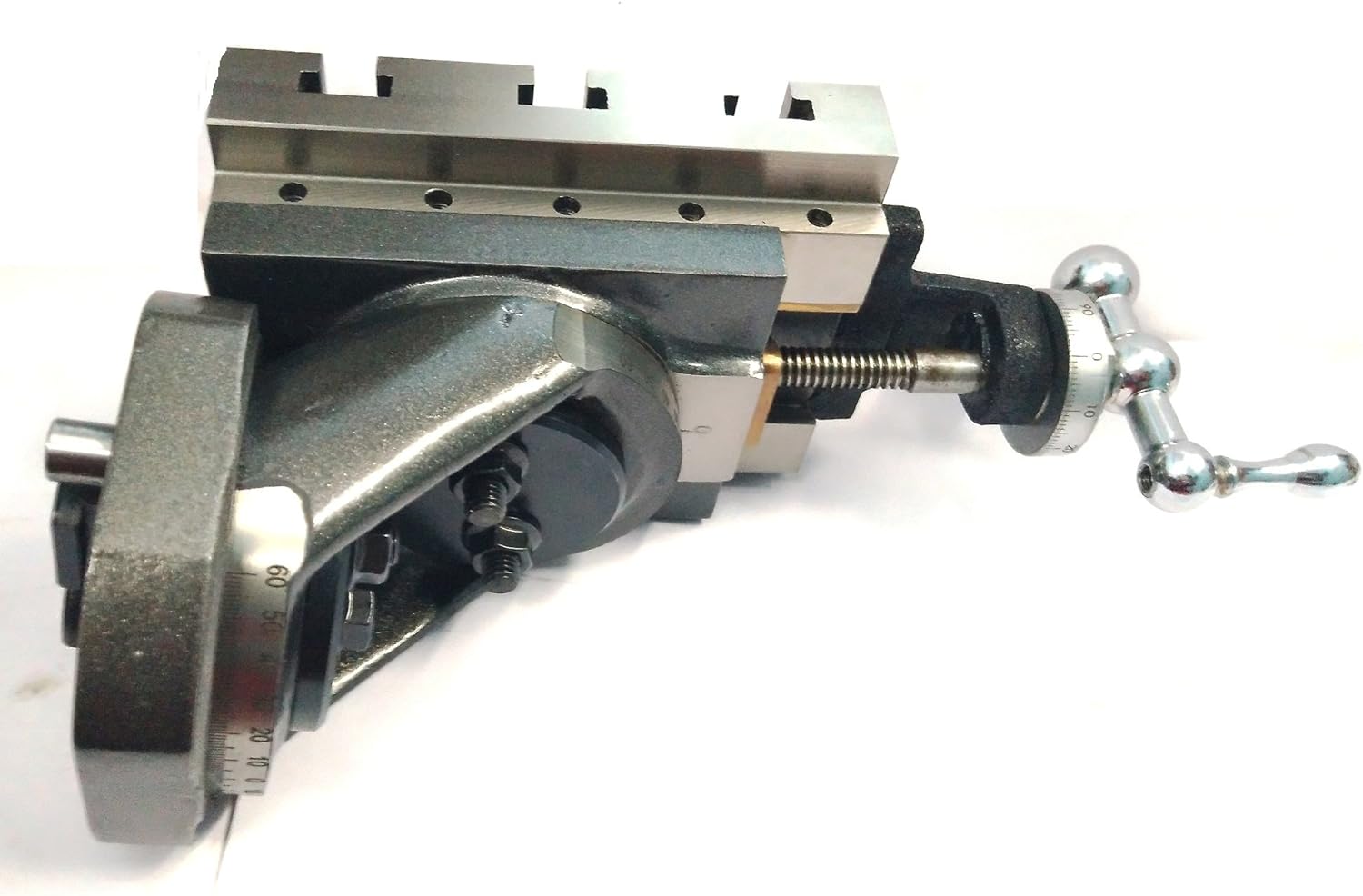

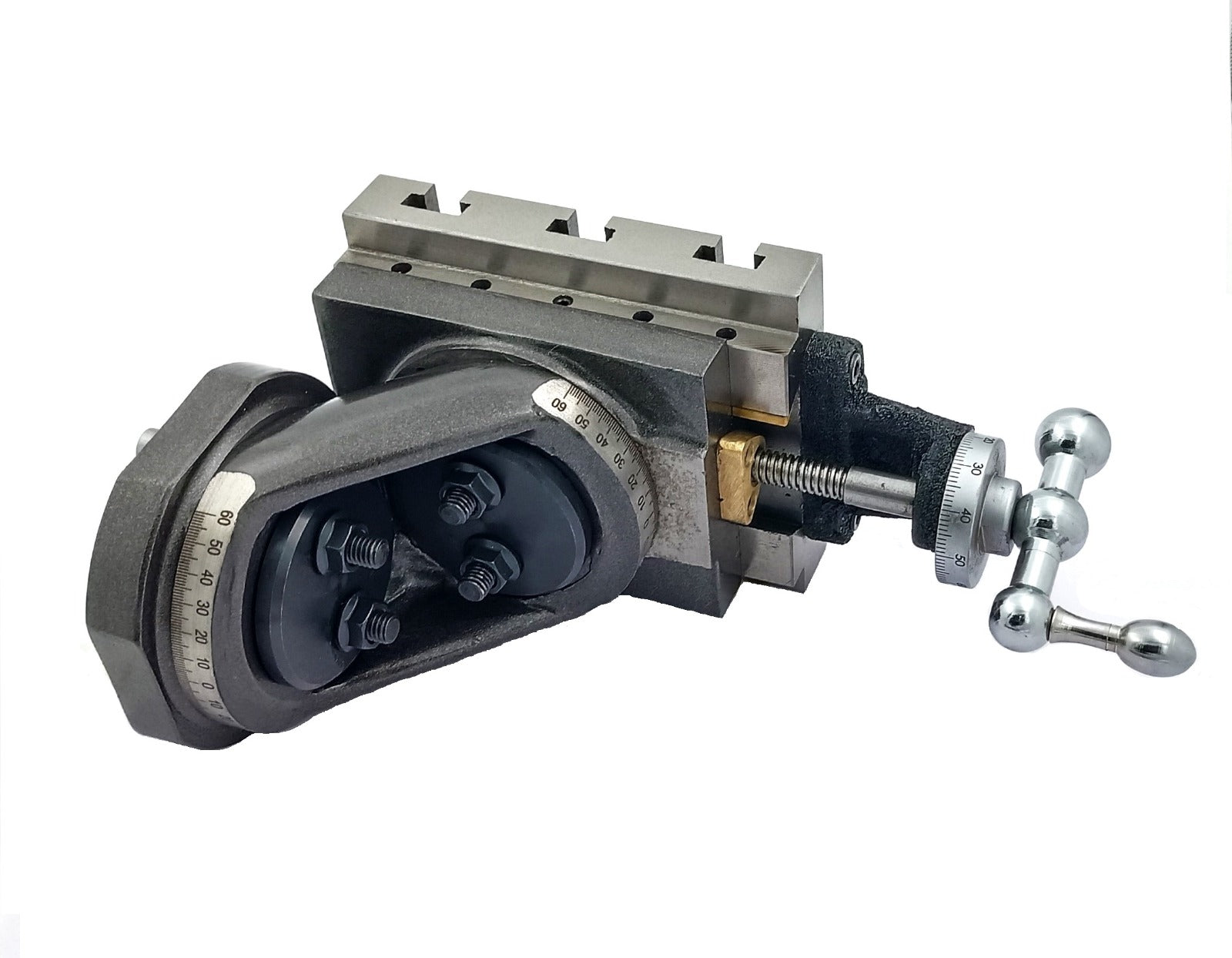

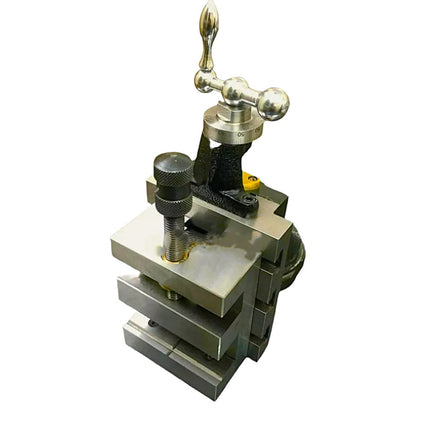

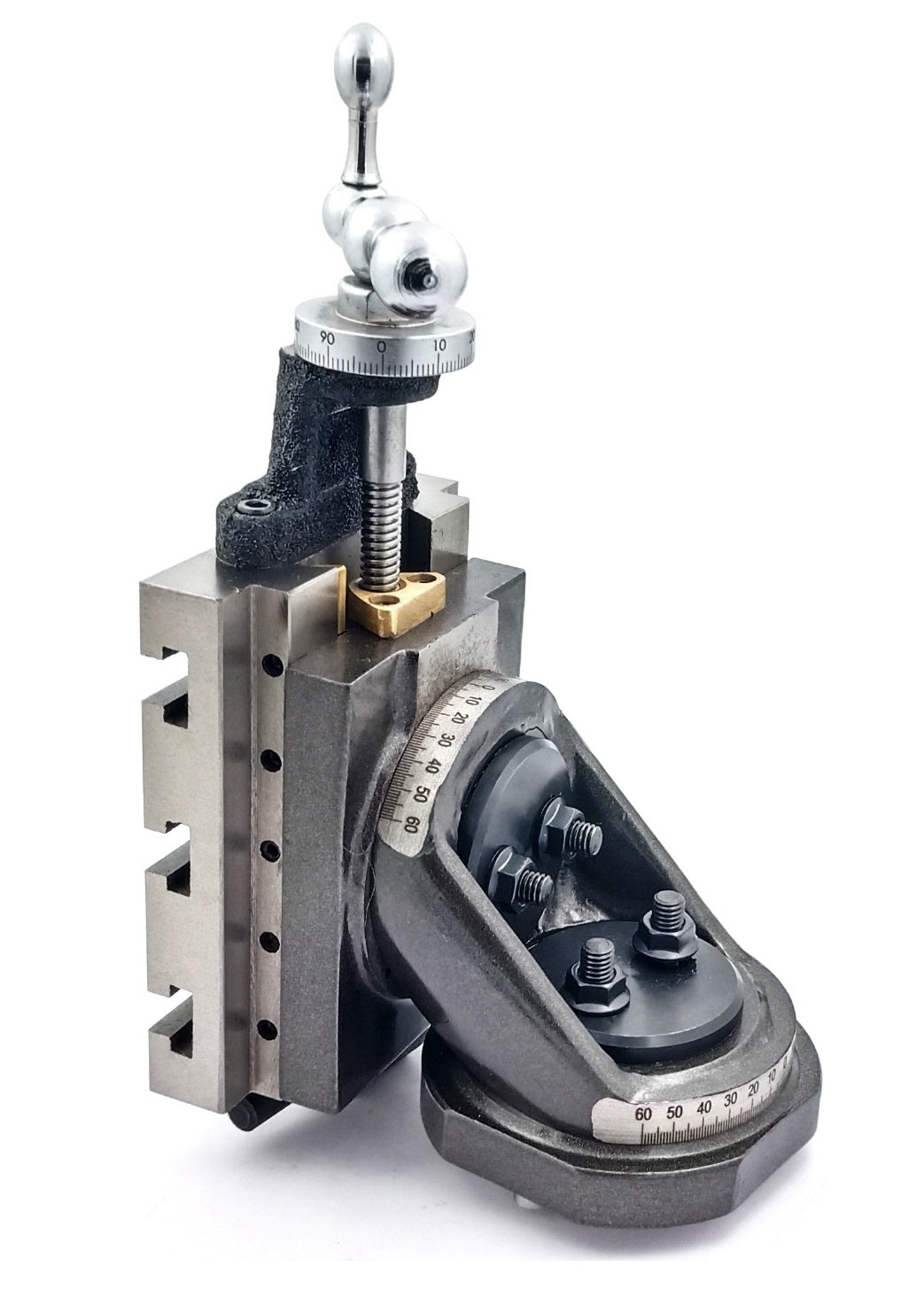

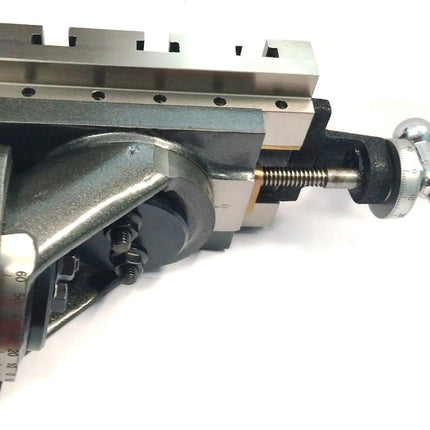

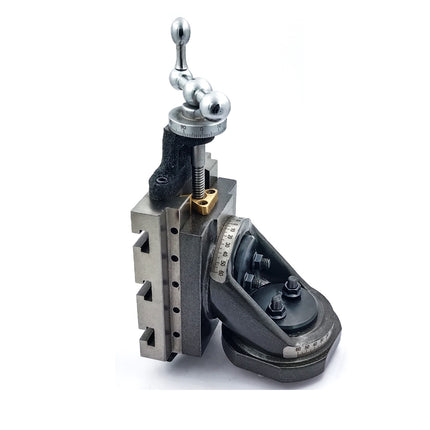

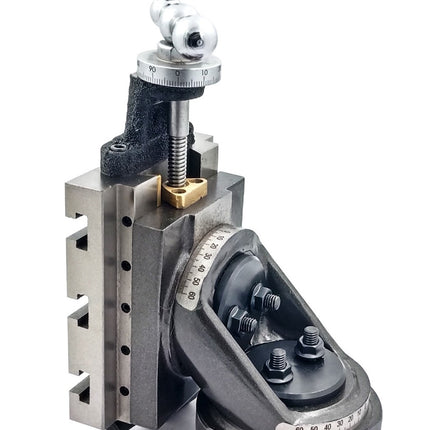

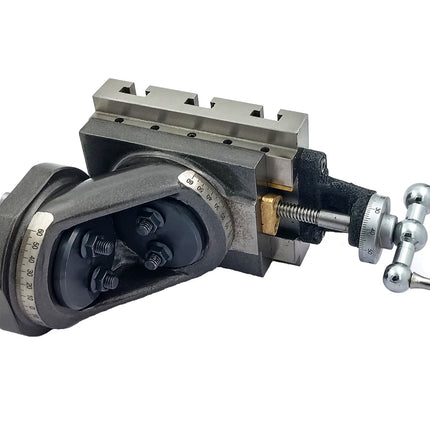

Vertical slide Dimensions:
-
-
Size: 125 mm x 100 mm
- Provides a substantial working area for a variety of milling operations.
-
Base Features:
-
Slots for Clamping:
- 3 slots in the base allow for secure clamping down.
-
Pitch Circle Diameter (PCD): 46.19 mm
- Facilitates robust and stable attachment to the lathe.
-
Construction:
- Made from high-quality materials ensuring durability and longevity.
- Precision-engineered for stability and accuracy during milling.
-
Usability:
- Suitable for both hobbyists and professional machinists.
- Enhances the milling capabilities of the Myford Super 7 ML7 lathe.
-
Applications:
- Ideal for milling, drilling, slotting, and other precise machining operations.
- Expands the functionality of the lathe, enabling vertical milling tasks.

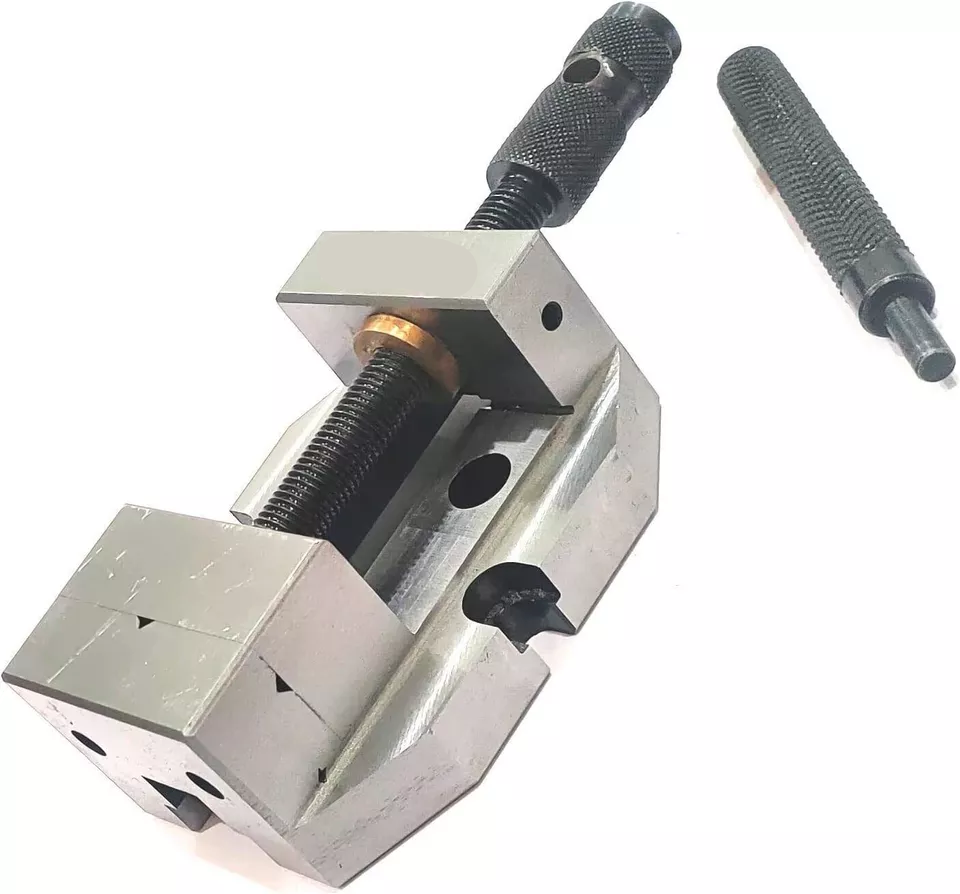

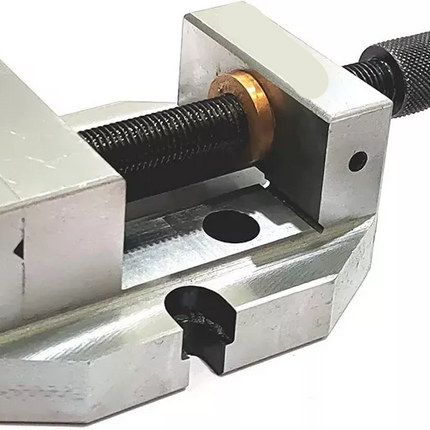

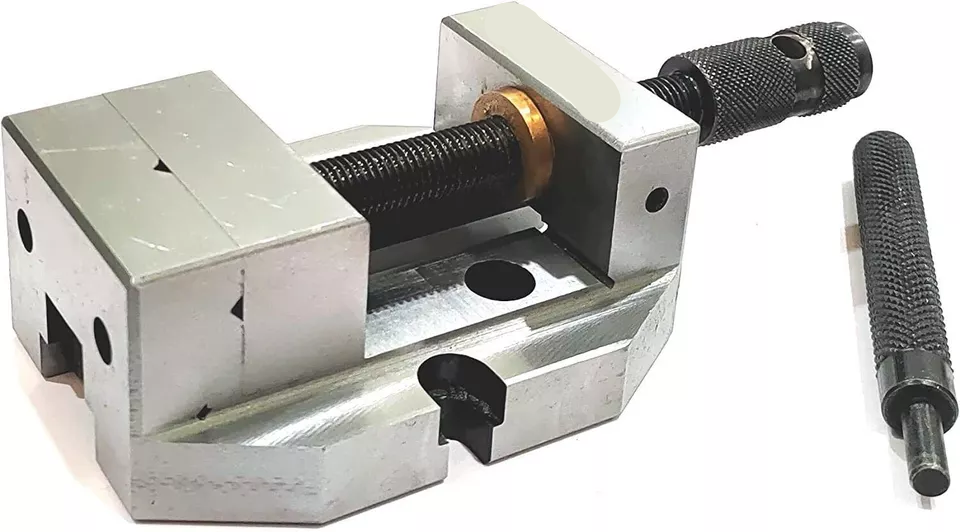

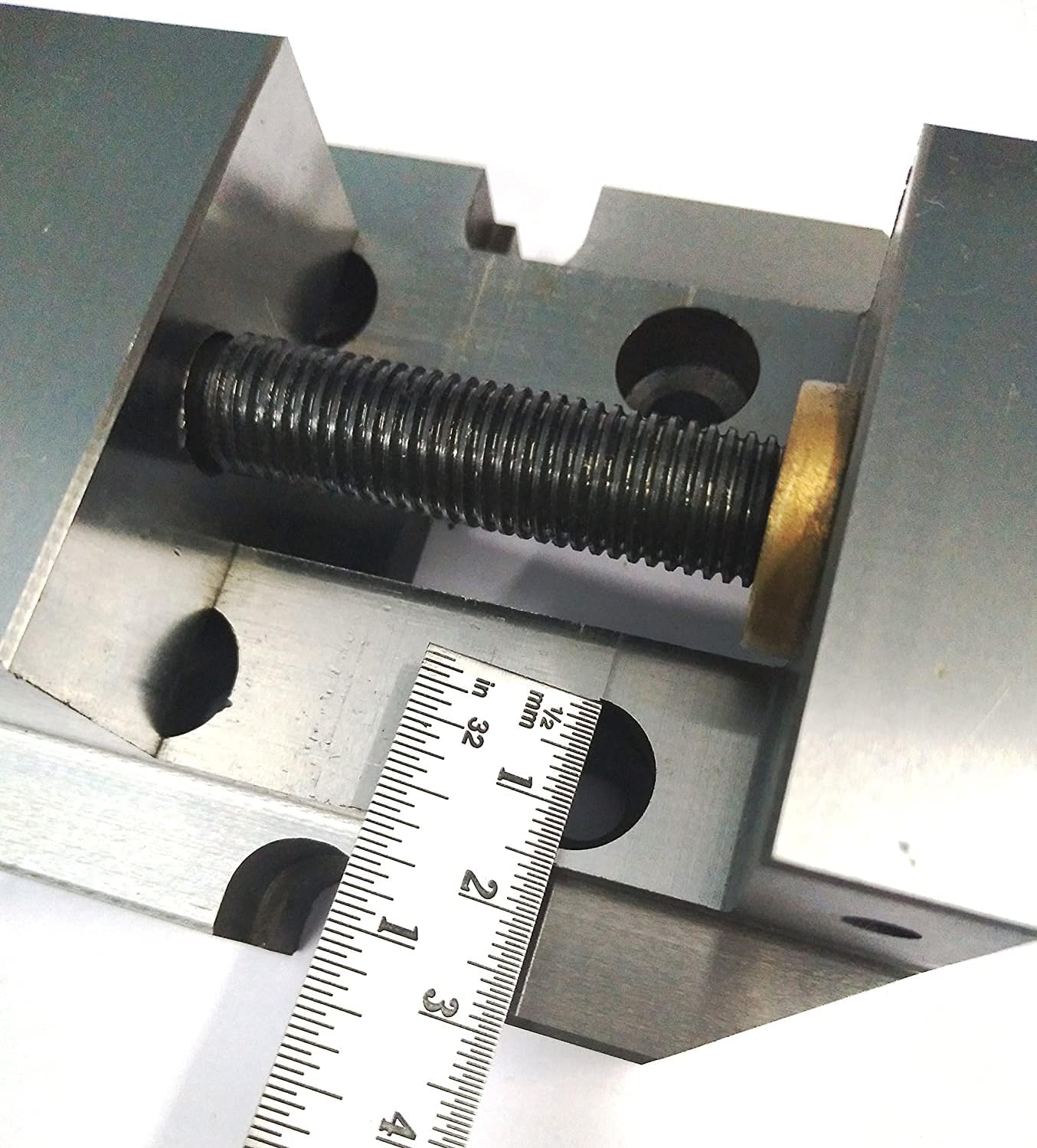

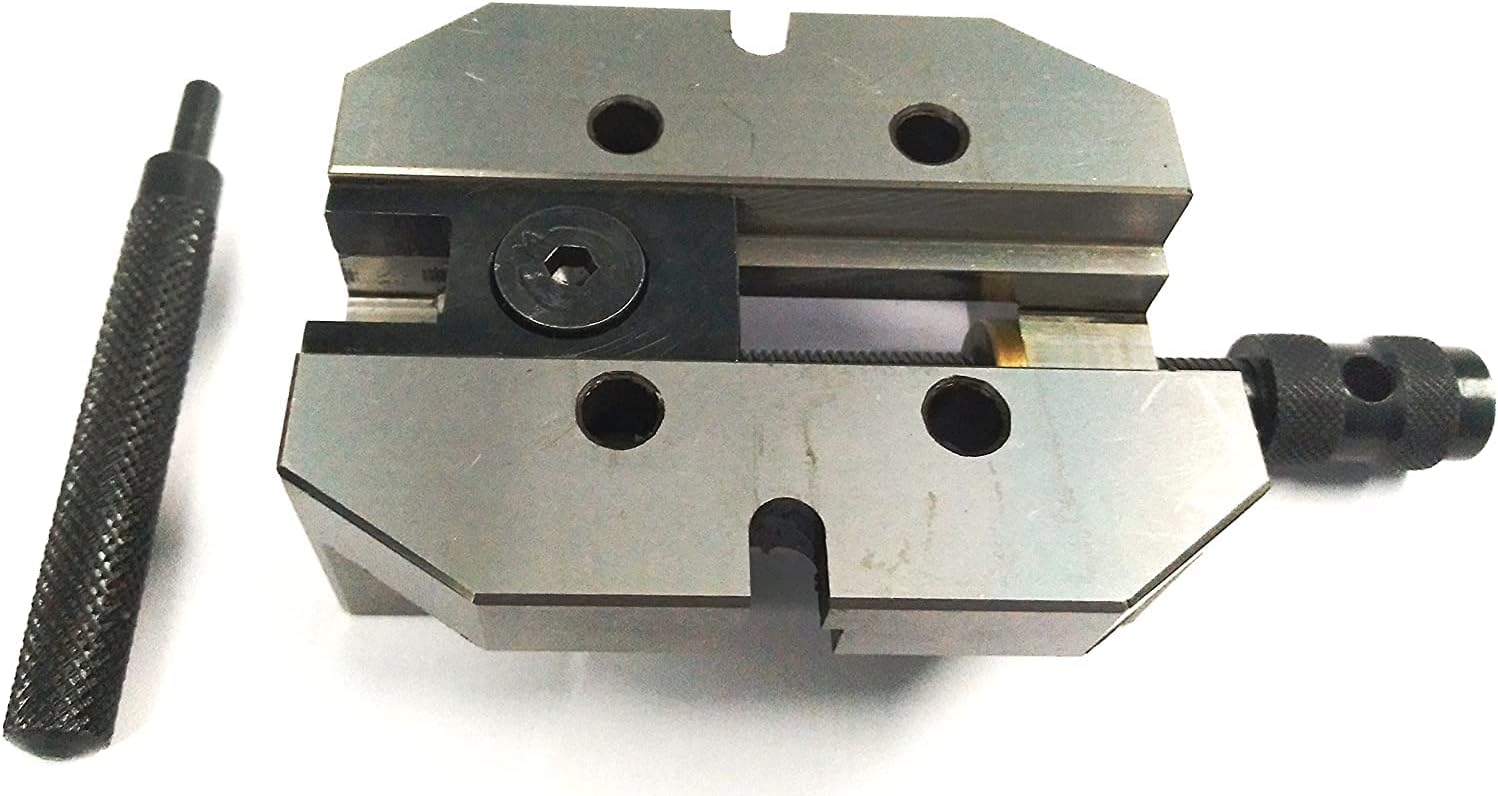

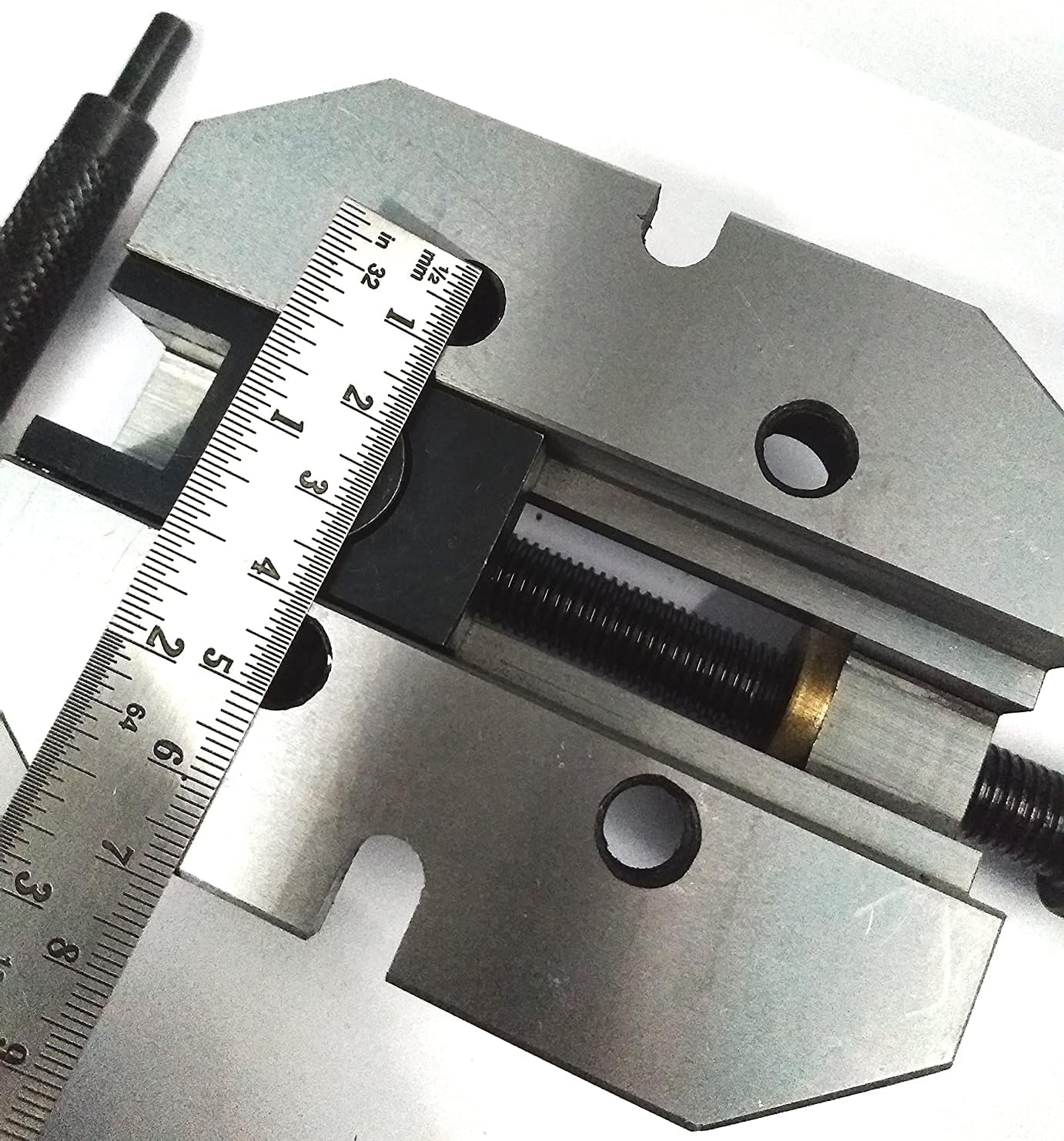

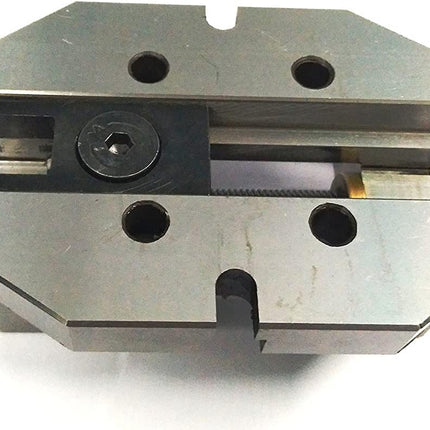

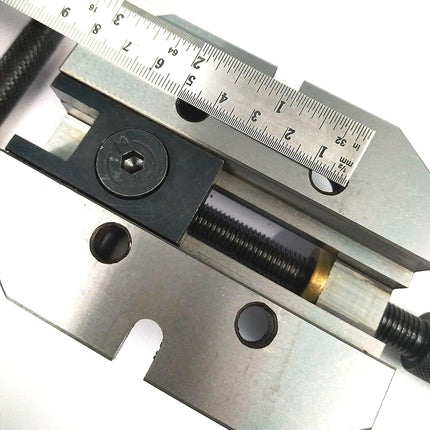

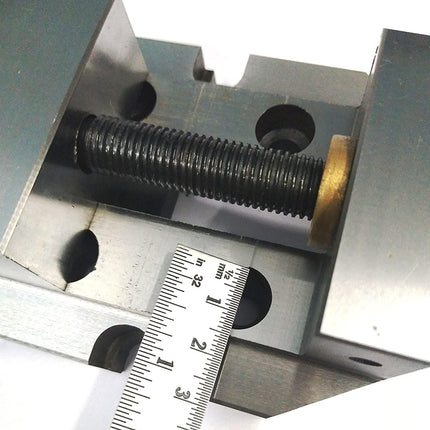

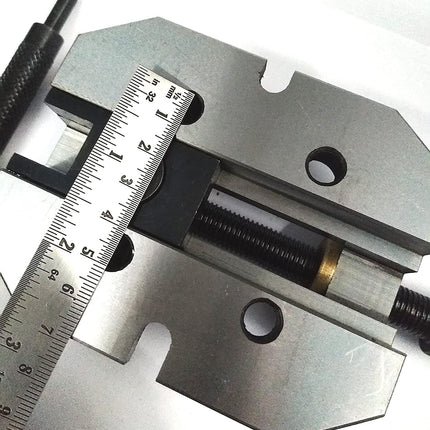

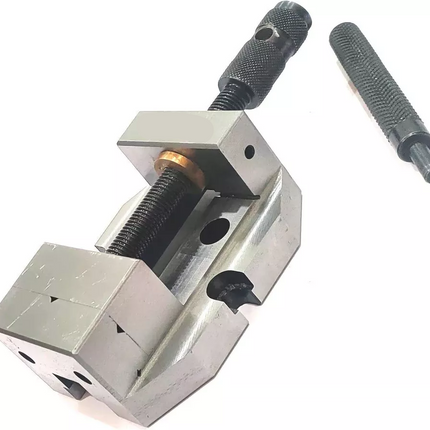

Precision Steel Grinding Vice - 2-3/8" (60mm) Jaw Width
Specifications:
-

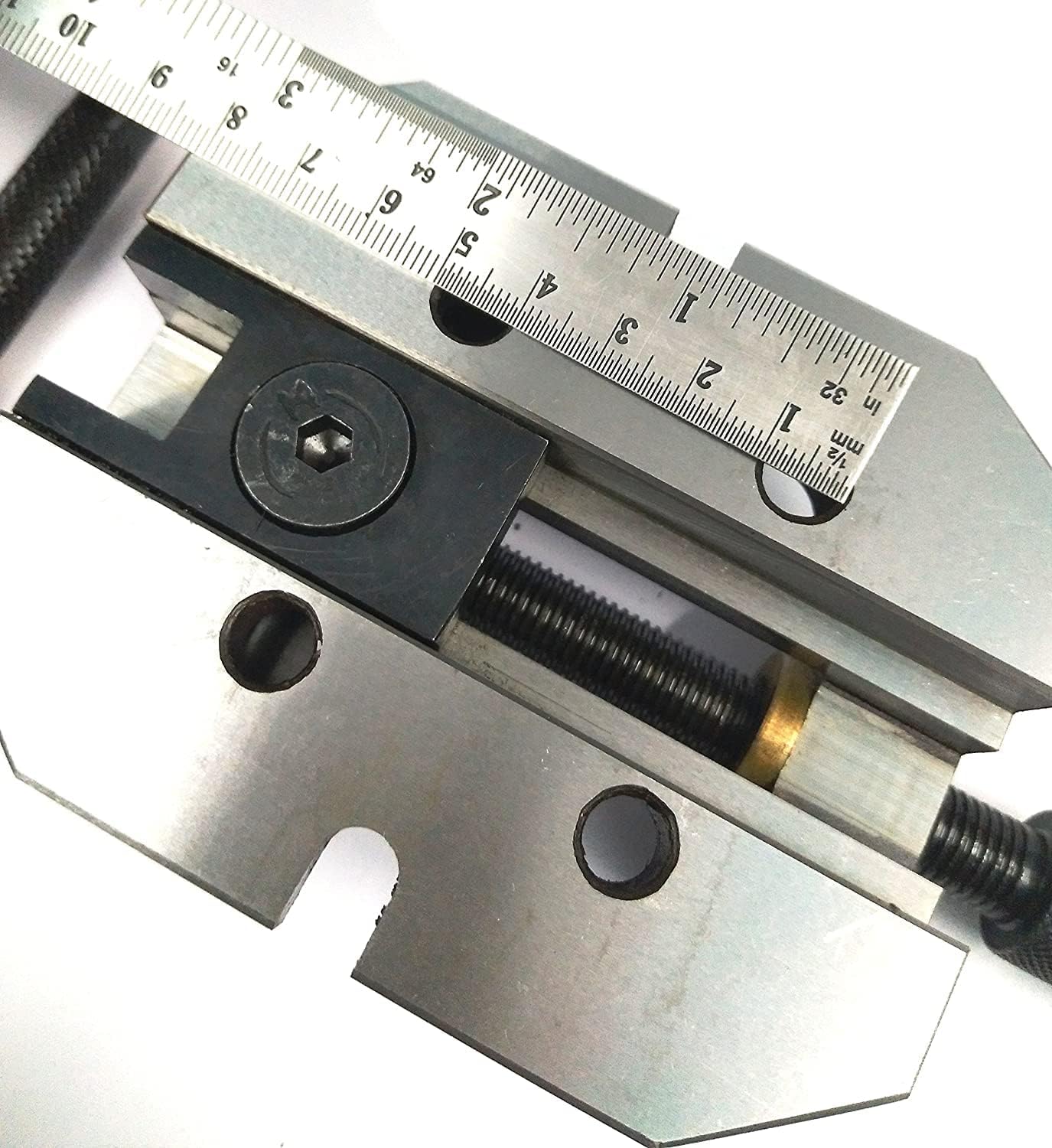

Jaw Width: 2-3/8" (60mm)
-
Maximum Jaw Opening: 50mm
-
Distance between Mounting Slots: 75mm
-
Distance between Mounting Holes: 45mm
-
Height (Horizontal Orientation): 45mm
-
Height (Vertical Orientation): 110mm
-
Base Dimensions: 110mm (Length) x 85mm (Width)
Features:
-
Hardened Steel Construction: Made from high-quality hardened steel, this grinding vice offers superior strength and durability, ensuring long-lasting performance even in demanding machining environments.
-
Precision Ground Jaws: The jaws of this vice are meticulously ground to ensure precise clamping and positioning of workpieces, allowing for accurate machining operations with tight tolerances.
-
Maximum Jaw Opening: With a maximum jaw opening of 50mm, this vice accommodates a wide range of workpiece sizes, providing versatility for various machining tasks.
-
Secure Mounting: Equipped with tee nuts for secure mounting, this vice offers stability and reliability during machining operations, minimizing vibration and ensuring consistent results.
-
Compact Design: Despite its robust construction, this grinding vice features a compact design with a base dimension of 110mm (Length) x 85mm (Width), making it suitable for use in space-restricted work areas.
