3" HV Milling Rotary Table available in Regular and Tilting Table All essential accessories are available for the 3-inch rotary table, including a tailstock, clamp kit, vice, and dividing plate. Our 3-inch dividing plate is an exclusive product, uniquely available only from us worldwide. Vertical & Horizontal Design Our rotary table is both vertical and horizontal with two functions. When the vertical position of the table is used together with the tail part, it is also possible to complete circle cutting, indexing drilling, milling and more complicated work. Low Profile A 3-inch rotary table being low profile means it fits easily in small spaces and compact machines. It allows better Z-axis clearance and is perfect for precise work on limited workspaces. Chamfered Sides Our 3-inch rotary table features a chamfered design, ensuring smooth edges for safer handling and easy alignment. The chamfered edges also enhance the aesthetic appeal while reducing the risk of edge damage during use. Wrinkle or Stoving Paint Our 3-inch rotary table is finished with durable wrinkle/ Stoving paint, providing a rugged texture that resists chipping and peeling. This ensures long-lasting protection and a professional look, even with regular use Oil Nipple & Locking Screw The rotary table is equipped with an oil nipple for easy lubrication, ensuring smooth and long-lasting rotation. It also features a locking screw to securely hold the table in position during machining for precise results. Precision Ground All working surfaces of the rotary table are precision ground to ensure high accuracy and smooth operation. This enhances alignment, reduces runout, and delivers consistent performance in precision machining tasks. Cap Grinded The rotary table comes with a cap ground finish, providing a smooth, flat surface that enhances accuracy during setup. This precision finish ensures better contact with fixtures and improved machining consistency. Gun Metal Gear The rotary table features a gunmetal gear, known for its excellent wear resistance and smooth operation. This ensures reliable performance, reduced friction, and a longer lifespan, even under continuous use. 3" Vertical & Horizontal Tilting Rotary Table The vertical & horizontal rotary table is one of the main accessories of milling machine. As a precision work positioning device, it is widely used for indexing drilling, milling, circumferential cutting, boring and so on. Our amazing rotary table is made from casting with high quality. They are are very popular on the market for their superior performance, excellent design and reasonable cost. Remarkable Quality Excellent Precision Multiple Application Vertical & Horizontal Design Specifications Table Diameter: 3" Worm- Gear Ratio - 36:1 Total Height when laid flat is 2-7/16" ( 62 mm ) Center Height in vertical position: 2-17/32" (61.5 mm approx) Can be clamped vertically and horizontally both ways. Base Dimensions : 100 x 105 mm with 2 x Drills (8 mm diameter) at a PCD of 82 mm approx. Weight of the Rotary Table : 2.700 Kgs. 3" Vertical & Horizontal Regular Rotary Table The vertical & horizontal rotary table is one of the main accessories of milling machine. As a precision work positioning device, it is widely used for indexing drilling, milling, circumferential cutting, boring and so on. Our amazing rotary table is made from casting with high quality. They are are very popular on the market for their superior performance, excellent design and reasonable cost. Remarkable Quality Excellent Precision Multiple Application Vertical & Horizontal Design Specifications Table Diameter: 3" Vertical Height: 1-5/8 inches Horizontal Height: 44 mm Gear Ratio - 36:1 Base Dimensions: 4. 1/8" x 3. 1/4" 4 T-Slots: 5/16"

Read more less

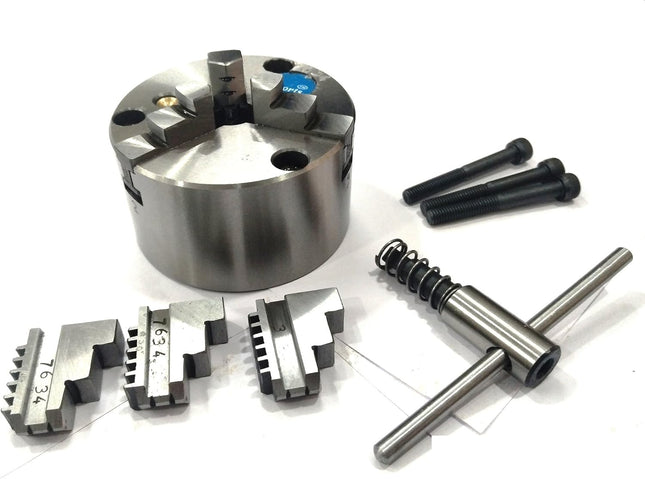

The chuck for a rotary table typically has jaws or clamps that can be adjusted to securely grip the workpiece. It ensures that the workpiece remains stable and properly aligned during the machining process, allowing for accurate and consistent results. This is especially important for tasks that require precise positioning or multiple machining operations on different sides of the workpiece. Enhance the precision and versatility of your rotary tables and mini lathes with our high-quality small chucks. Designed for 3" (80 mm) and 4" (100 mm) rotary tables, these chucks come with durable steel back plates, ensuring a secure and reliable fit for various machining tasks. Key Features: High-Quality Construction: Crafted from premium-grade steel, our chucks offer exceptional durability and longevity. The steel back plates ensure a robust connection to rotary tables and mini lathes. Precision Engineering: Engineered for high accuracy, these chucks provide excellent concentricity and grip. Ideal for precise machining operations requiring tight tolerances. Versatile Compatibility: Suitable for 3" (80 mm) and 4" (100 mm) rotary tables. Compatible with a wide range of mini lathes, making them a versatile addition to your workshop. Easy Installation: Designed for quick and straightforward installation, saving you valuable time and effort. Includes all necessary mounting hardware for hassle-free setup. Secure Grip: Features high clamping force to securely hold workpieces in place during machining. Reduces the risk of slippage and enhances safety. Technical Specifications: Chuck Sizes Available: 3" (80 mm) and 4" (100 mm) Material: Premium-Grade Steel Back Plate Material: Tool Steel Applications: Ideal for use in metalworking, woodworking, and hobbyist projects. Perfect for precision machining, turning, and drilling tasks on rotary tables and mini lathes. Package Includes: 1 x Small Chuck for 3" (80 mm) or 4" (100 mm) Rotary Table 1 x Steel Back Plate Mounting Hardware Why Choose Us: Customer-Centric Service: We are dedicated to providing exceptional customer support and ensuring your satisfaction. Expertise: With over a decade of experience in the machine tool accessories industry, we deliver products you can trust. Global Reach: Serving customers across the USA, India, and now expanding to the UK, we are committed to meeting your machining needs wherever you are. Order Yours Today: Upgrade your machining setup with our premium small chucks. Place your order now and experience the difference in quality and performance!

Read more less

Purpose: The chuck for a rotary table typically has jaws or clamps that can be adjusted to securely grip the workpiece. It ensures that the workpiece remains stable and properly aligned during the machining process, allowing for accurate and consistent results. This is especially important for tasks that require precise positioning or multiple machining operations on different sides of the workpiece. Versatile Chuck Set: Upgrade your rotary table or mini lathe with this set of small chucks designed to fit 3" (80 mm) and 4" (100 mm) machines, enhancing their functionality and versatility. Precision Engineering: Crafted with precision to ensure optimal performance, these chucks provide secure grip and smooth rotation, essential for accurate machining and turning operations. Durable Construction: Made from high-quality materials, these chucks are built to withstand the rigors of machining tasks, ensuring long-lasting durability and reliability. Easy Installation: Simple to install and compatible with most rotary tables and mini lathes, these chucks allow for quick setup and seamless integration into your workshop or machining setup. Wide Application: Ideal for a variety of machining projects, these chucks enable you to securely hold workpieces of different shapes and sizes, expanding the capabilities of your rotary table or mini lathe. Compact Design: With their small size, these chucks are perfect for use with compact machinery, allowing you to maximize space efficiency in your workshop without sacrificing performance. Enhanced Efficiency: By providing a secure and stable grip on workpieces, these chucks help improve machining accuracy and efficiency, allowing you to achieve professional results with ease. Professional Results: Whether you're a hobbyist or a professional machinist, these small chucks are essential tools for achieving precision and accuracy in your machining and turning projects..  80 mm Self Centering Chuck 3" /80 mm Rotary table. Recess is 55 mm Total Height excluding the jaws (Only Body) : 45 mm. The Back plate is drilled with M6 size tapped holes for the chuck's bolts to be screwed with the back plate and then provided with 2 counter drills to them clamp it with the Rotary table's T slots. The Chuck body is made of high grain casting and the jaws are made of hardened tool steel for a long life. The chuck recess is 55 mm same as that of the back plate. The back plate has a 13.9 mm small spigot that helps it in centrally locate it in the center of the Rotary Table. 80 mm Independent Chuck The other side of the Back plate has a small spigot to fit /adjust into the center of the Rotary table for better accuracy and Fitting. Supplied with Fixing T nuts Bolts.

Read more less

Use of product-A rotary table is a precision work positioning device used in metalworking. It enables the operator to drill or cut work at exact intervals around a fixed (usually horizontal or vertical) axis. A round vise is used for securely holding round or cylindrical workpieces during machining, drilling, grinding, or inspection processes. Its design allows for stable and precise positioning, facilitating accurate and consistent operations on the workpiece. Key Features: 3" (80 mm) Rotary Table Compact & Low-Profile Design: Table Diameter: The rotary table features a 3-inch (80 mm) diameter, making it perfect for small-scale milling operations where space and precision are critical. Vertical Height: With a vertical height of just 1-5/8 inches, this rotary table maintains a low profile, enabling it to fit seamlessly into your existing setup while maximizing available workspace. Precision Engineering: Gear Ratio: The rotary table boasts a 36:1 gear ratio, ensuring precise control over the rotation. One full rotation of the handle results in a 10-degree rotation of the table, allowing for meticulous adjustments during milling tasks. Scale Calibration: The table scale is finely calibrated in 5-degree increments, providing clear and accurate angle measurements. This feature is particularly useful for tasks requiring high precision and consistency. Versatile Positioning: Horizontal & Vertical Use: This rotary table is designed for maximum versatility, capable of operating in both horizontal and vertical positions. This dual functionality allows for a wide range of applications, from simple flat milling to more complex angular cuts. Robust Construction: Base Dimensions: The base of the rotary table measures 4-1/8" x 3-1/4", providing a stable and secure platform for your work. The compact dimensions ensure that the table remains sturdy during use, minimizing vibrations and enhancing accuracy. T-Slots: The base is equipped with four 5/16" T-slots, allowing for secure clamping of workpieces. These slots are designed to accommodate various clamping setups, ensuring your workpiece remains firmly in place throughout the milling process. 3" (80 mm) Round Vice Made form Quality close grain Caste Iron -Designed to fit our 3" (75 mm) & 4"(100 mm) Rotary Tables Diameter of Base : 80 mm * Jaw Width : 54 mm * Jaw Depth: 20 mm * Jaw Opening : 32 mm * Height : 29 mm These vices are counter- drilled in a manner that these can fit to a 3 as well 4 slot table. The moving jaw has V-grooves to hold Round objects. Precisely Ground on Base,Top, Jaws & Base. Rest Body is painted for a long rust free life.

Read more less

Use of product- A rotary table is a precision tool used predominantly in metalworking, particularly in machining operations like milling and drilling. Its primary function lies in enabling machining at precise angular intervals around a fixed point, commonly referred to as indexing. This capability facilitates the creation of intricate geometries, circular features, and multi-sided machining without the need for manual repositioning of the workpiece. By mounting the workpiece on the rotary table and rotating it, machinists can execute complex operations such as gear cutting, spiral grooving, and helical cuts with high precision. Additionally, rotary tables are essential for tasks requiring circular or arc-shaped machining, offering versatility and efficiency in manufacturing processes. Precision Engineering: Crafted with meticulous attention to detail, our HV4-MT2 Center Bore Rotary Table ensures superior accuracy and performance in your machining operations. Table Diameter is 110 mm & Regular table when Horizontally laid Height: 80 mm (3 -1/8" ). For tilting Table:- base diameter : 175 x 45 mm , Tee slot width : 11 mm Height ( horizontal) : 120mm, center height in vertical position : 80mm center bore : 2MT Robust Construction: Built with quality materials, this rotary table boasts a sturdy and durable design, providing long-lasting reliability in your workshop. Worm Gear Ratio - 1:90, which means that 1 handle rotation shall turn the table by 4 Degrees MT2 Center Bore: Features a reliable MT2 center bore, offering secure mounting and precise alignment for your workpieces. Center Bore of the Table MT2 Table Graduated 360 Degrees. Handwheel graduated in seconds. Versatile Compatibility: Compatible with a wide range of machining tasks, including milling, drilling, cutting threads, and more, making it a versatile addition to your workshop. Ample Space: With its HV4 size, this rotary table provides ample space for accommodating various workpieces, allowing you to tackle a variety of projects with ease. Easy to Use: Designed for user convenience, this rotary table is easy to set up and operate, ensuring a smooth and efficient workflow in your machining tasks. Professional Grade: Whether you're a professional machinist or a hobbyist, our HV4-MT2 Center Bore Rotary Table offers professional-grade performance and reliability for all your machining needs. Essential Tool: A must-have tool for any workshop, this rotary table enhances your machining capabilities and helps you achieve precision and accuracy in your projects. Satisfaction Guaranteed: Backed by our commitment to quality and customer satisfaction, our HV4-MT2 Center Bore Rotary Table comes with a satisfaction guarantee, ensuring your peace of mind with every purchase. Upgrade Your Workshop: Elevate your workshop with the superior performance and versatility of our HV4-MT2 Center Bore Rotary Table, the perfect addition to any machining setup. {Internal Reference; HM}

Read more less

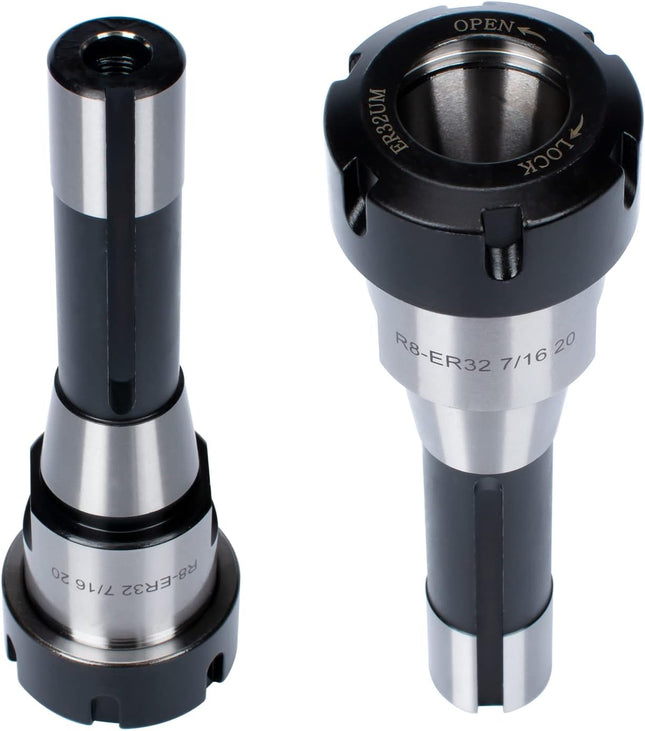

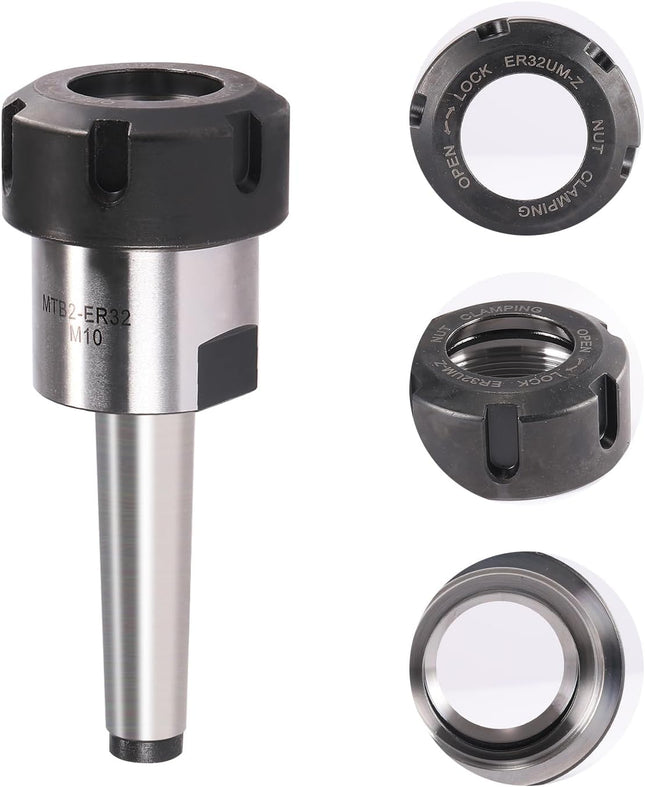

HIGH HARDNESS & PRECISION:Crafted from premium alloy spring steel and hardened to HRC 58, with all critical surfaces precision ground for superior durability and accuracy. VERSATILE APPLICATION:Ideal for milling, drilling, CNC machining, tapping, lathe operations, and other precision clamping applications. Hardened and ground to ensure maximum performance. ULTRA-PRECISE TOOLHOLDING:Engineered for ultra-precision workholding. To maintain accuracy, ensure all parts are thoroughly cleaned before installation. Improper setup can compromise performance. MACHINE COMPATIBILITY:Machine spindle accuracy significantly affects overall results. For optimal performance, use machines with minimal spindle runout and pair with high-precision ER collets. Be cautious—many ER collets marked 0.0005" may not meet actual tolerance. ULTRA-PRECISE TOOLHOLDING:Engineered for ultra-precision workholding. To maintain accuracy, ensure all parts are thoroughly cleaned before installation. Improper setup can compromise performance. MACHINE COMPATIBILITY:Machine spindle accuracy significantly affects overall results. For optimal performance, use machines with minimal spindle runout and pair with high-precision ER collets. Be cautious—many ER collets marked 0.0005" may not meet actual tolerance. QUALITY CONSTRUCTION:Designed for use with collet fixtures and lathe spindles, the ER collet nut is fully compatible with ER32 collets, providing secure clamping of round-shank tools. This shanks ER collet chuck surpasses typical market standards in quality and reliability.

Read more less

SKU CODE JACOB TAPER SHANK MORSE TAPER SHANK 20-DA-101 1 1 20-DA-102 2 1 20-DA-103 3 1 20-DA-104 4 1 20-DA-105 5 1 20-DA-106 6 1 20-DA-107 33 1 20-DA-108 0 2 20-DA-109 1 2 20-DA-110 2 2 20-DA-111 3 2 20-DA-112 4 2 20-DA-113 5 2 20-DA-114 6 2 20-DA-115 33 2 20-DA-116 1 3 20-DA-117 2 3 20-DA-118 3 3 20-DA-119 4 3 20-DA-120 5 3 20-DA-121 6 3 20-DA-122 33 3 20-DA-123 2 4 20-DA-124 3 4 20-DA-125 4 4 20-DA-126 5 4 20-DA-127 6 4 20-DA-128 33 4 20-DA-129 2 5 20-DA-130 3 5 20-DA-131 4 5 20-DA-132 5 5 20-DA-133 6 5 20-DA-134 33 5 20-DA-135 1 R8 20-DA-136 2 R8 20-DA-137 3 R8 20-DA-138 4 R8 20-DA-139 5 R8 20-DA-140 6 R8

Read more less

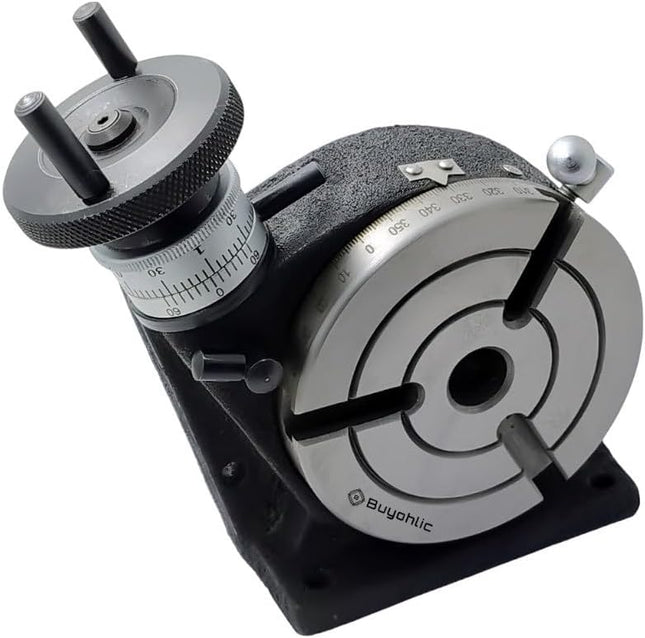

Precision Engineering: Crafted with meticulous attention to detail, our HV4-MT2 Center Bore Rotary Table ensures superior accuracy and performance in your machining operations. Robust Construction: Built with quality materials, this rotary table boasts a sturdy and durable design, providing long-lasting reliability in your workshop. MT2 Center Bore: Features a reliable MT2 center bore, offering secure mounting and precise alignment for your workpieces. Versatile Compatibility: Compatible with a wide range of machining tasks, including milling, drilling, cutting threads, and more, making it a versatile addition to your workshop. Ample Space: With its HV4 size, this rotary table provides ample space for accommodating various workpieces, allowing you to tackle a variety of projects with ease. Easy to Use: Designed for user convenience, this rotary table is easy to set up and operate, ensuring a smooth and efficient workflow in your machining tasks. Professional Grade: Whether you're a professional machinist or a hobbyist, our HV4-MT2 Center Bore Rotary Table offers professional-grade performance and reliability for all your machining needs. Essential Tool: A must-have tool for any workshop, this rotary table enhances your machining capabilities and helps you achieve precision and accuracy in your projects. Satisfaction Guaranteed: Backed by our commitment to quality and customer satisfaction, our HV4-MT2 Center Bore Rotary Table comes with a satisfaction guarantee, ensuring your peace of mind with every purchase. Upgrade Your Workshop: Elevate your workshop with the superior performance and versatility of our HV4-MT2 Center Bore Rotary Table, the perfect addition to any machining setup.

Read more less

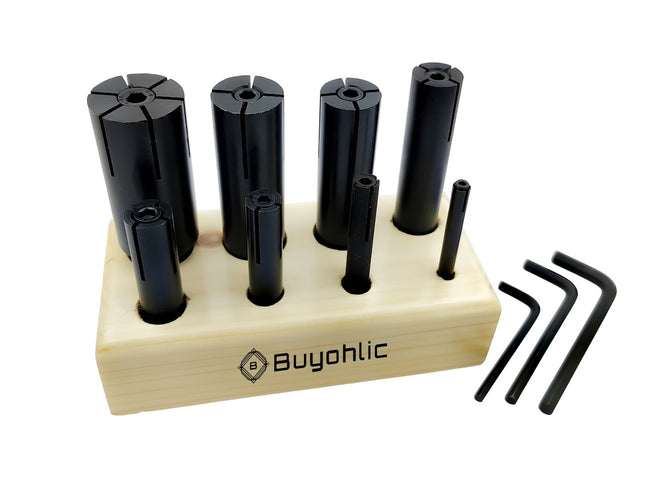

🔧 Set of 8 pc Hand Expandable Arbor Set : Sizes Included: 1/4", 3/8", 1/2", 5/8", 3/4", 7/8", 1", 1-1/4" ⚙️ Precision Machining: By placing in your machine & expanding the arbor, you can machine the arbors to the precise diameter & length for your job. 🔍 Laser Marked Sizes: Each arbor is individually laser marked with its size for easy identification. 🛠️ Complete Kit: Supplied with required Allen keys and organized on a wooden stand for neat storage and quick access.

Read more less

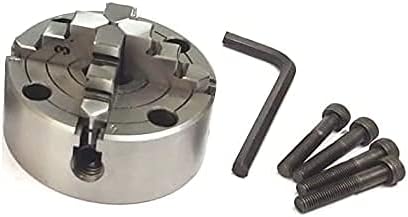

Purpose: The chuck for a rotary table typically has jaws or clamps that can be adjusted to securely grip the workpiece. It ensures that the workpiece remains stable and properly aligned during the machining process, allowing for accurate and consistent results. This is especially important for tasks that require precise positioning or multiple machining operations on different sides of the workpiece. Versatile Chuck Set: Upgrade your rotary table or mini lathe with this set of small chucks designed to fit  HV4 I 5 I 6 Rotary Tables and Lathe machines, enhancing their functionality and versatility. Precision Engineering: Crafted with precision to ensure optimal performance, these chucks provide secure grip and smooth rotation, essential for accurate machining and turning operations. Durable Construction: Made from high-quality caste iron, these chucks are built to withstand the rigors of machining tasks, ensuring long-lasting durability and reliability. Easy Installation: Simple to install and compatible with most rotary tables and mini lathes, these chucks allow for quick setup and seamless integration into your workshop or machining setup. Wide Application: Ideal for a variety of machining projects, these chucks enable you to securely hold workpieces of different shapes and sizes, expanding the capabilities of your rotary table or mini lathe. Compact Design: With their small size, these chucks are perfect for use with compact machinery, allowing you to maximize space efficiency in your workshop without sacrificing performance. Enhanced Efficiency: By providing a secure and stable grip on workpieces, these chucks help improve machining accuracy and efficiency, allowing you to achieve professional results with ease. Professional Results: Whether you're a hobbyist or a professional machinist, these small chucks are essential tools for achieving precision and accuracy in your machining and turning projects. {Internal Refence: HM}

Read more less

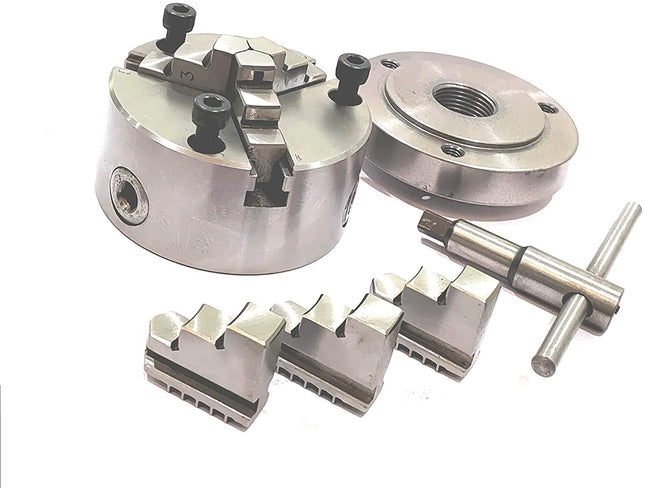

Purpose: The chuck for a rotary table typically has jaws or clamps that can be adjusted to securely grip the workpiece. It ensures that the workpiece remains stable and properly aligned during the machining process, allowing for accurate and consistent results. This is especially important for tasks that require precise positioning or multiple machining operations on different sides of the workpiece. Versatile Chuck Set: Upgrade your rotary table or mini lathe with this set of small chucks designed to fit 3" (80 mm) and 4" (100 mm) machines, enhancing their functionality and versatility. Precision Engineering: Crafted with precision to ensure optimal performance, these chucks provide secure grip and smooth rotation, essential for accurate machining and turning operations. Durable Construction: Made from high-quality materials, these chucks are built to withstand the rigors of machining tasks, ensuring long-lasting durability and reliability. Easy Installation: Simple to install and compatible with most rotary tables and mini lathes, these chucks allow for quick setup and seamless integration into your workshop or machining setup. Wide Application: Ideal for a variety of machining projects, these chucks enable you to securely hold workpieces of different shapes and sizes, expanding the capabilities of your rotary table or mini lathe. Compact Design: With their small size, these chucks are perfect for use with compact machinery, allowing you to maximize space efficiency in your workshop without sacrificing performance. Enhanced Efficiency: By providing a secure and stable grip on workpieces, these chucks help improve machining accuracy and efficiency, allowing you to achieve professional results with ease. Professional Results: Whether you're a hobbyist or a professional machinist, these small chucks are essential tools for achieving precision and accuracy in your machining and turning projects..  The Chuck body is made of high grain casting and the jaws are made of hardened tool steel for a long life.

Read more less

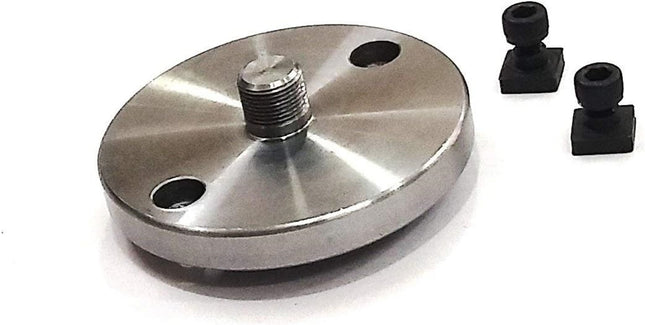

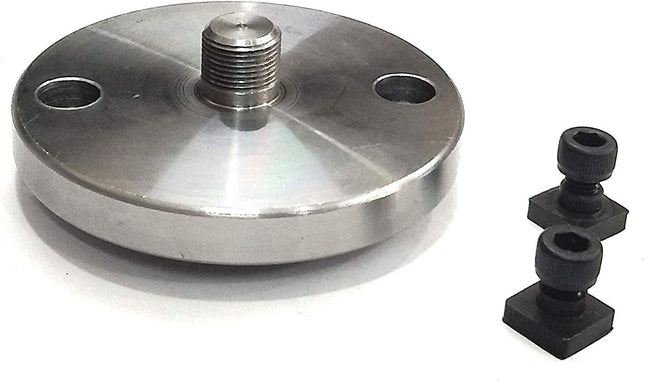

  Back Plate for Chuck Rotary Table – Precision Mounting Accessory Enhance the versatility of your rotary table with our Back Plate for Chuck, specially designed to mount lathe chucks securely onto rotary tables. Manufactured from high-grade steel or cast iron (depending on your variant), this back plate ensures a strong, stable, and precise connection between your chuck and rotary table. Key Features: Compatible Fit: Designed to suit 3-jaw or 4-jaw lathe chucks on rotary tables HV4 I 5 I 6. Accurate Machining: Precision ground and machined for perfect alignment and concentricity. Multiple Mounting Holes: Pre-drilled mounting holes to match a variety of chuck bolt patterns. Corrosion Resistant Finish: Coated to prevent rust and extend product life. Easy Installation: Simple to mount using bolts and alignment register for a hassle-free setup. Ideal for milling, indexing, drilling, or other rotary applications, this back plate is an essential accessory for machinists seeking precision and repeatability in rotary operations.
