Used for:  A live center or revolving center is constructed so that the 60° center runs in its own bearings and is used at the non-driven or tailstock end of a machine. It allows higher turning speeds without the need for separate lubrication, and also greater clamping pressures. Tool Specifications: MT2 Shank with M12 X 1 & M14 x 1 thread for mounting chuck or any drill chuck of this thread. Best for Metal Working & Wood Working Jobs-Guaranteed Run out within 0.01 mm. Superior Machining Precision: Designed to deliver exceptional machining precision, this lathe tailstock revolving center ensures accurate rotation and support for workpieces during turning operations, resulting in superior surface finishes and dimensional accuracy. Tailstock Integration: Seamlessly integrates with lathe tailstocks, providing additional support to workpieces and reducing deflection during machining, ultimately enhancing machining quality and efficiency. Robust Construction: Constructed from high-quality materials, including hardened steel and precision bearings, ensuring durability and long-lasting performance under demanding machining conditions. Enhanced Stability: Features a robust bearing system and rigid construction to minimize vibrations and deflection, providing stable support for workpieces even at high machining speeds, thereby improving machining consistency and reducing cycle times. Adjustable Design: Offers adjustable components such as interchangeable tips and tailstock bodies, allowing for customization to accommodate various workpiece geometries and machining requirements, ensuring versatility and adaptability across different applications. Efficient Lubrication System: Incorporates an efficient lubrication system to ensure smooth rotation and reduce friction, extending the lifespan of critical components and minimizing maintenance requirements, thus maximizing uptime and productivity. Quick and Easy Setup: Designed for easy installation and setup, with user-friendly adjustment mechanisms and clear instructions, enabling operators to integrate the revolving center into lathe setups quickly and efficiently, minimizing downtime and improving workflow efficiency. Wide Range of Applications: Suitable for a variety of machining applications, including turning, facing, drilling, and taper turning, across diverse industries such as automotive, aerospace, and general manufacturing, making it a versatile tool for modern machining operations. Real-time Performance Monitoring: Compatible with advanced monitoring and control systems, allowing for real-time monitoring of machining parameters such as speed, temperature, and load, enabling operators to optimize machining processes for enhanced efficiency and quality control. Comprehensive Support: Backed by comprehensive customer support and after-sales service, including technical assistance, maintenance, and spare parts availability, ensuring peace of mind and maximum uptime for machining operations. Quality Assurance: Manufactured to stringent quality standards and subjected to rigorous testing procedures to ensure superior quality, reliability, and performance, meeting the exacting demands of precision machining environments {Internal Reference: HM}

Read more less

Use of product- Introducing our Small Slim Long Body Triple Bearing Live Revolving Center - MT2, engineered to precision for enhanced performance in your machining tasks. Crafted with high-grade materials and featuring cutting-edge triple-bearing technology, this revolving center ensures smooth rotation and unparalleled stability during operation. Key Features: Used for:  A live center or revolving center is constructed so that the 60° center runs in its own bearings and is used at the non-driven or tailstock end of a machine. It allows higher turning speeds without the need for separate lubrication, and also greater clamping pressures. Triple Bearing Design: Equipped with three precision bearings, this revolving center offers exceptional load-bearing capacity and reduced friction, resulting in smoother rotation and extended tool life. MT2 Shank: Designed with a MT2 shank, this live center is compatible with a wide range of lathes, ensuring versatility and ease of use across various machining applications. Slim Long Body: The slim and elongated body design provides improved access to the workpiece, allowing for precise machining even in tight spaces. This design also minimizes interference and enhances maneuverability. High-Quality Construction: Constructed from premium materials, including hardened steel components, this revolving center is built to withstand heavy-duty use and maintain consistent performance over time. Versatile Applications: Suitable for a variety of turning, milling, and grinding applications, this live revolving center is ideal for both professional machinists and hobbyists alike. Precision Machining: Engineered with meticulous attention to detail, this center ensures accurate centering of the workpiece, resulting in superior machining accuracy and surface finish. Easy Installation: Designed for hassle-free setup, this revolving center can be quickly installed and secured onto your lathe, allowing you to start machining with minimal downtime. Whether you're working on intricate woodturning projects or precision metal machining tasks, our Small Slim Long Body Triple Bearing Live Revolving Center - MT2 is the perfect companion for achieving exceptional results with ease and efficiency. Invest in quality, precision, and reliability for your machining needs. {Internal Reference; HM}

Read more less

Ultra-Precision Machining: Achieve unparalleled accuracy with our new CNC Long Spindle Live Revolving Center MT4, boasting under 10 microns runout for meticulous results. Interchangeable Tips: Versatility meets precision with interchangeable tips designed to handle a wide range of machining tasks, enhancing flexibility and efficiency. Reliable Performance: Engineered for consistent and reliable performance, this revolving center ensures dependable results with every operation. Enhanced Productivity: From intricate designs to complex turning tasks, this CNC center empowers you to tackle various applications with ease, boosting productivity in your workshop. Easy Setup: Designed for hassle-free installation, this CNC center is user-friendly, allowing you to start machining right out of the box. Robust Construction: Built to withstand rigorous machining operations, our revolving center features a durable construction for long-lasting performance. Professional Grade: Whether you're a seasoned professional or a hobbyist, our CNC Long Spindle Live Revolving Center MT4 delivers professional-grade precision for all your machining needs. Elevate your machining capabilities with the precision and versatility of our CNC Long Spindle Live Revolving Center MT4, and experience the difference in your projects.   [Internal Reference: HM}

Read more less

Lathe Triple Bearing Live Revolving Center Centre with MT2 Shank and Square Tool Bit Broach, now available with Myford and Boxford thread compatibility. Engineered to redefine precision and performance in machining, this cutting-edge revolving center is designed to exceed your expectations. Key Features: Triple Bearing Design: Experience unparalleled stability and smooth rotation with our triple-bearing design. This advanced feature minimizes friction, enhances load-bearing capacity, and ensures consistent performance under heavy machining conditions. 2 Taper & 1 Radial Bearing in Body with a thread Nose 1-1/8" x 12 TPI instead of a Point Centre. MT2 Shank: Equipped with a durable MT2 shank, this live revolving center guarantees compatibility with a wide range of lathe models, providing a secure and reliable connection for seamless machining operations. Square Tool Bit Broach: Enhance your machining versatility with the included square tool bit broach. Whether you're facing, turning, or contouring, this feature allows for precise cutting and shaping of various materials with ease. Myford and Boxford Thread Compatibility: With threads tailored for Myford (1-1/8" x 12 TPI) and Boxford (1-1/2" X 8TPI) lathes, this revolving center offers universal compatibility, ensuring a perfect fit and hassle-free integration with these popular lathe models. Body Diameter 44.5 mm. Body Length (Bearing Hosing) : 51.0 mm OAL (Overall Body Length) : 160 mm Precision Engineering: Meticulously crafted for accuracy, this live center facilitates precise centering of workpieces, resulting in superior machining quality, finer finishes, and reduced setup time. Durable Construction: Built to withstand the demands of professional machining environments, this revolving center boasts a rugged construction and high-quality materials, guaranteeing long-lasting durability and reliability. Easy Installation and Operation: Designed for user convenience, this center can be effortlessly installed onto your lathe, allowing you to focus on your machining tasks without unnecessary delays or complications. Versatile Applications: From turning and threading to grooving and parting, this live revolving center is suitable for a wide range of machining applications, catering to the diverse needs of machinists, artisans, and hobbyists. Upgrade your lathe setup with the New Lathe Triple Bearing Live Revolving Center Centre MT2 Shank with Square Tool Bit Broach, and elevate your machining capabilities to new heights. Experience precision, reliability, and versatility like never before. {Internal Reference; HM}

Read more less

Introducing our Small Slim Long Body Triple Bearing Live Revolving Center - MT2, engineered to precision for enhanced performance in your machining tasks. Crafted with high-grade materials and featuring cutting-edge triple-bearing technology, this revolving center ensures smooth rotation and unparalleled stability during operation. Key Features: Triple Bearing Design: Equipped with three precision bearings, this revolving center offers exceptional load-bearing capacity and reduced friction, resulting in smoother rotation and extended tool life. MT2 Shank: Designed with a MT2 shank, this live center is compatible with a wide range of lathes, ensuring versatility and ease of use across various machining applications. Slim Long Body: The slim and elongated body design provides improved access to the workpiece, allowing for precise machining even in tight spaces. This design also minimizes interference and enhances maneuverability. Body Diameter is 32 mm. Overall Length is 130 mm High-Quality Construction: Constructed from premium materials, including hardened steel components, this revolving center is built to withstand heavy-duty use and maintain consistent performance over time. Versatile Applications: Suitable for a variety of turning, milling, and grinding applications, this live revolving center is ideal for both professional machinists and hobbyists alike. Precision Machining: Engineered with meticulous attention to detail, this center ensures accurate centering of the workpiece, resulting in superior machining accuracy and surface finish. Easy Installation: Designed for hassle-free setup, this revolving center can be quickly installed and secured onto your lathe, allowing you to start machining with minimal downtime. Whether you're working on intricate woodturning projects or precision metal machining tasks, our Small Slim Long Body Triple Bearing Live Revolving Center - MT2 is the perfect companion for achieving exceptional results with ease and efficiency. Invest in quality, precision, and reliability for your machining needs. {Internal Reference; HM}

Read more less

Use of product- A revolving center (or live center) is used in machining to support and rotate a workpiece on a lathe or similar machine. It helps to keep the workpiece stable, centered, and aligned during cutting or shaping operations, ensuring accurate and smooth machining.  Type: Double Bearing Lathe Pipe Cum Revolving Center (Long Tip) Bearings: 1 Ball Bearing 1 Taper Bearing Body Diameter: 50 mm Bearing Body Case Length: 58 mm Overall Length (OAL): 200 mm Shank: Available in MT2 and MT3 Runout: Under 5 microns (recommended for conventional lathes only) Body Material: Alloy steel grade EN8D Quill/Point Center Material: EN31 steel Nose Design: Allows use as both a revolving/live center and a pipe center Pipe Capacity for Turning: 12 to 28 mm Features: Precision and High Quality: Equipped with precision double bearings for enhanced accuracy and performance. Maintains a runout of under 5 microns, making it ideal for conventional lathes. Material and Construction: Constructed from high-strength alloy steel grade EN8D for the body. The quill/point center is made from EN31 steel, ensuring high wear resistance and durability. Versatile Usage: Unique nose design allows it to function as both a revolving/live center and a pipe center. Suitable for turning pipes with a diameter range of 12 to 28 mm. Bearing Quality: Utilizes Z type (covered) bearings. Designed to lock and seal grease inside, even when melted at high temperatures during operation, ensuring consistent performance and extended life span.

Read more less

Tool Specification: Has 2 Ball Bearings & 1 Taper Bearing. Body Diameter: 63 mm, Bearing Body Case Length: 70 mm, OAL 240 mm , Shank MT4 Used for: It allows higher turning speeds without the need for separate lubrication, and also greater clamping pressures. CNC lathes use this type of center almost exclusively and they may be used for general machining operations as well. Precision Machining: Crafted for high-precision machining applications, this CNC revolving center ensures exceptional accuracy and repeatability in every operation. Versatile Compatibility: Designed to seamlessly integrate with CNC lathes, milling machines, and other machining centers, offering versatility across various machining setups. Robust Construction: Built with Alloy steel grade of EN8D and EN31 is used for Quill/ Point Center, to withstand the rigors of heavy-duty machining processes, ensuring long-term reliability and performance. Enhanced Stability: Features a robust bearing system and precision-engineered components to provide superior stability during high-speed machining, minimizing vibrations and ensuring consistent results. Adjustable Design: Equipped with adjustable components, such as interchangeable tips and tailstocks, allowing for customization to suit specific machining requirements and workpiece geometries. Efficient Lubrication System: Incorporates an efficient lubrication system to ensure smooth operation and prolong the lifespan of critical components, reducing maintenance downtime and enhancing productivity. Easy Installation and Setup: Designed for straightforward installation and setup, with intuitive adjustment mechanisms and clear instructions, enabling quick integration into existing machining setups. Wide Range of Applications: Suitable for a wide range of machining applications, including turning, drilling, and milling, across various industries such as automotive, aerospace, and manufacturing. Precise Performance Monitoring: Compatible with advanced monitoring and control systems, allowing for real-time performance monitoring and optimization, enhancing efficiency and quality control. Comprehensive Support: Backed by comprehensive customer support and after-sales service, including technical assistance, maintenance, and spare parts availability, ensuring peace of mind and maximum uptime. Quality Assurance: Manufactured to stringent quality standards and subjected to rigorous testing procedures to ensure superior quality, reliability, and performance, meeting the demands of modern machining environments. {Internal Reference: HM}

Read more less

A revolving center (or live center) is used in machining to support and rotate a workpiece on a lathe or similar machine. It helps to keep the workpiece stable, centered, and aligned during cutting or shaping operations, ensuring accurate and smooth machining. General Description :- Made of quality tool steel with hardened point. Shanks are precisely ground to match a concentric run out of +/-0.01 mm High quality ball bearings & taper bearing combination absorbs both radial & thrusts load to guarantee smooth movement Well suited for conventional lathe machines. Morse Taper MT1 : Bearing Body Diameter : 42 mm Bearing Case Body Length : 41 mm OAL :125 mm Number of bearings : 1 x Ball & 1 x Taper Bearing Morse Taper MT2 : Bearing Body Diameter : 44 mm Bearing Case Body Length : 46 mm OAL :140 mm Number of bearings : 1 x Ball & 1 x Taper Bearing Morse Taper MT3 : Bearing Body Diameter : 60 mm Bearing Case Body Length : 60 mm OAL :180 mm Number of bearings : 2 x Ball & 1 x Taper Bearing

Read more less

Use of product- A Triple Bearing Live Revolving Center is a vital machine tool accessory used primarily in metalworking and woodworking on lathes and similar rotary machinery. Its main purpose is to support the workpiece on the non-driven end of the lathe spindle while allowing it to rotate freely, reducing deflection and vibration during machining operations. With its triple bearing design, it evenly distributes load, minimizing friction and heat generation even during high-speed machining tasks. This ensures extended tool and workpiece life while maintaining precision and stability. These centers come in various configurations to accommodate different workpiece sizes Discover unparalleled precision and reliability with our High Precision Triple Bearing Live Revolving Center Centre in MT2 Shank. Engineered to meet the exacting demands of modern machining, this revolving center is a cornerstone for achieving exceptional accuracy and performance in your turning operations. Key Features: Triple Bearing Design: Equipped with three high-grade bearings (Fitted with 2 Ball bearings & 1 Taper Bearing), this revolving center ensures smooth rotation and minimized friction, providing enhanced stability and durability even under heavy loads. MT2 Shank: Designed with a precision MT2 shank, this center offers universal compatibility with a wide range of lathes, guaranteeing seamless integration into your machining setup. High Precision Machining: Crafted with meticulous attention to detail, this revolving center facilitates precise centering of the workpiece, resulting in superior machining accuracy and surface finish. Robust Construction: Built to withstand rigorous machining conditions, this center features a rugged construction with hardened steel components, ensuring longevity and consistent performance over time. Versatile Applications: Suitable for a variety of machining tasks including turning, milling, and grinding, this revolving center is ideal for both professional machinists and hobbyists seeking exceptional results. Enhanced Maneuverability: The slim design of the center allows for improved access to the workpiece, enabling precise machining even in tight spaces while minimizing interference. Easy Setup: With its straightforward installation process, this revolving center can be quickly mounted onto your lathe, enabling you to commence machining operations with minimal downtime. Dimensions: (2MT SHANK- 3/4" X 16 UNF), (3MT SHANK- 3/4'' X 16 UNF) and (2MT SHANK- 1 X 8 TPI) - Body Diameter 44 mm , Bearing Case Length: 52 mm , OAL : 157.5 mm.. {Internal Reference: HM}

Read more less

Use of product- Double Bearings Live Revolving Center Standard Nose-Run-out under 5 microns - Live Revolving Center Centre Body is made from Alloy steel grade of EN8D and EN31 is used for Quill/ Point Center Used quality Z type bearing (covered), so that the grease inside when melt at high temperature during working will remain locked and sealed. The body ID(s)/ bearing casing of the Revolving Centers are internally grounded who only provide machined ID(s). This grinded inside body gives best control on the run out after bearing and quill fitting. Used For:-  It allows higher turning speeds without the need for separate lubrication, and also greater clamping pressures. CNC Lathes use this type of center almost exclusively and they may be used for general machining operations as well Premium Quality: Precision-engineered revolving center designed for smooth and accurate rotation. Versatile Design: Compatible with a wide range of lathes, suitable for various woodworking and metalworking projects. Durable Construction: Made from alloy steel to ensure long-lasting performance and reliability. Smooth Rotation: Features precision bearings for effortless spinning and reduced friction. Enhanced Stability: Sturdy construction and secure mounting ensure stable operation even under heavy loads. Easy Installation: Simple setup process allows for quick integration with your existing lathe system. Professional Results: Achieve professional-level precision and consistency in your turning projects. Trusted Brand: By Buyohlic International's reputation for excellence in engineering and craftsmanship. Satisfaction Guaranteed: Purchase with confidence thanks to our commitment to customer satisfaction and support. {Internal Reference; HM}

Read more less

Use of product- A  revolving center, also known as a live center, is a tool used in machining and metalworking. It supports the end of a workpiece on a lathe or similar machine, allowing it to rotate smoothly with minimal friction. This helps to stabilize the workpiece and ensures accurate machining operations like turning, drilling, or grinding. Features: Shank Options: 2 MT (Morse Taper 2) 3 MT (Morse Taper 3) Thread Sizes: M12 x 1 M14 x 1 Double Bearing System: Bearings: 1 x Taper Radial Bearing 1 x Ball Bearing Enhanced Stability: Ensures maximum stability, reducing vibrations and providing smoother operation. Durable Construction: Made from high-quality tool Steel for long-lasting performance and reliability. Benefits: Precision Accuracy: The ground run out within 5 microns ensures high accuracy for precision machining tasks. Versatile Compatibility: Available in 2 MT and 3 MT shank sizes with M12 x 1 and M14 x 1 thread options, making it suitable for a wide range of conventional lathe machines. Smooth Operation: The double bearing design, featuring both a taper radial bearing and a ball bearing, provides superior stability and smooth rotation, reducing wear and extending the tool's lifespan. Robust Design: Built to withstand demanding machining environments, ensuring reliable performance over time. Applications: Lathe Operations: Ideal for various turning applications on conventional lathe machines. Metalworking: Suitable for professional machinists and hobbyists working with metal lathes. High-Precision Machining: Perfect for tasks requiring high accuracy and stability, such as precision turning and complex part manufacturing. Enhance your turning operations with the Double Bearing Live Revolving Center for conventional lathe machines, offering precision, stability, and versatility for a wide range of applications.

Read more less

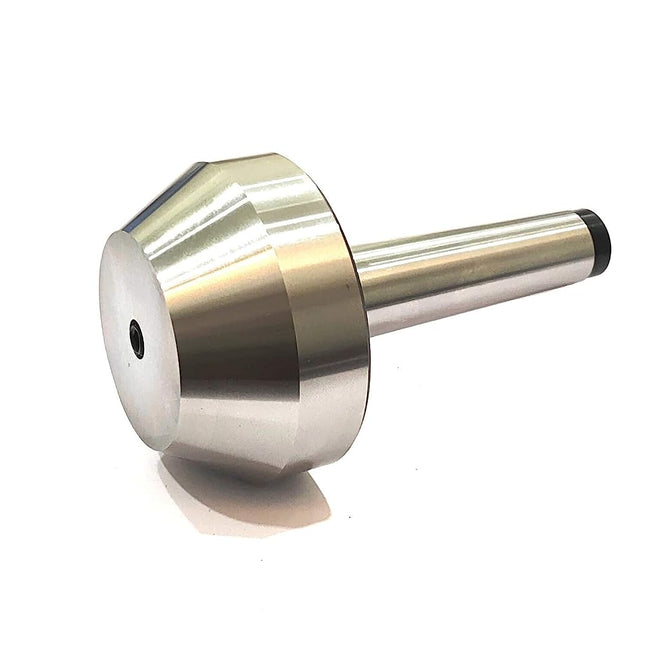

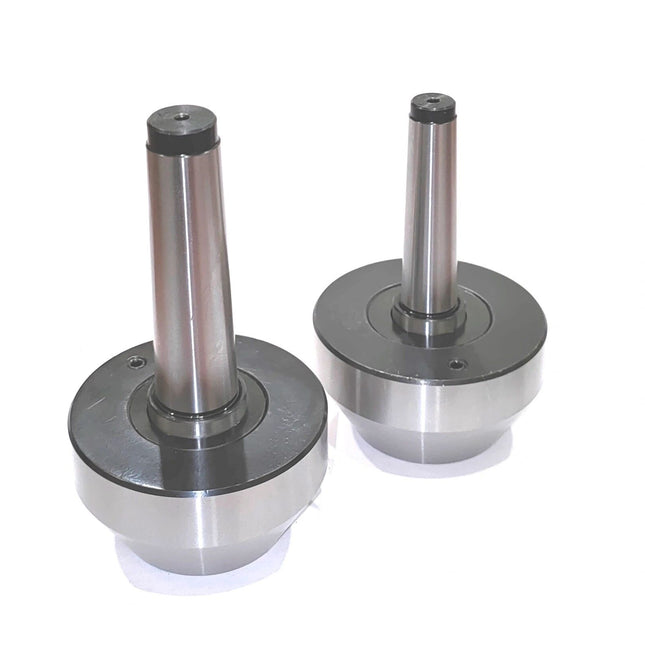

A revolving center (or live center) is used in machining to support and rotate a workpiece on a lathe or similar machine. It helps to keep the workpiece stable, centered, and aligned during cutting or shaping operations, ensuring accurate and smooth machining. Type: Bull Nose Pipe Live Revolving Center Material: High-quality tool steel grade 8620 Heat Treatment: Hardness up to 58+/- 2 HRC Precision Ground: Yes Bearing Setup: Double bearing setup, including ball and taper bearings Pipe Holding Diameter Capacity: 2" (50 mm) to 3" (75 mm) Shank: Available in MT2 and MT3 High-Quality Construction: Manufactured from high-quality tool steel grade 8620 for enhanced durability and strength. Heat treated for hardness up to 58+/- 2 HRC, ensuring long-lasting performance and resistance to wear. Precision and Accuracy: Precision ground for superior accuracy and smooth operation. The head revolves on a double bearing setup, which includes both ball and taper bearings, providing stable and reliable performance. Versatile Usage: Designed specifically for spinning large diameters of pipe or hollow workpieces. Suitable for a wide range of lathe operations involving pipes and hollow materials. Pipe Capacity: Capable of holding pipe diameters from 2" (50 mm) to 3" (75 mm), accommodating various pipe sizes. Shank Options: Available in both MT2 and MT3 shank sizes, offering compatibility with different lathe machines.
