Description
A thread gauge, also known as a screw gauge or pitch gauge, is a precision tool used to measure the pitch or distance between threads on screws, bolts, or nuts. It consists of a series of blades or teeth with standardized thread profiles that correspond to various thread sizes and pitches. Thread gauges are used to determine the pitch of a threaded fastener or to check the accuracy of threads during manufacturing or assembly processes.
Product Overview
-
Purpose: A thread gauge, also known as a thread pitch gauge or screw pitch gauge, is a precision tool used to measure the pitch or lead of a screw thread.
-
Application: Essential for machinists, metalworkers, engineers, and mechanics to identify thread sizes and verify the accuracy of threaded components.
Key Features
-
High Precision:
- Provides accurate measurement of thread pitch and lead.
- Ensures reliable identification of various thread types.
-
Durable Construction:
- Made from high-quality tool steel or hardened steel for longevity.
- Resistant to rust, corrosion, and wear, ensuring long-term durability.
-
Clear Markings:
- Laser-etched or engraved markings for easy readability and durability.
- Available in both metric and imperial units, covering a wide range of thread sizes.
-
Comprehensive Set:
- Typically includes multiple blades or leaves for different thread pitches.
- Covers a wide range of standard thread sizes, both internal and external.
-
Easy to Use:
- Simple, intuitive design for both novice and experienced users.
- Blades or leaves are easily fanned out and locked in position for use.
-
Compact and Lightweight:
- Portable design for easy handling and transport.
- Ideal for use in the field, workshop, or at home.
-
Versatile Measurement:
- Suitable for measuring threads on screws, bolts, nuts, and other threaded components.
- Can be used for both identification and verification purposes.
Benefits
-
Improved Accuracy: Provides precise thread measurements, ensuring high-quality workmanship.
-
Versatility: Suitable for a wide range of applications in different fields such as machining, automotive repair, and engineering.
-
Durability: Built to last with high-quality materials that withstand regular use in various environments.
-
Ease of Use: User-friendly design with clear markings and smooth operation.
-
Portability: Compact and lightweight design makes it easy to carry and store.

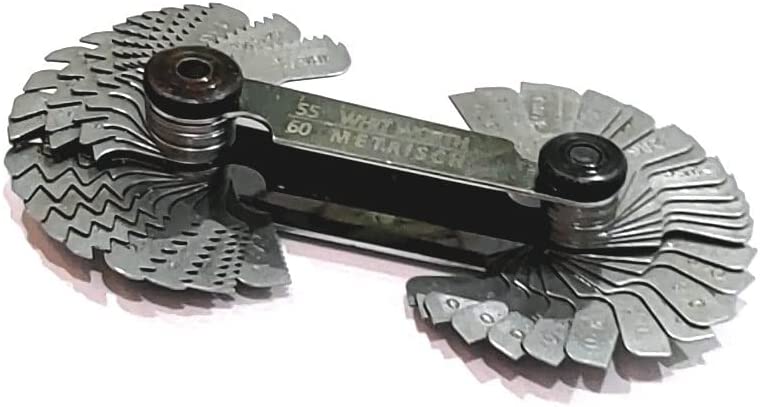

Specifications
-
Material: High graded alloy tool steel.
-
Number of Blades: 51
-
Degree British whitworth BSW: 55
- Degree metric thread pitch: 60
Ideal For
- Machinists
- Metalworkers
- Engineers
- Mechanics
- DIY enthusiasts
