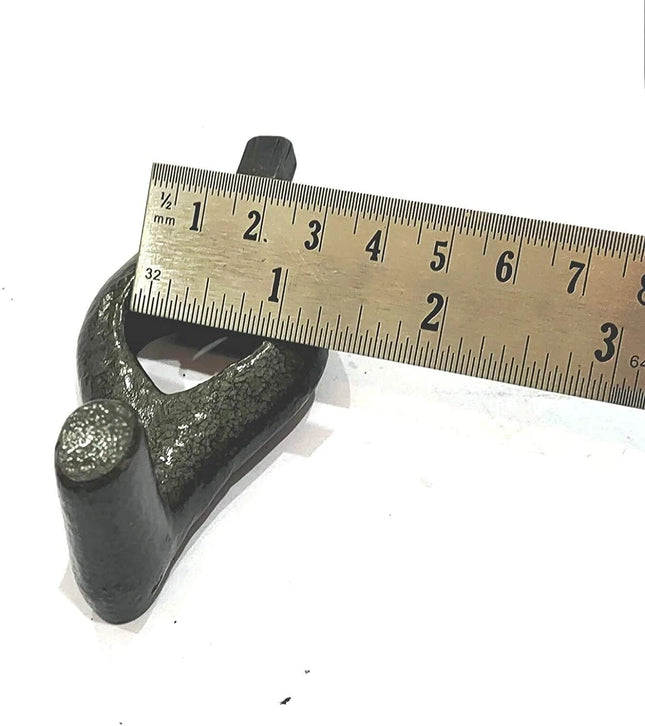

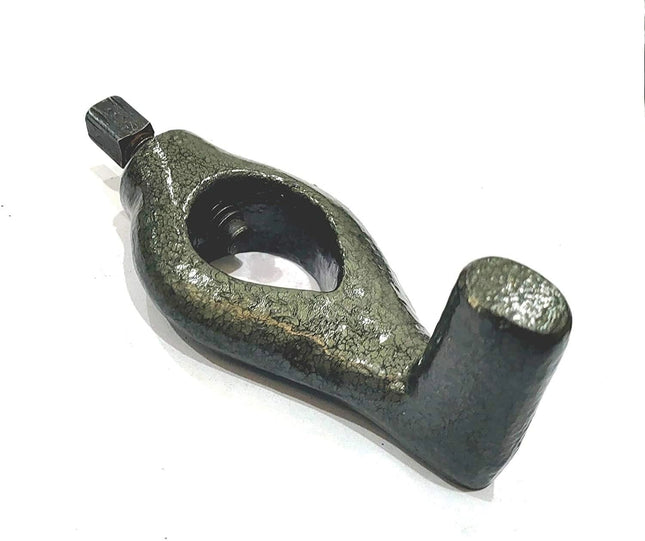

A high-grade cast iron bent-style lathe dog is a device used in metalworking on a lathe machine. Its primary purpose is to hold a workpiece securely in place while it's being machined. The lathe dog typically consists of two parts: a body that clamps onto the workpiece, and a tail that fits into a slot on the lathe's driving plate or faceplate. This arrangement allows the workpiece to rotate along with the lathe spindle, enabling precise cutting and shaping operations. The lathe dog helps prevent the workpiece from rotating independently, ensuring accuracy and consistency in machining processes.. Here's a detailed description: Material: Constructed from high-grade cast iron, ensuring durability, strength, and resistance to wear and tear even under heavy usage. Design: The bent-style design typically features a curved or angled shape, allowing it to securely grip the workpiece while minimizing interference with the cutting tool or lathe components. Jaws: Equipped with strong, precision-machined jaws that provide a firm grip on the workpiece without causing damage. The jaws may have serrated surfaces to enhance grip and prevent slippage during machining. Adjustability: Some models may feature adjustable jaws or clamping mechanisms to accommodate various sizes of workpieces, offering versatility in application. Accuracy: Designed with precision tolerances to ensure accurate centering and alignment of the workpiece, resulting in precise machining operations and high-quality finished products. Compatibility: Designed to fit specific lathe spindle sizes and configurations, ensuring compatibility with a wide range of lathes and machining setups. Surface Finish: Finished with smooth surfaces and edges to minimize friction and wear on the workpiece while ensuring ease of installation and removal. Heat Resistance: Capable of withstanding high temperatures generated during machining processes without deformation or loss of gripping effectiveness. Size Range: Available in various sizes to accommodate different workpiece diameters and configurations, providing flexibility for diverse machining requirements. Safety Features: May include features such as safety stops or guards to prevent accidental contact with rotating parts during operation, ensuring operator safety. Overall, a high-grade cast iron bent-style lathe dog is an essential tool for machinists and metalworkers, offering reliable performance, precision, and durability in a wide range of turning applications. Internal ref.BA

Read more less

A high-grade cast iron bent-style lathe dog is a device used in metalworking on a lathe machine. Its primary purpose is to hold a workpiece securely in place while it's being machined. The lathe dog typically consists of two parts: a body that clamps onto the workpiece, and a tail that fits into a slot on the lathe's driving plate or faceplate. This arrangement allows the workpiece to rotate along with the lathe spindle, enabling precise cutting and shaping operations. The lathe dog helps prevent the workpiece from rotating independently, ensuring accuracy and consistency in machining processes.. Here's a detailed description: Material: Constructed from high-grade cast iron, ensuring durability, strength, and resistance to wear and tear even under heavy usage. Design: The bent-style design typically features a curved or angled shape, allowing it to securely grip the workpiece while minimizing interference with the cutting tool or lathe components. Jaws: Equipped with strong, precision-machined jaws that provide a firm grip on the workpiece without causing damage. The jaws may have serrated surfaces to enhance grip and prevent slippage during machining. Adjustability: Some models may feature adjustable jaws or clamping mechanisms to accommodate various sizes of workpieces, offering versatility in application. Accuracy: Designed with precision tolerances to ensure accurate centering and alignment of the workpiece, resulting in precise machining operations and high-quality finished products. Compatibility: Designed to fit specific lathe spindle sizes and configurations, ensuring compatibility with a wide range of lathes and machining setups. Surface Finish: Finished with smooth surfaces and edges to minimize friction and wear on the workpiece while ensuring ease of installation and removal. Heat Resistance: Capable of withstanding high temperatures generated during machining processes without deformation or loss of gripping effectiveness. Size Range: Available in various sizes to accommodate different workpiece diameters and configurations, providing flexibility for diverse machining requirements. Safety Features: May include features such as safety stops or guards to prevent accidental contact with rotating parts during operation, ensuring operator safety. Overall, a high-grade cast iron bent-style lathe dog is an essential tool for machinists and metalworkers, offering reliable performance, precision, and durability in a wide range of turning applications. Internal ref.BA

Read more less

In simple terms, a form tool is used in manufacturing to shape metal or other materials into specific, often complex shapes with precision and consistency. It's like a specialized tool that creates detailed patterns or contours on a workpiece, helping to produce custom parts efficiently. Elevate your turning game with the HSS M2 Grade Lathe Form Tool Set, the ultimate companion for precision machining on your lathe. Crafted from high-speed steel (HSS) of M2 grade, this set ensures durability, sharpness, and longevity, making it an indispensable addition to your workshop. Key Features: Premium Quality Materials: Constructed from M2 grade high-speed steel, these form tools are engineered to withstand the demands of heavy-duty machining, providing superior performance and reliability. Versatile Form Options: This set includes a variety of form tools, allowing you to create an array of shapes and profiles with ease. From chamfers to radii, grooves to threads, tackle any turning task with confidence and precision. Precision Machining: Each tool is meticulously ground and honed to razor-sharp edges, ensuring clean cuts and smooth finishes on every workpiece. Experience unmatched accuracy and consistency in your lathe operations. Ergonomic Design: The ergonomic handles provide a comfortable grip and precise control, minimizing fatigue during extended machining sessions. Whether you're a professional machinist or a hobbyist enthusiast, these tools are designed to enhance your productivity and workflow. Wide Compatibility: Compatible with a variety of lathe setups, these form tools are suitable for use with both manual and CNC lathes. Expand your machining capabilities and unleash your creativity with the HSS M2 Grade Lathe Form Tool Set. Invest in quality craftsmanship and precision machining with the HSS M2 Grade Lathe Form Tool Set. Transform your turning projects into works of art and achieve unparalleled results with every cut.

Read more less

A test bar is used to evaluate the mechanical properties and quality of materials. It helps determine characteristics such as strength, durability, and performance, ensuring that the materials meet specific standards and are suitable for their intended applications. Test bars are essential in industries like manufacturing, construction, and metallurgy for quality control, research, and development, as well as for calibrating testing equipment. Introducing the Lathe Tailstock Alignment Mendral Test Bar, your go-to solution for precision engineering on the lathe. Crafted with meticulous attention to detail, this test bar is designed to ensure optimal alignment of your lathe tailstock, guaranteeing unparalleled accuracy in your machining operations. Key Features: Superior Precision: Engineered from high-grade steel, this test bar delivers exceptional accuracy, allowing you to achieve precise alignment of your lathe tailstock with ease. Durable Construction: Built to withstand the rigors of daily use in the workshop, the Mendral Test Bar boasts durability and reliability, ensuring long-lasting performance. Easy Alignment Checks: With its user-friendly design, performing alignment checks is a breeze. Simply insert the test bar into your lathe chuck or collet and follow the straightforward instructions for precise alignment adjustments. Versatile Compatibility: Compatible with a wide range of lathe setups, this test bar seamlessly integrates into your existing equipment, catering to the needs of both professionals and hobbyists alike. Elevate Your Machining Experience: Whether you're a seasoned machinist striving for perfection or a hobbyist enthusiast seeking to enhance your skills, the Mendral Test Bar empowers you to take your machining endeavors to new heights of precision and excellence. Invest in the Lathe Tailstock Alignment Mendral Test Bar today and experience the difference it makes in optimizing your lathe performance. {Internal Reference: HM}

Read more less

A lathe knurling tool is primarily used to create a textured surface on a workpiece, typically made of metal. This process, known as knurling, serves multiple functions. Firstly, it enhances grip by adding ridges to the surface, making it easier to handle or manipulate the workpiece. This is particularly useful for components like handles on tools or knobs on machinery where a secure grip is essential. Secondly, knurling can serve decorative purposes, adding visual interest to the finished product. Additionally, in industrial settings, knurling is sometimes used for identification purposes, providing a distinctive texture that helps differentiate between similar parts. In operation, the knurling tool is mounted on the lathe's tool post and pressed against the rotating workpiece to imprint the desired pattern onto its surface. Different knurling patterns, such as straight, diamond, or diagonal, can be achieved by using various knurling wheels or adjusting the tool setup accordingly. Single Knurl - Linear Pitch - 1/2" x 1/2" x 4"  Made of Tool Steel - Holder Size : 1/2" x 1/2" x 4" (12.7 mm x 12.7 mm x 100 mm) Knurl Dimension: 3/4" x 1/4" x 1/4" (19 mm x 6.35 mm x 6.35 mm) Single Knurl - Linear Pitch - 3/4" x 3/4' x  5" Made of Tool Steel - Holder Size : 3/4" x 3/4" x 5" (19 mm x 19 mm x 127 mm) Knurl Dimension: 3/4" x 3/8" x 1/4" (19mm x 9.52mm x 6.35mm) Double End Wheel (Linear Pitch) Holder Size (In Inches): 1/2 x1/2 x 5" Holder Size (In mm): 12.7 x 12.7 x 125 mm Knurl Dim. (In Inches) : 3/4 x 1/4 x 1/4 " Knurl Dim. (In mm) : 19 x 6.35 x 6.35 mm Pivot Head-2 Wheel Holder Size : 1/2 x 1/2 x 4-1/2" Inch ( 12.7 x 12.7 x 115 mm), Knurl Dimensions: 3/4" Diameter x 3/8 Width x 1/4" (Hole) Inches (19 x 9.52 x 6.35 mm) Comes fitted with Hardened knurls , made out of quality alloy steel grade of EN31 H Type Knurling Tool 2" Inch/ 50 mm Adjustable H Type Spring loaded clamp type knurling tool. Maximum Capacity- 2" ( 50 mm) Shank size 3/8" Square x 3-1/8" Inch Long II Knurl Dimensions- 3/4" (Diameter) x 3/8" (Wide) x 1/4" (Hole) Inches A spare smaller rod with an extra spring is to reduce the capacity of the knurling tool by re-bolting the knurling arms in the lower inner holes. Knob Knurling Tool (3-25 mm) Holder Size (Inch) : 3/8" x 3/8" Square Holder Size x 3" Long Tail Holder Size in MM : 16 x 9.5 x 75 mm. Knurl Dim.(mm) : 19 x 9.5 x 6.35 mm Knurling Capacity (mm) : 3-25 mm. Pitch: Medium Clamp Type Knurling Tool with knob. This design helps reducing the load on the lathe spindle bearings compared to any other standard knurling tool V Knurling Tool (5-20 mm) Holder size : 3/8" x 3/8" x 2 -1/4" Paired with LH & RH diagonal lines to form a Diamond Pattern. Hardened EN31 Grade Tool Steel Knurls of size - 3/4" x 3/8" x 1/4" bore. Can be clamped in Standard Holder of the Quick change tool post on the lathe. Quality Tool Steel Spring Action Clamp Type Knurling Tool Capacity 5-20 mm 6 Wheel -Multi Pitch Pattern Holder Size : 3/8 x 7/8 x 5-1/2" Inches ( 9.5 x 22 x 140 mm ). Knurl Size : 3/4" x 3/8" x 1/4" (Bore) This knurling tool has 3 set of knurl pair of different pitches which gives different pattern as required Comes fitted with Hardened knurls , made out of quality alloy steel grade of EN31 Combo 1-  (Set of 2) 1 Wheel and 2 Wheel Pivot Head This combo contains one single wheel knurling tool (3/4" x 3/4" x 5") and tool and 2 wheel pivot head knurling tool Combo 2- (Set of 2) Pack of 2 Pc with Spare Knurls This combo contains H-Type clamp knurling tool 2" Inch/ 50 mm and V-Type clamp knurling tool with spare 4 knurls Combo 3- (Set of 3) 1 Wheel + 2 Wheels Knob + 6 Wheels Multi Pattern This combo contains a Single Wheel Straight Line Linear Pattern Knurling Tool Holder (1/2" x 1/2" x 4"), Clamp Type Knurling Tool with an adjusting knob and 6 Wheels multi Head lathe Knurling Tool Combo 4- (Set of 3) 1 Wheel + 2 Wheels Pivot Head + 6 Wheels Multi Pattern This combo contains a Single Wheel Straight Line Linear Pattern Knurling Tool Holder (1/2" x 1/2" x 5"), Pivot Head Knurling Tool and 6 Wheels multi Head lathe Knurling Tool Combo 5- (Set of 4) 1 Wheel + 2 Wheels Pivot Head +2 Wheels Knob + 2 Wheel H-Type + V-Clamp Type + 6 Wheels Multi Pattern This combo contains a Single Wheel Straight Line Linear Pattern Knurling Tool Holder (1/2" x 1/2" x 5"), Pivot Head Knurling Tool, Sturdy V clamp type knurling tool and 6 Wheels multi Head lathe Knurling Tool Combo 6- (Set of 6) 1 Wheel + 2 Wheels Pivot Head + V-Clamp Type + 6 Wheels Multi Pattern This combo contains a Single Wheel Straight Line Linear Pattern Knurling Tool Holder (1/2" x 1/2" x 5"), Pivot Head Knurling Tool, Sturdy V clamp type knurling tool, Clamp Type Knurling Tool with an adjusting knob, Adjustable H Type Spring loaded clamp type knurling tool and 6 Wheels multi Head lathe Knurling Tool

Read more less

Available In Two Different Sizes The knurling tool holder is designed for precision and durability, catering to various machining requirements. It is available in two size options, allowing flexibility based on the user's needs: 10 × 10 × 100 mm (Black Finish): A compact and precise option suitable for smaller workpieces and applications requiring finer control. 12 × 12 × 100 mm (Black Finish): A slightly larger holder for enhanced stability and strength, ideal for more robust machining operations. Both sizes feature a black finish, providing increased durability, wear resistance, and a professional appearance in the workshop. Crafted From High-Quality Tool Steel This knurling tool is manufactured using premium high-quality tool steel, known for its exceptional strength, wear resistance, and durability. The tool steel composition ensures: Superior Hardness – Maintains sharp knurling edges for long-lasting performance. High Wear Resistance – Withstands repeated use without deformation or excessive wear. Excellent Toughness – Resists chipping and breakage, even under high-pressure applications. Corrosion Resistance – Designed to endure harsh working conditions, ensuring longevity. Knurls Size Offered in this tool This knurling tool comes with three high-speed steel (HSS) rollers, offering a range of diamond and straight knurl patterns in different pitches: Coarse Knurl: Ideal for heavy-duty applications requiring a deep grip. Medium Knurl: Provides a balanced texture suitable for general-purpose knurling. Fine Knurl: Perfect for precision work, creating a subtle yet effective pattern. These versatile knurling options allow machinists to customize surface textures on workpieces, enhancing grip, aesthetics, and mechanical fit. Use of Knurling Tool A single-wheel knurling tool is primarily used for creating textured patterns on cylindrical surfaces. It is commonly used in metalworking, machining, and fabrication industries. Key Applications: Improving Grip: Adds a textured surface to improve handling and prevent slipping on tools, knobs, and machine parts. Aesthetic Enhancement: Produces decorative patterns on metal components. Prepping for Press-Fits: Helps increase surface friction for better mechanical bonding in press-fit applications. Material Hardening: The knurling process can slightly harden the surface, enhancing wear resistance. How It Works: The single-wheel knurling tool is mounted on a lathe. As the wheel rotates against the workpiece, it embosses a knurled pattern. The pressure applied determines the depth and clarity of the knurl. Versatile Knurling Tool – Precision, Durability & Customizable Patterns The knurling tool holder is available in two sizes (10×10×100 mm & 12×12×100 mm, Black Finish), ensuring flexibility for various machining needs. Made from high-quality tool steel, it offers superior hardness, wear resistance, and durability. It includes three HSS rollers (coarse, medium, fine) in diamond and straight patterns, allowing versatile knurling. Used in metalworking, it enhances grip, aesthetics, and press-fit applications by embossing patterns on workpieces via lathe operation. The knurling tool holder is available in two sizes to suit different machining needs: 10 × 10 × 100 mm & 12 × 12 × 100 mm. This knurling tool comes with three high-speed steel (HSS) rollers, offering a range of diamond and straight knurl patterns in different pitches. Made from high-quality tool steel A single-wheel knurling tool is primarily used for creating textured patterns on cylindrical surfaces. About the BrandBuyohlic is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, Buyohlic is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, Buyohlic's products are sold in more than 200 countries.

Read more less

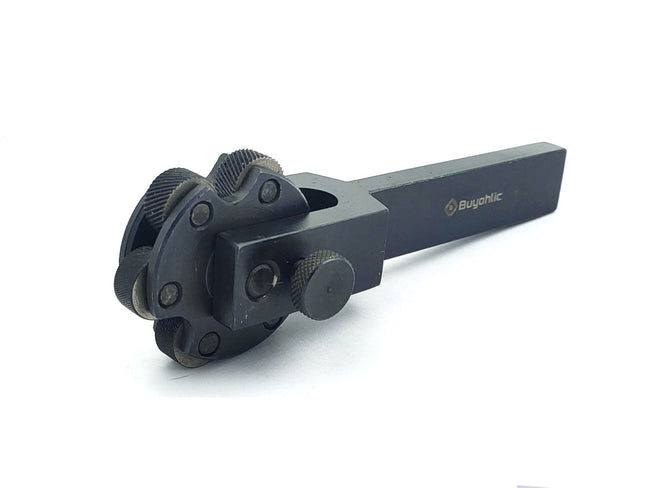

Available In Two Different Sizes: The 6-Wheel Multi-Head Lathe Knurling Tool is built for convenience and speed in metalworking operations. It features a rotating head with six knurling wheels, allowing quick changes between patterns without swapping tools—ideal for high-volume or varied jobs. It comes in two configurations: Holder Size: 3/8" x 7/8" x 5-1/2" (9.5 x 22 x 140 mm) Knurl Wheel Size: 5/8" x 5/16" x 7/32" Holder Size: 1/2" x 1-1/8" x 6-1/2" Knurl Wheel Size: 3/4" x 3/8" x 1/4" Crafted from high-Quality Tool Steel This knurling tool is manufactured using premium high-quality tool steel, known for its exceptional strength, wear resistance, and durability. The tool steel composition ensures: Superior Hardness – Maintains sharp knurling edges for long-lasting performance. High Wear Resistance – Withstands repeated use without deformation or excessive wear. Excellent Toughness – Resists chipping and breakage, even under high-pressure applications. Corrosion Resistance – Designed to endure harsh working conditions, ensuring longevity Versatile Knurl Dimensions This 6-Wheel Multi-Head Knurling Tool offers flexibility with two knurl wheel size options: 5/8" x 5/16" x 7/32" – Fits holder size 3/8" x 7/8" x 5-1/2" 3/4" x 3/8" x 1/4" – Fits holder size 1/2" x 1-1/8" x 6-1/2" Each wheel features a Medium pitch with Left-Hand (LH) and Right-Hand (RH) diagonal lines, forming a sharp and consistent diamond pattern on round workpieces. The tool supports 0.5 mm, 1.0 mm, and 1.5 mm pitch sizes, allowing for fine, medium, and coarse knurling, making it ideal for a wide range of machining tasks. Use Of Knurling Tool A 6-wheel knurling tool is used on a lathe machine to create textured patterns on cylindrical metal workpieces. Here's how it's used: Use of 6-Wheel Knurling Tool: Purpose: Creates diamond-patterned textures for improved grip on parts like knobs, handles, and fasteners. 6 Wheels Function: Comes with 3 pairs of Left-Hand (LH) and Right-Hand (RH) knurls. You can easily switch between fine (0.5 mm), medium (1.0 mm), and coarse (1.5 mm) textures. Setup: Mounted on a tool post of the lathe; ensure it matches the tool post capacity. Operation: As the lathe rotates the workpiece, the knurling tool is fed slowly into the material. The spring-loaded clamp applies even pressure, pressing the wheels into the workpiece to roll the pattern without cutting. Advantages: Provides versatile knurling options in one tool. Reduces setup time by eliminating the need to change individual wheels. Suitable for both professional and hobbyist machinists. Versatile Knurling Styles in One Tool Coarse Pattern Appearance: Large, wide-spaced diamond shapes. Pitch: Low (1.5 mm). Use: Ideal for heavy-duty applications where a strong grip is essential—like tool handles or industrial knobs. Advantages: High traction, easy to grip even with gloves or oily hands. Medium Pattern Appearance: Standard diamond size, evenly spaced. Pitch: Medium (1.0 mm). Use: Common for general-purpose components, combining good grip with a neat appearance. Advantages: Versatile—works for most applications requiring texture without being too aggressive. Fine Pattern Appearance: Small, tightly spaced diamonds. Pitch: High (0.5 mm). Use: Used where precision and aesthetics matter more—such as instrument knobs or decorative pieces. Advantages: Smooth feel, detailed texture, great for smaller parts. Each pattern is formed using Left-Hand (LH) and Right-Hand (RH) diagonal knurls that intersect to create a clean, diamond-shaped crosshatch texture on the cylindrical surface. The pitch (0.5 mm, 1.0 mm, or 1.5 mm) determines whether the result is fine, medium, or coarse. Engineered for Efficiency: 6-Wheel Knurling Tool The 6-Wheel Multi-Head Lathe Knurling Tool offers fast pattern switching with its rotating head and six knurls—ideal for high-volume machining. Available in two holder sizes with matching knurl wheels, it supports 0.5, 1.0, and 1.5 mm pitches for fine to coarse diamond textures. Made from premium tool steel, it ensures durability and precision. The spring-loaded clamp ensures even pressure and easy operation, making it perfect for professionals and hobbyists alike. Quick Pattern Switching – Rotating head with 6 knurls allows fast changes between fine, medium, and coarse textures. Dual Size Options – Two holder and knurl sizes for compatibility with various lathe setups. Precise Diamond Patterns – LH & RH diagonal knurls create clean, consistent textures. Durable Tool Steel – Built from high-quality steel for strength, wear resistance, and long life. User-Friendly Design – Spring-loaded clamp ensures even pressure and easy operation. About the Brand Buyohlic is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, Buyohlic is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, Buyohlic's products are sold in more than 200 countries

Read more less

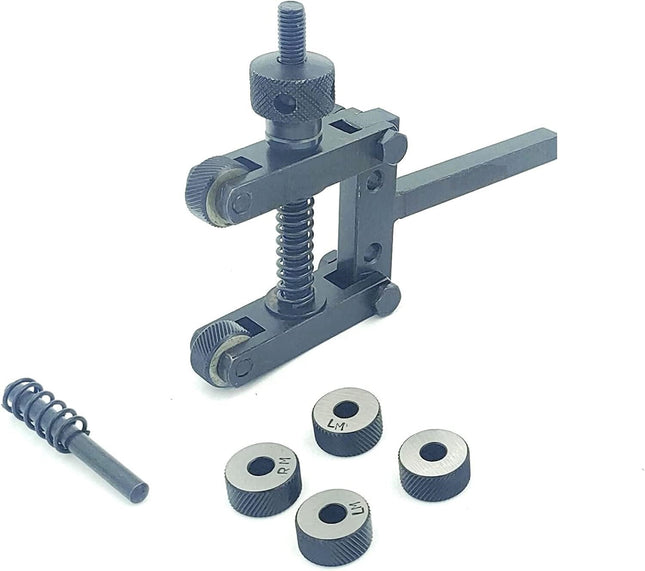

Clamp Type Knurling Tool 3-25 mm Capacity Available in two different shank sizes The holder is available in two size variants, each designed for precision and durability. Details for both sizes are as follows: Size 1:Thickness: 3/8 inchShank Width (for holding): 12 mmTail Length: 3 inches (approx. 75 mm) Size 2:Dimensions: 5/8 inch x 3/8 inch x 3 inchesMetric Size: 16 mm x 9.5 mm x 75 mmShank Width: 16 mm These holders are ideal for various industrial applications, offering a strong grip and reliable performance. Medium pitch knurl Knurl Dimensions: 19 mm (Diameter) x 9.5 mm (Width) x 6.35 mm (Bore) Working Capacity: Suitable for workpieces with diameters ranging from 3 mm to 25 mm Knurl Pitch: Medium Pattern: Left-Hand (LH) and Right-Hand (RH) diagonal lines intersect to form a clean, well-defined diamond structure Clamp Capacity Clamp Capacity: 3 mm to 25 mm (available in both sizes) Type: Clamp-style knurling tool designed for secure and stable operation This tool is engineered for precision knurling on cylindrical surfaces. With a wide clamp capacity and reliable grip, it is suitable for various machining applications, ensuring consistent and high-quality diamond patterns. Crafted from high-Quality Tool Steel This knurling tool is manufactured using premium high-quality tool steel, known for its exceptional strength, wear resistance, and durability. The tool steel composition ensures: Superior Hardness – Maintains sharp knurling edges for long-lasting performance.High Wear Resistance – Withstands repeated use without deformation or excessive wear.Excellent Toughness – Resists chipping and breakage, even under high-pressure applications.Corrosion Resistance – Designed to endure harsh working conditions, ensuring longevity. Use of This Knurling Tool To create textured patterns (like diamond or straight lines) on cylindrical surfaces. Mostly used to improve grip on metal handles, knobs, and shafts. Mounting the Tool: Clamp the square shank of the tool into the lathe tool post. Ensure it's set at the correct height (center height of the workpiece). Positioning the Workpiece: Load the round workpiece in the chuck of the lathe securely. Adjusting the Tool: Use the top screw knob to apply even pressure to both knurling wheels. Make sure both wheels align evenly on either side of the workpiece. Starting the Lathe: Turn on the lathe at low to medium speed. Slowly feed the knurling tool into the rotating workpiece until the knurl wheels start engraving the pattern. Knurling Process: Maintain consistent pressure and slowly move the tool along the length if required. A clear, criss-cross or straight knurl pattern will begin to form. Finishing: Stop the machine, retract the tool, and inspect the knurl for sharpness and consistency. Clamp-Style Knurling Tool for Precision Machining – Dual Size Options, Durable Tool Steel Construction This precision clamp-style knurling tool is available in two sizes with shank widths of 12 mm and 16 mm. It features durable tool steel construction for superior hardness, wear resistance, and toughness. With a clamp capacity of 3–25 mm, it creates clean diamond patterns using LH & RH knurls (19x9.5x6.35 mm). Ideal for industrial applications, it ensures stable, high-quality performance on cylindrical surfaces. Available in Two Sizes – Shank widths of 12 mm and 16 mm to suit various machine setups Precision Knurling – Medium pitch LH & RH knurls form clean, sharp diamond patterns Robust Tool Steel Build – High hardness, wear resistance, and durability under pressure Wide Working Range – Clamp capacity of knurling 3–25 mm Ideal for Industrial Use – Reliable performance on cylindrical workpieces in demanding environments About the Brand Buyohlic is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, Buyohlic is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, Buyohlic's products are sold in more than 200 countries.

Read more less

Use of product- A lathe knurling tool is primarily used to create a textured surface on a workpiece, typically made of metal. This process, known as knurling, serves multiple functions. Firstly, it enhances grip by adding ridges to the surface, making it easier to handle or manipulate the workpiece. This is particularly useful for components like handles on tools or knobs on machinery where a secure grip is essential. Secondly, knurling can serve decorative purposes, adding visual interest to the finished product. Additionally, in industrial settings, knurling is sometimes used for identification purposes, providing a distinctive texture that helps differentiate between similar parts. In operation, the knurling tool is mounted on the lathe's tool post and pressed against the rotating workpiece to imprint the desired pattern onto its surface. Different knurling patterns, such as straight, diamond, or diagonal, can be achieved by using various knurling wheels or adjusting the tool setup accordingly. Dimensions:- Maximum Capacity- 2" ( 50 mm) Shank size 3/8" Knurl Dimensions- 3/4" x 3/8" x 1/4" Alloy Steel Hardened Medium Pitch LH & RH diagonal lines knurls to form a Diamond Pattern This design helps reducing the load on the lathe spindle bearings compared to any other standard knurling tool Made of Quality Tool Steel Epoxy Black Finish for a Rust Free Life

Read more less

Holder Size of Knurling Tool The holder size of a knurling tool used on lathe machines. The tool features two knurling wheels designed to emboss patterns onto a rotating metal surface. The dimensions are clearly marked: it has a 3/8-inch shank height and width, making it suitable for tool posts that accept this size. The total length of the holder is 2-1/4 inches. A knurled knob on top adjusts pressure for uniform knurling. The compact size makes it ideal for precision work on smaller lathes. The tool is not meant to clamp but to press against the workpiece to create grip-enhancing textures. Knurl Size Explained-Grip and Pattern A knurling tool featuring 1mm pitch medium knurls, ideal for creating balanced grip patterns on cylindrical surfaces. The knurls are made from hardened EN31 grade tool steel, known for high wear resistance and durability. The knurl wheels have dimensions of 3/4" diameter, 3/8" width, and a 1/4" bore, making them compatible with various knurling holders. These medium knurls are perfect for general-purpose applications, offering a good blend of grip and surface finish. The tool is suitable for lathes and ensures consistent, clean pattern embossing on rotating metal parts. Clamp Capacity A spring-action clamp type knurling tool made of tool steel, designed for use on lathe machines. The highlighted feature is its clamp capacity of 5–20 mm, meaning it can effectively knurl cylindrical workpieces within that diameter range. The tool uses a spring-loaded mechanism to maintain consistent pressure on the rotating workpiece, ensuring even knurling without slippage. The two hardened knurl wheels emboss a textured pattern onto the metal surface to improve grip and appearance. Its compact size and adjustable design make it ideal for light to medium-duty knurling tasks on small components. Crafted from high-Quality Tool Steel This knurling tool is manufactured using premium high-quality tool steel, known for its exceptional strength, wear resistance, and durability. The tool steel composition ensures: Superior Hardness – Maintains sharp knurling edges for long-lasting performance. High Wear Resistance – Withstands repeated use without deformation or excessive wear. Excellent Toughness – Resists chipping and breakage, even under high-pressure applications. Corrosion Resistance – Designed to endure harsh working conditions, ensuring longevity. Compact & Durable Knurling Tool for Precision Lathe WorkThis compact knurling tool, made from premium tool steel, features 1mm pitch medium EN31 knurls for balanced grip on cylindrical surfaces. It fits 3/8" shanks, with a 2-1/4" holder length, and supports 5–20 mm workpiece diameters. The spring-action design ensures uniform pressure and clean, slip-free patterns. With superior hardness, wear resistance, and durability, it's ideal for precision knurling on smaller lathes in demanding environments. High-Quality Tool Steel – Built from premium-grade steel for exceptional strength and wear resistance. Precision Knurling – Features 1mm pitch medium EN31 knurls for clean, balanced patterns. Spring-Loaded Action – Ensures uniform pressure and slip-free operation on rotating workpieces. Compact Design – 3/8" shank and 2-1/4" length, ideal for small to mid-size lathes. Versatile Capacity – Clamps and knurls cylindrical parts ranging from 5 to 20 mm in diameter. Use Of V Clamp Knurling Tool This knurling tool is designed for use on lathe machines to create textured patterns on cylindrical metal workpieces. It features two hardened knurl wheels mounted on a spring-loaded clamp mechanism. When the tool is applied to a rotating workpiece, the wheels press into the surface to emboss a consistent pattern, such as a diamond or straight knurl. This pattern improves grip and enhances the appearance of metal components. The adjustable knurled knob allows the operator to regulate pressure, ensuring precise and uniform knurling. Ideal for both industrial and hobbyist lathe setups, this tool accommodates various workpiece diameters—typically ranging from 5 to 20 mm—making it versatile for a wide range of applications. It is especially useful in producing handles, knobs, and machine parts where a non-slip grip is essential. The durable construction using high-quality tool steel ensures long-lasting performance, even under repeated use and high-pressure conditions. About the Brand Buyohlic is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, Buyohlic is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, Buyohlic's products are sold in more than 200 countries.

Read more less

Use of product- A lathe knurling tool is primarily used to create a textured surface on a workpiece, typically made of metal. This process, known as knurling, serves multiple functions. Firstly, it enhances grip by adding ridges to the surface, making it easier to handle or manipulate the workpiece. This is particularly useful for components like handles on tools or knobs on machinery where a secure grip is essential. Secondly, knurling can serve decorative purposes, adding visual interest to the finished product. Additionally, in industrial settings, knurling is sometimes used for identification purposes, providing a distinctive texture that helps differentiate between similar parts. In operation, the knurling tool is mounted on the lathe's tool post and pressed against the rotating workpiece to imprint the desired pattern onto its surface. Different knurling patterns, such as straight, diamond, or diagonal, can be achieved by using various knurling wheels or adjusting the tool setup accordingly. Dimensions:-  Holder Size(Inch) : 1/2 x 1/2 x 4-1/2" Inches (12.7 x 12.7 x 115 mm) Knurl Dim.(inch) : 3/4 x 3/8 x 1/4" Inches ( 19 x 9.52 x 6.35 mm) Knurling Pitch of 1.0 mm, 1.5 mm & 2.0 mm Pattern possible with this set .LH & RH Diagonal Lines forms a Diamond Pattern

Read more less

2 Wheel Pivot Head Diamond Metric Pattern 1/2" Sq. Shank Medium Size of Pivot Head The knurling tool has a 1/2" square shank, making it ideal for small to medium-sized lathes. It features hardened alloy steel knurls, ensuring durability and precision for knurling operations. Crafted from high-Quality Tool Steel This Pivot Head is manufactured using premium high-quality tool steel, known for its exceptional strength, wear resistance, and durability. The tool steel composition ensures: Superior Hardness – Maintains sharp knurling edges for long-lasting performance. High Wear Resistance – Withstands repeated use without deformation or excessive wear. Excellent Toughness – Resists chipping and breakage, even under high-pressure applications. Corrosion Resistance – Designed to endure harsh working conditions, ensuring longevity. Pivot Head's Feature This knurling tool has a 1mm pitch medium knurl, meaning the spacing between the knurling ridges is 1mm, creating a balanced texture. It comes with a 1/2" square shank, suitable for small to medium-sized lathes. The tool features both left-hand (LH) and right-hand (RH) diagonal line knurls, which intersect to form a diamond pattern for improved grip and aesthetic finish. Use of Pivot Head The pivot head in a knurling tool allows the knurling wheels to self-align with the workpiece, ensuring even pressure distribution. This helps to:Reduce tool and workpiece stress by preventing excessive force on one side.Improve knurling accuracy by maintaining uniform contact.Extend tool life by minimizing uneven wear on the knurling wheels.Enhance surface finish by producing a consistent knurl pattern.It is especially useful for knurling on small to medium-sized lathes, where maintaining precision is critical. Precision Knurling Tool with Pivot Head – Durable, Accurate & Ideal for Small to Medium Lathes This knurling tool features a 1/2" square shank, ideal for small to medium-sized lathes. It has hardened alloy steel knurls for durability and precision. The pivot head, made from high-quality tool steel, offers superior hardness, wear resistance, toughness, and corrosion resistance. With a 1mm pitch, it creates a diamond knurl pattern using LH & RH diagonal knurls. The pivot head self-aligns, reducing stress, improving accuracy, and ensuring a consistent finish. Durable Construction – Made from high-quality tool steel for superior strength and wear resistance. Precision Knurling – 1mm pitch medium knurl with LH & RH diagonal knurls for a sharp diamond pattern. Self-Aligning Pivot Head – Ensures even pressure distribution for accurate and consistent knurling. Versatile Compatibility – 1/2" square shank, ideal for small to medium-sized lathes. Extended Tool Life – Resistant to wear, deformation, and corrosion for long-lasting performance. About the BrandBuyohlic is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, Buyohlic is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, Buyohlic's products are sold in more than 200 countries.
